Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2009
>>
135i Coupe (E82) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

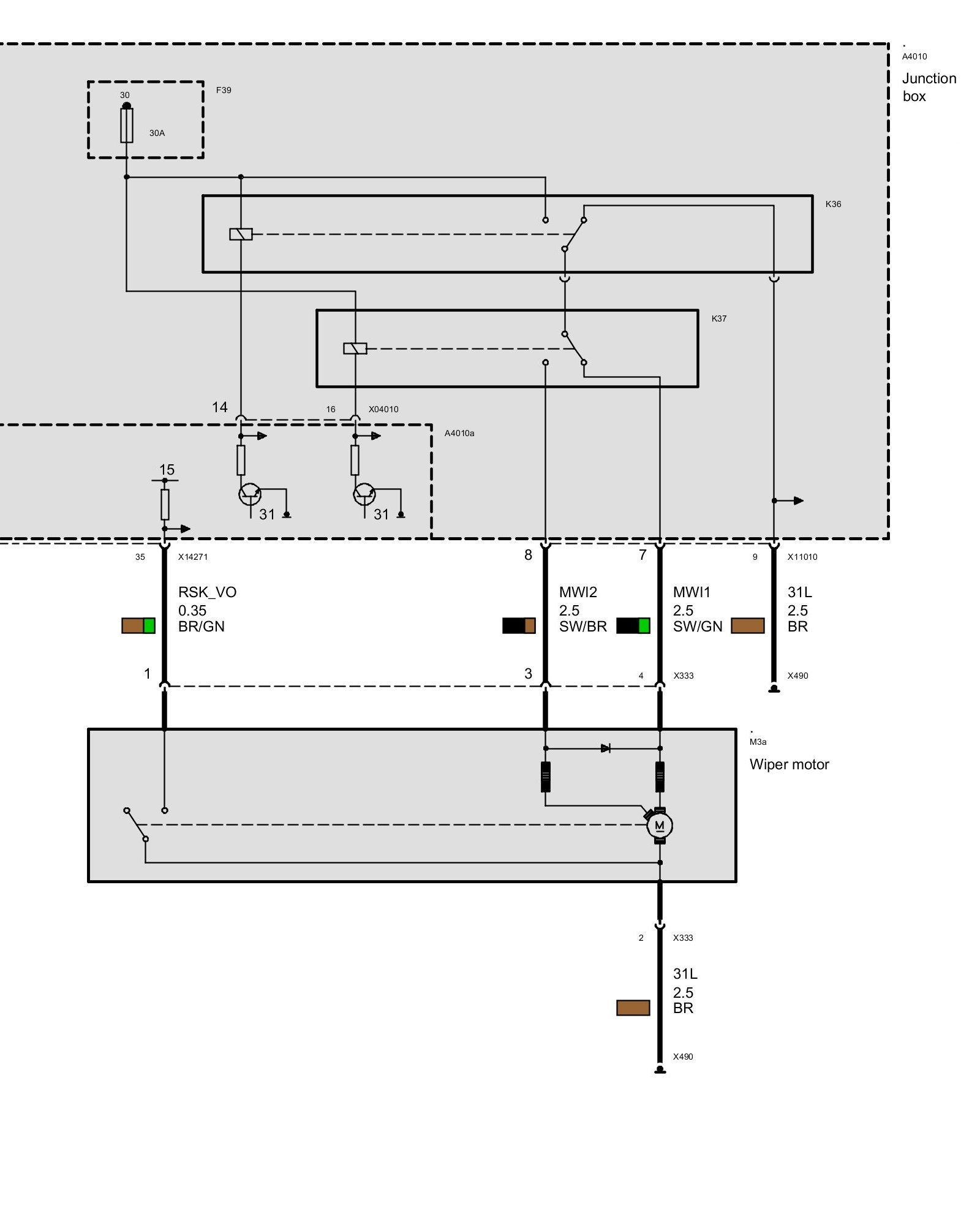

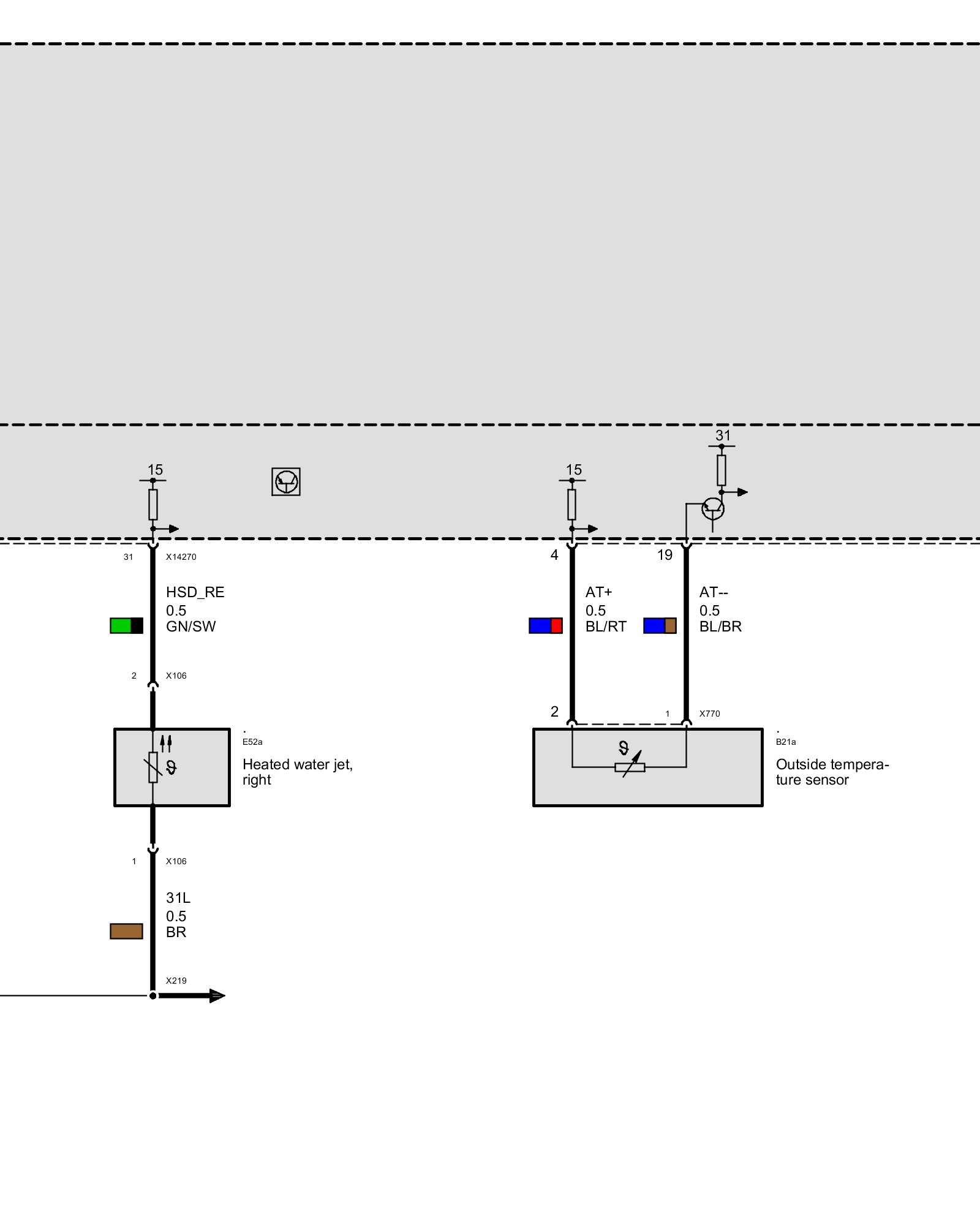

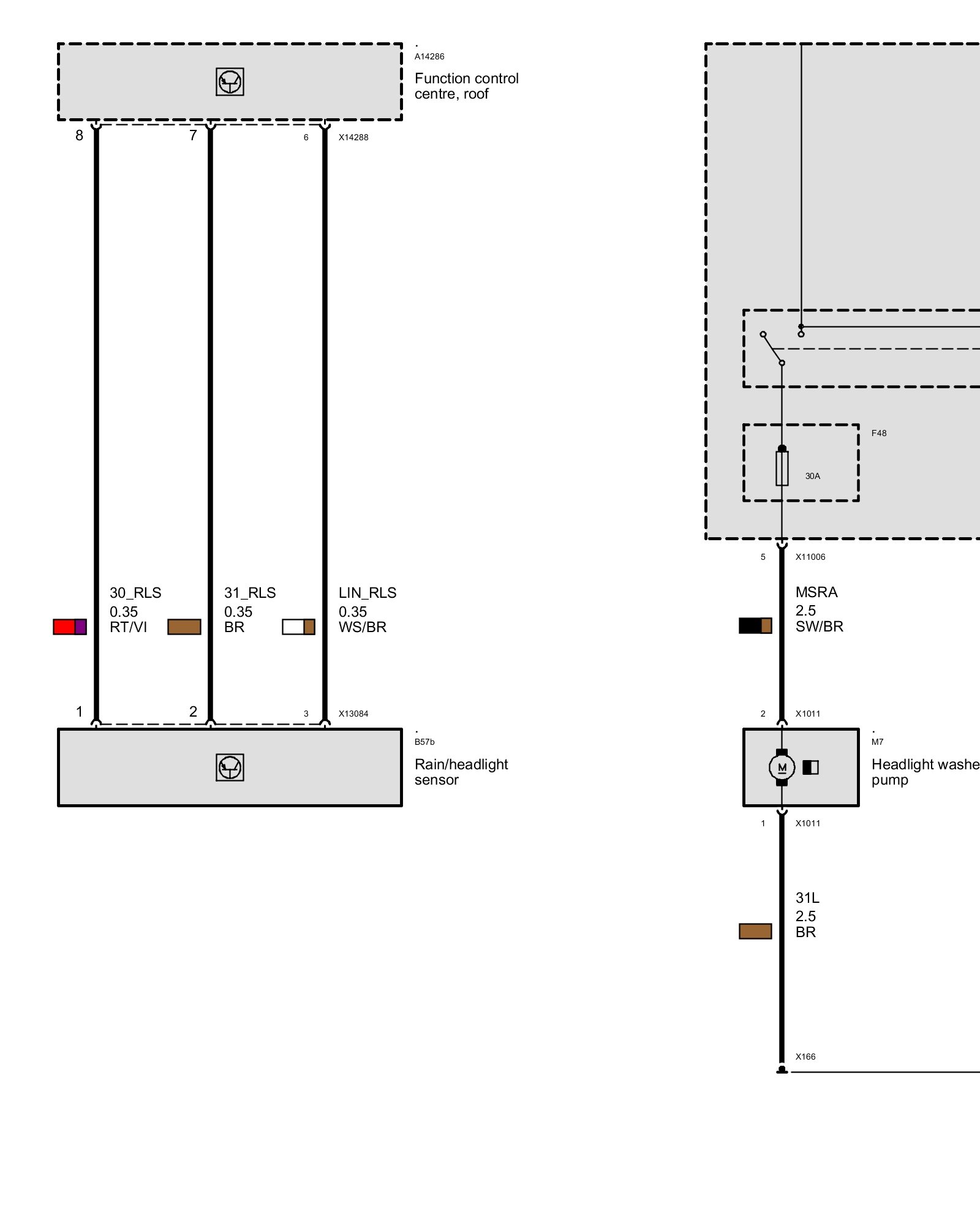

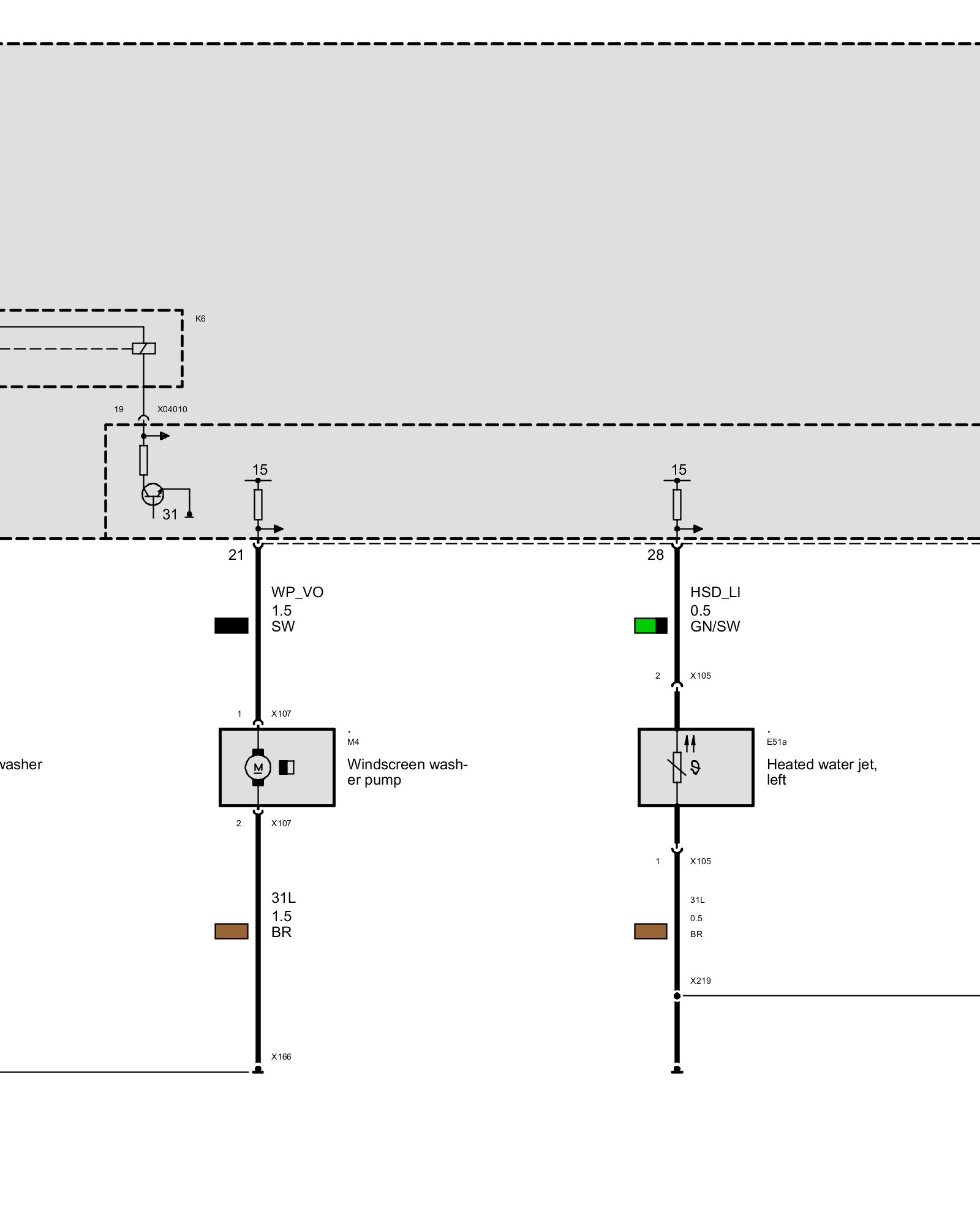

Wipe-Wash Control
Up to 09/07
As of 09/07
