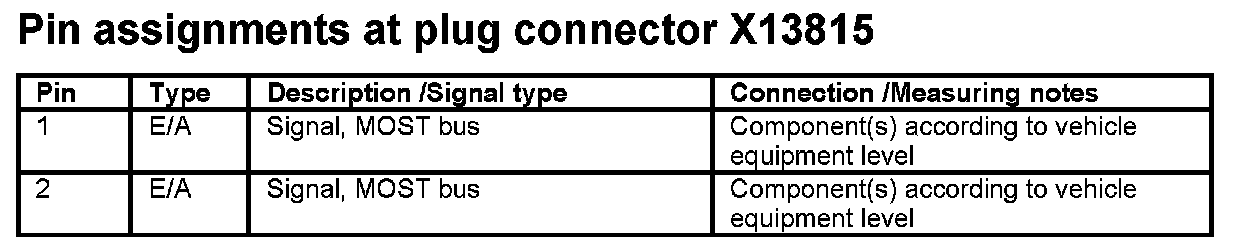

X13815
>>

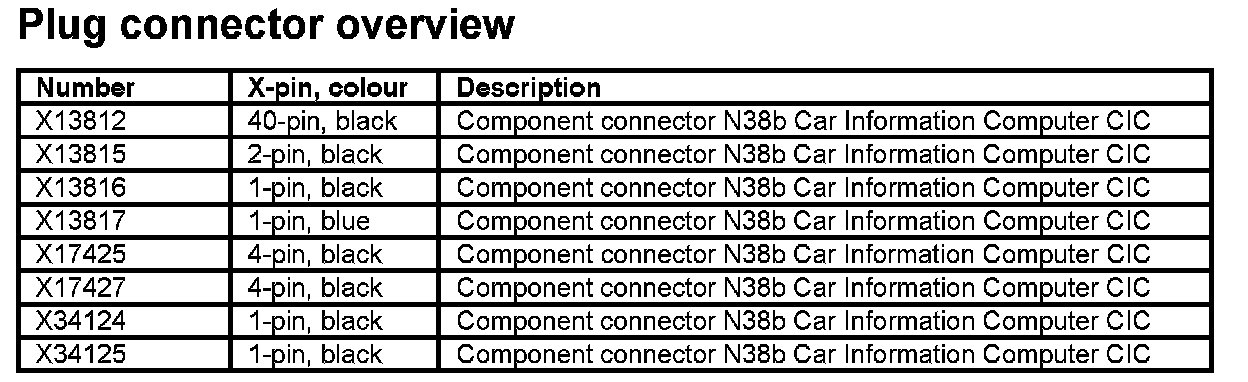

N38b Car Information Computer CIC
N38b Car Information Computer CIC
X13815
N38b Car Information Computer CIC
