Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2009
>>
335i Coupe (E92) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Restraints and Safety Systems
>>
Seat Belt Positioner

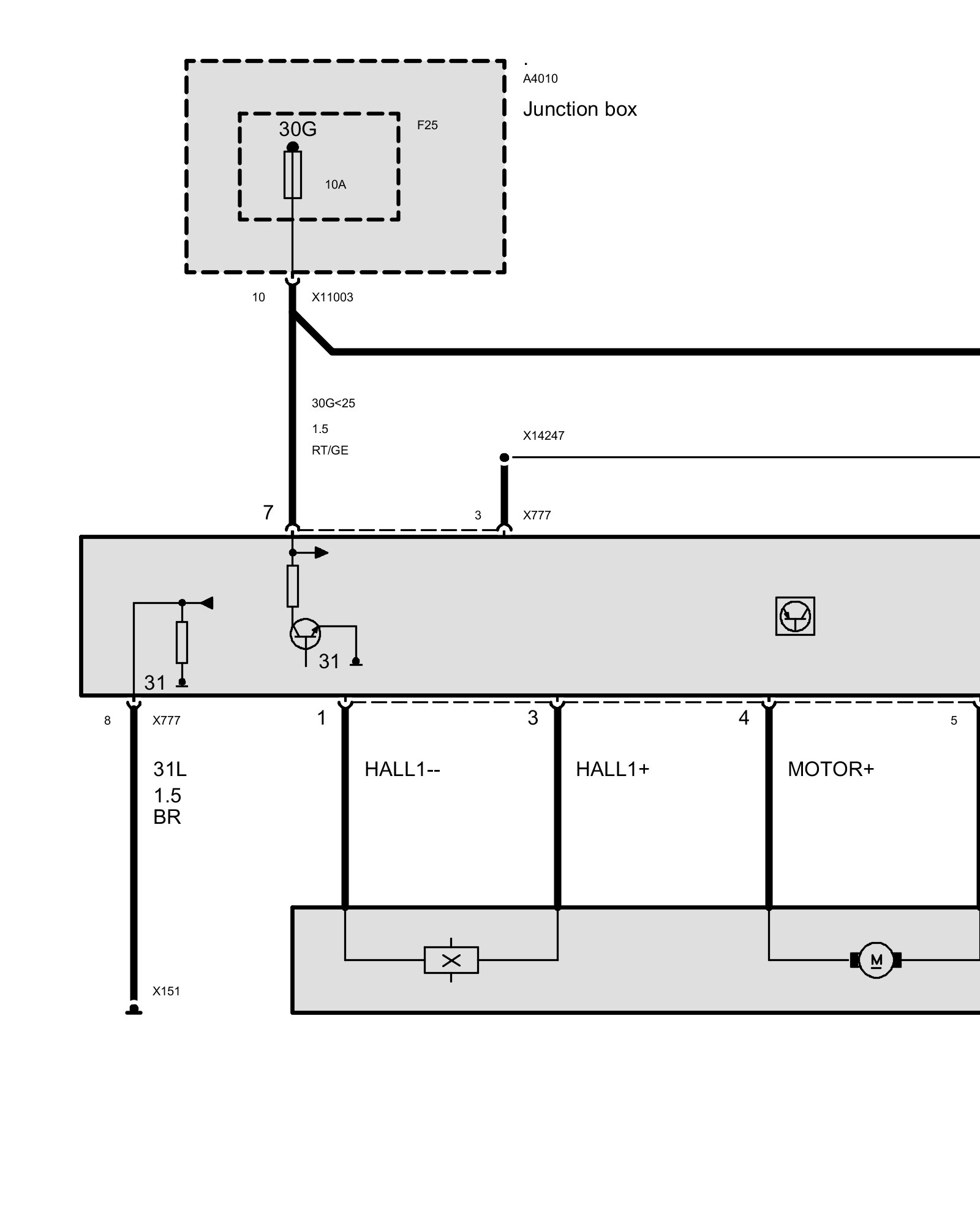

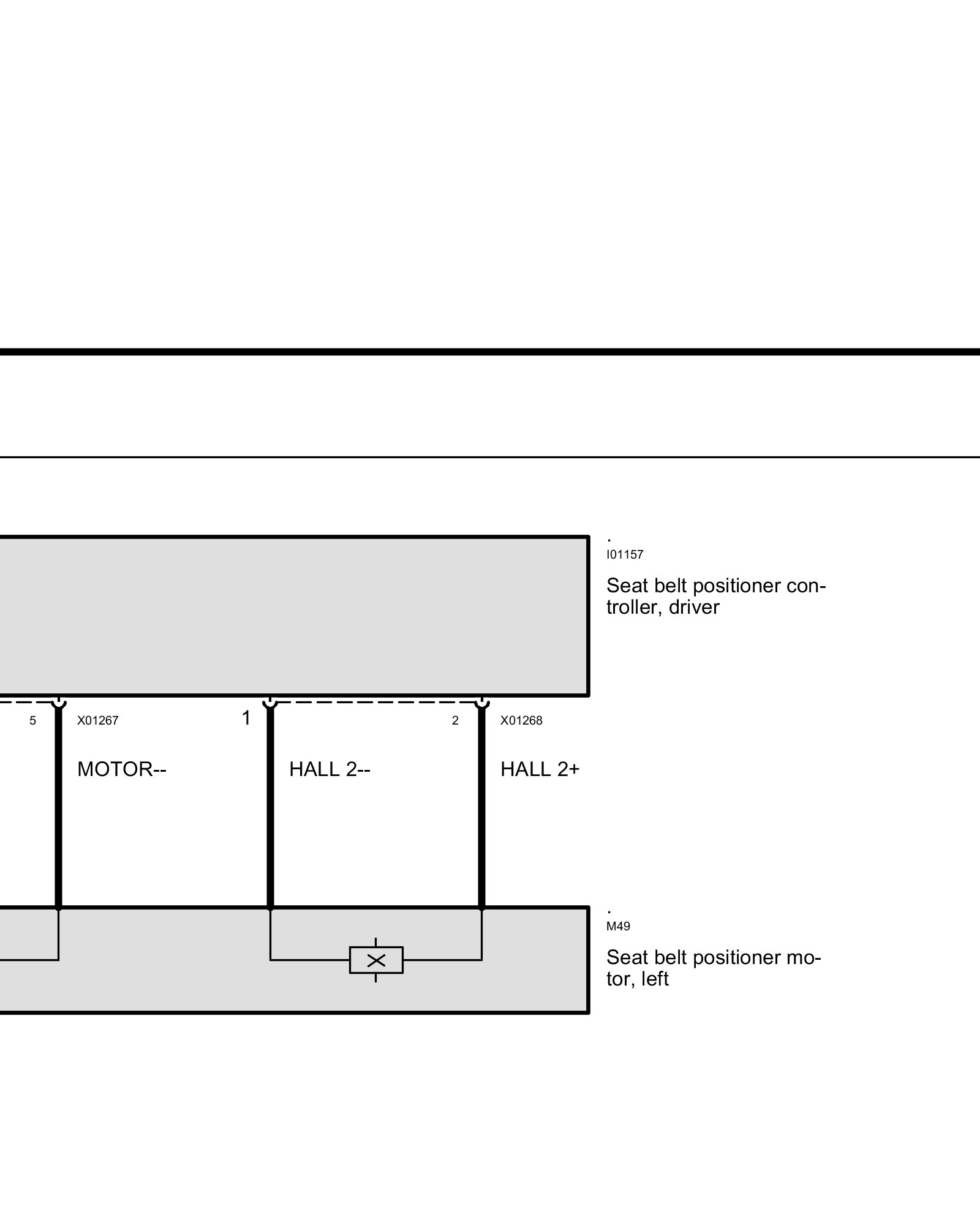

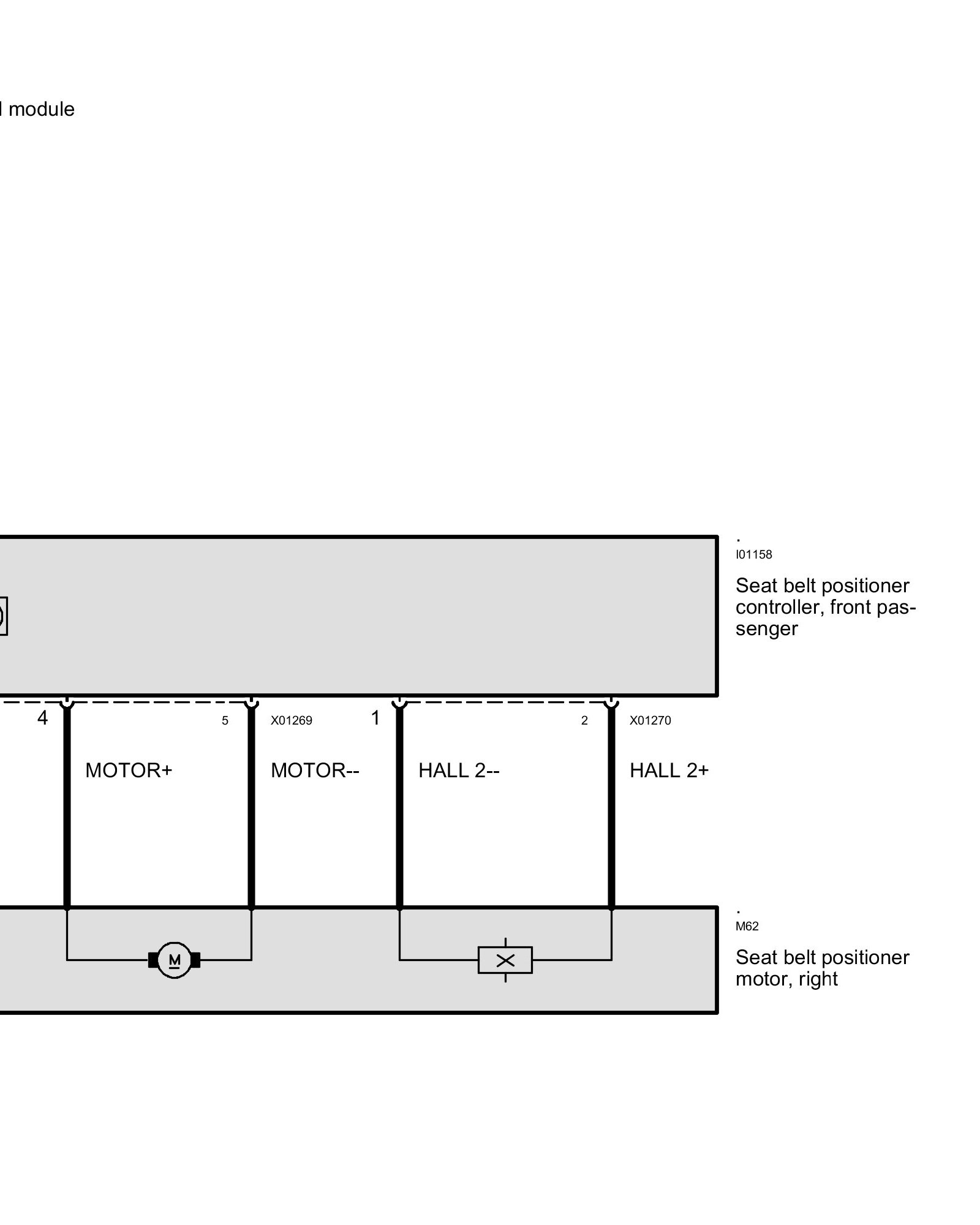

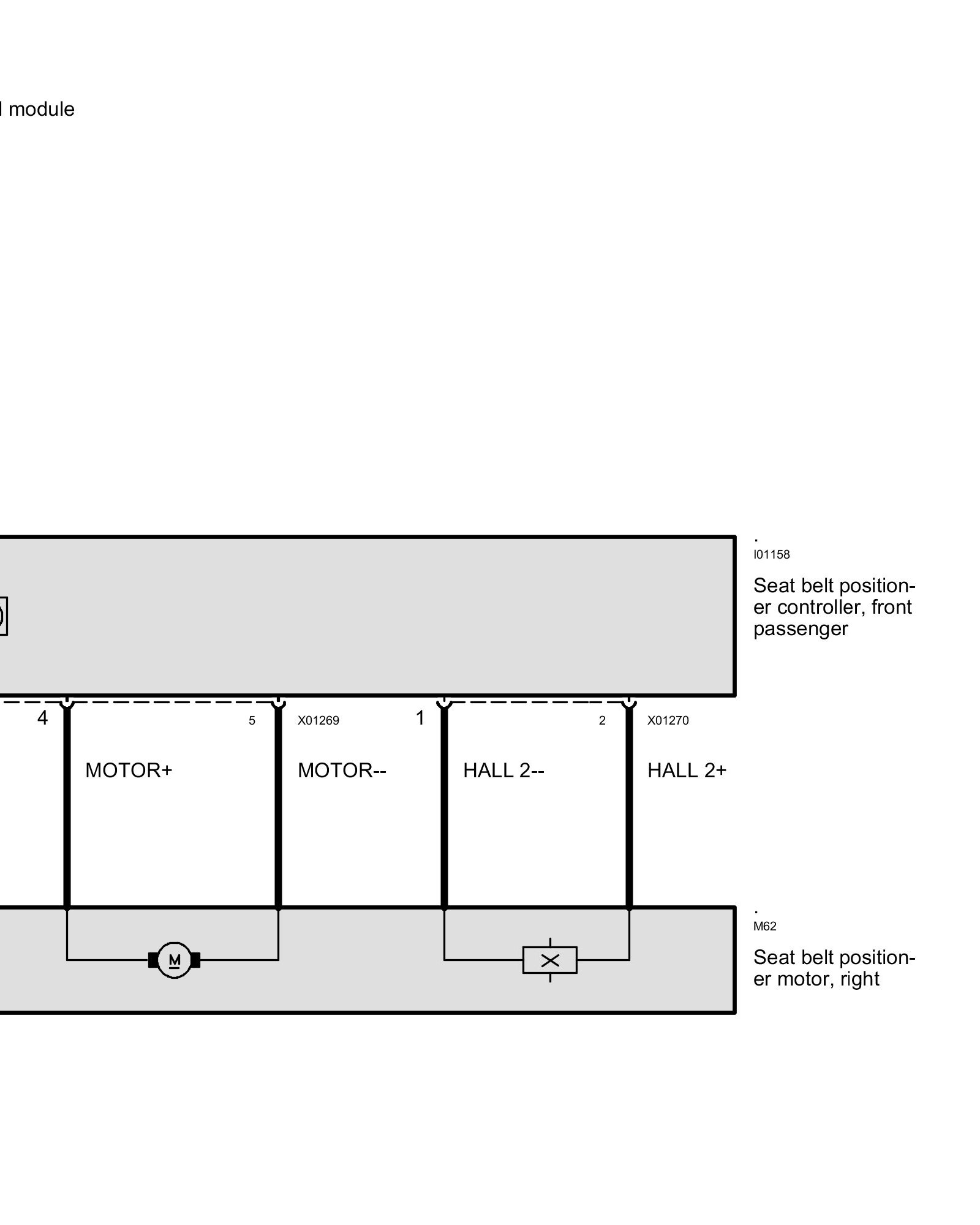

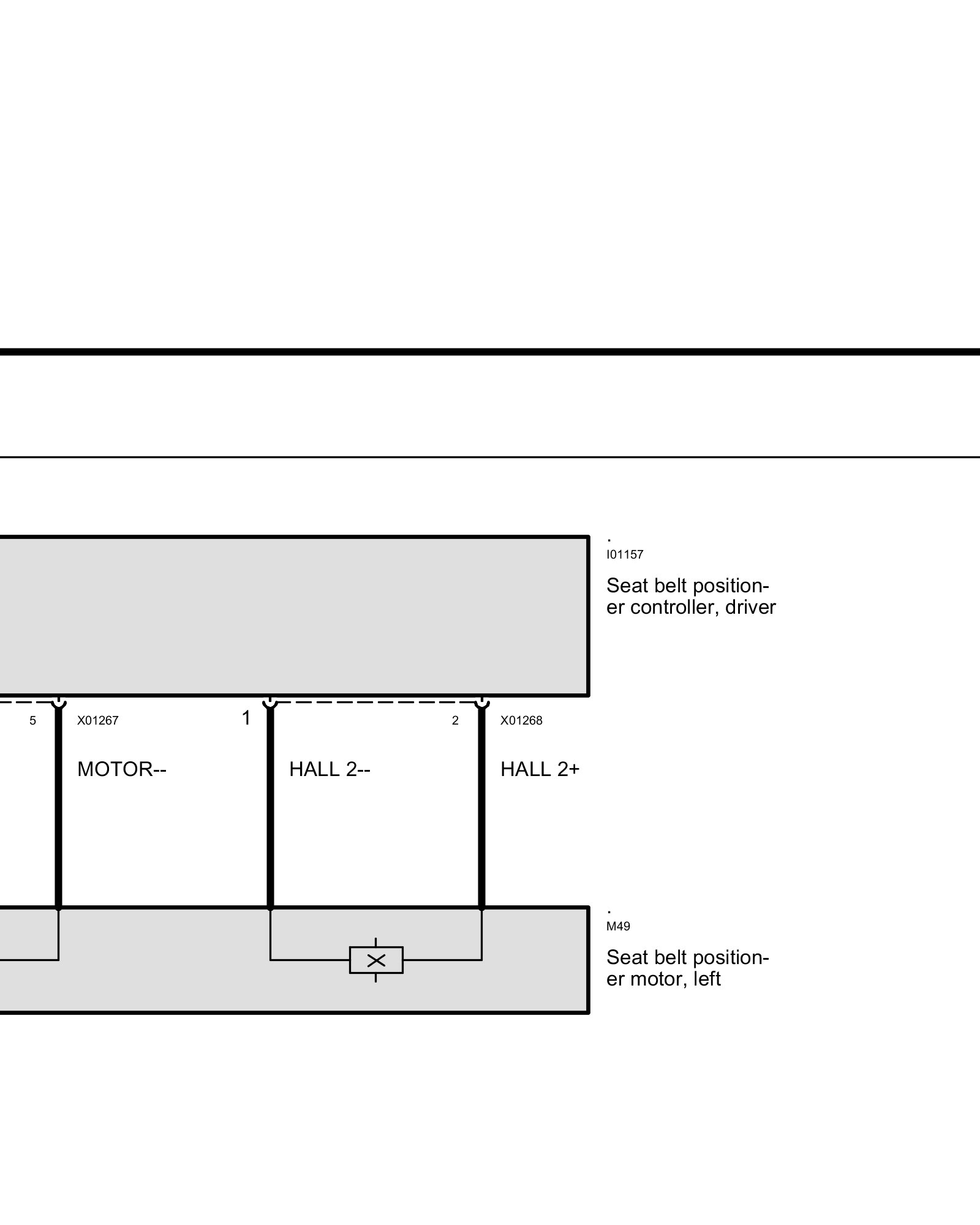

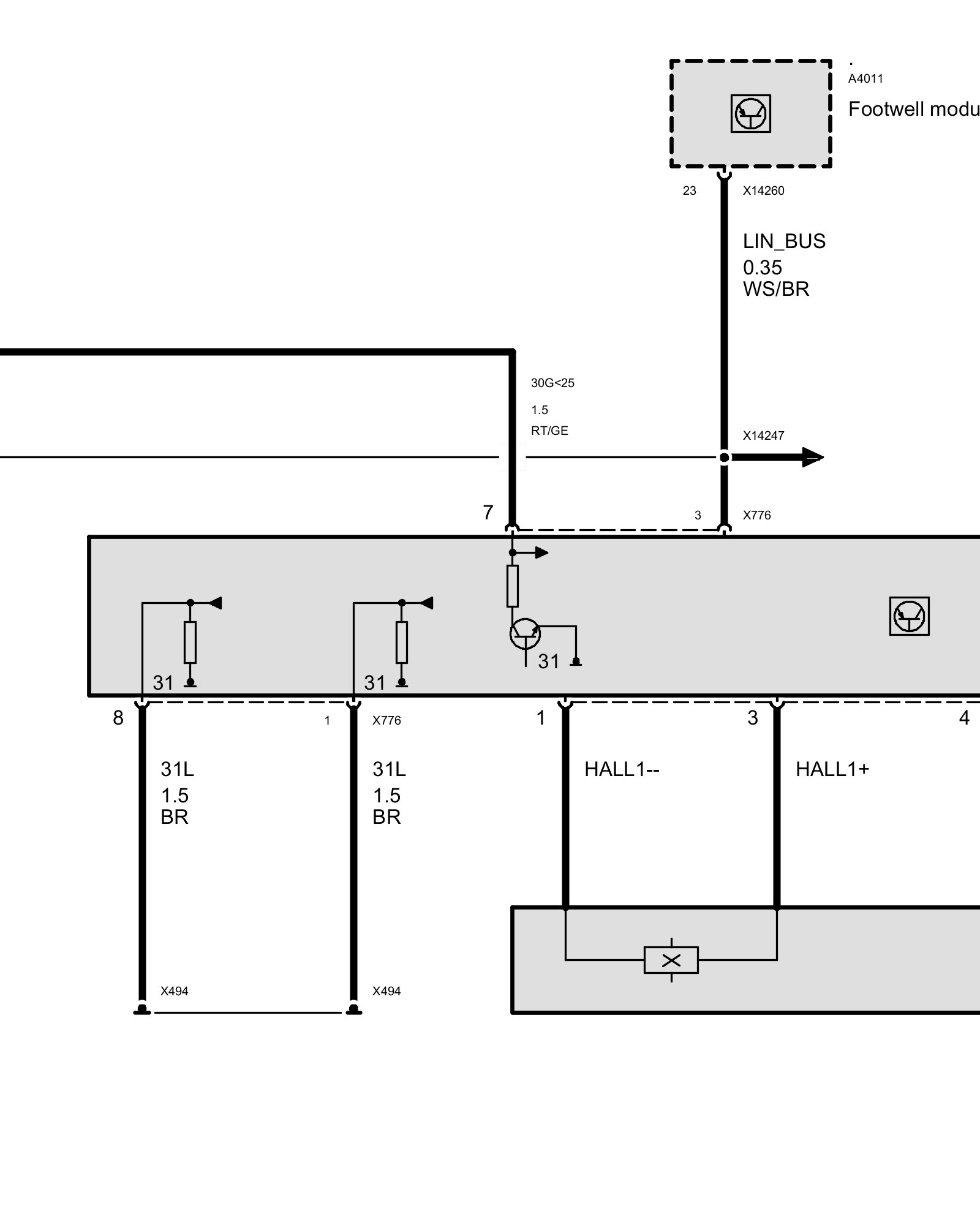

Seat Belt Positioner
Seat Belt
Positioner
Up to 03/07
As of 03/07 Up to 09/07
As of 09/07
