A42*1B
>>

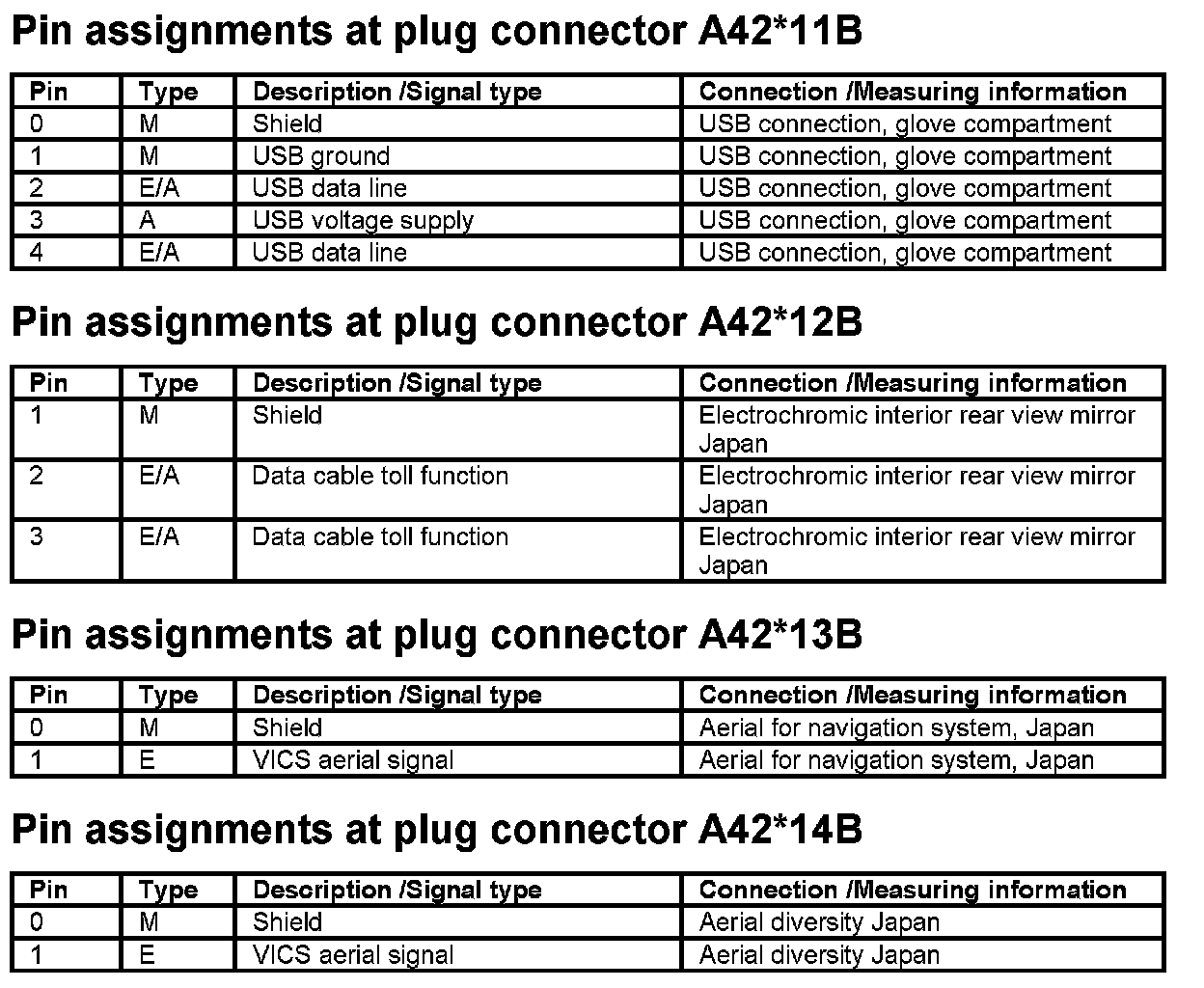

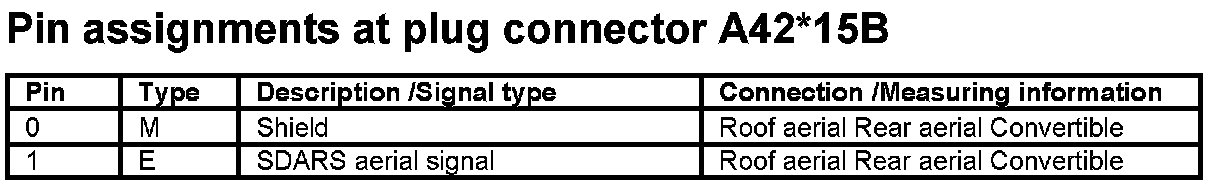

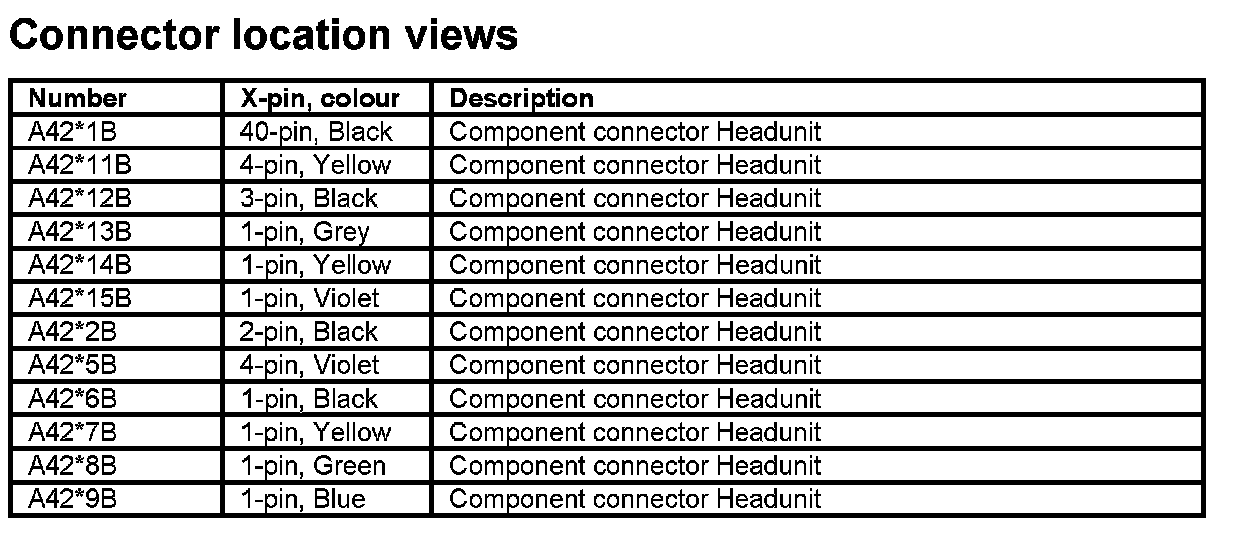

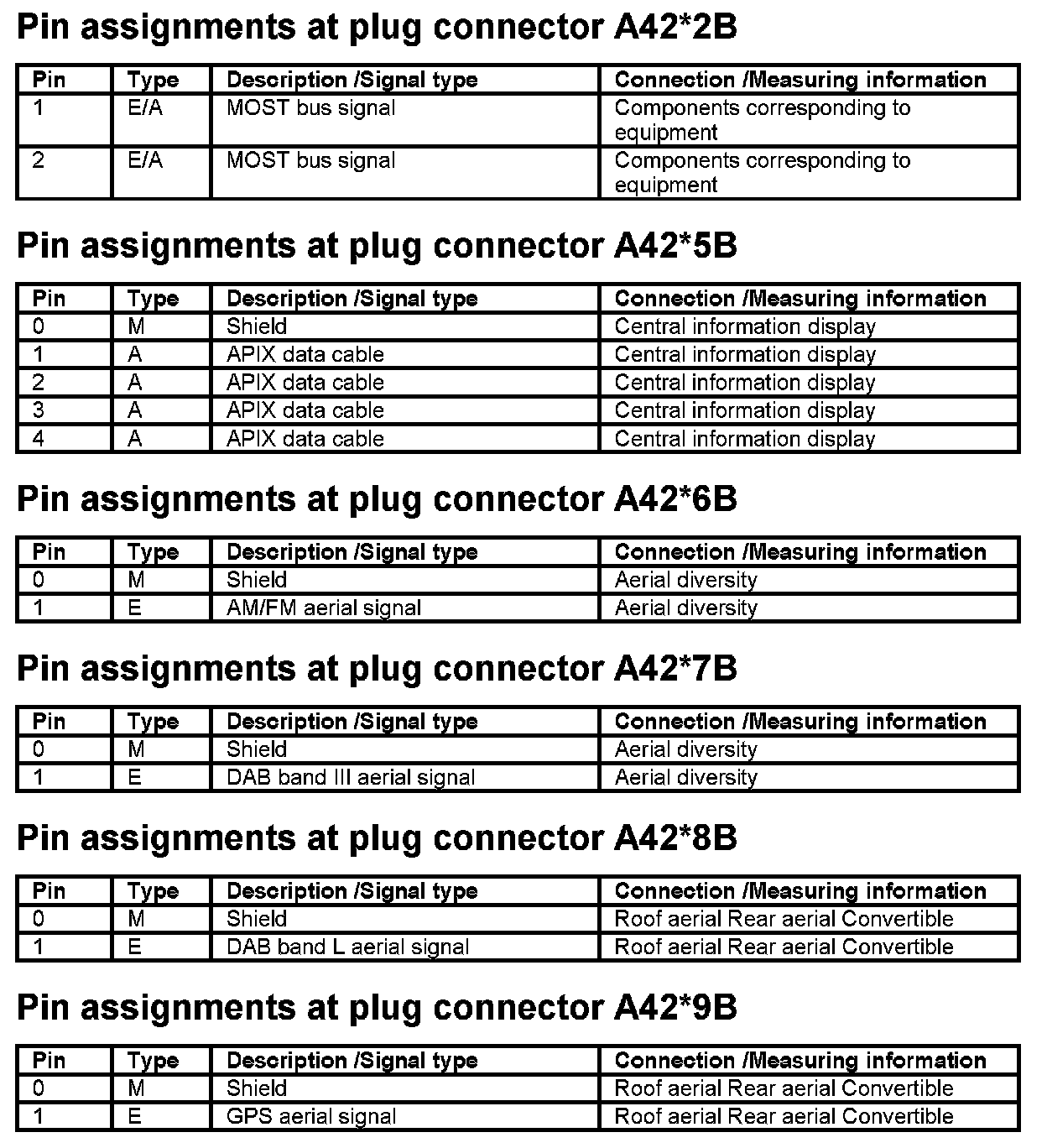

A42 Headunit (Without Video Switch and DVD Changer)
A42 Headunit (Without Video Switch and DVD Changer)

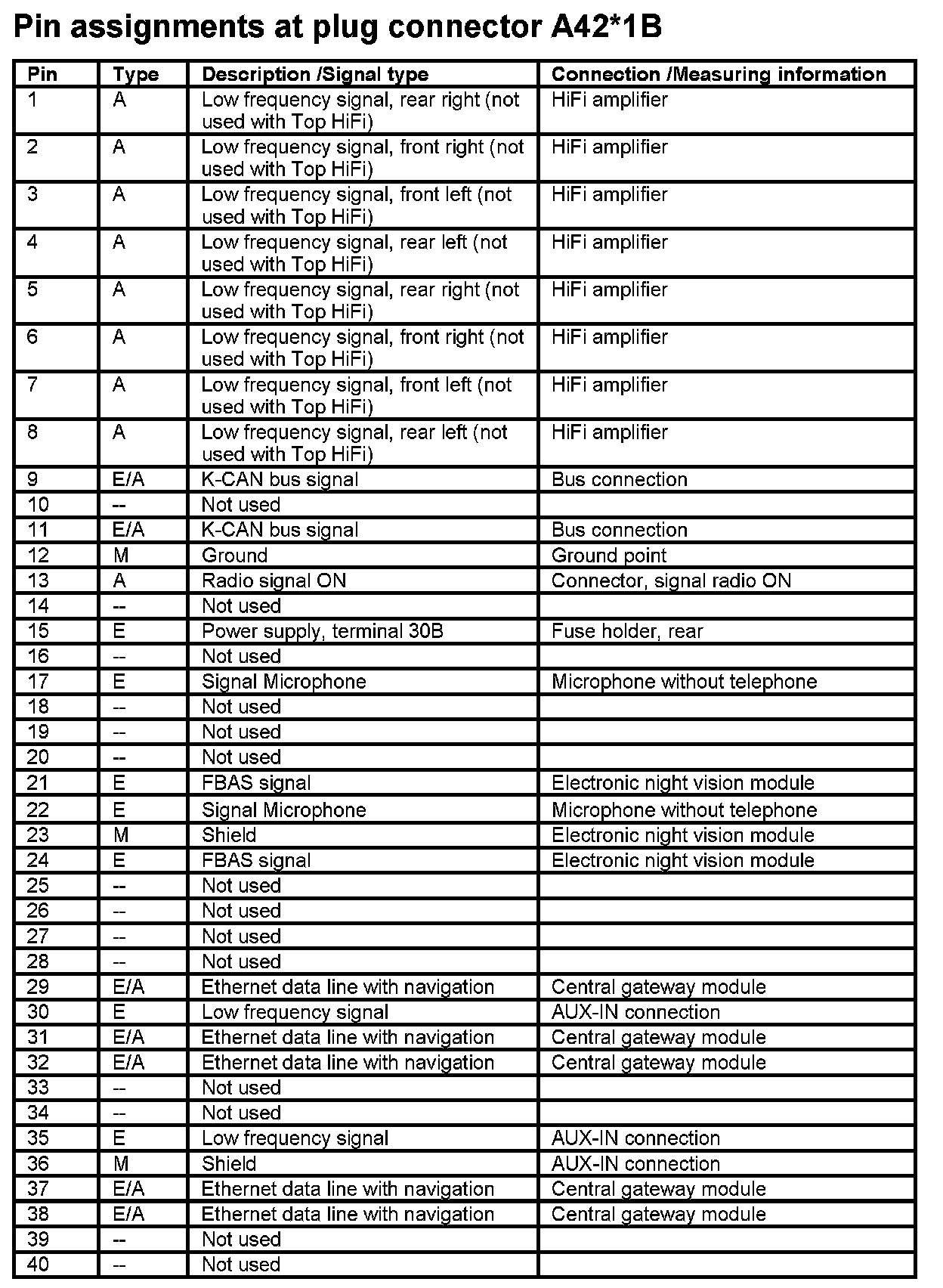

A42*1B
A42 Headunit
