Home >> BMW >> 2009 >> 750i (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From A >> A61*1B

A61*1B



A61*1B

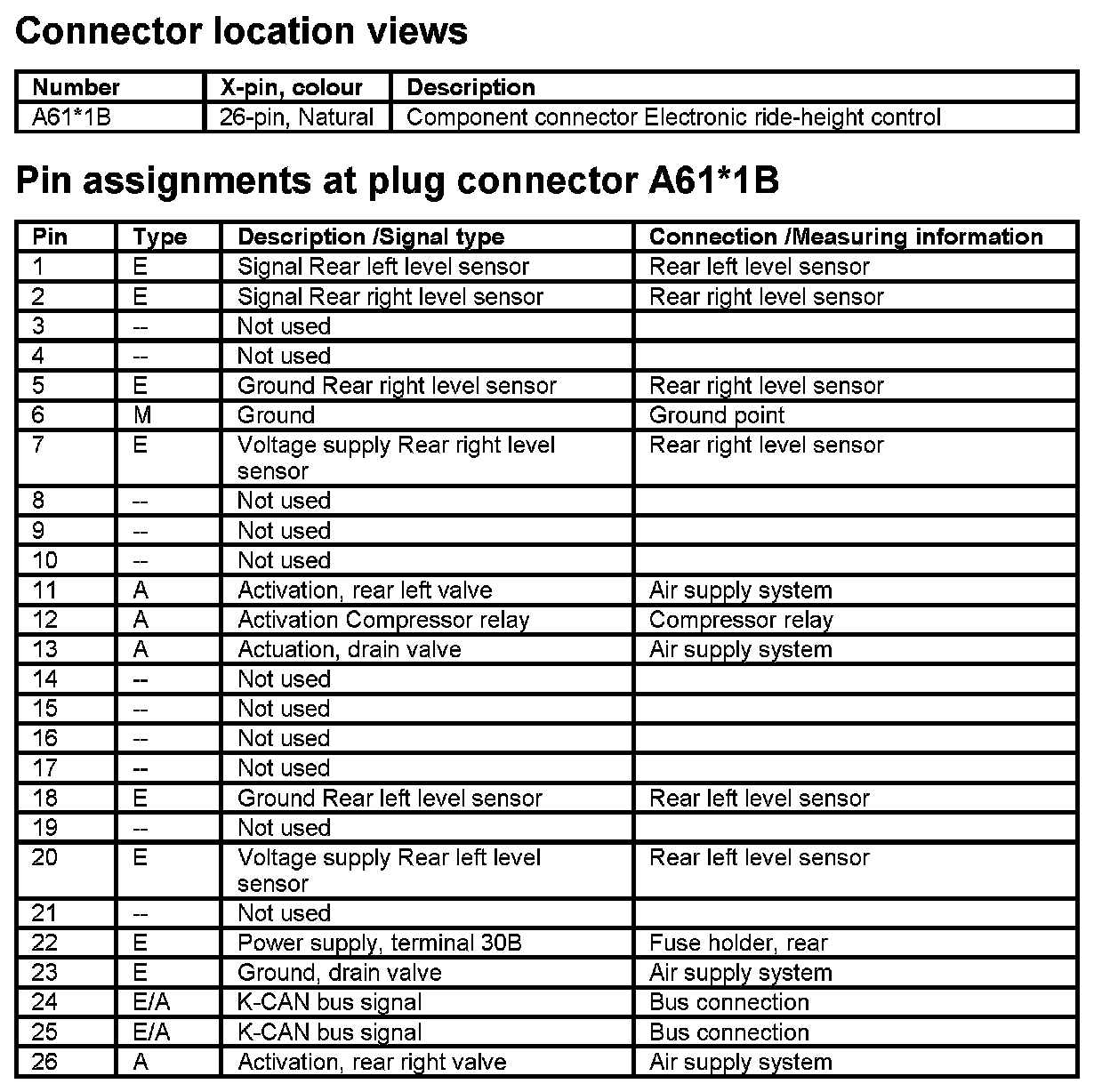

A61 Electronic Ride-height Control
