Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2009
>>
750i (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X8
>>

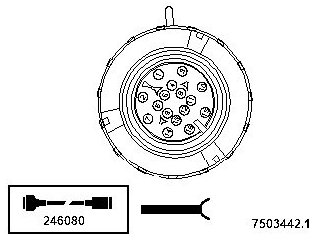

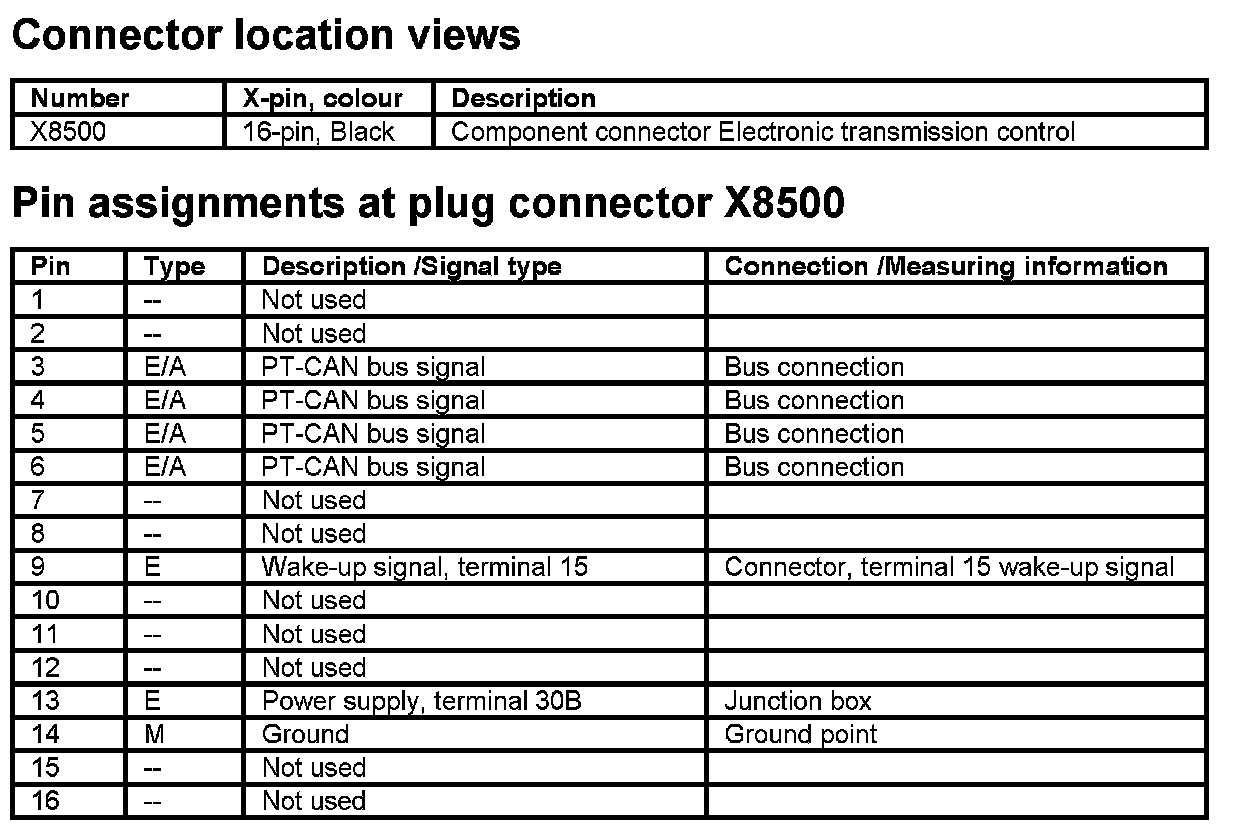

X8500
X8500
X8500
A7000 Electronic Transmission Control
