Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2009
>>
750i (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
F101
F101

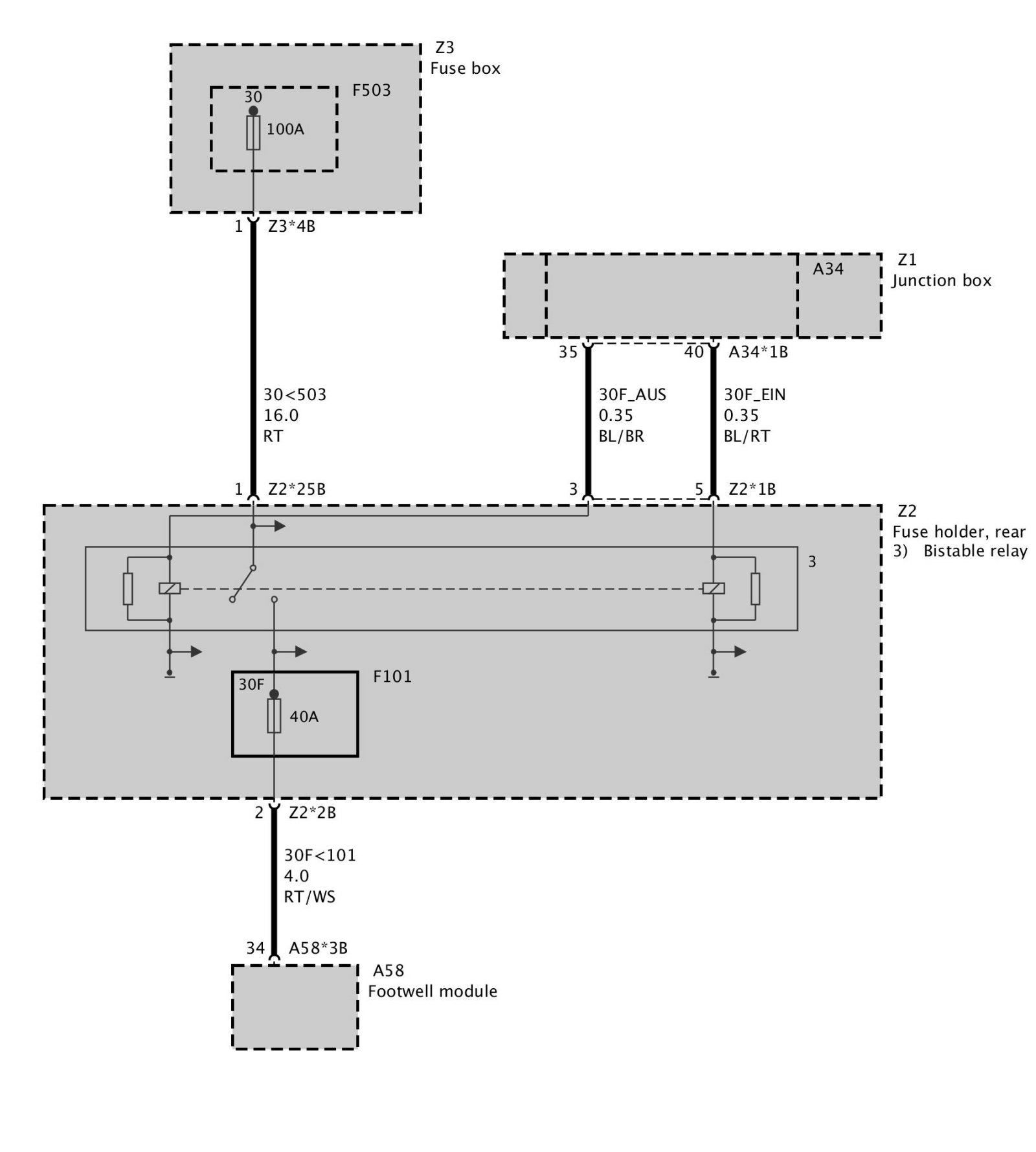

Fuse F101
