Home >> BMW >> 2009 >> 750i (F01) V8-4.4L Turbo (N63) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F51

F51

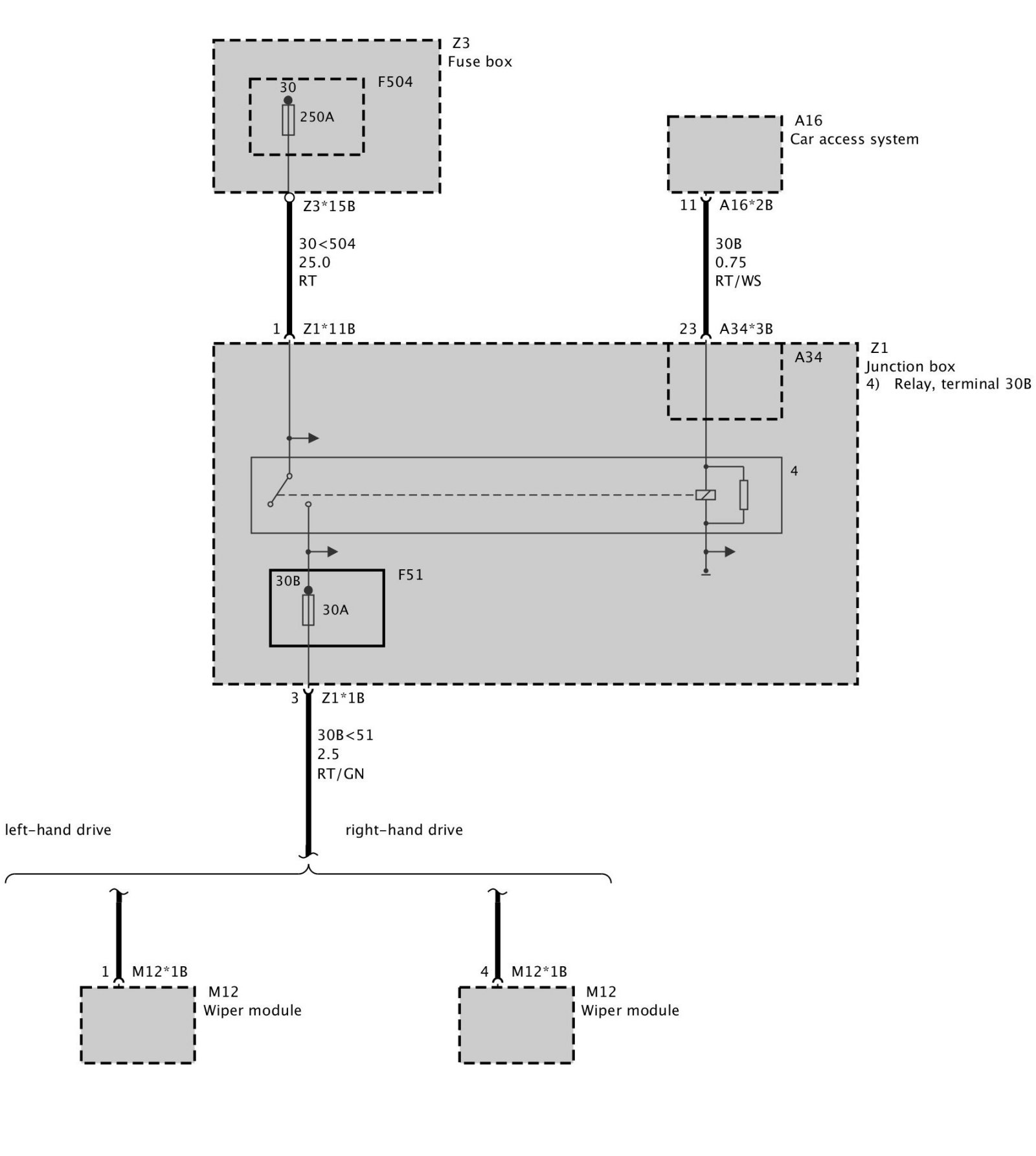

Fuse F51
