Trim Panel, Rear Lid

Rattling Noises From The Luggage Compartment Lid Trim Panel

Repair instructions for rattling noises from the luggage compartment lid trim panel
There is no pre-tension of the upper trim of the luggage compartment lid.

Repair instruction

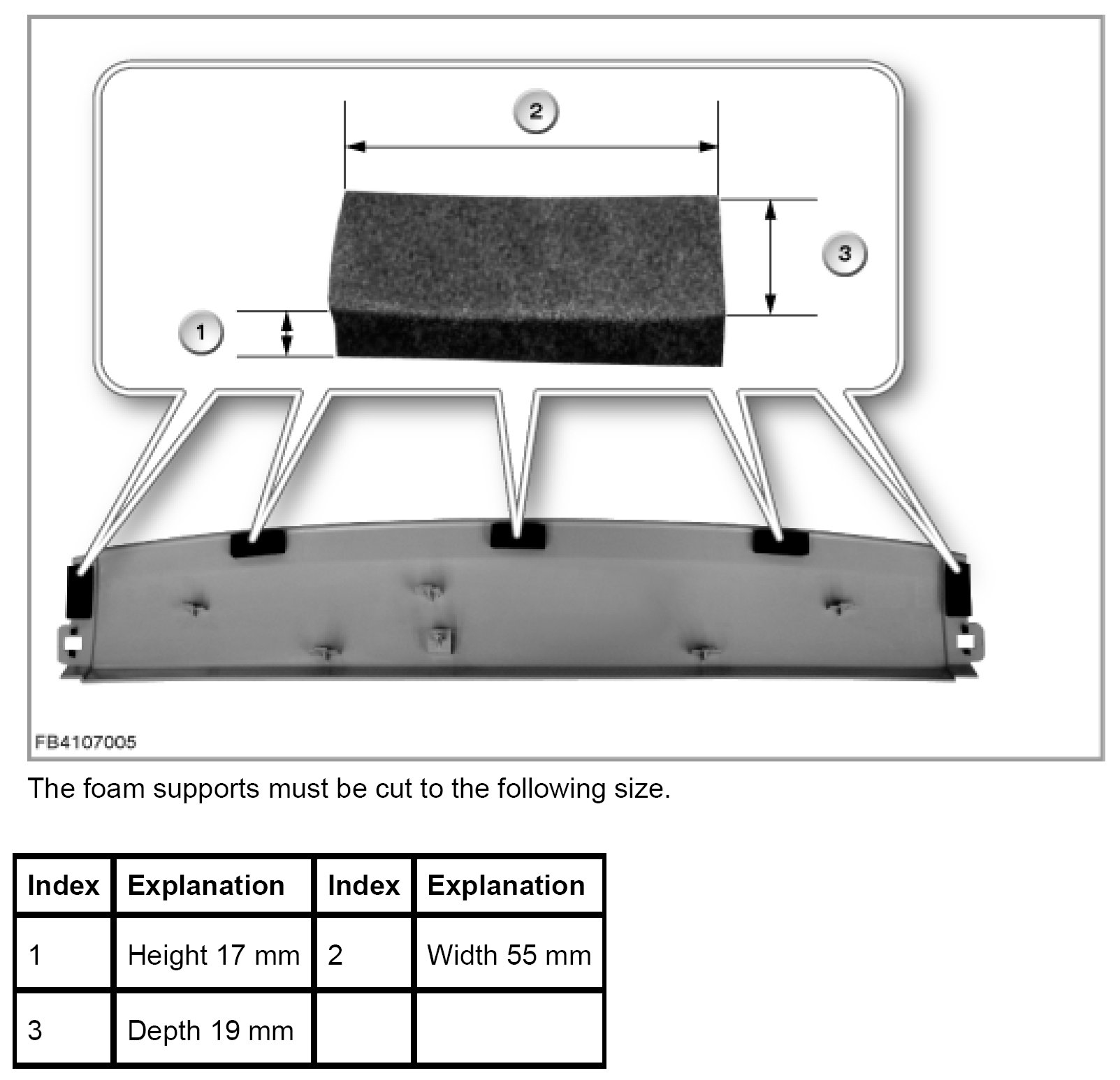

- Remove the upper trim and bond five foam supports, see graphic.

Upper trim of luggage compartment lid
