Fault Profile RSE 0307

Fault Patterns: Function Fault In Rear Seat Entertainment 03/07

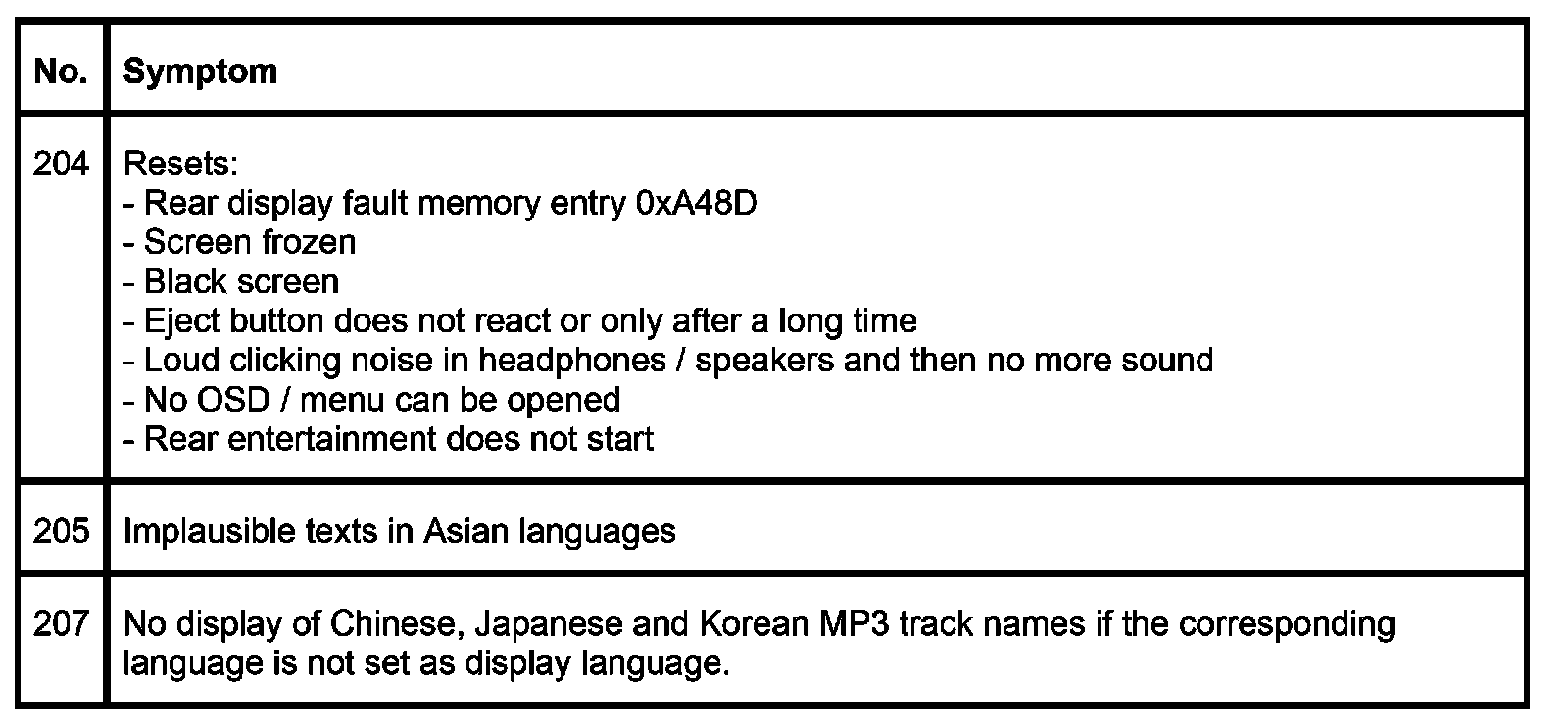

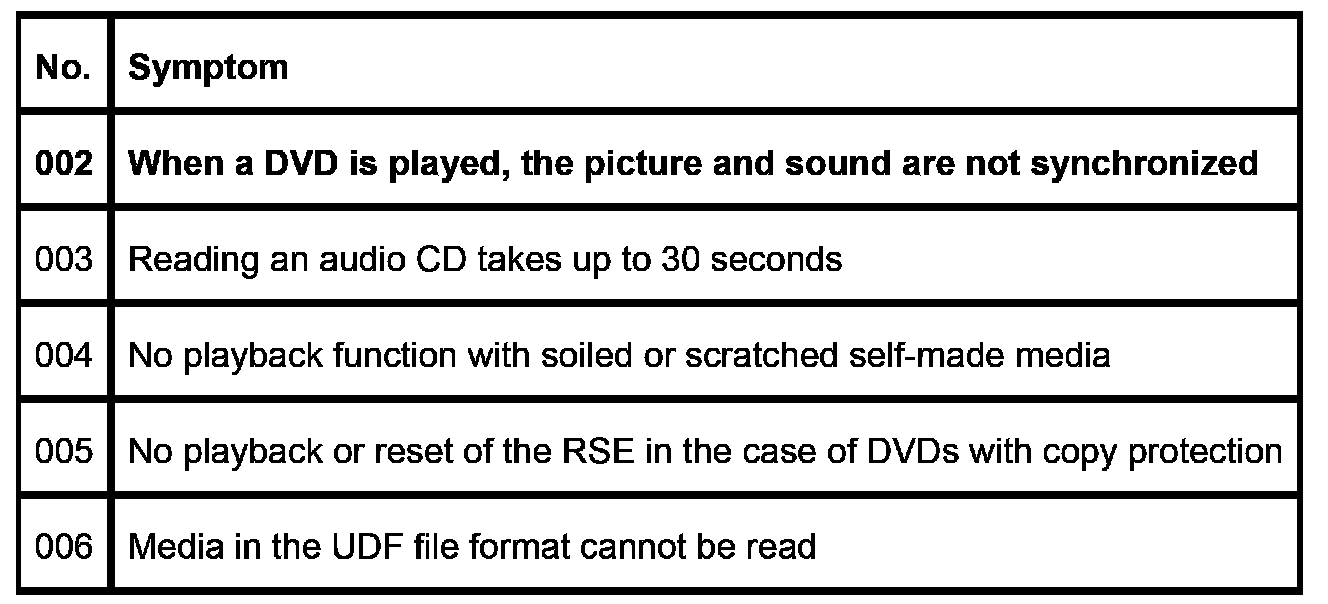

The Rear Seat Entertainment (RSE) is a complex control module with a large number of possible fault patterns. The following list contains known symptoms of the functional areas in general, RSE operation, RSE display and RSE audio.

General
