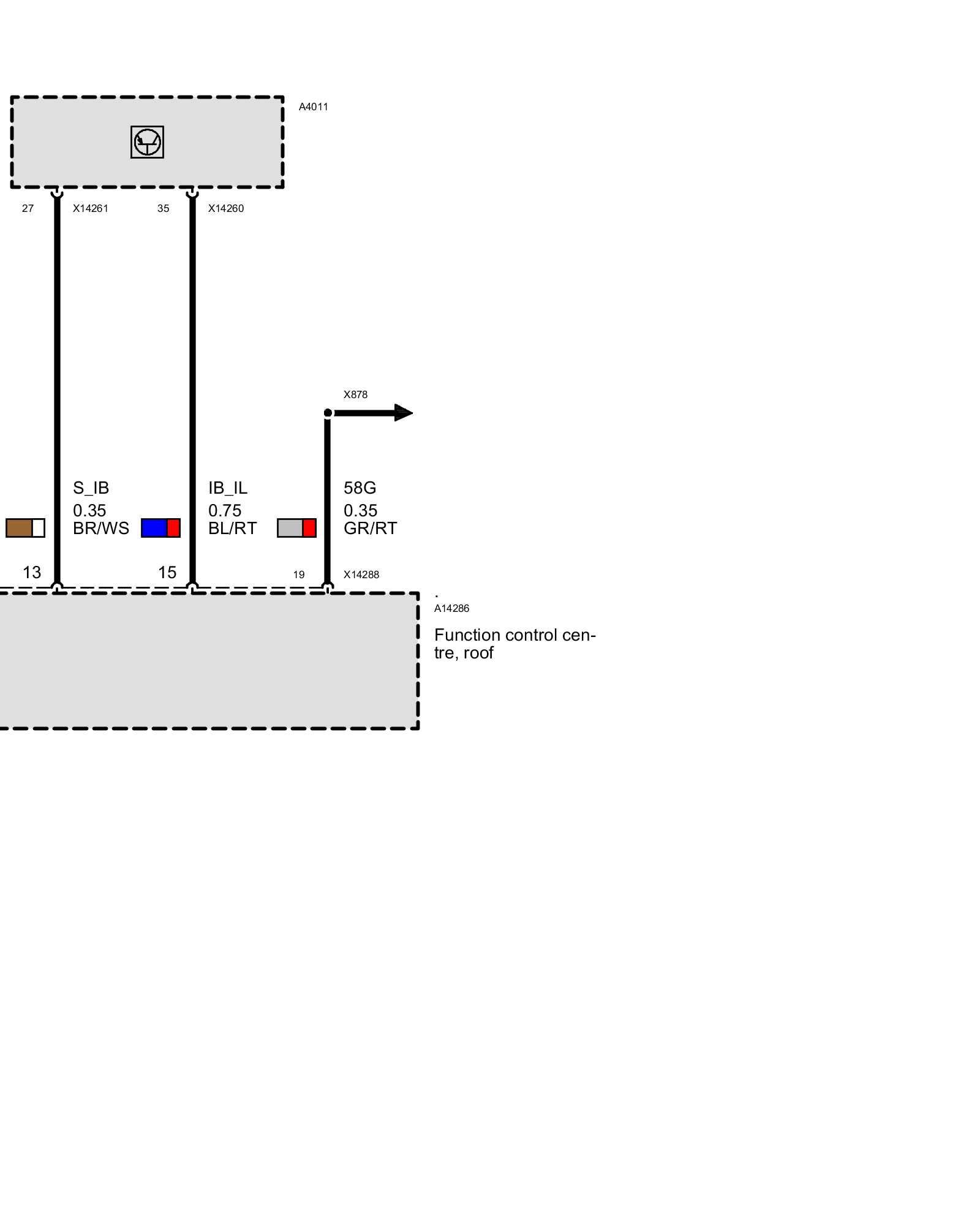

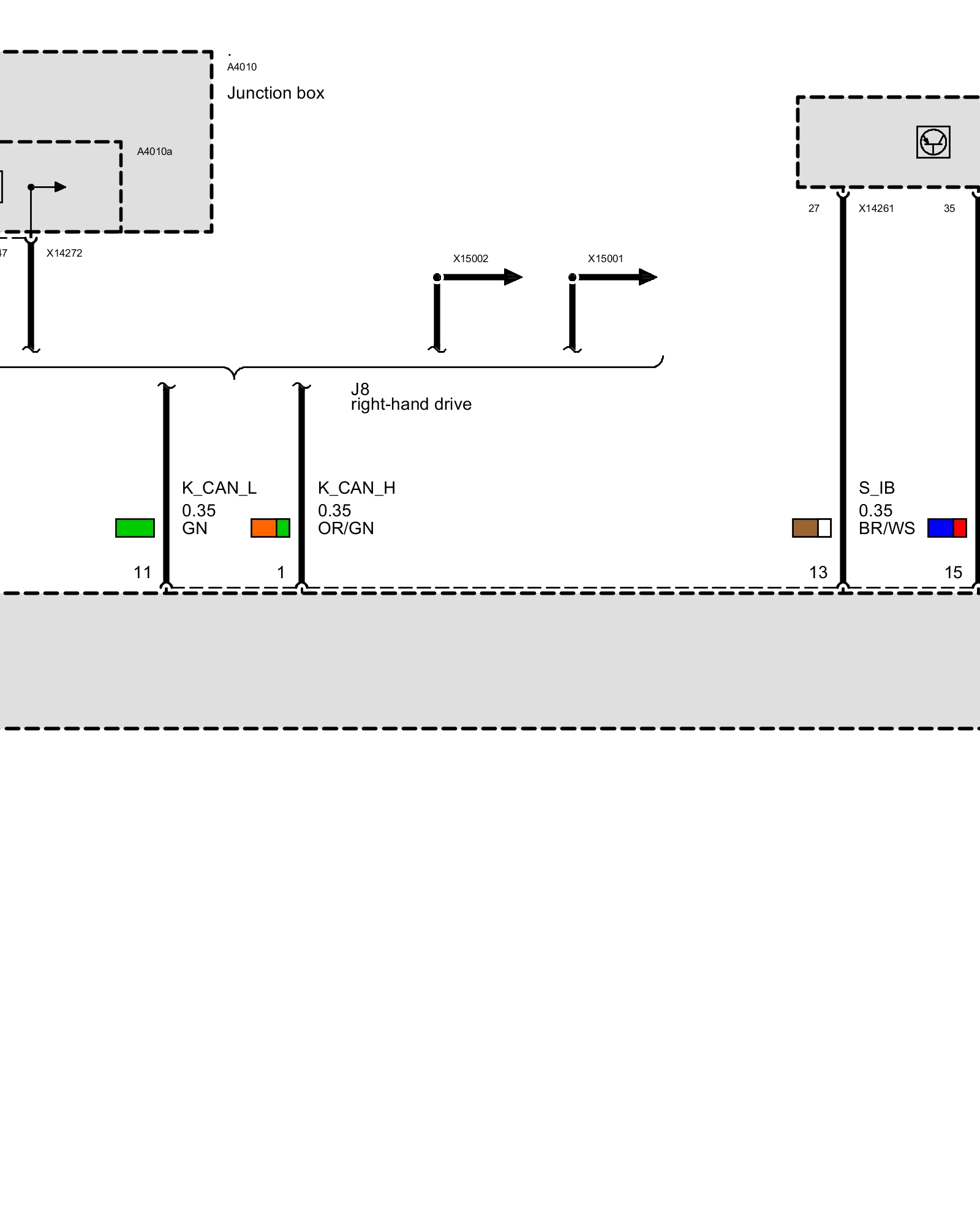

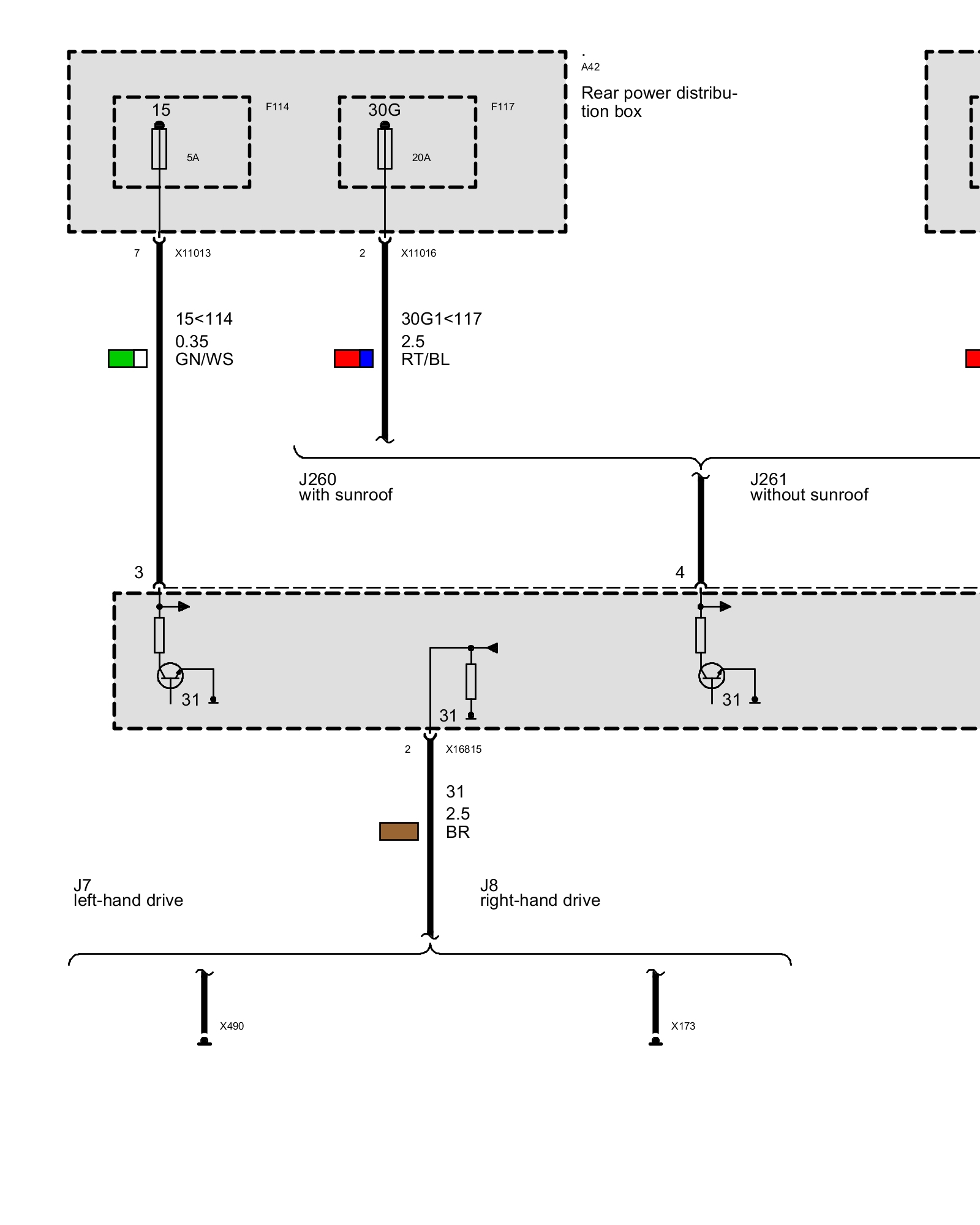

Power Supply, Roof Functions Centre
Power Supply, Roof Functions Centre
Power Supply, Roof Functions Centre
