BMW
>>
2009
>>
X6 (E71) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

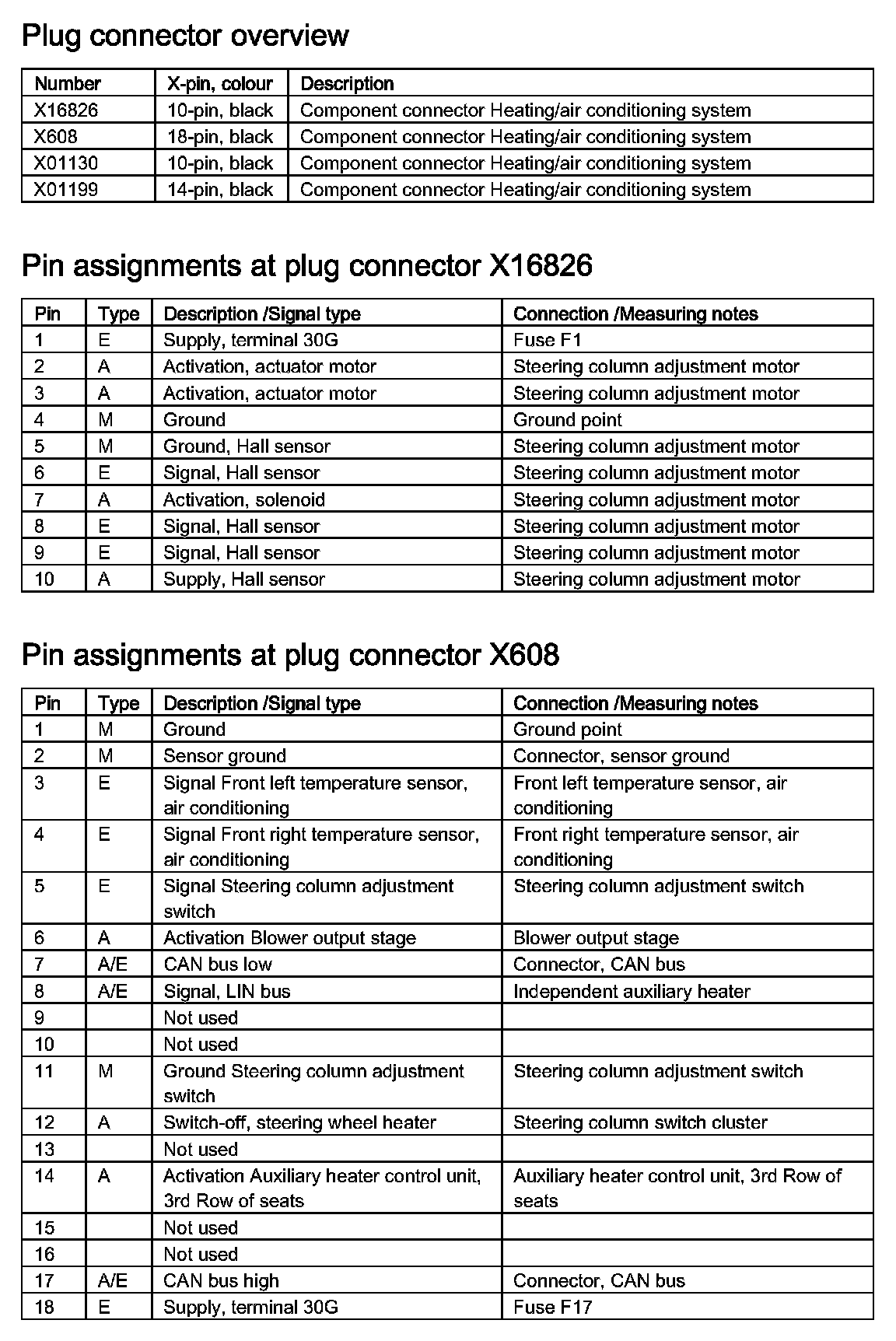

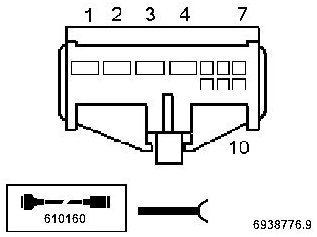

X16826
X16826
X16826
A11a Heating/Air Conditioning
