Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Supply, Integrated Chassis Management (ICM)

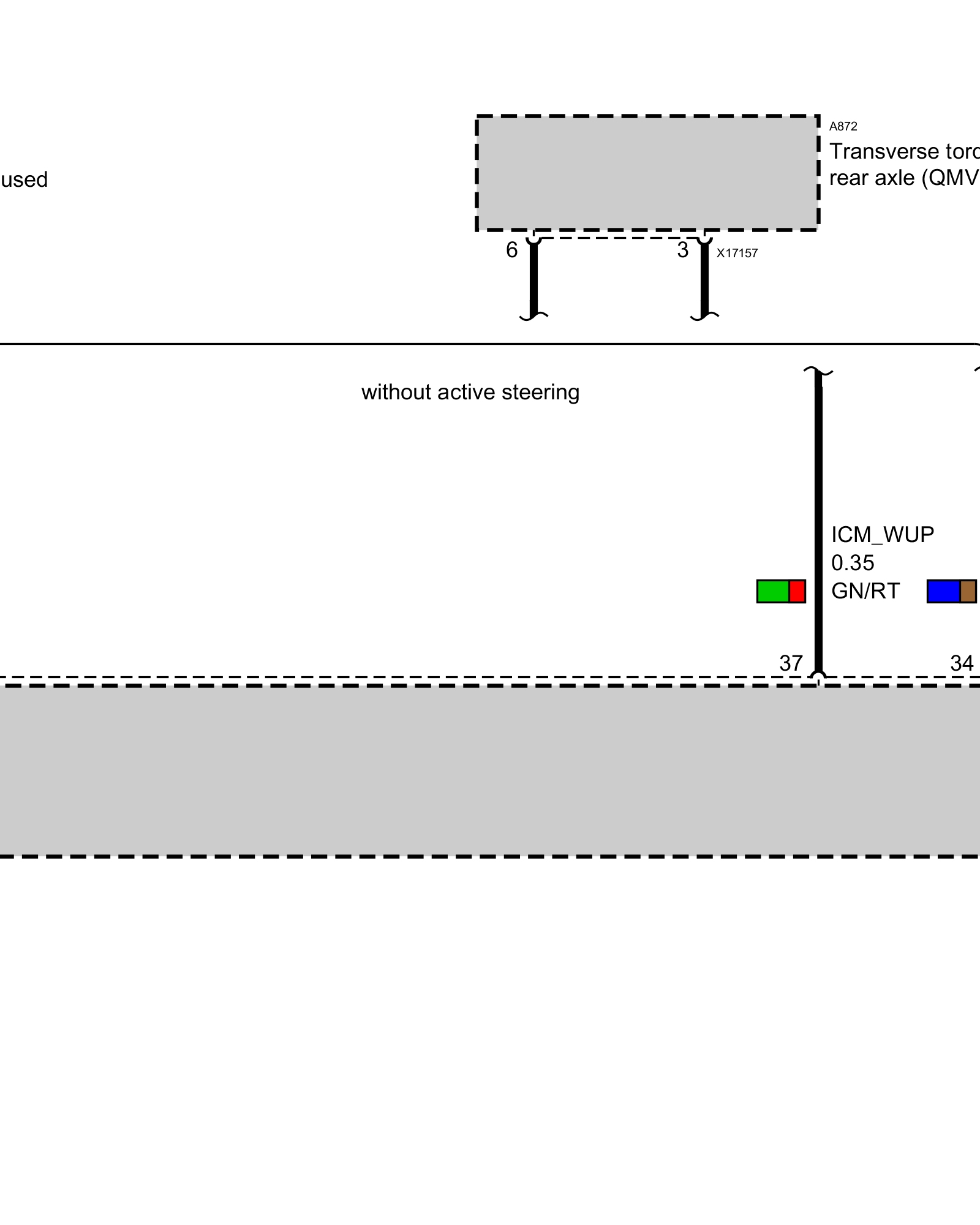

Supply, Integrated Chassis Management (ICM)

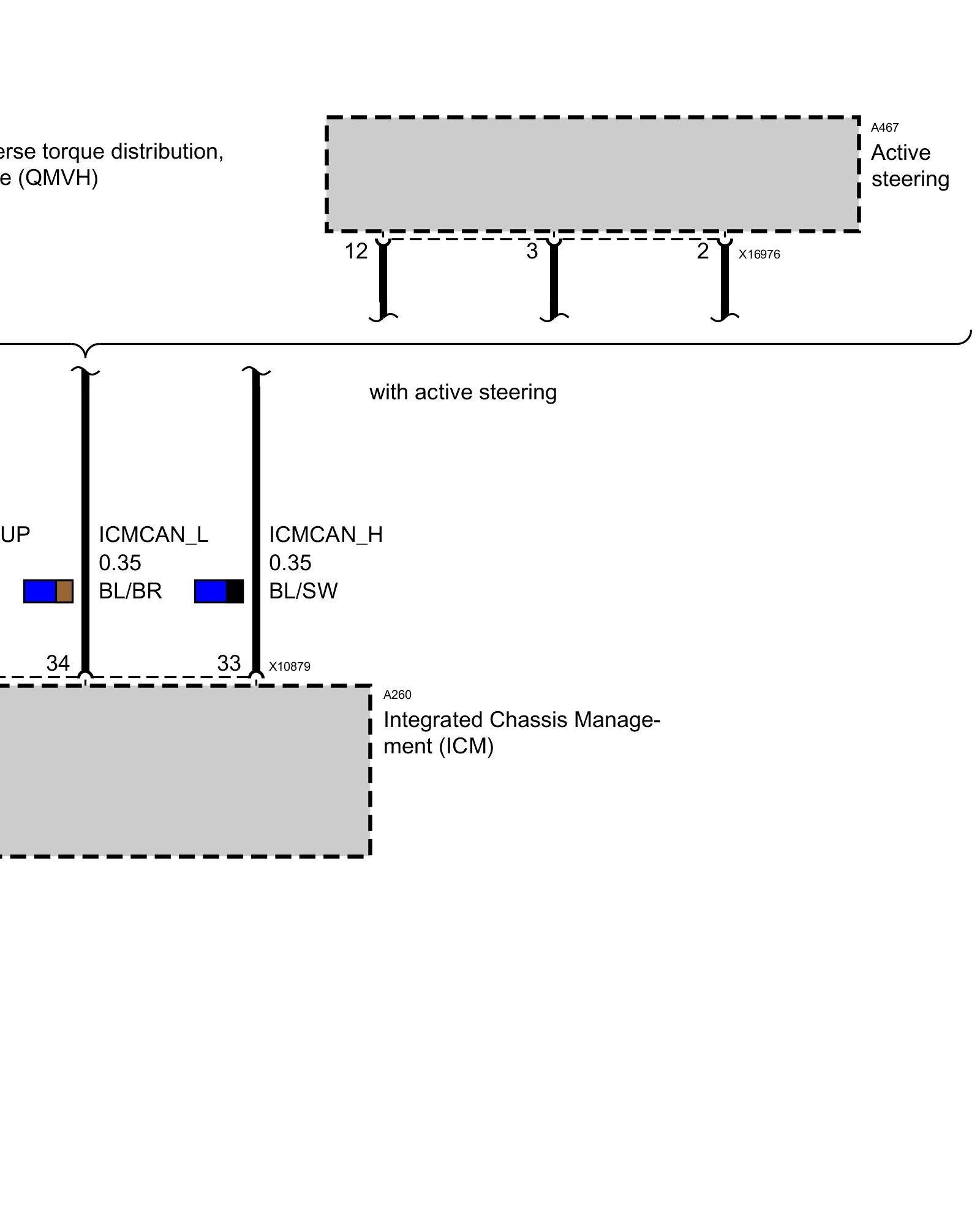

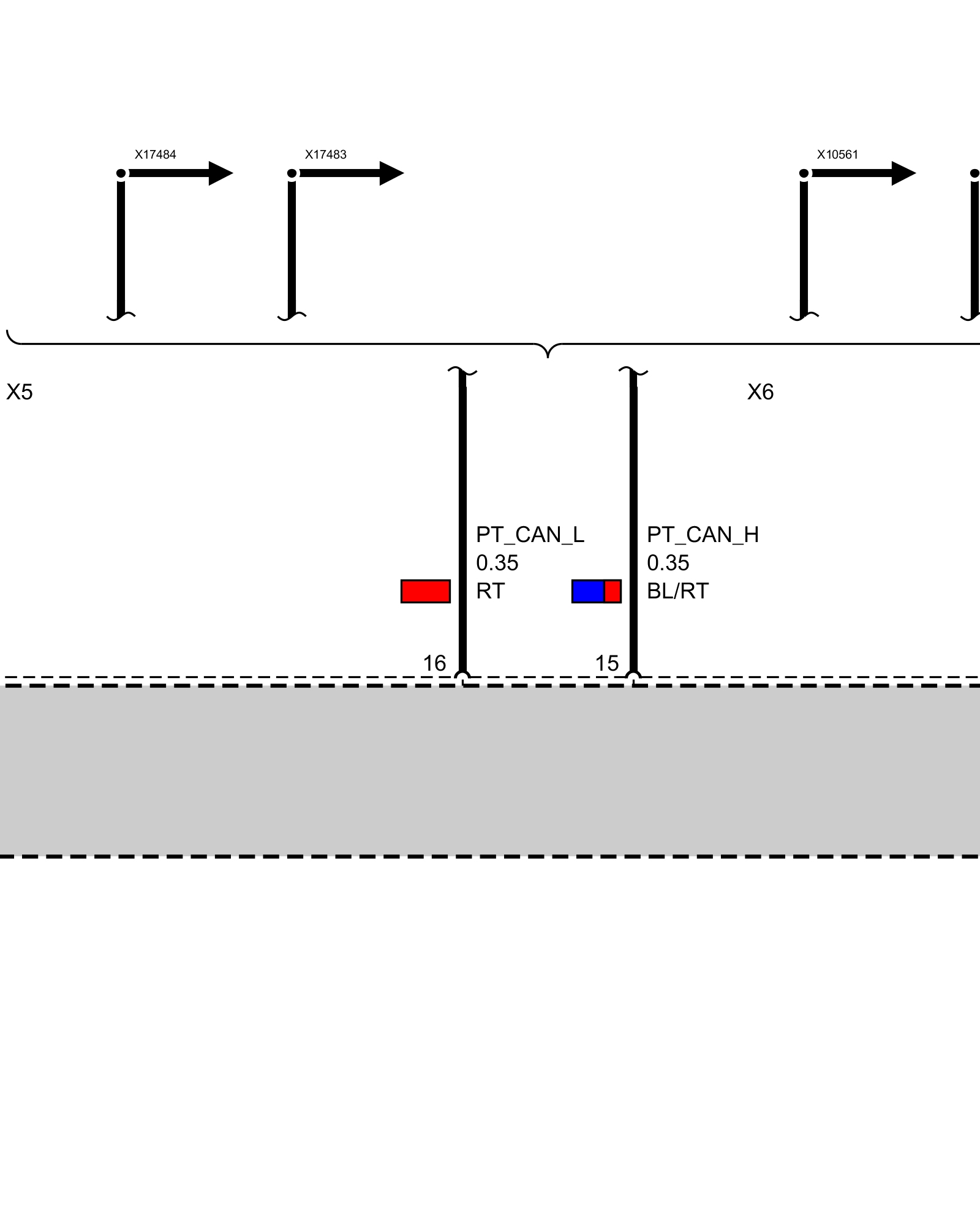

Supply, Integrated Chassis Management (ICM)
