Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2009
>>
X6 (E71) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Information Bus
>>

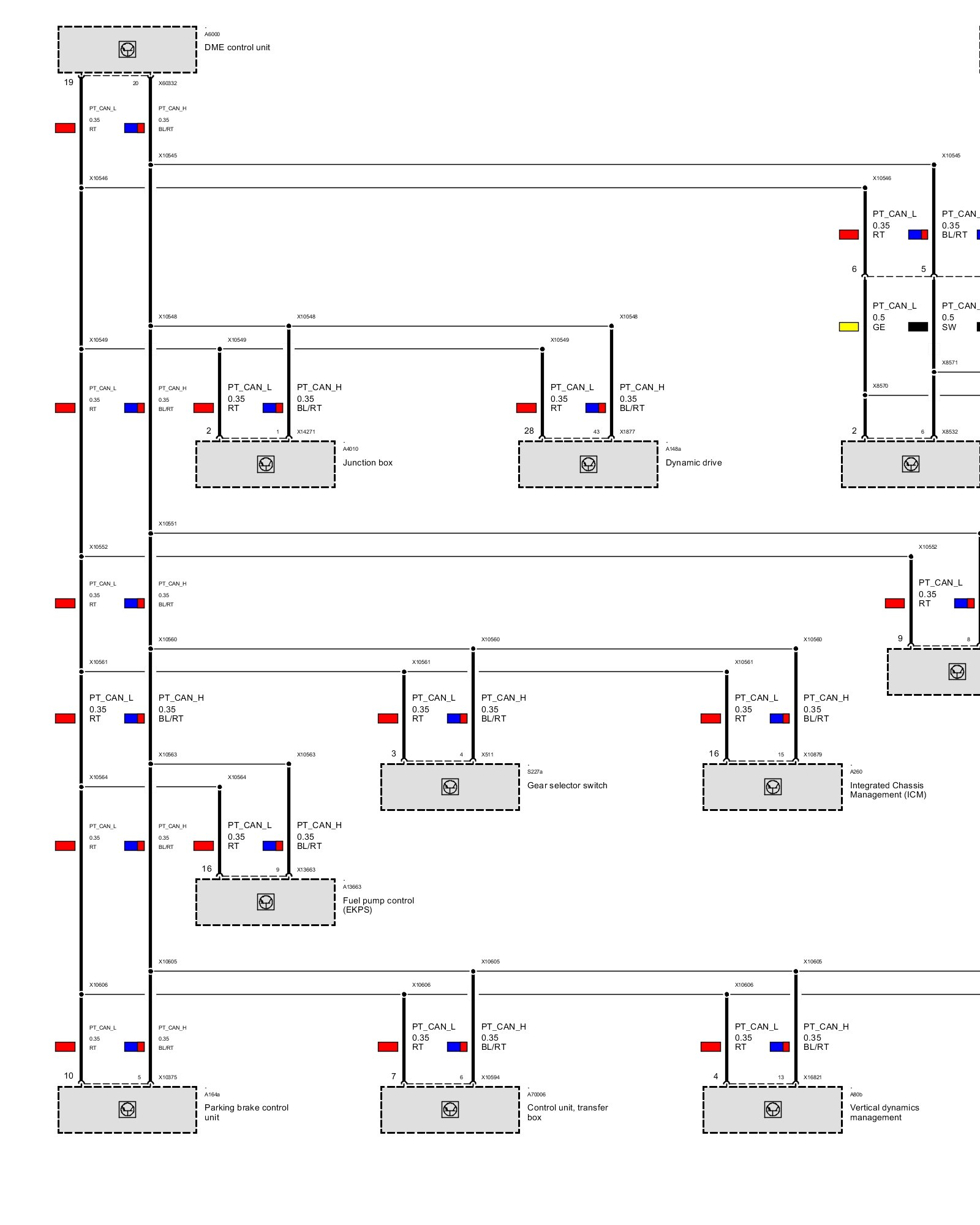

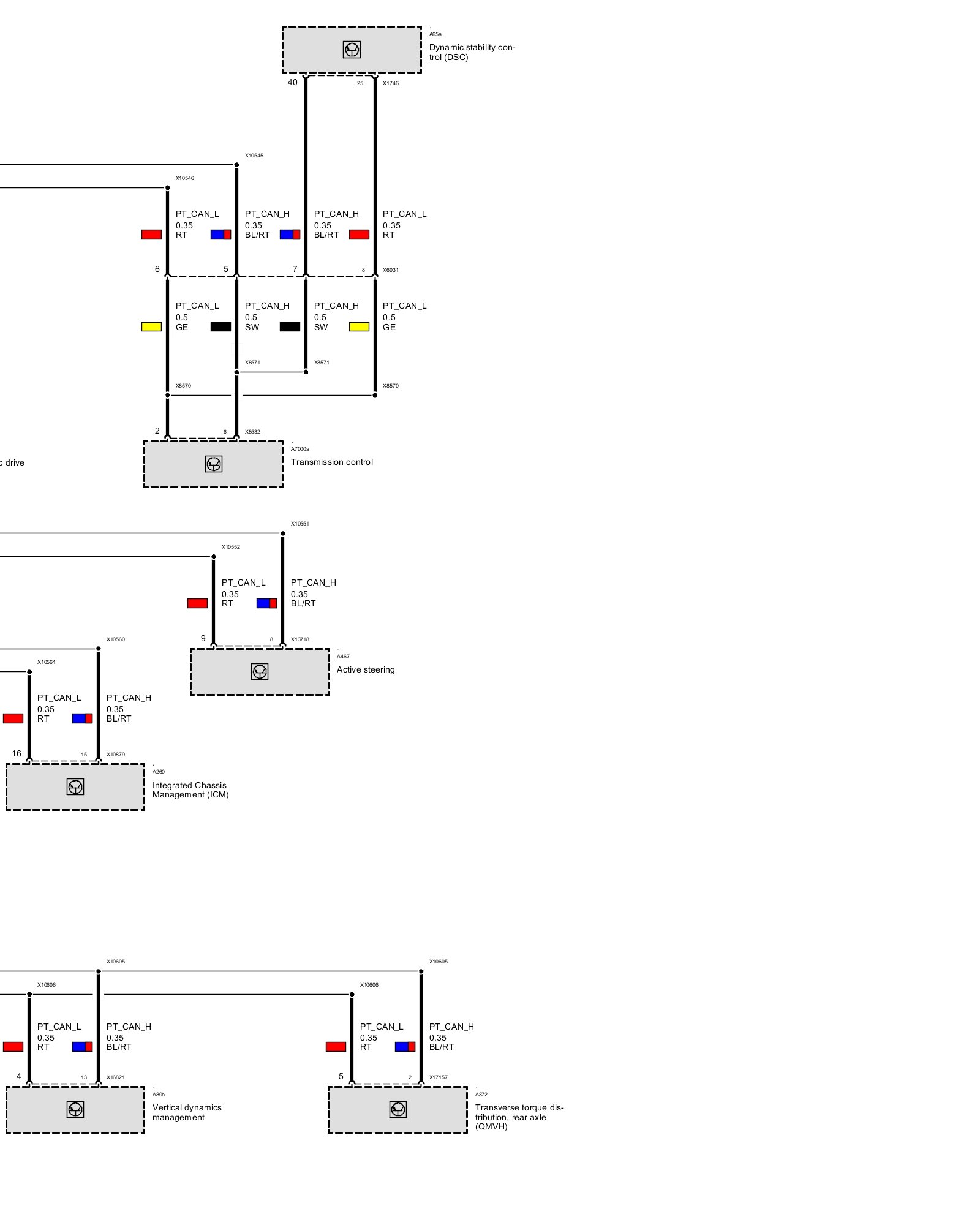

Powertrain CAN-Bus
Powertrain CAN-Bus
Powertrain CAN-Bus
