Fuse 17 (Without VSW Video Switch)
Fuse 17 (Without VSW Video Switch)
Fuse 17 (Without VSW Video Switch)

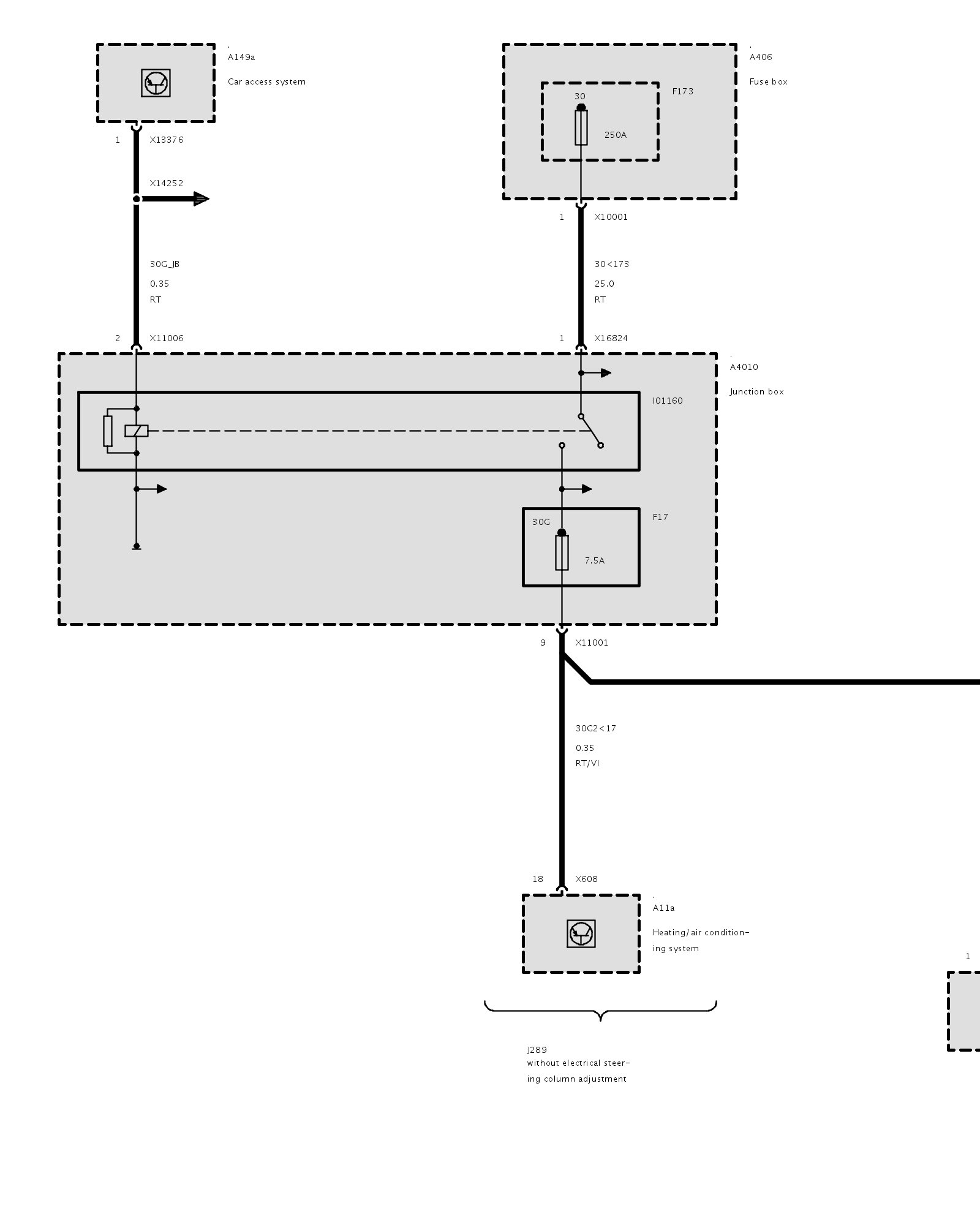

Part 1:

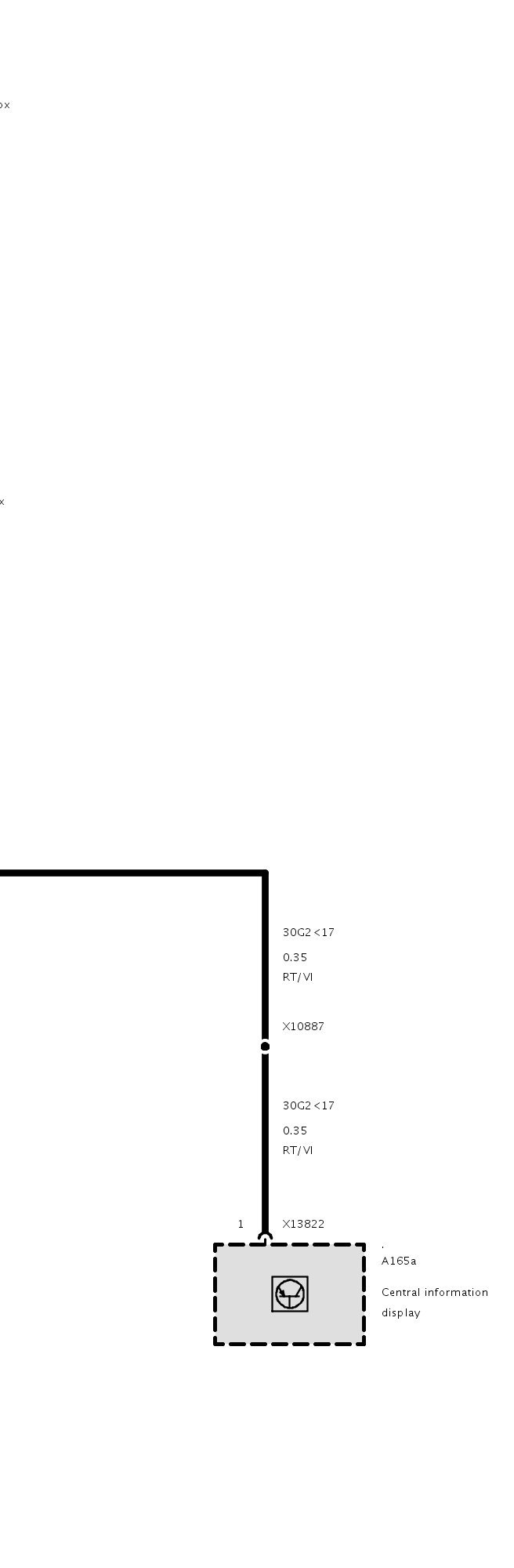

Part 2:
