Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2009
>>
X6 (E71) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Diagrams
>>
Electrical Diagrams
>>

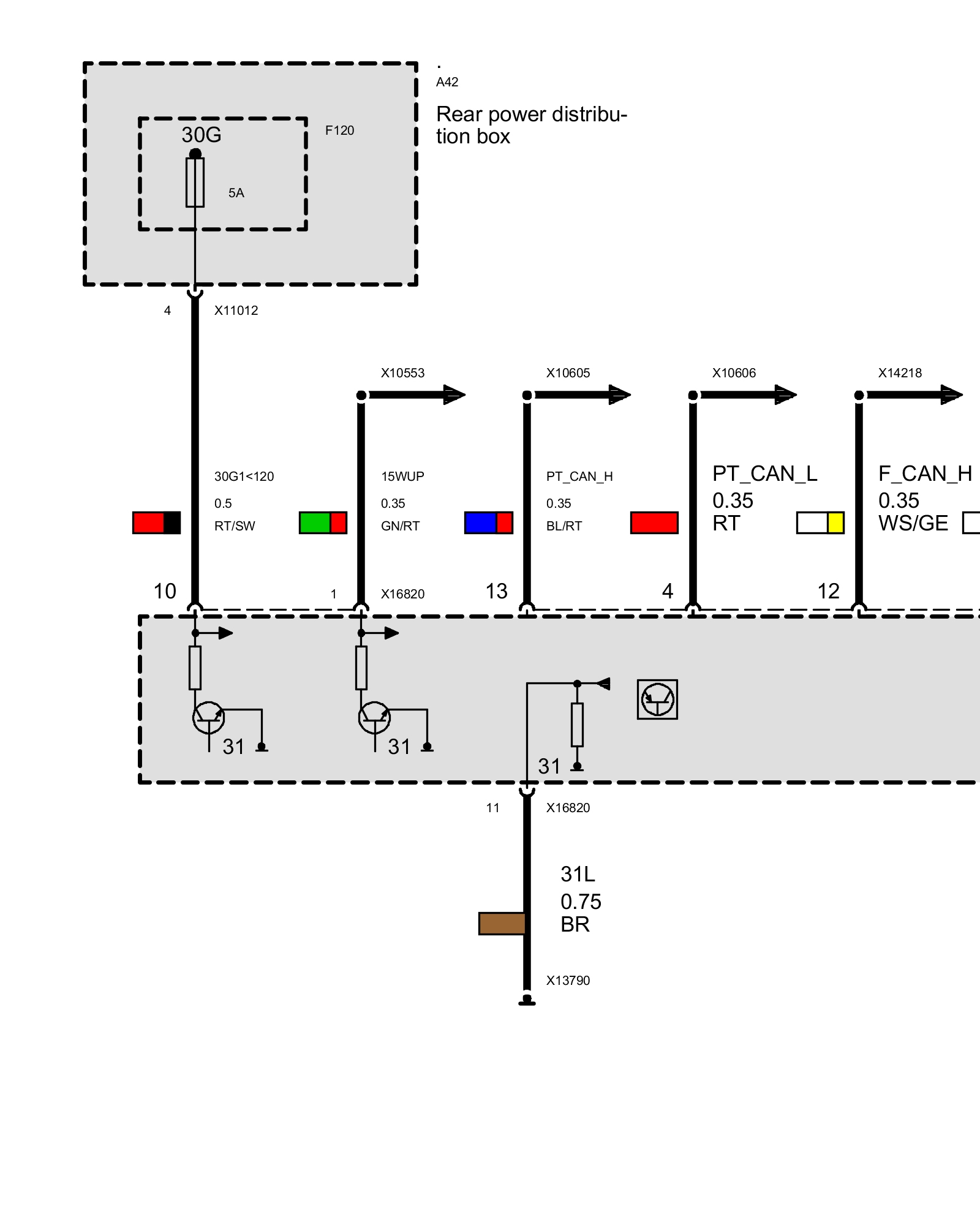

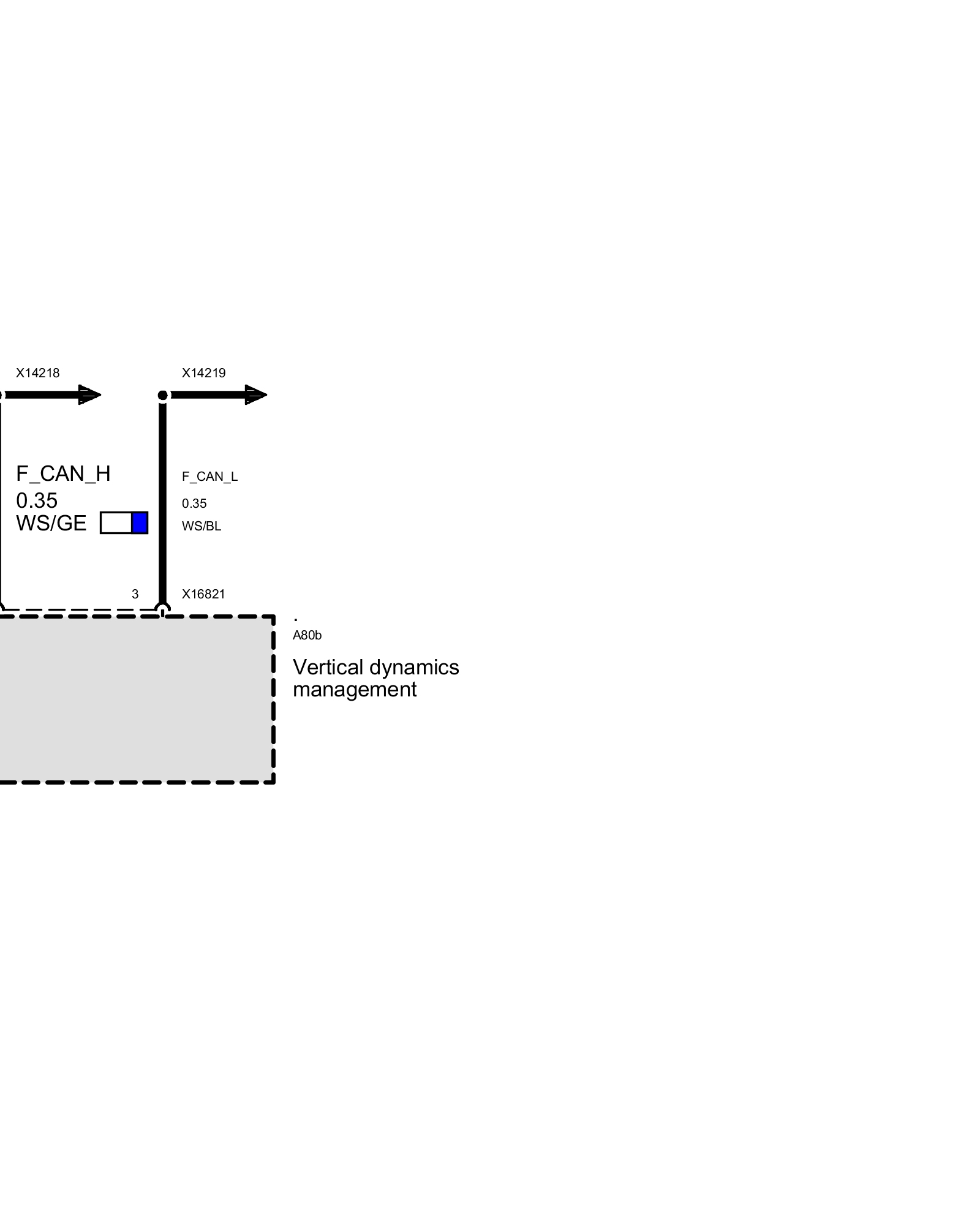

Power Supply, Vertical Dynamics Management
Power Supply, Vertical Dynamics Management
Power Supply, Vertical Dynamics Management
