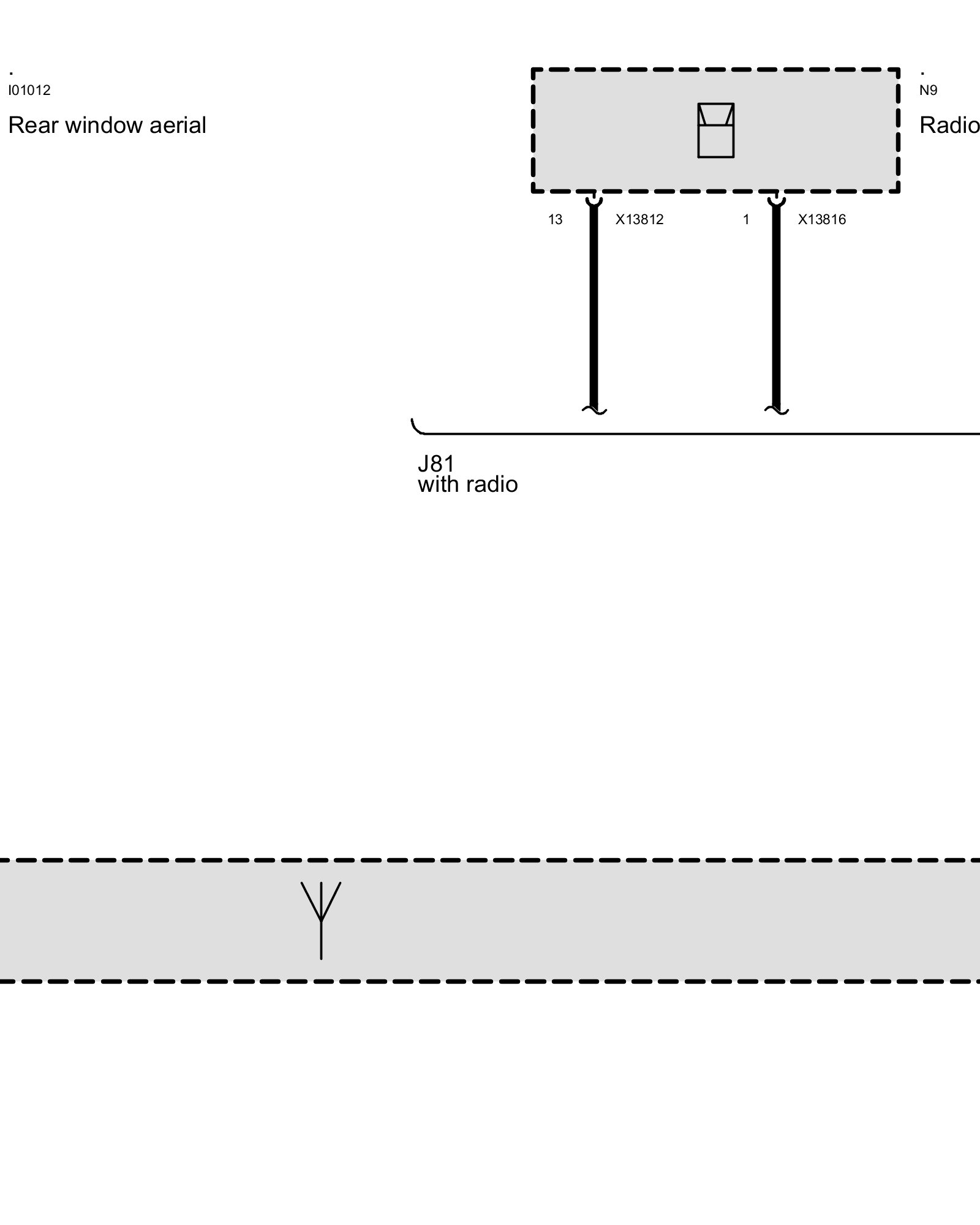

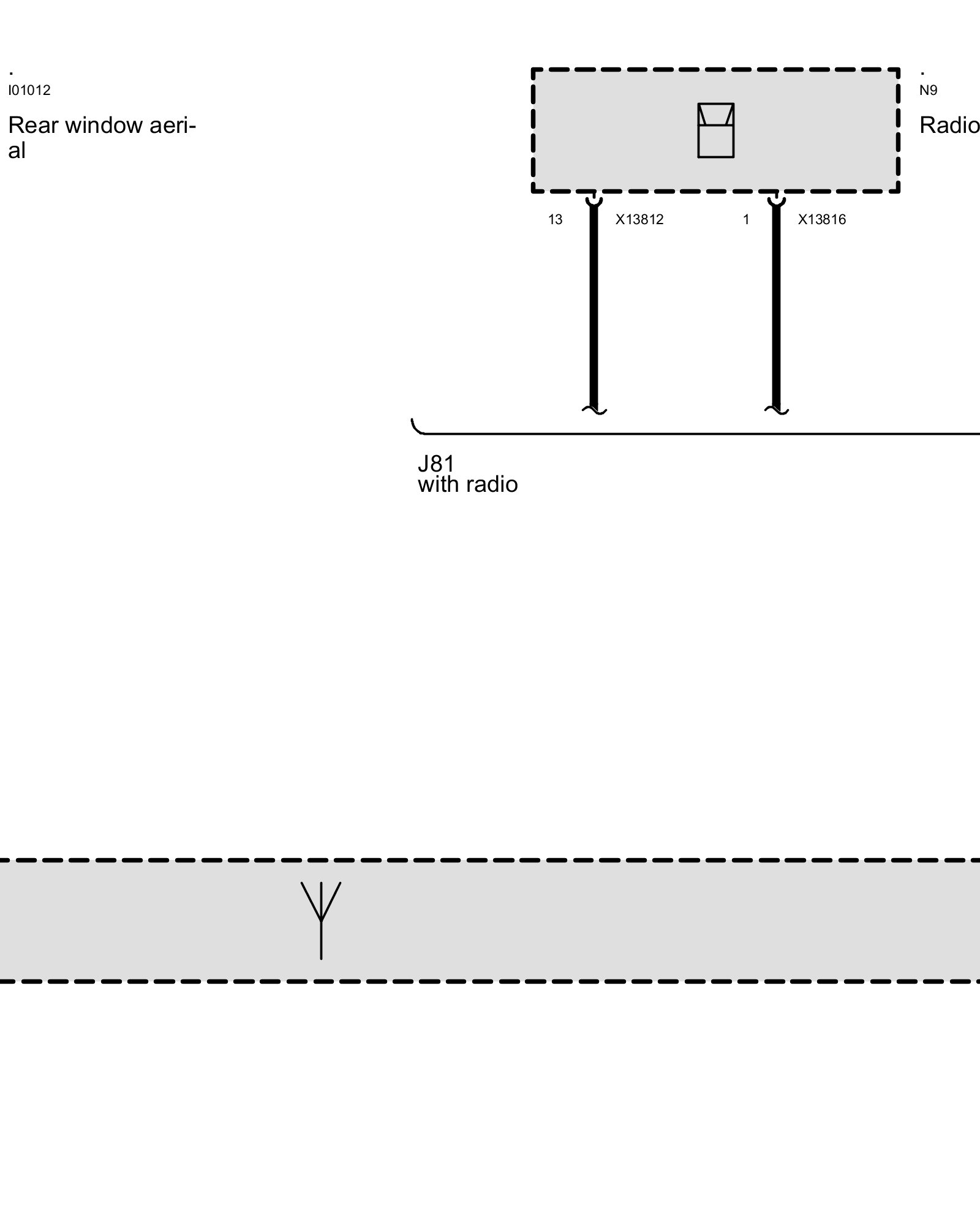

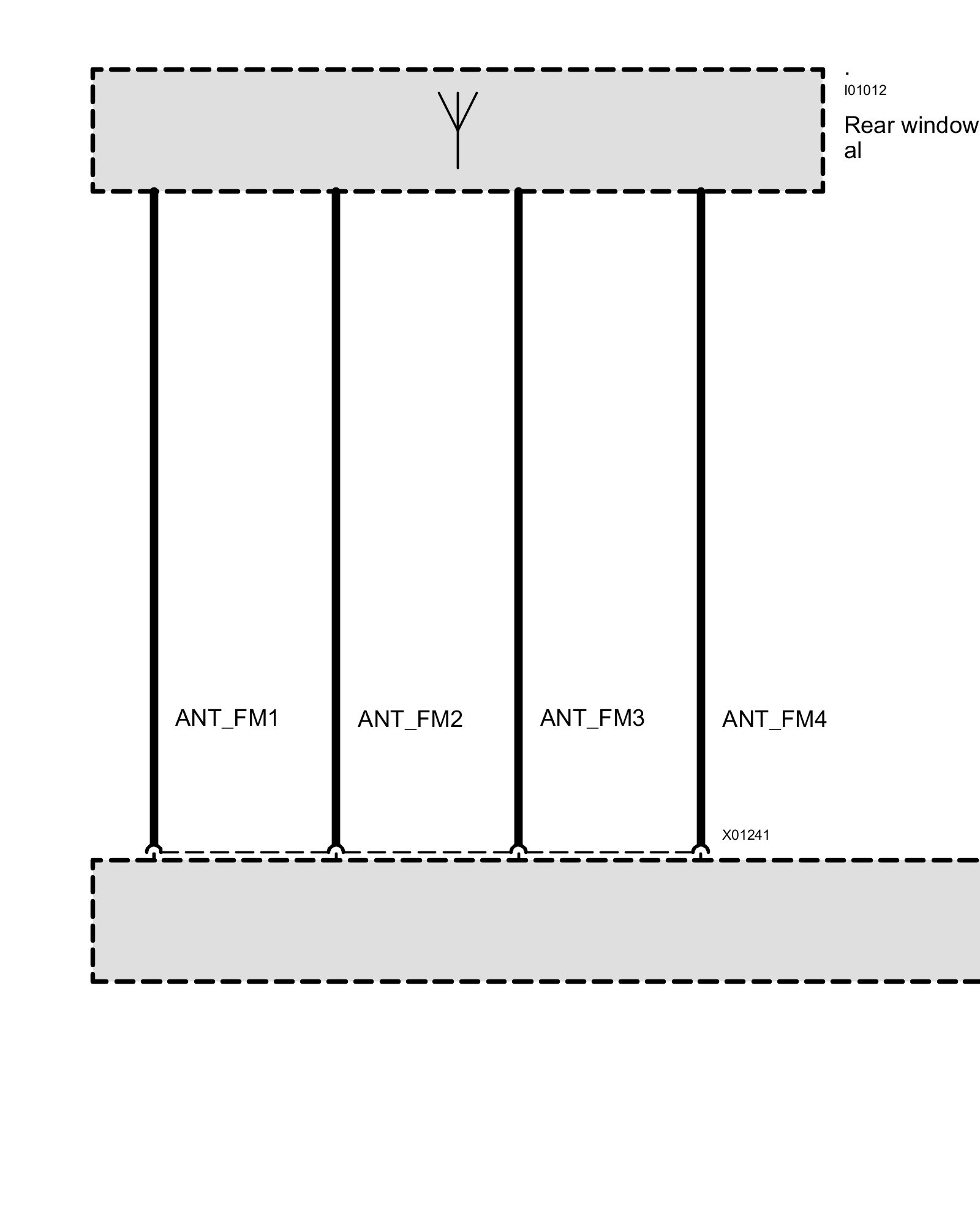

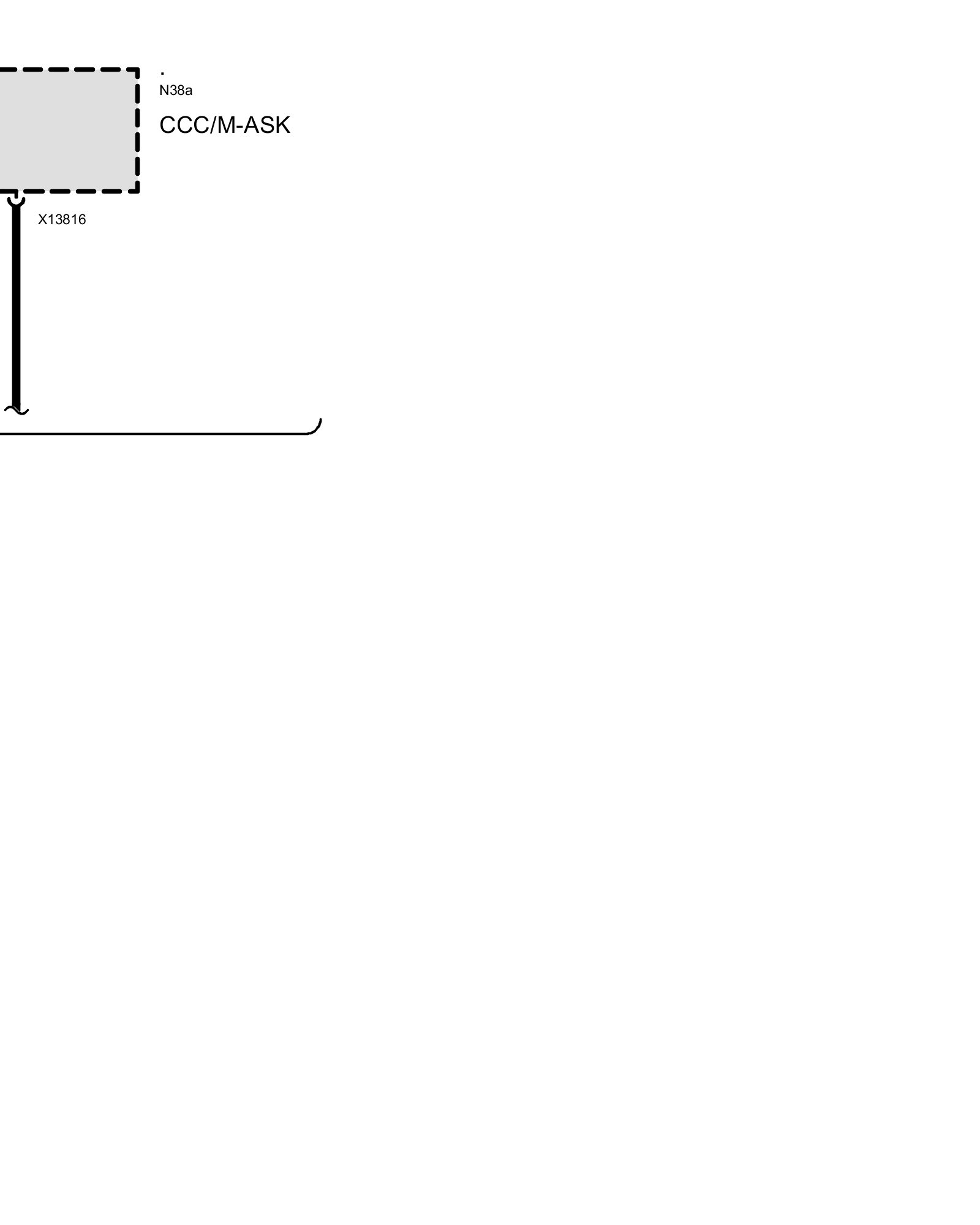

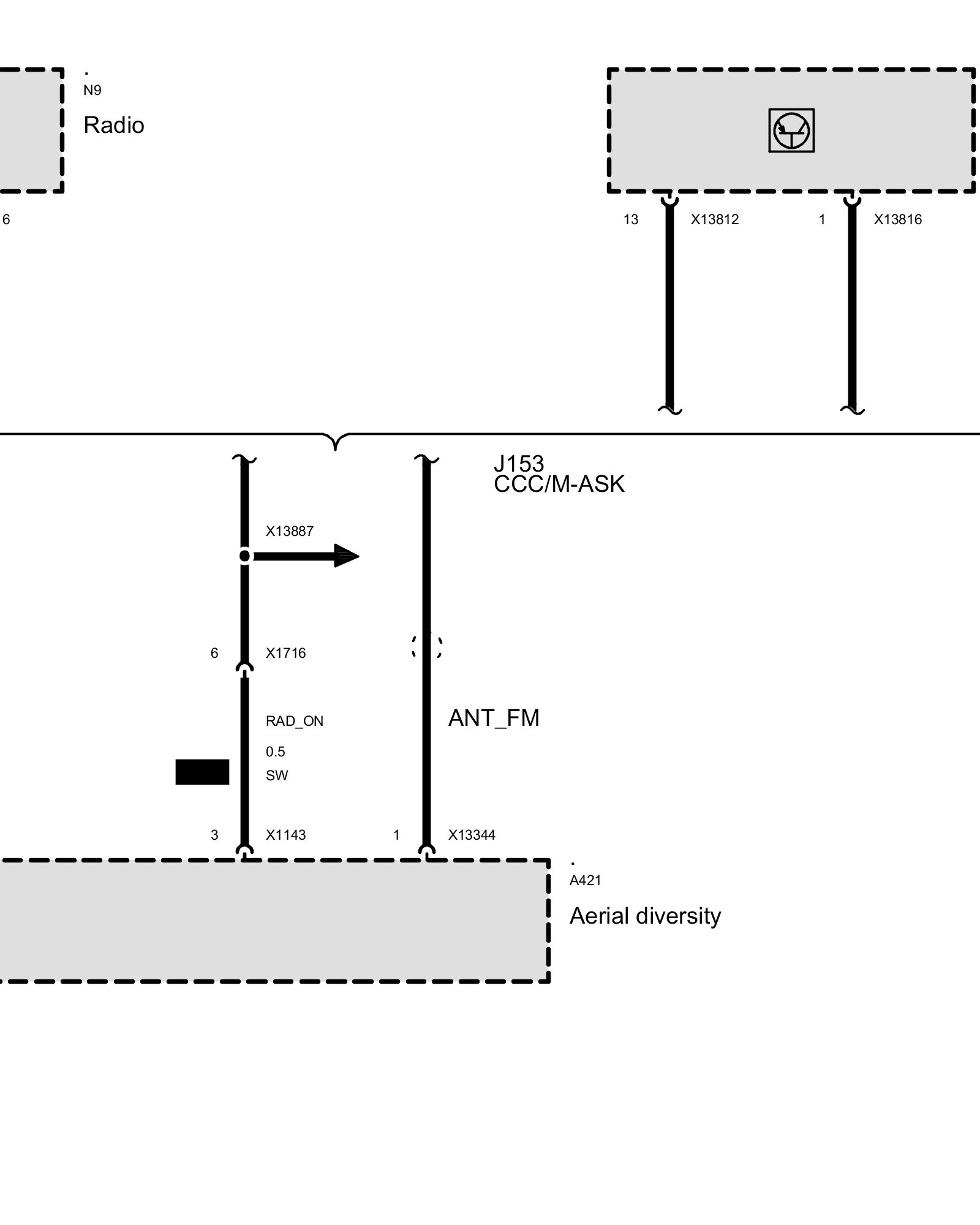

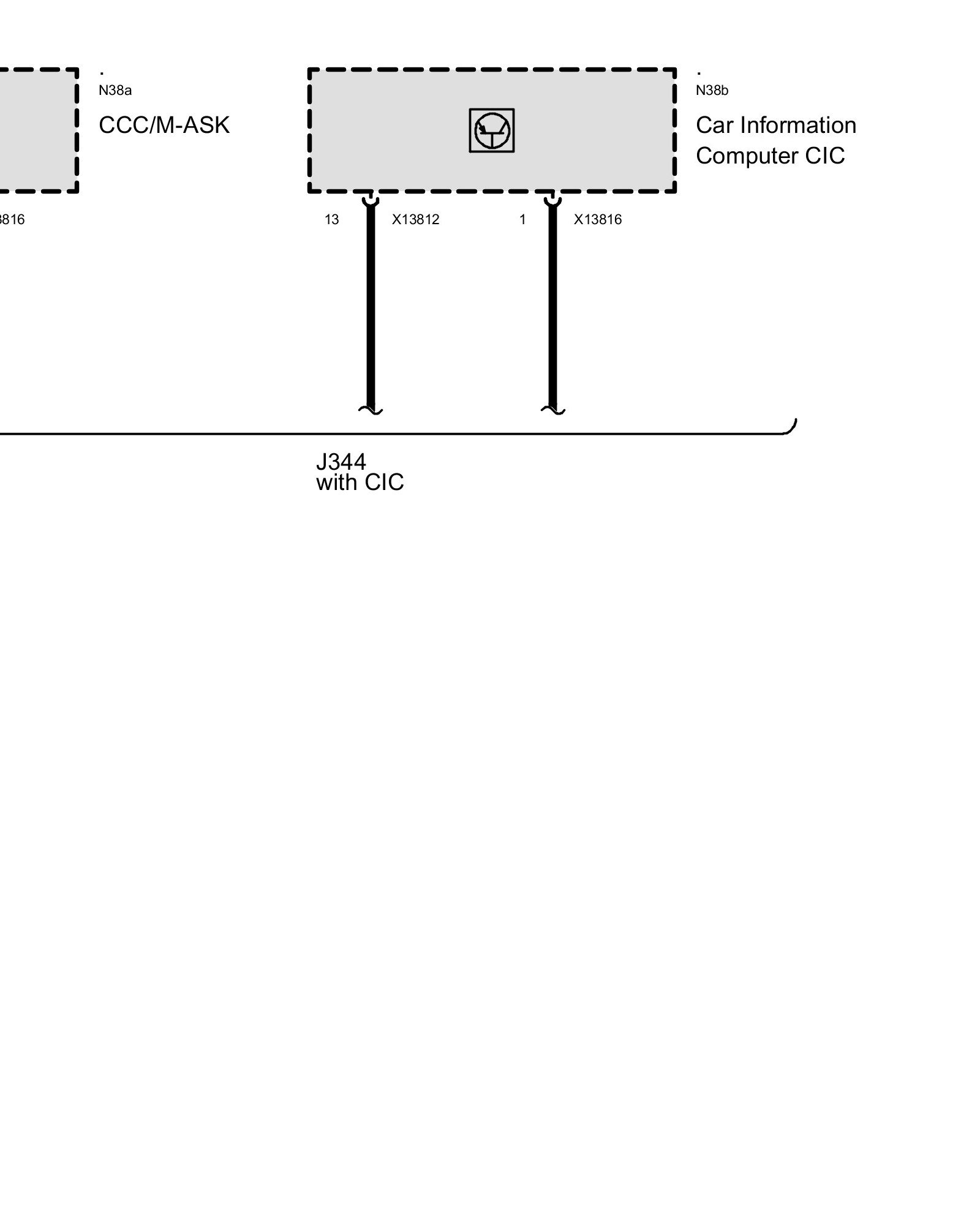

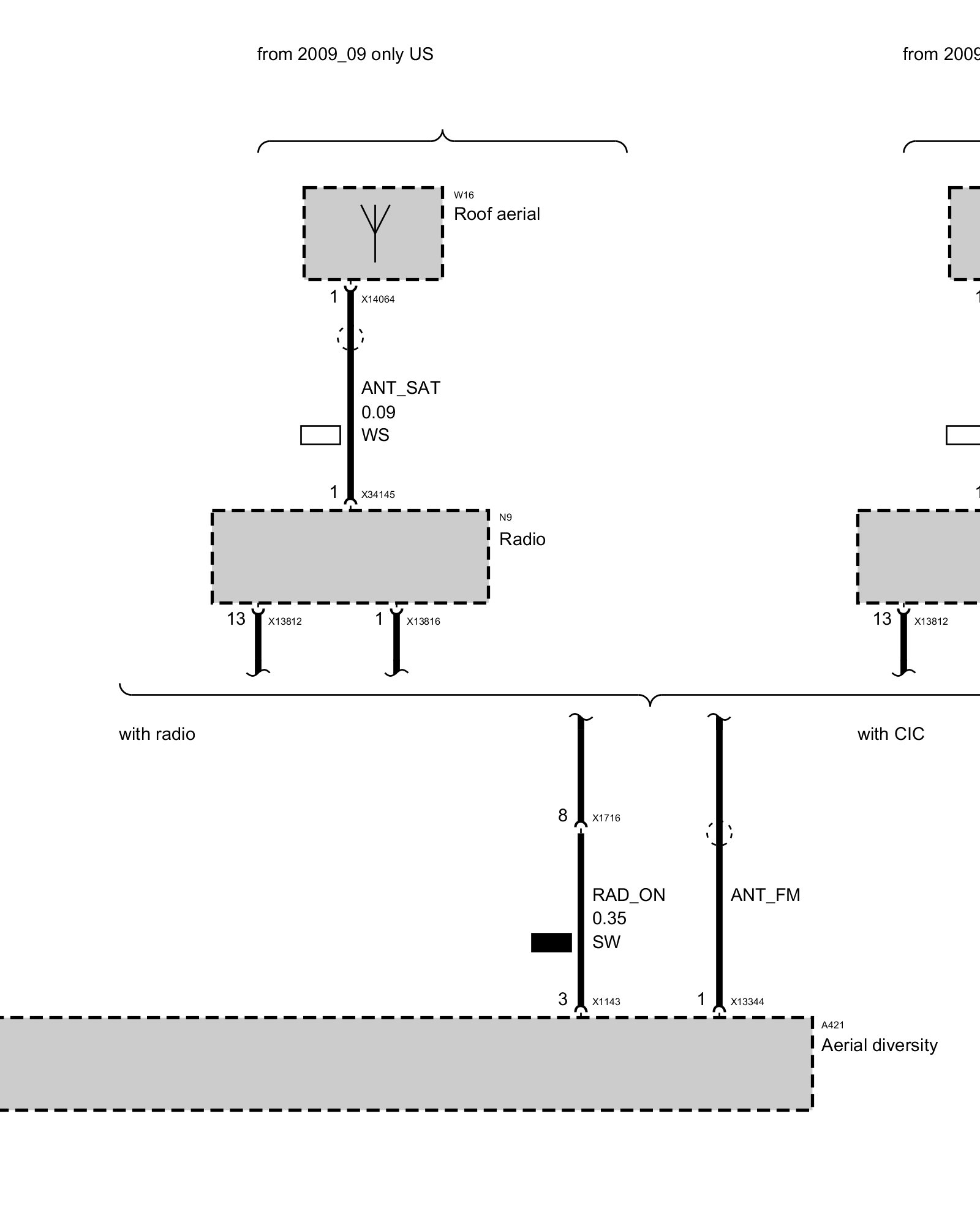

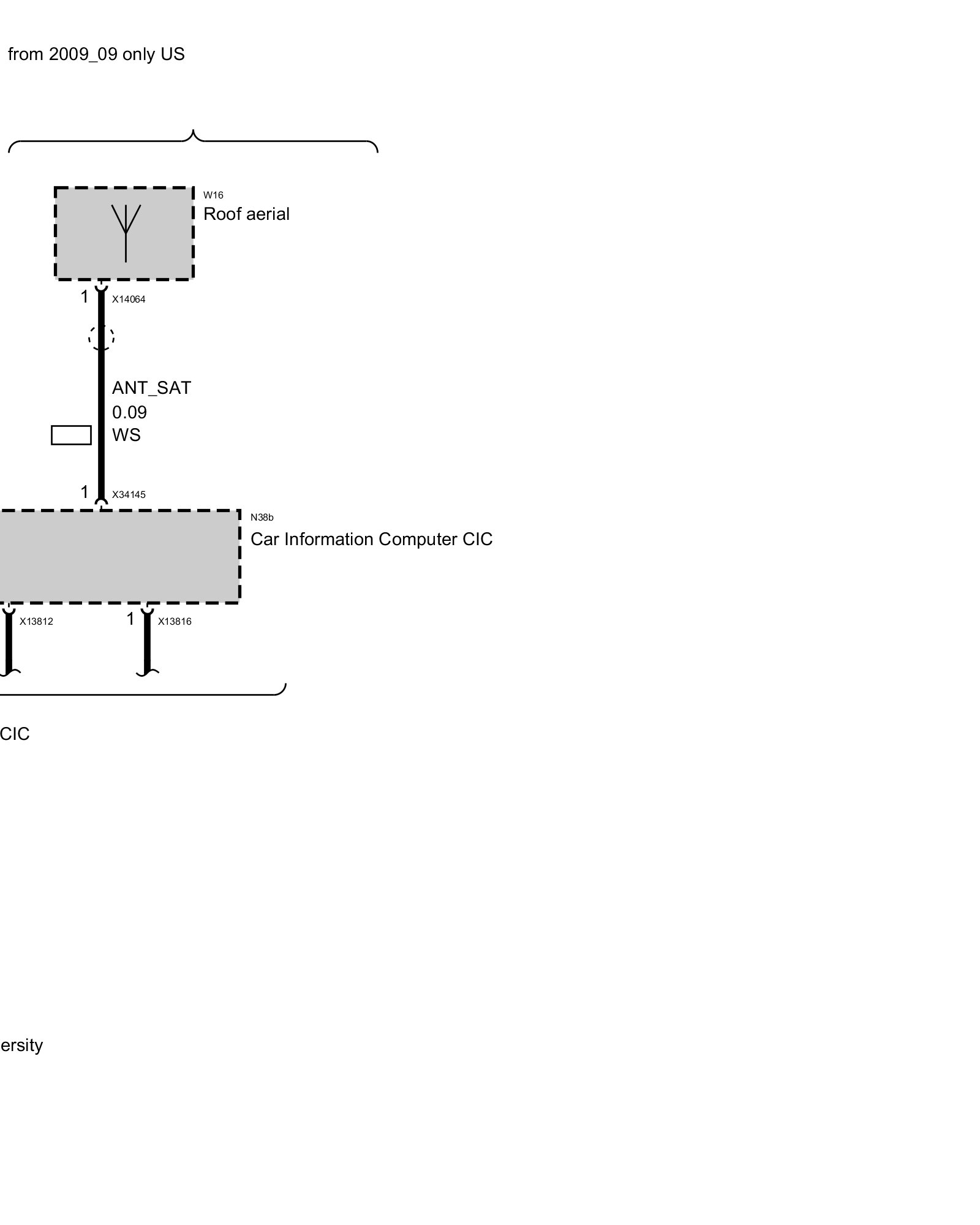

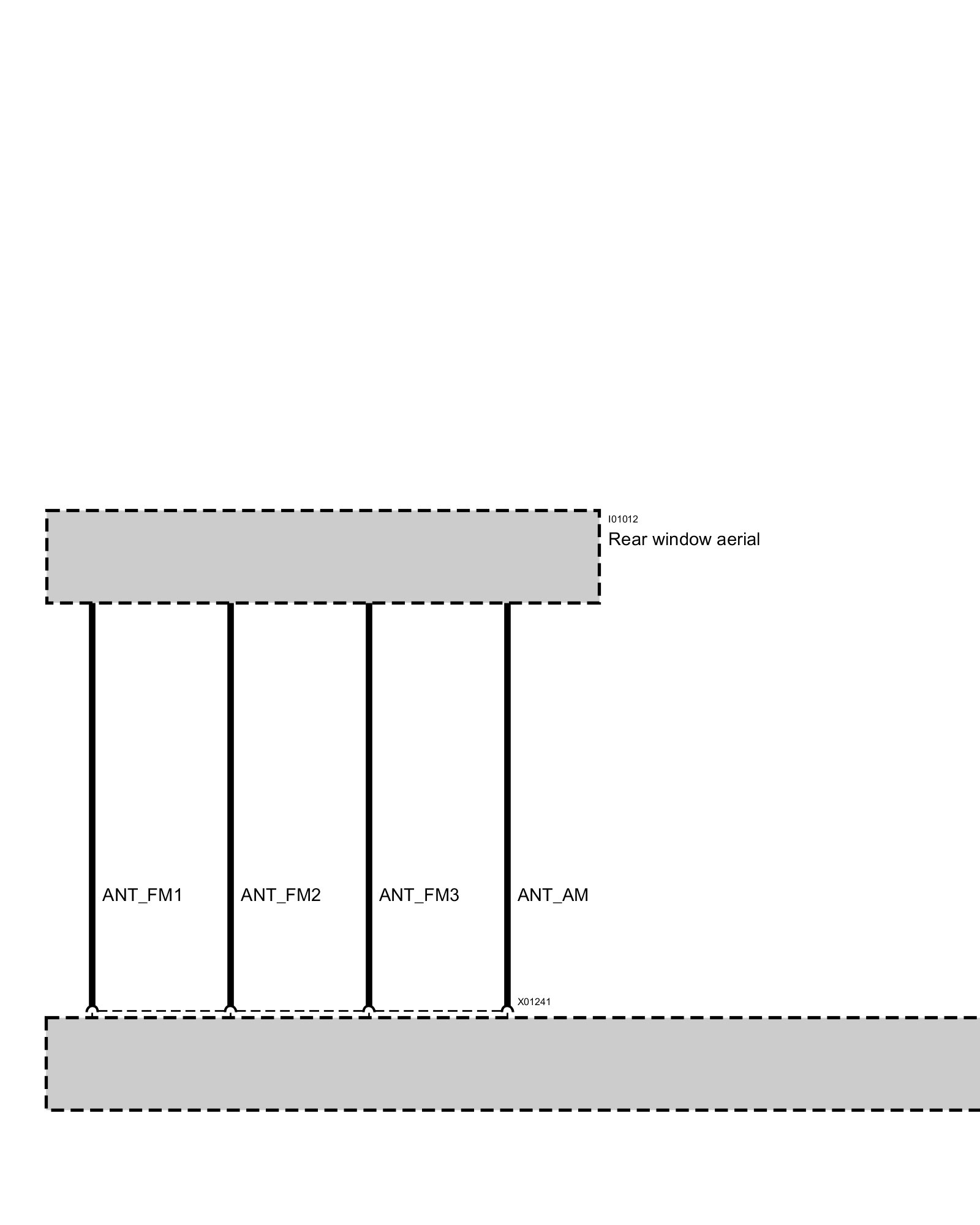

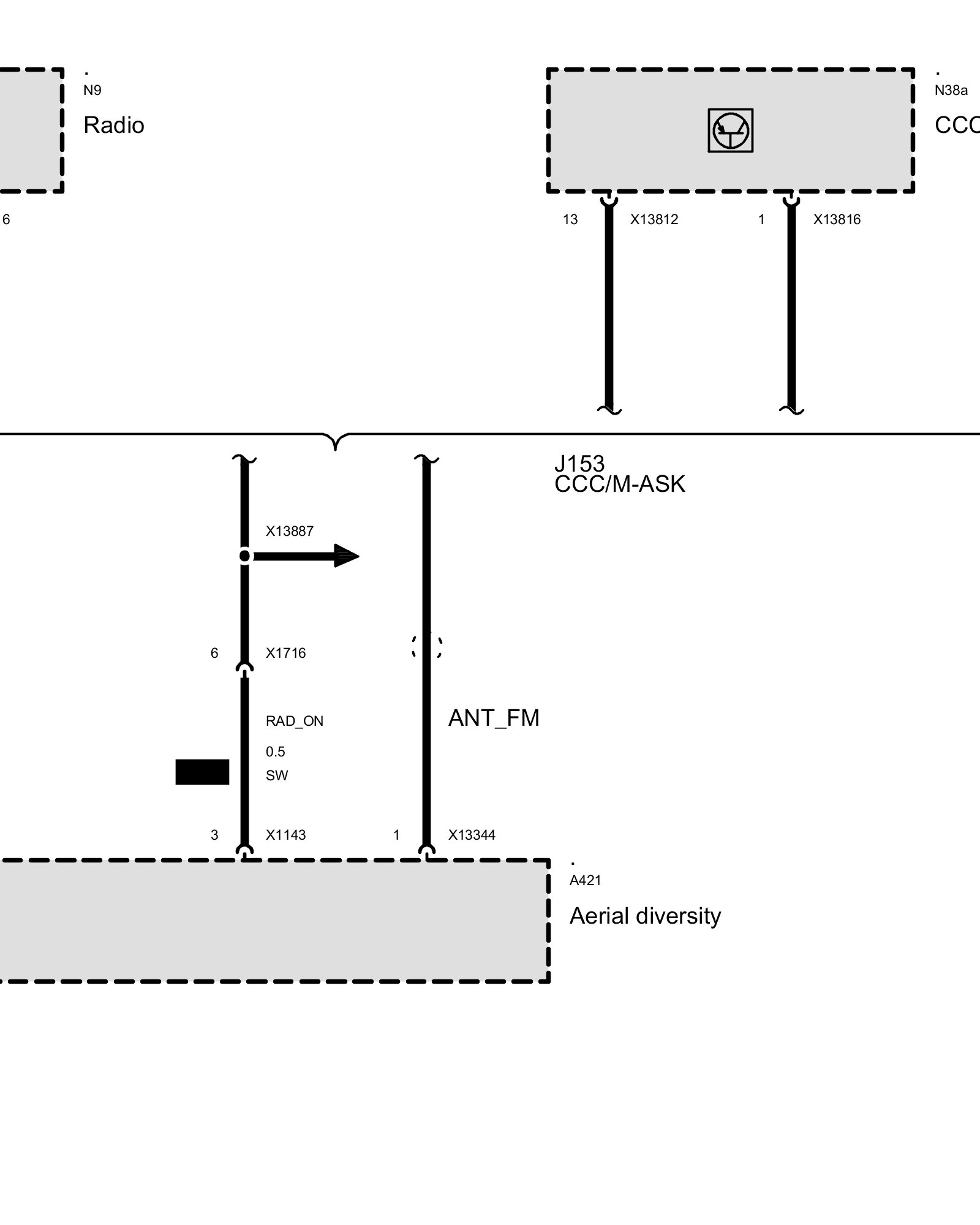

Home >> BMW >> 2011 >> 128i Coupe (E82) L6-3.0L (N52K) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Radio Reception
