135i Coupe (E82) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

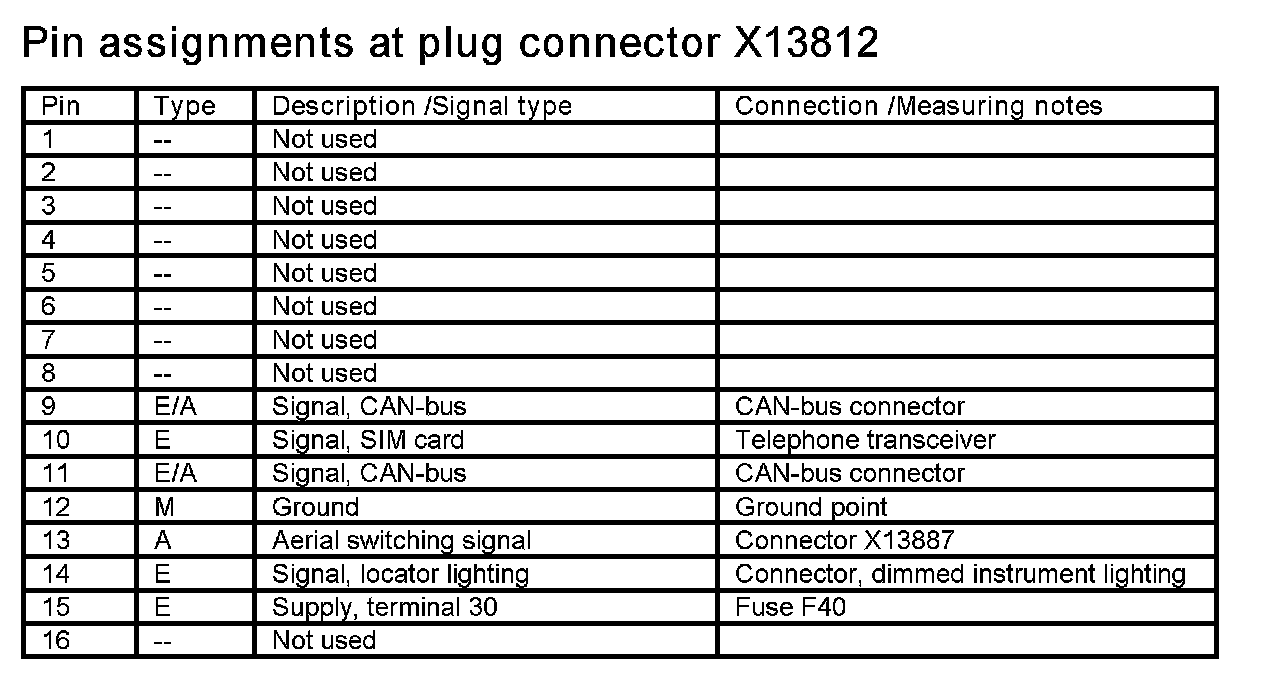

X13812
>>
N9 Radio (Top HiFi System)
N9 Radio (Top HiFi System)
X13812
N9 Radio
