Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
535i GT (F07) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>

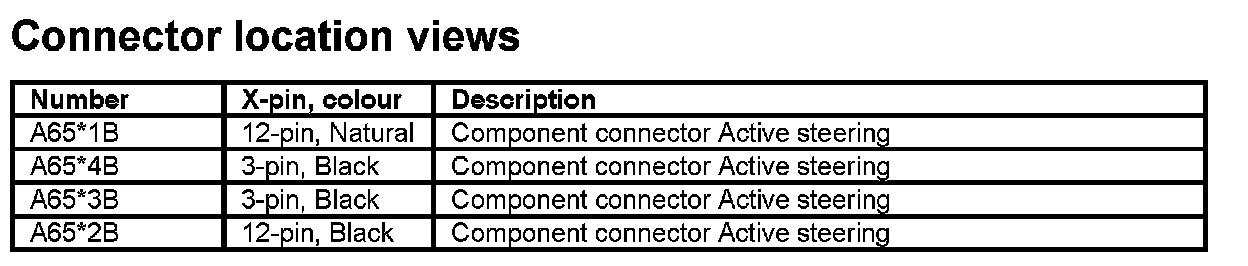

Connector Views
>>
Connectors From A...
>>

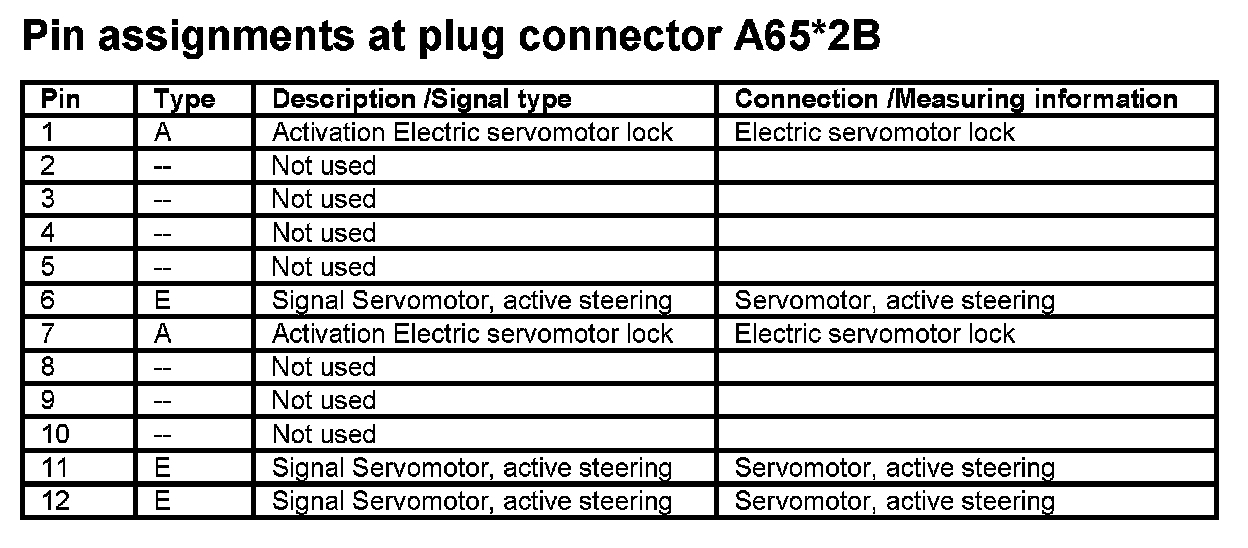

A65*2B
A65*2B
A65*2B
A65 Active
Steering
