Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
535i Sedan (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors from A...
>>

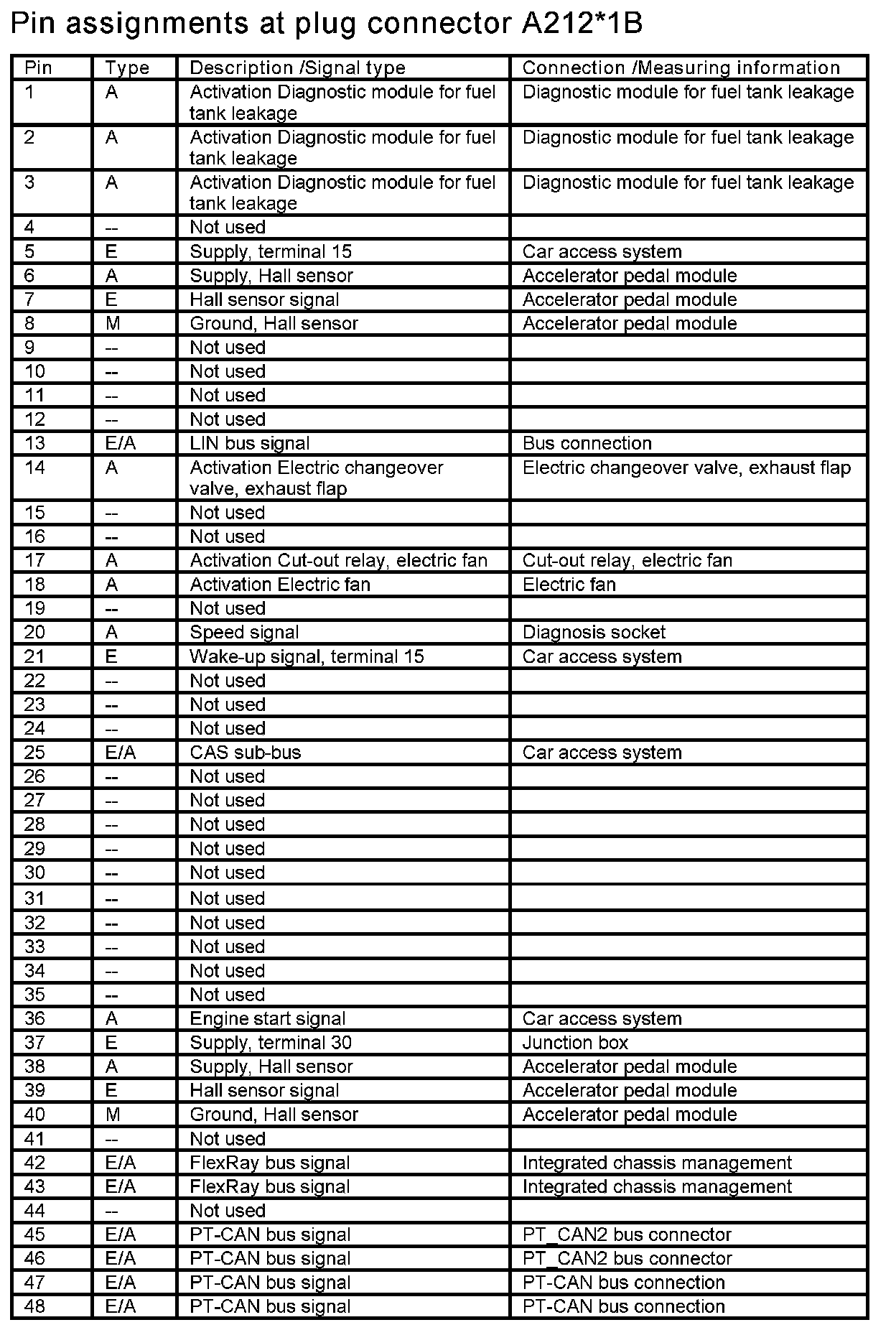

A212*1B
A212*1B
A212*1B
A46 Digital Motor Electronics
