Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
535i Sedan (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Night Vision System
>>

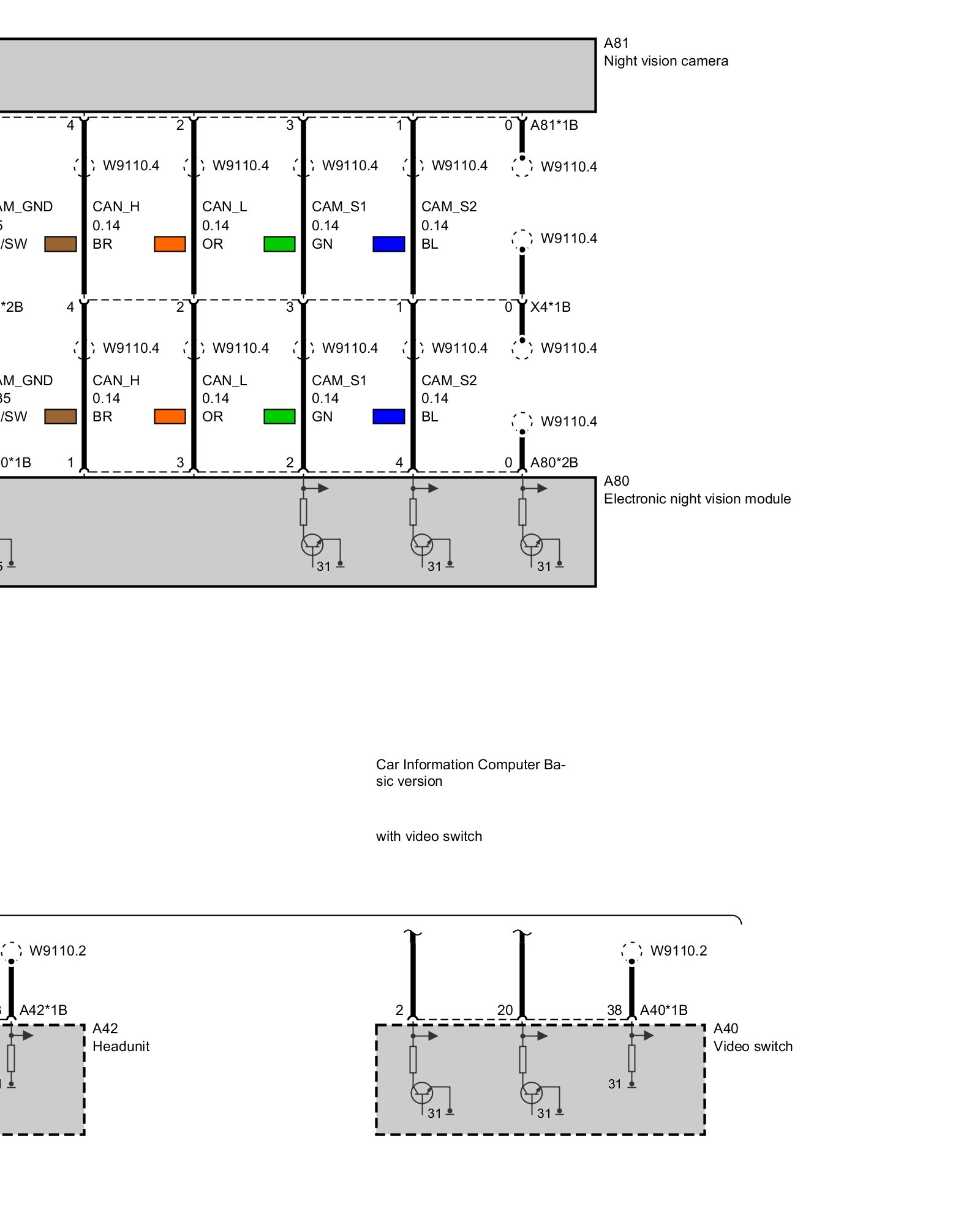

Wiring Diagrams
>>
Electronic Night Vision Module
Electronic Night Vision Module
Electronic Night Vision Module
