Home >> BMW >> 2011 >> 535i Sedan (F10) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> Impact Sensor

Impact Sensor

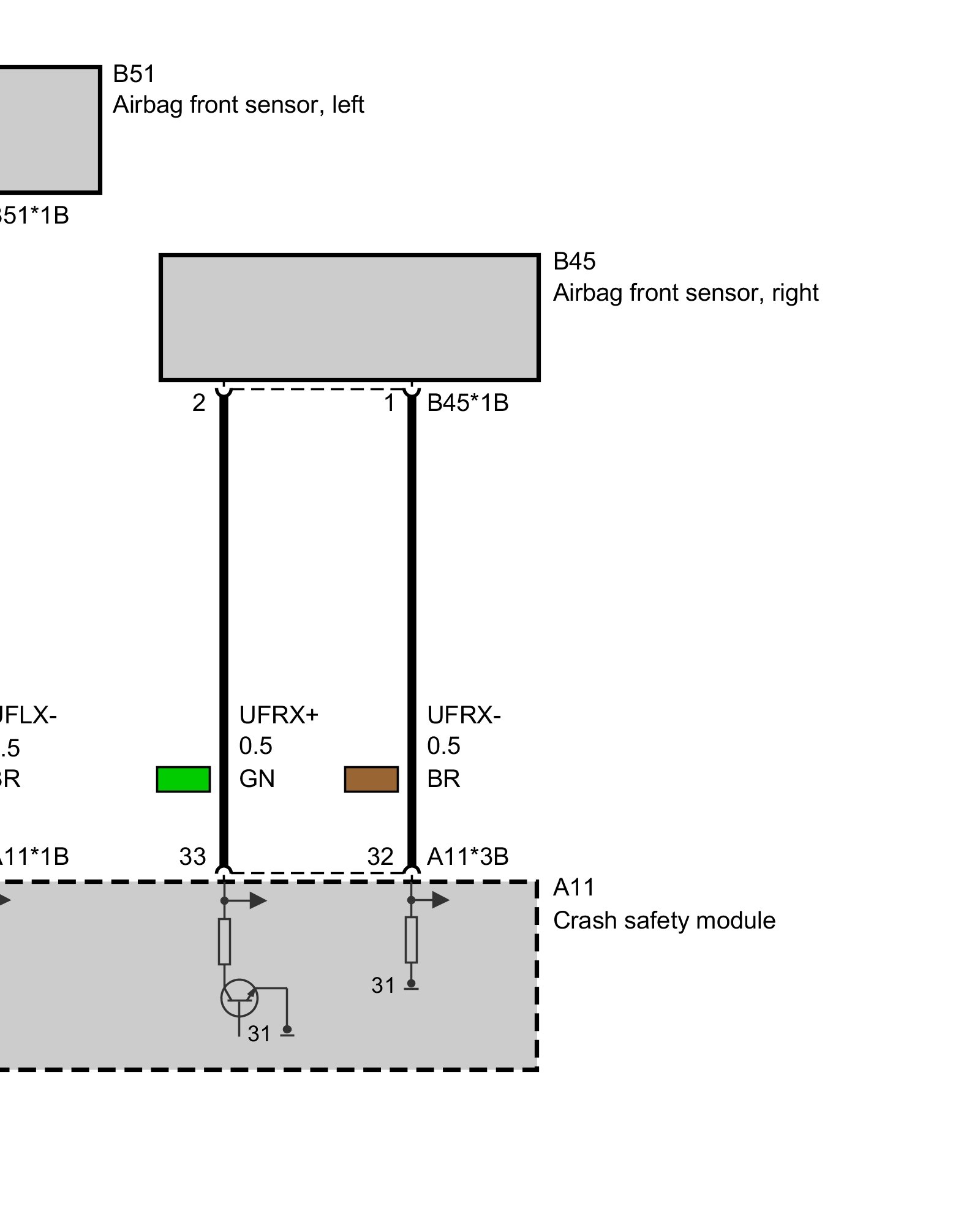

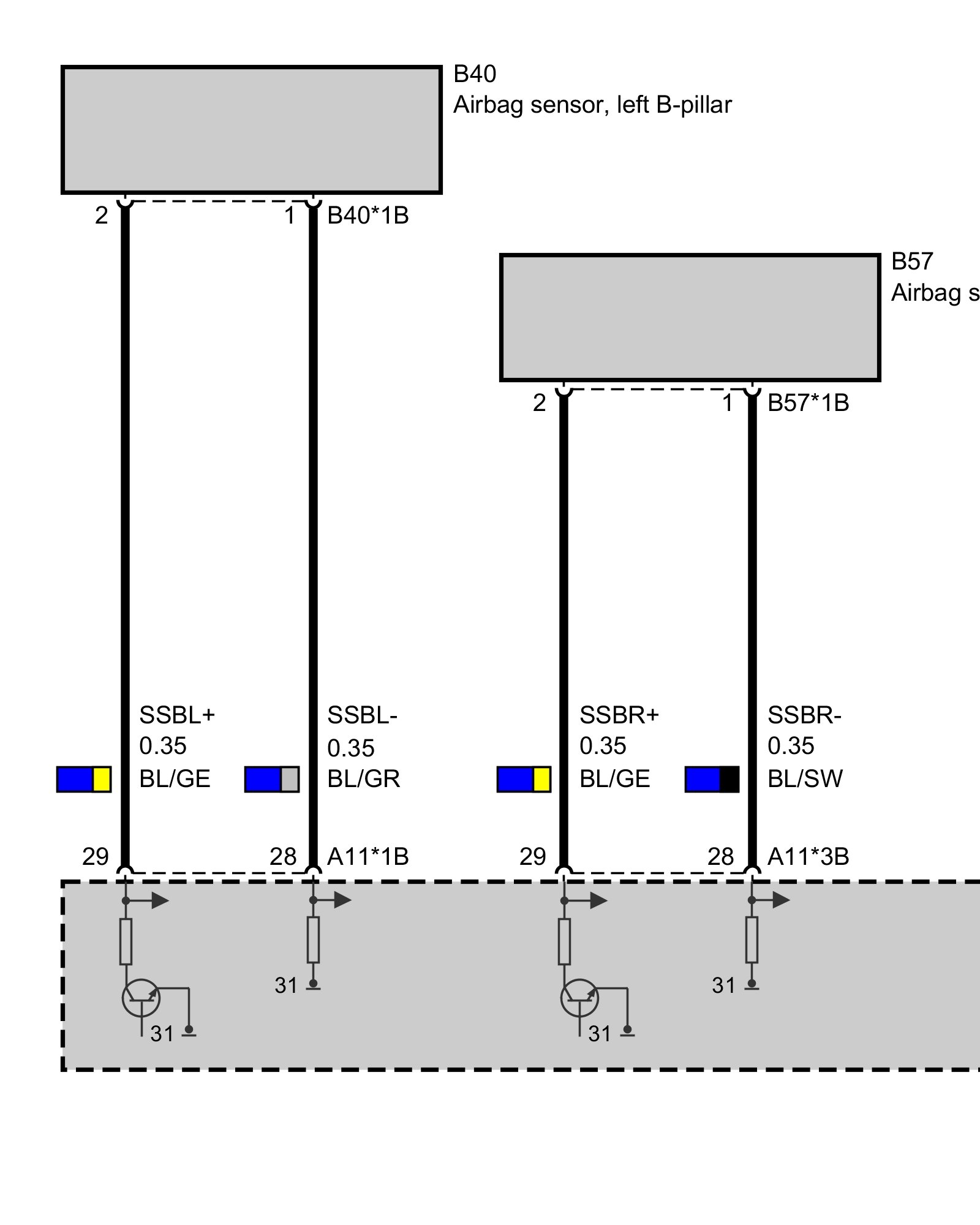

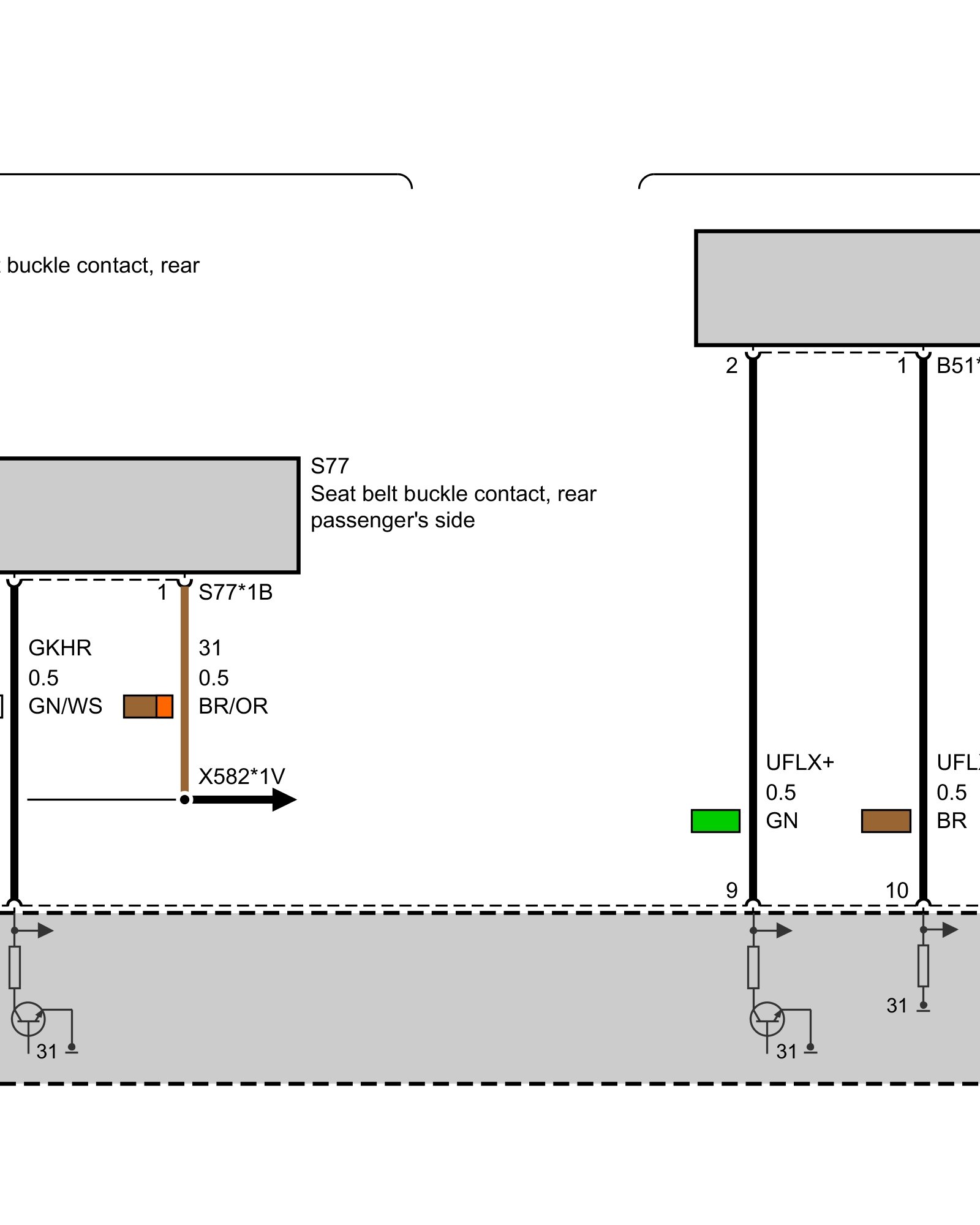

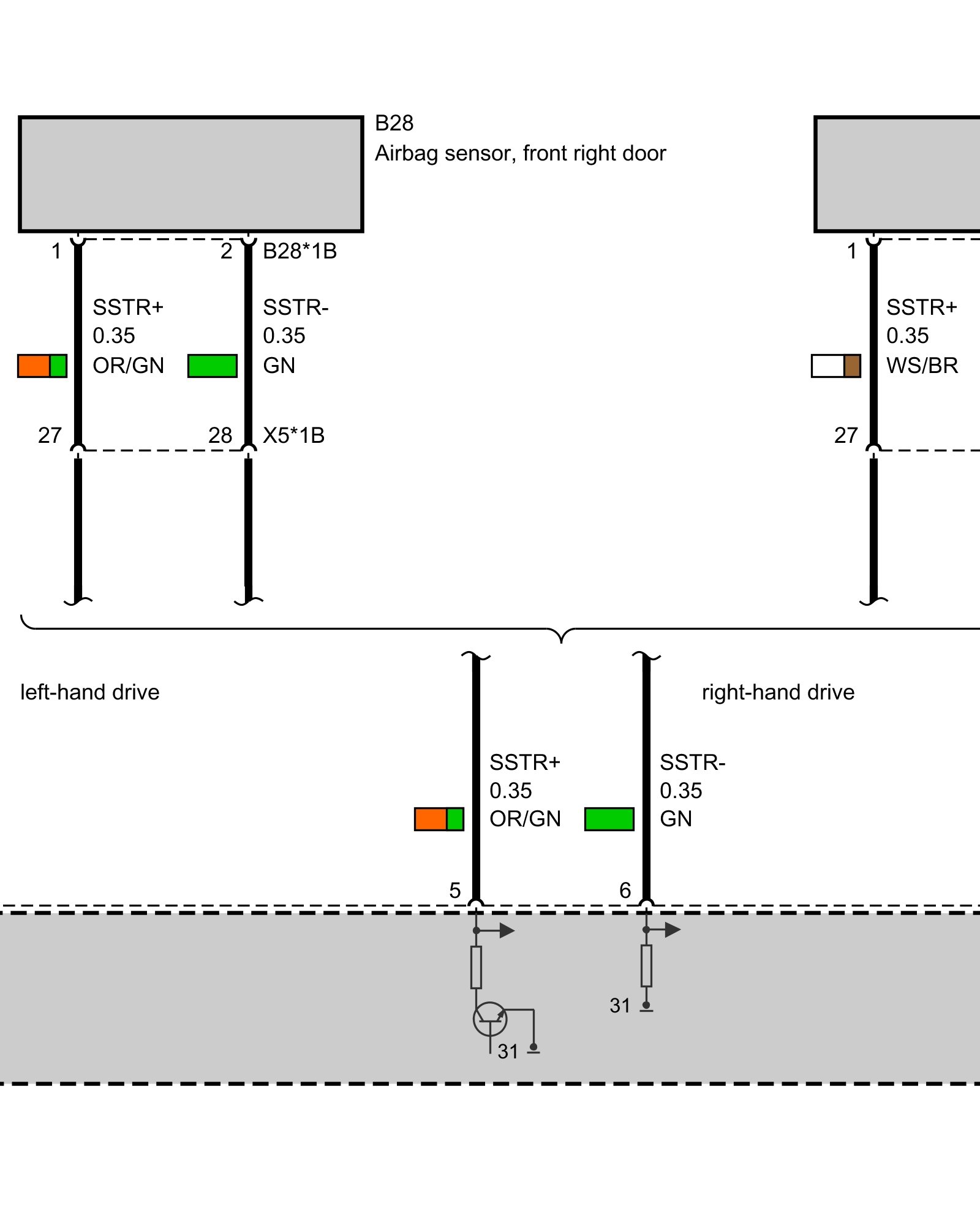

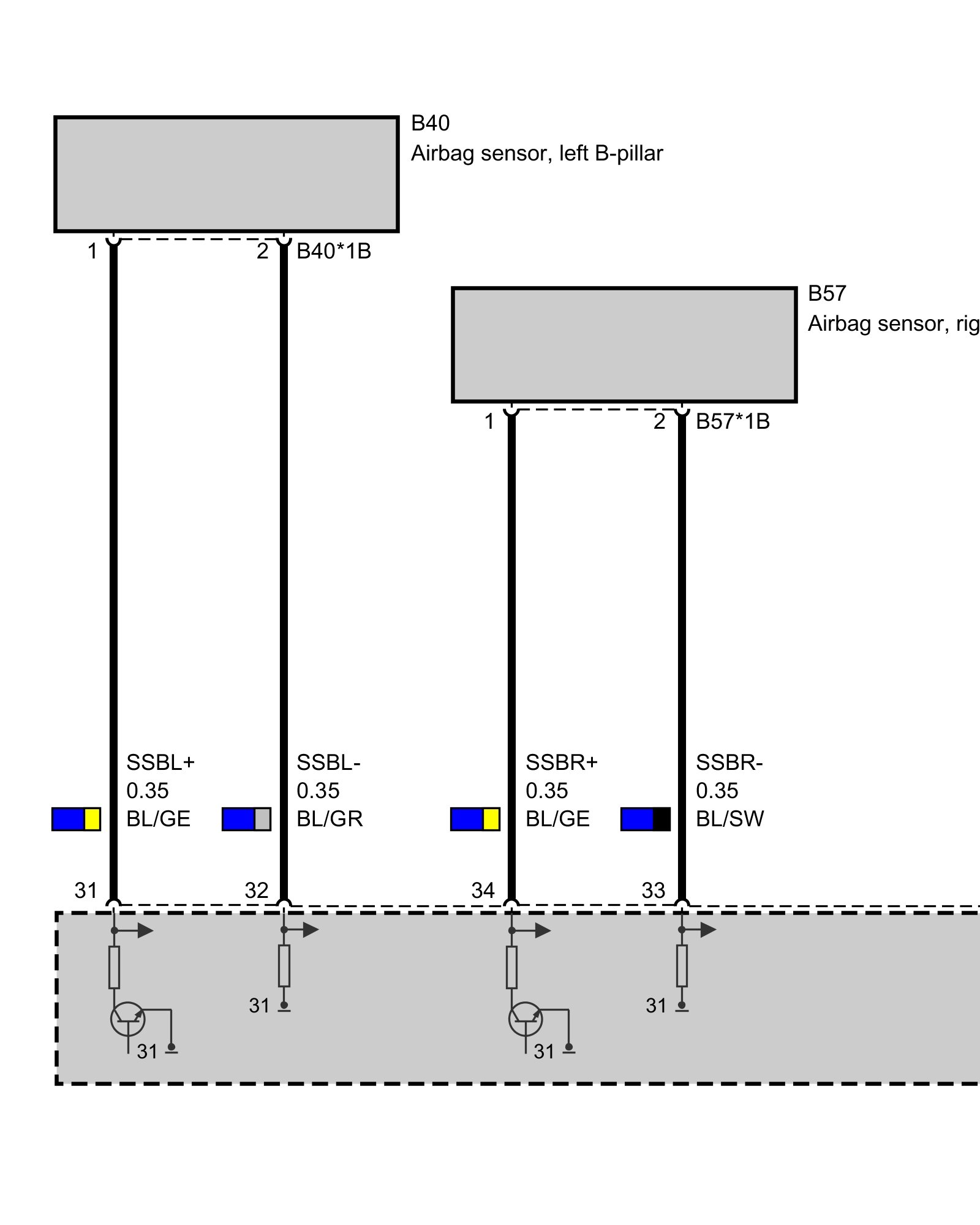

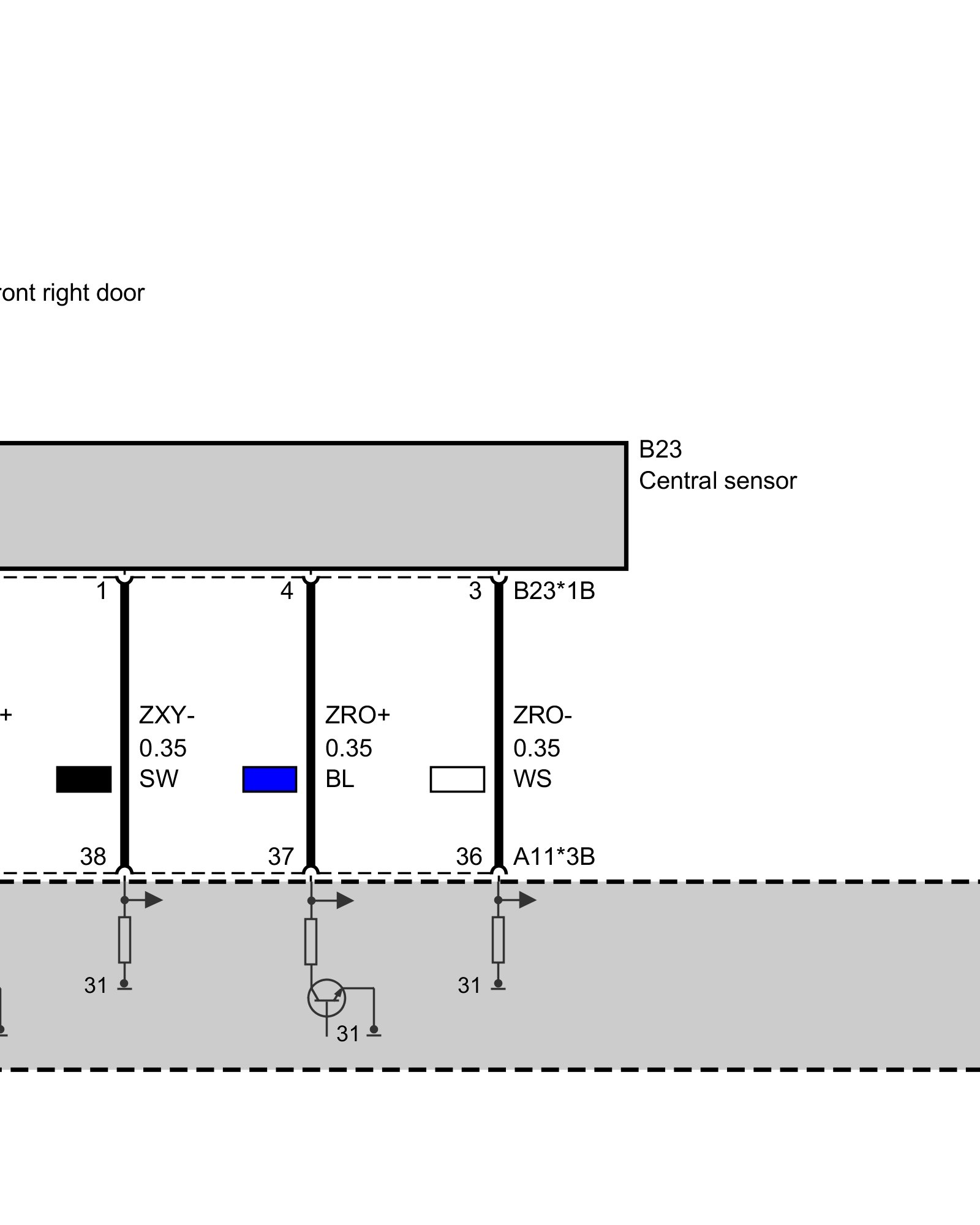

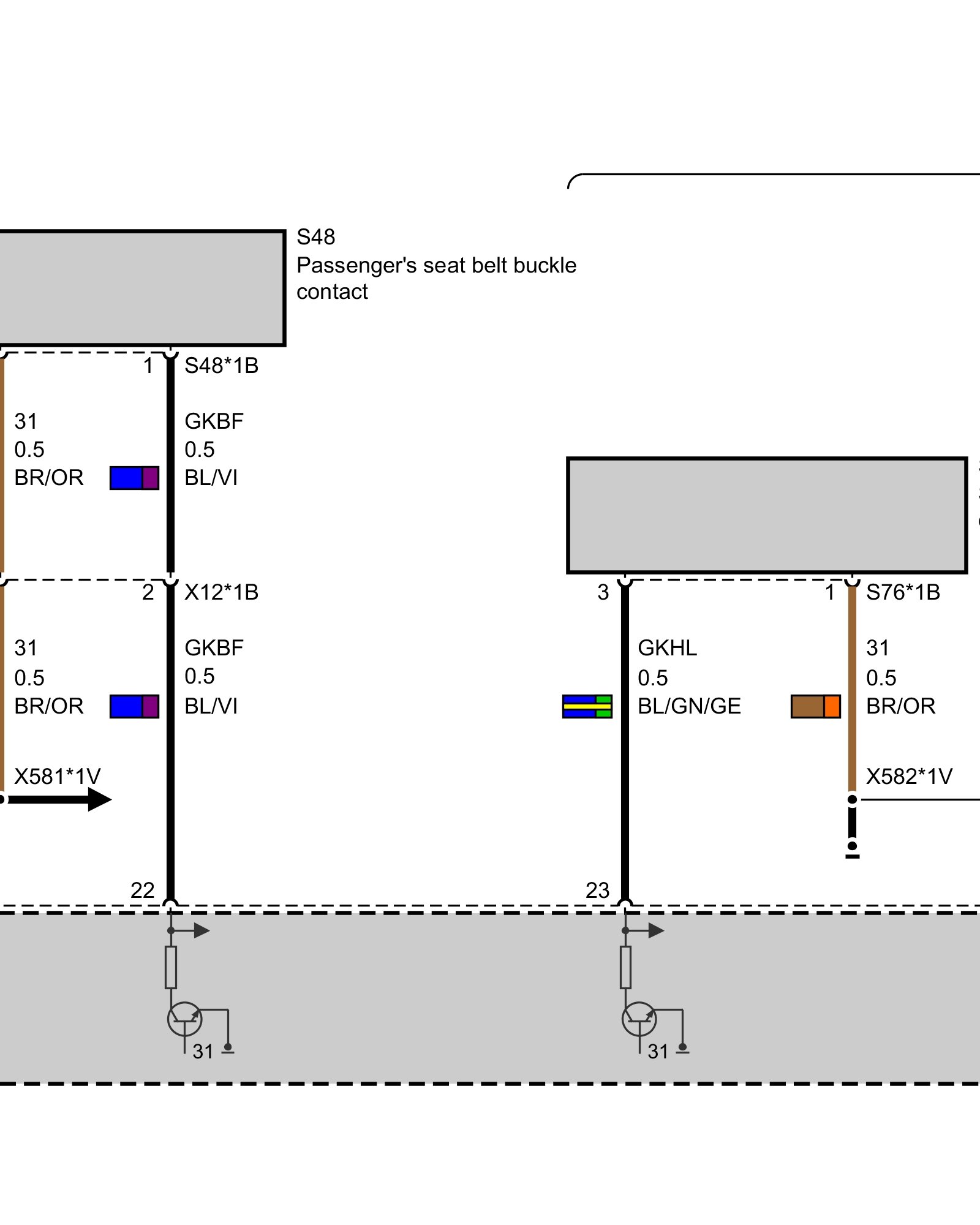

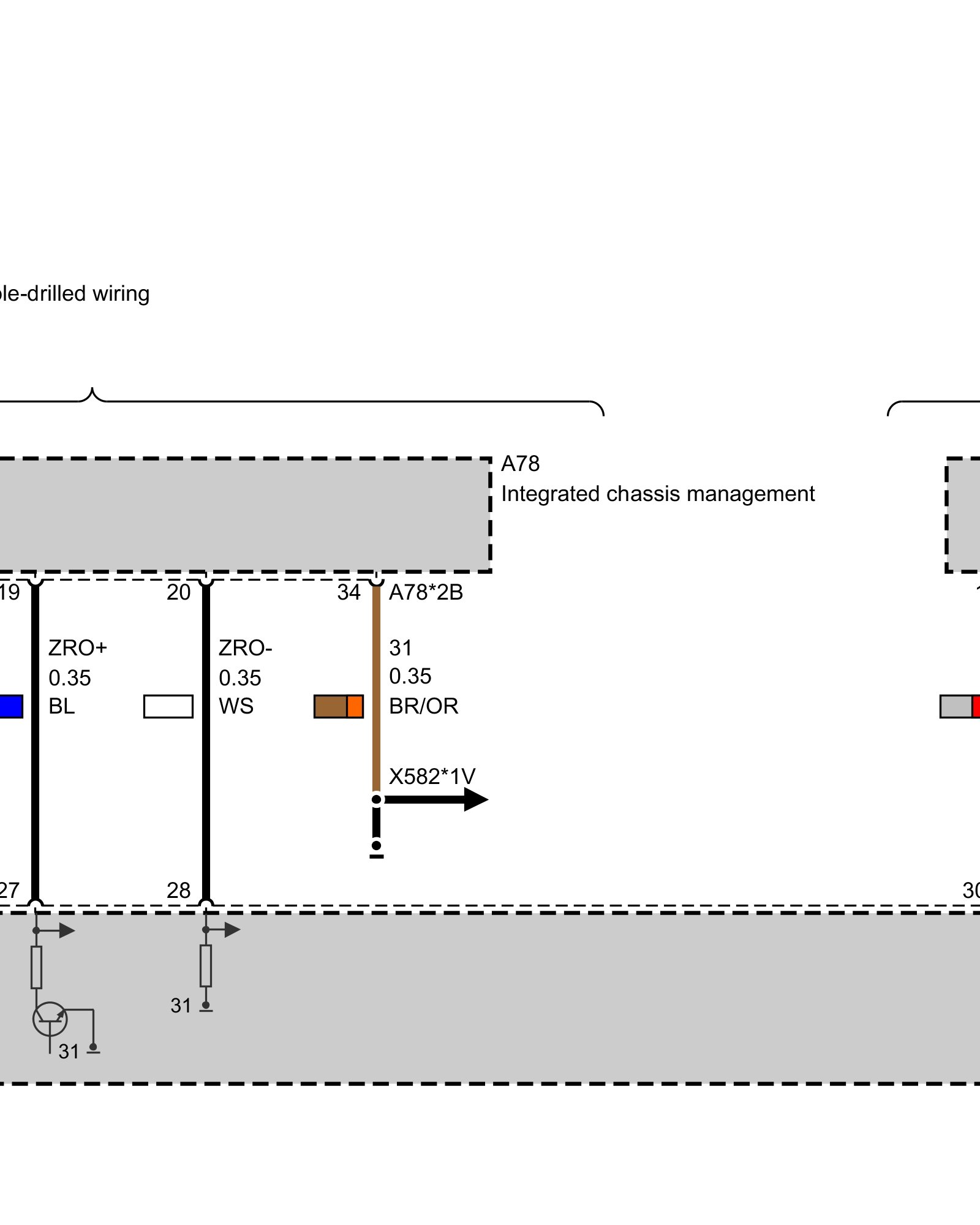

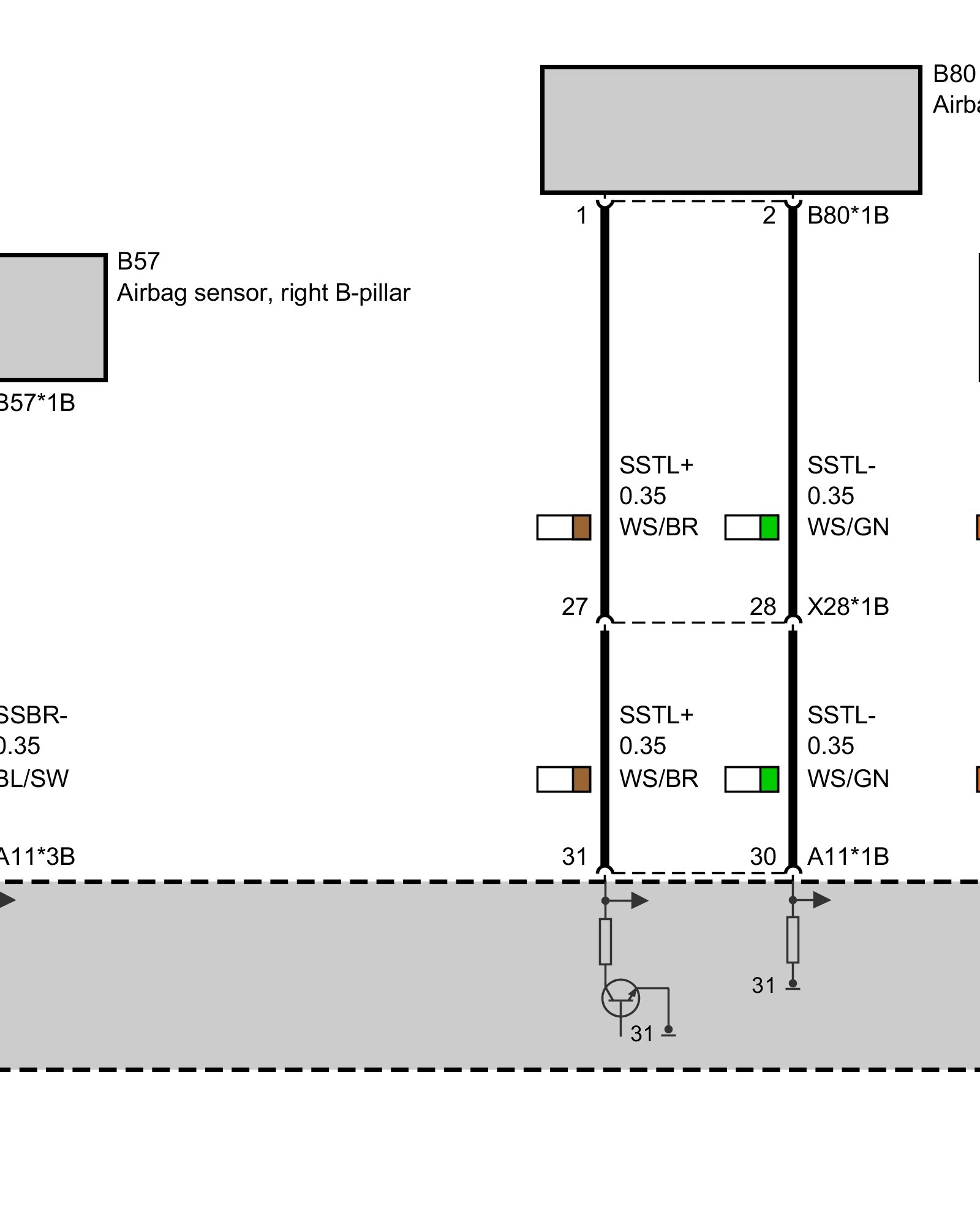

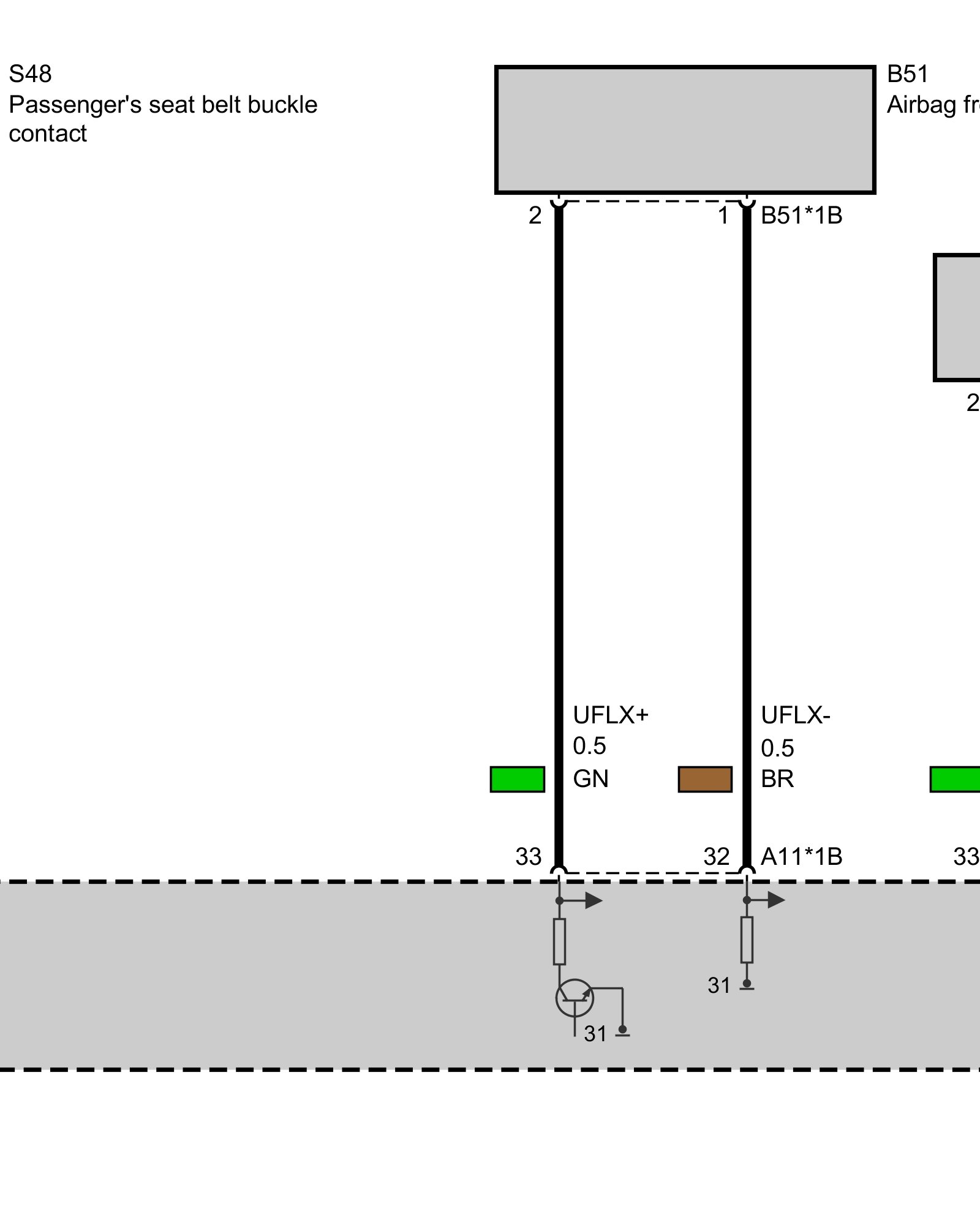

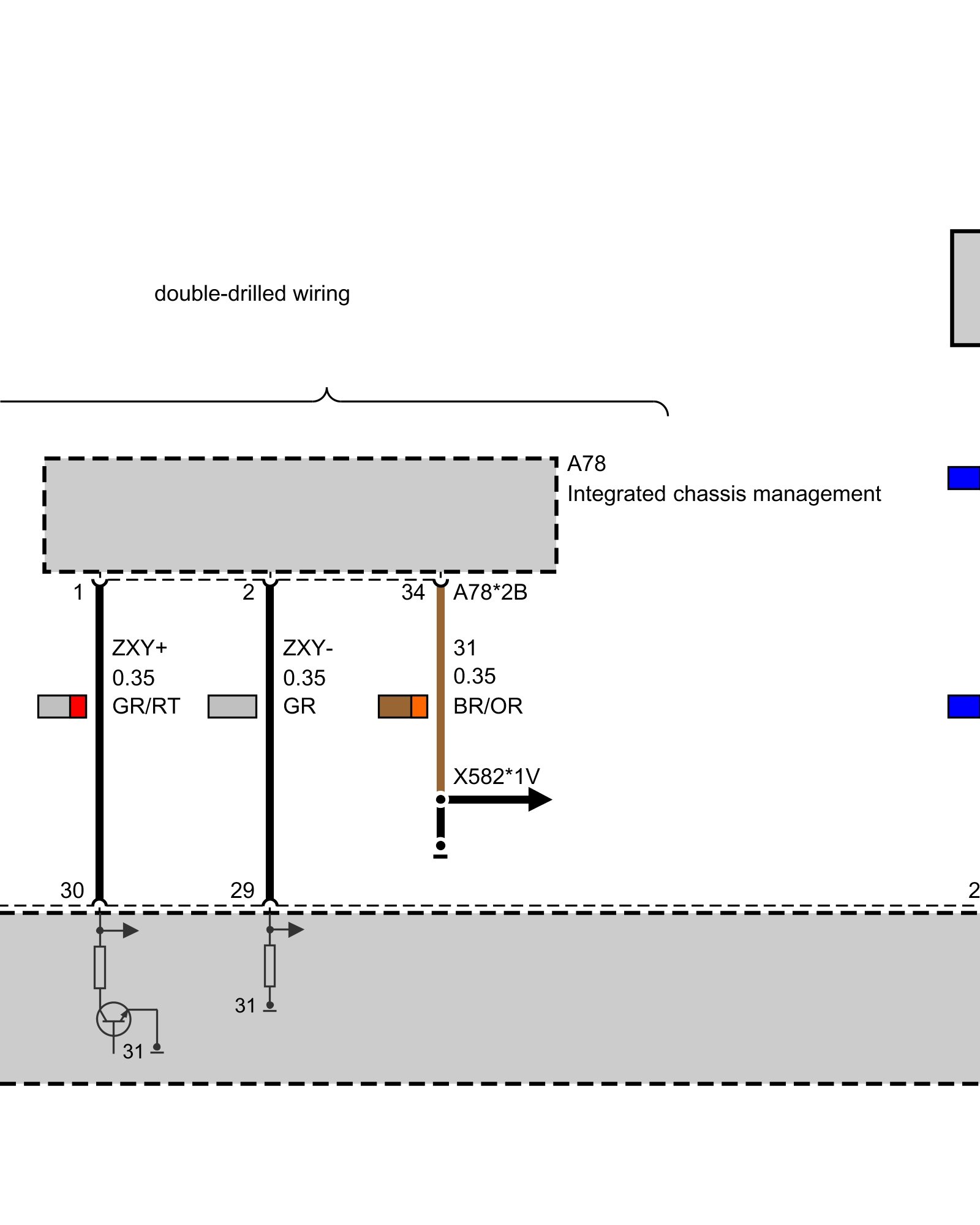

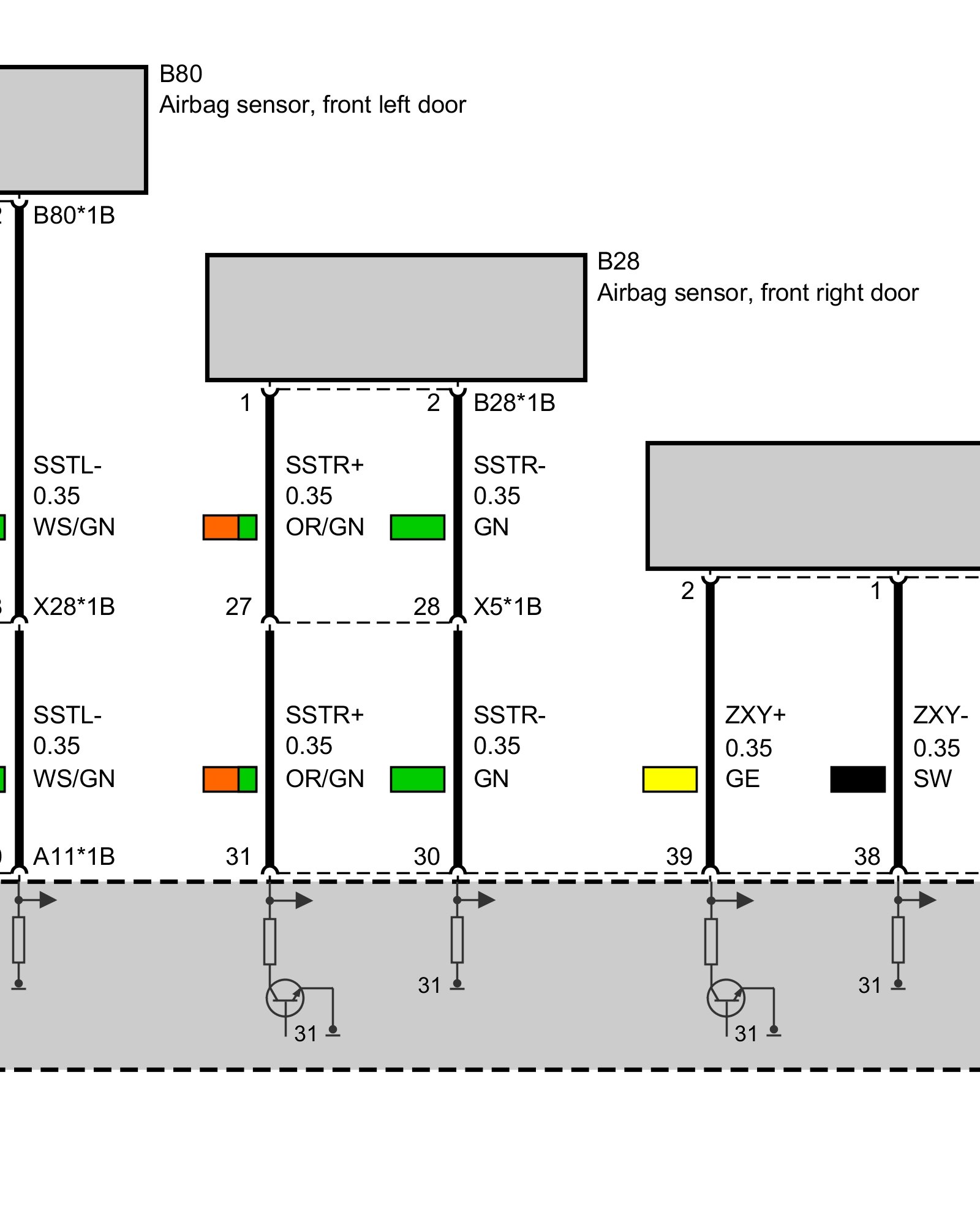

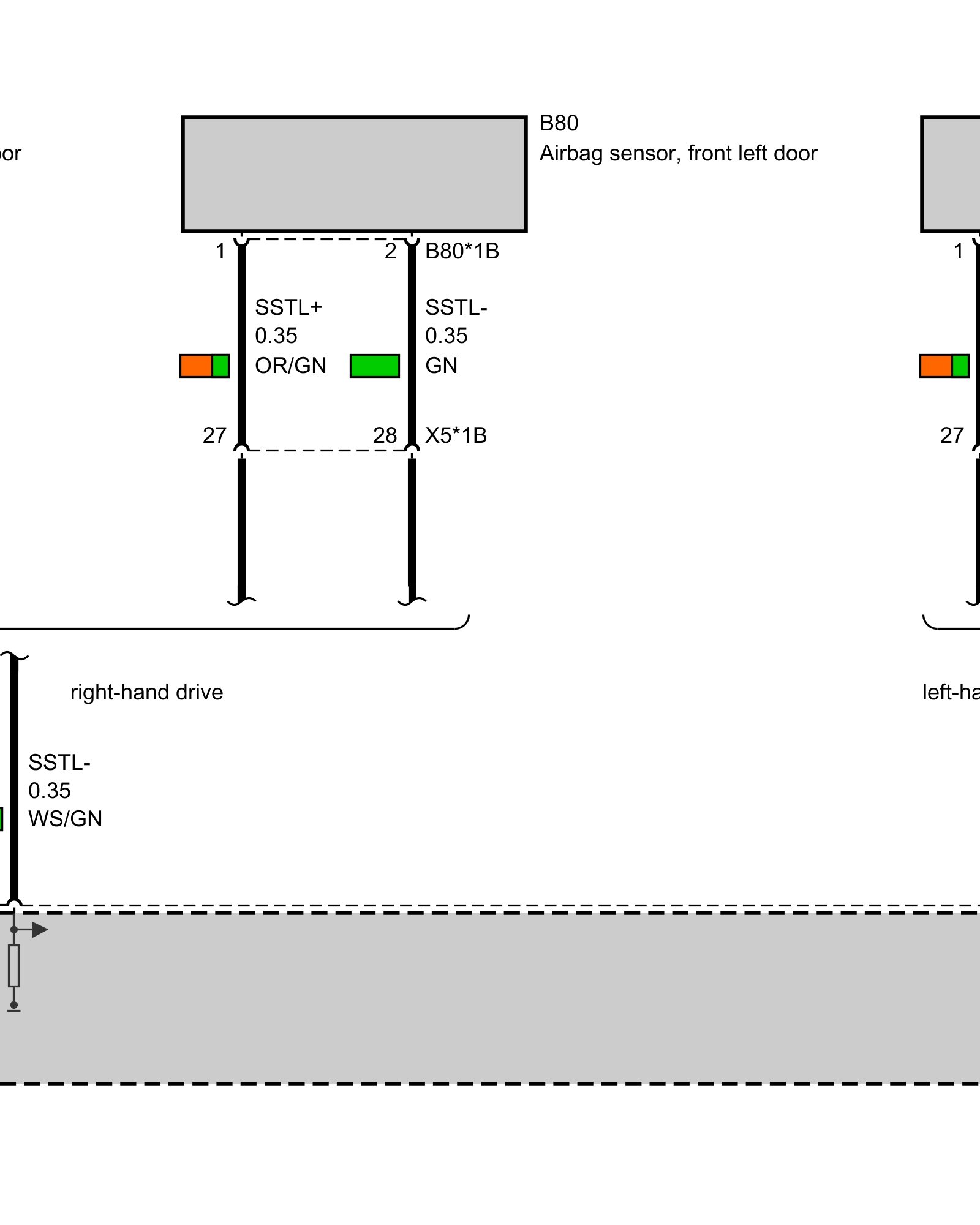

Airbag Sensors
