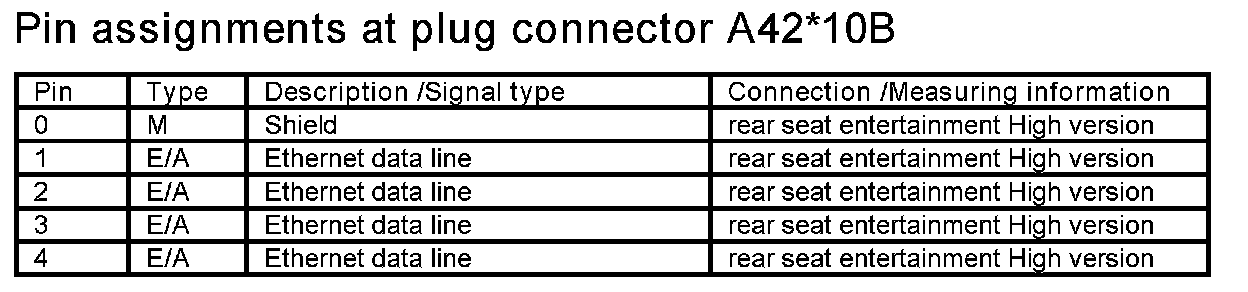

A42*10B
>>
A42 Headunit (w/ Video Switch w/ DVD Changer)
A42 Headunit (w/ Video Switch w/ DVD Changer)
A42*10B
A42 Headunit
