Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors from A...
>>

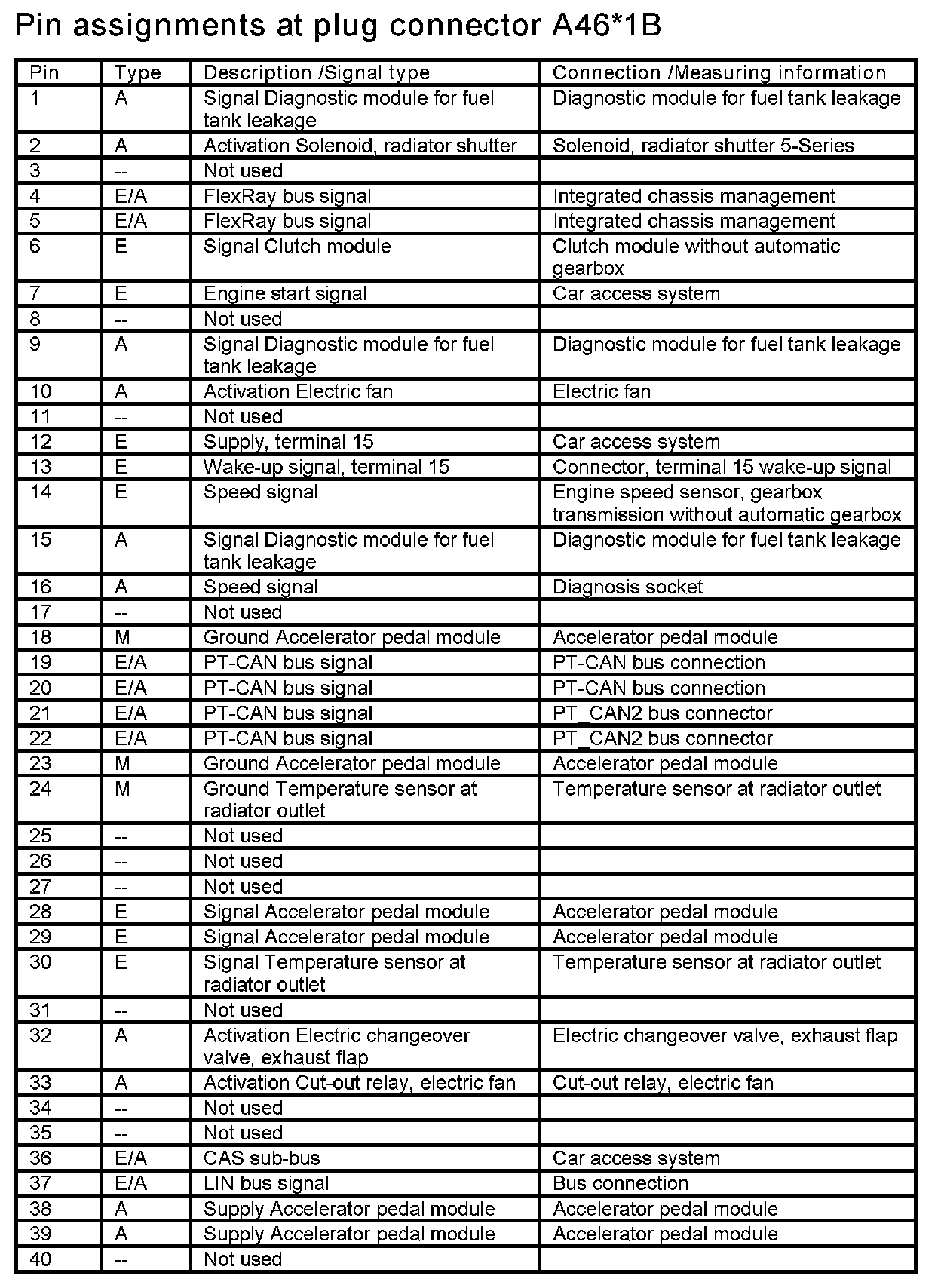

A46*1B
A46*1B
F01_SA46_1BA

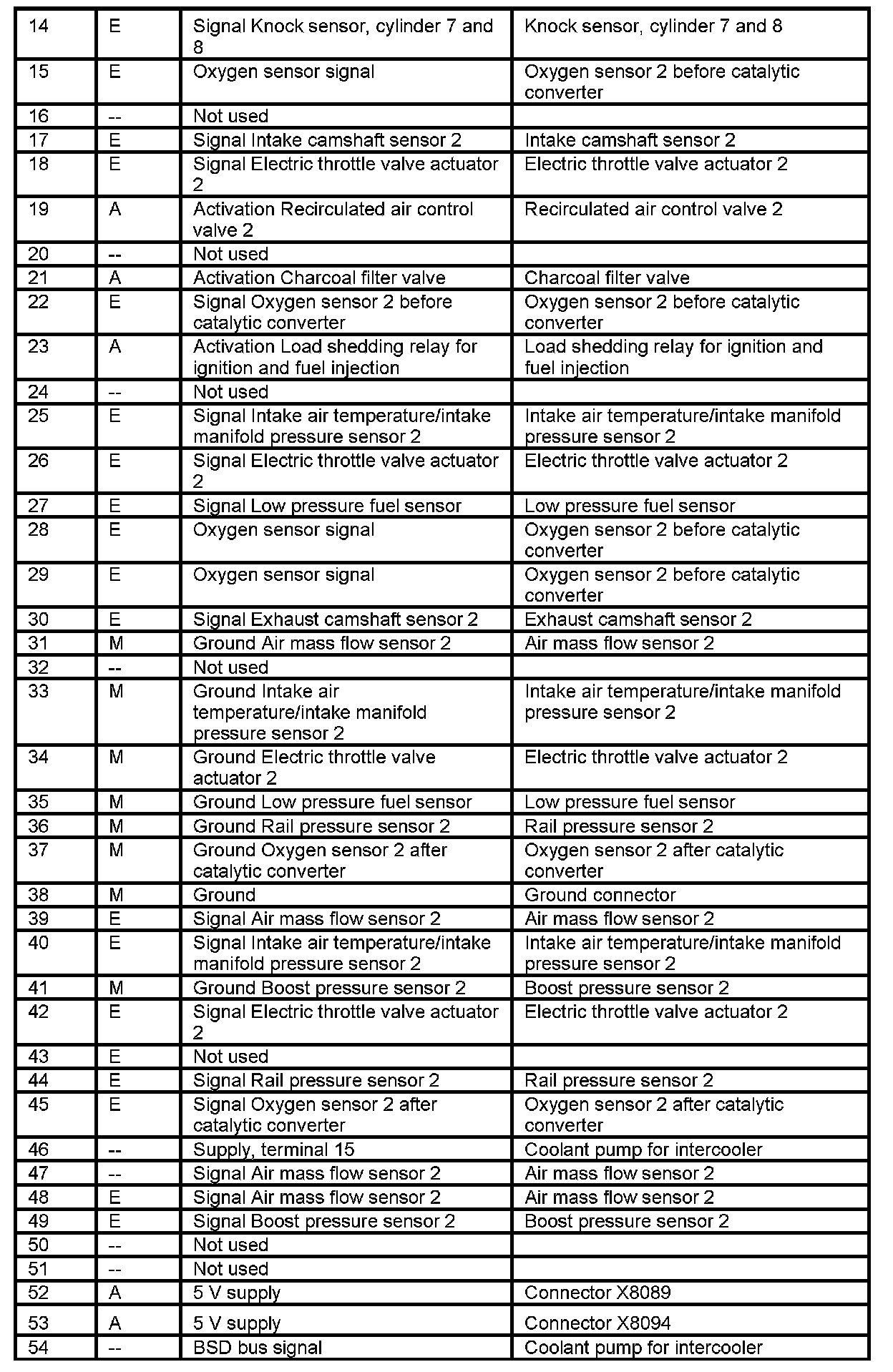

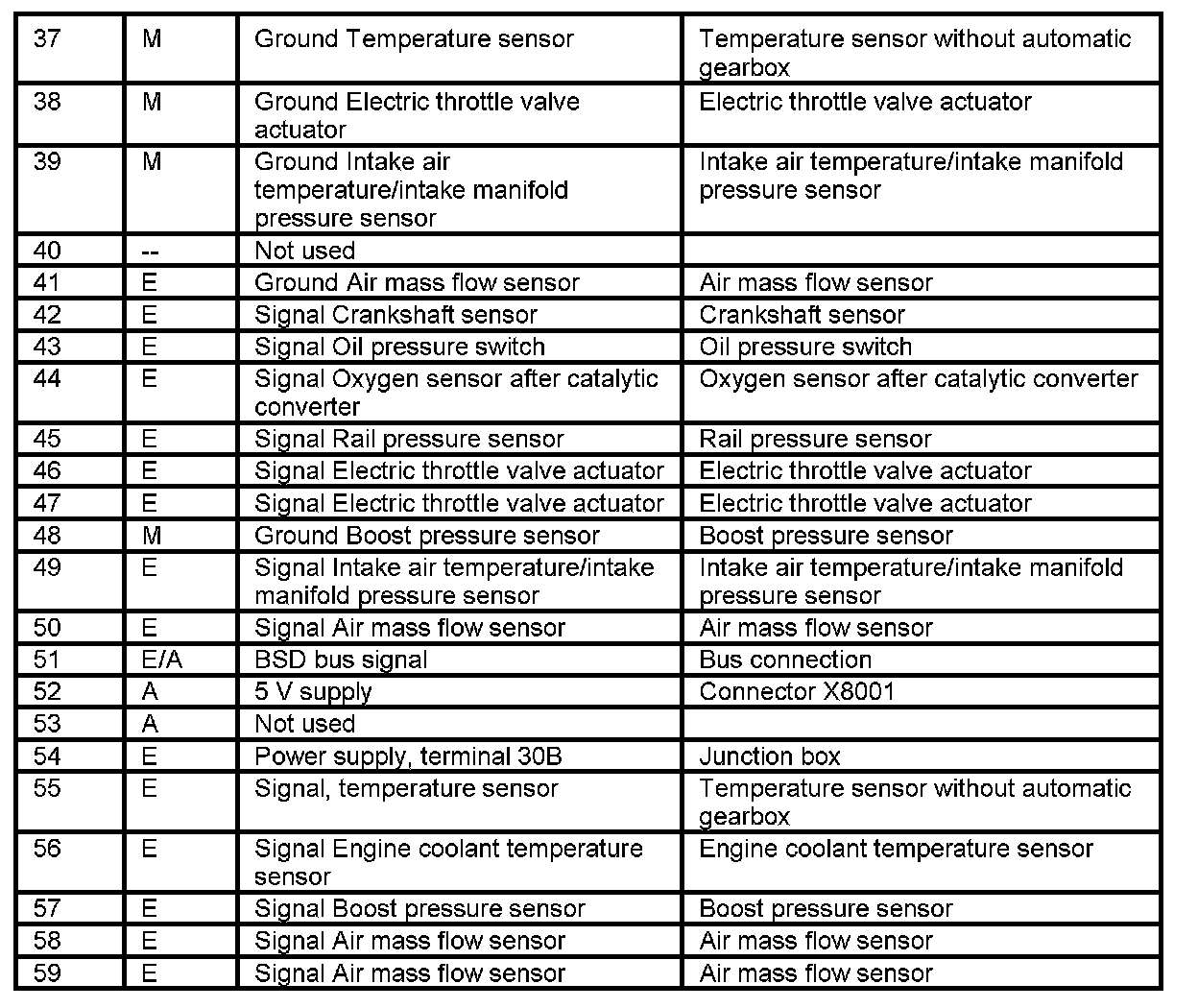

A46 Digital Motor Electronics
