Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Police / Special Vehicle Options
>>
Engine Run-on
>>

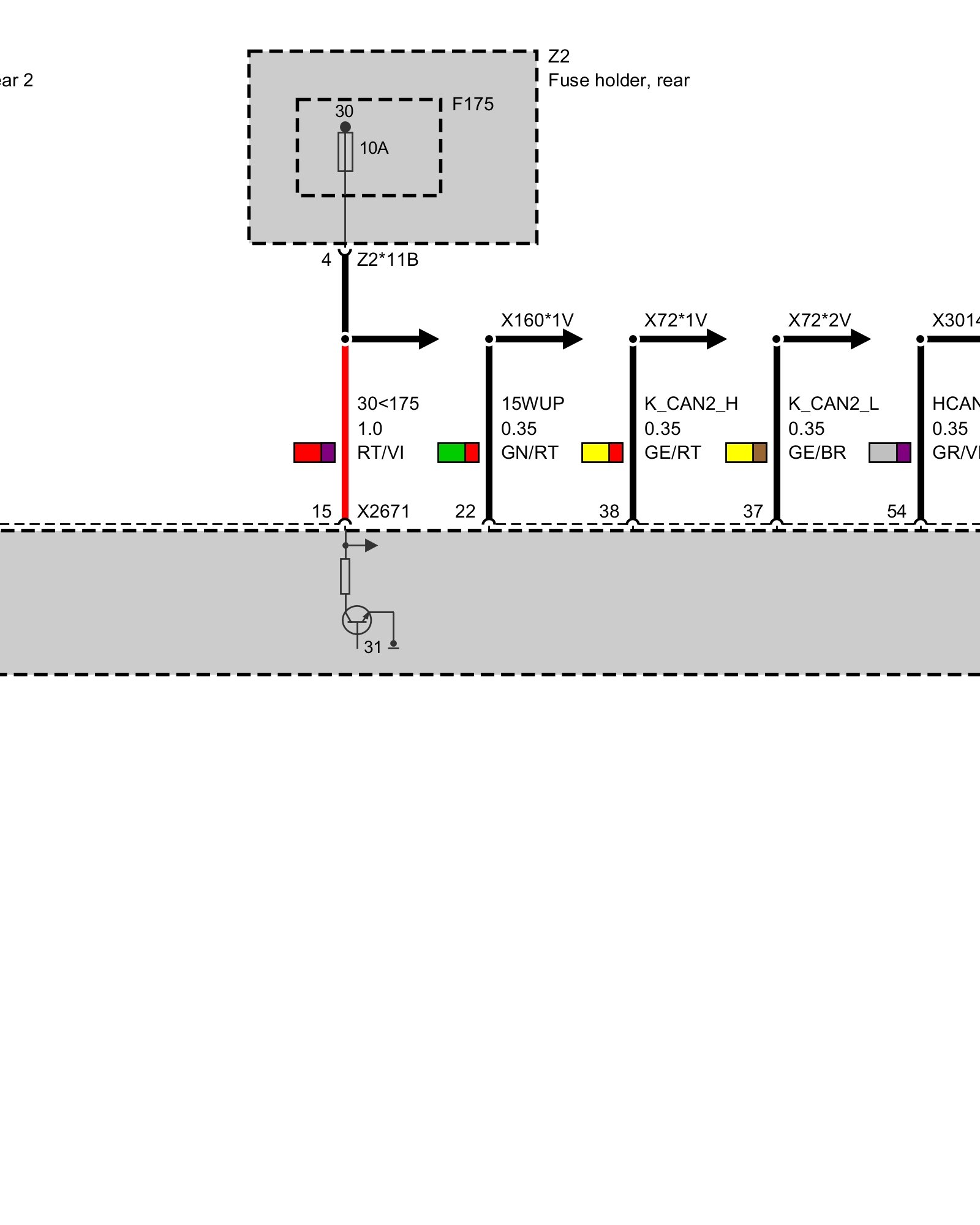

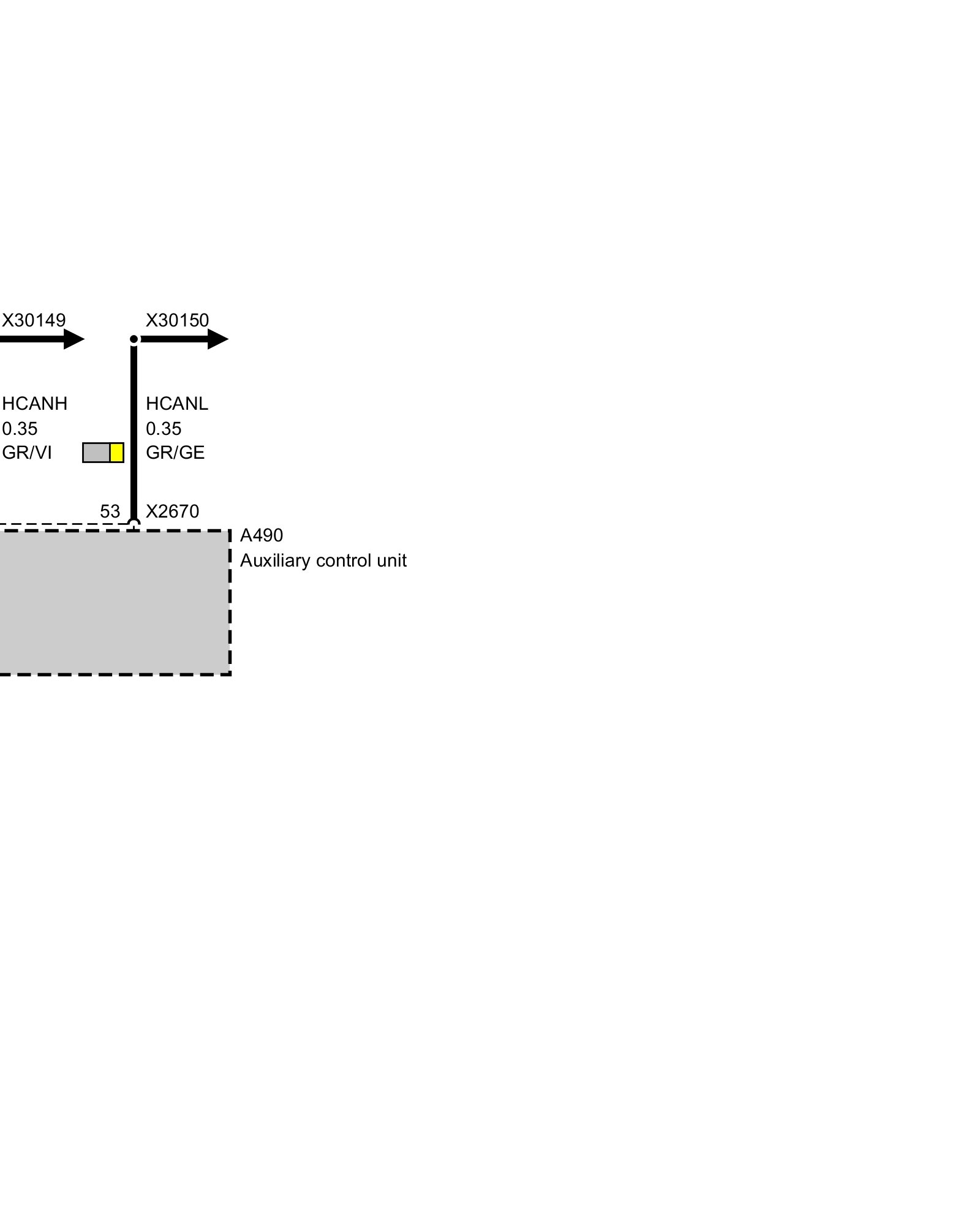

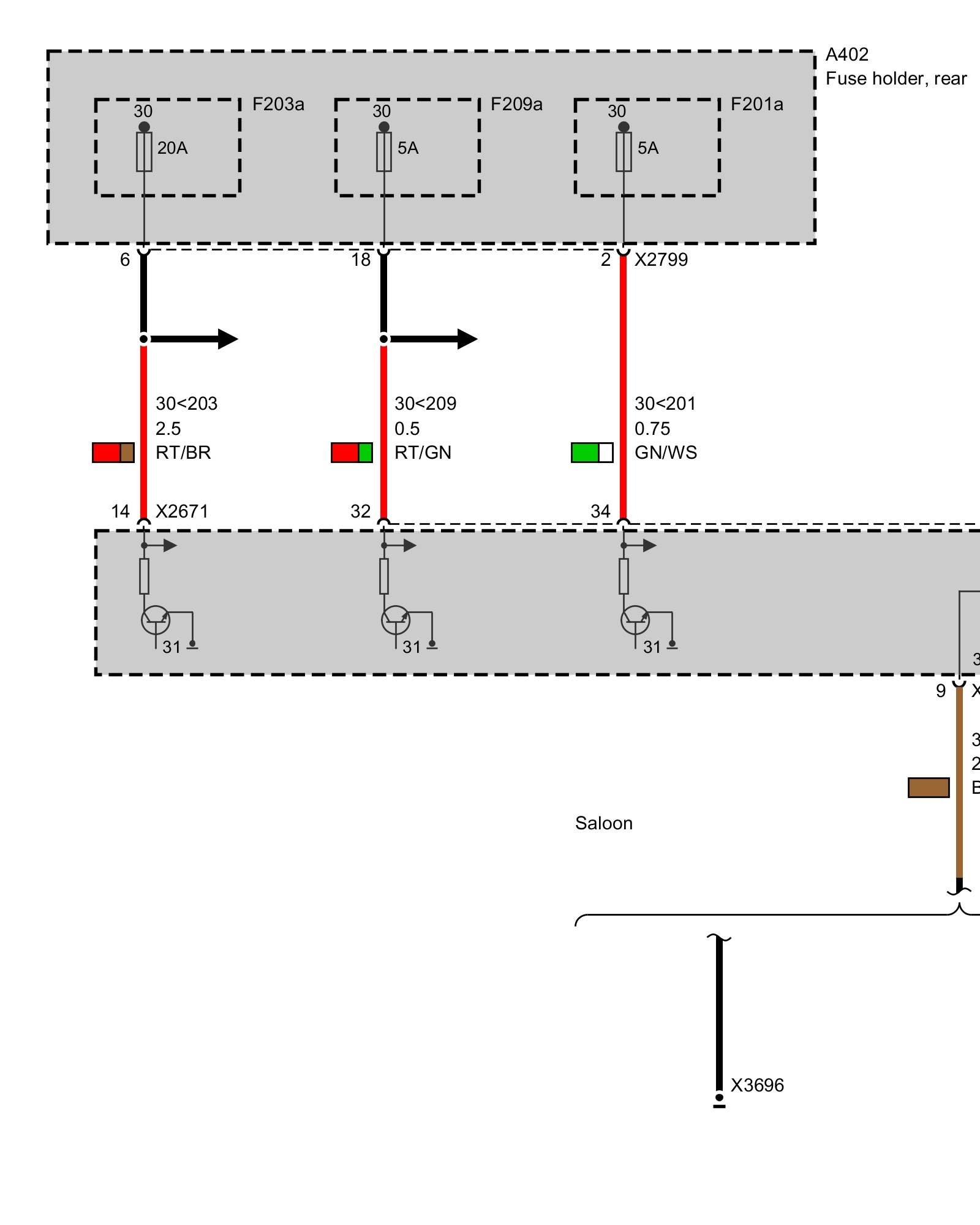

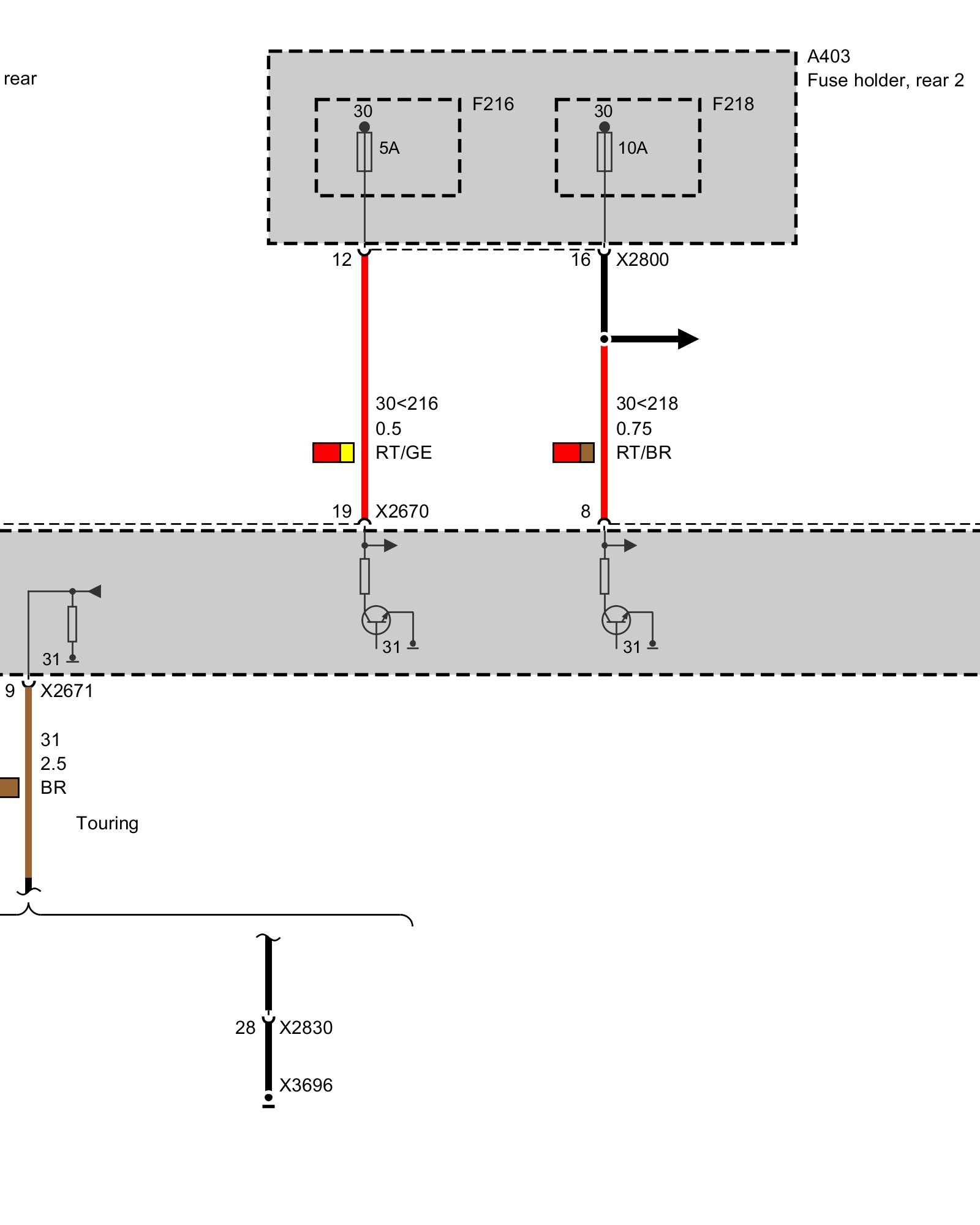

Supply Auxiliary Control Unit
Supply Auxiliary Control Unit
Supply Auxiliary Control Unit
