Home >> BMW >> 2011 >> 535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Cigarette Lighter

Cigarette Lighter

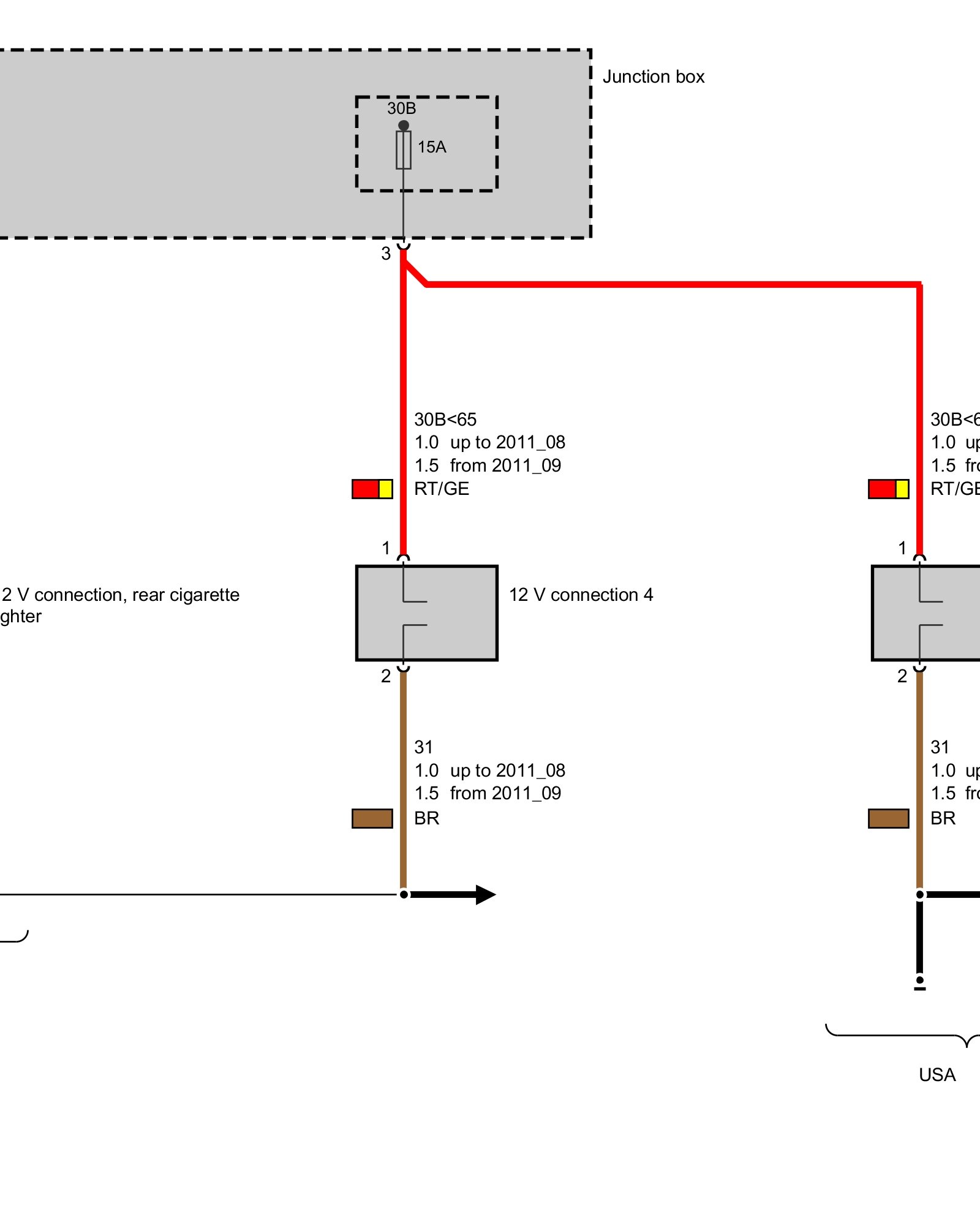

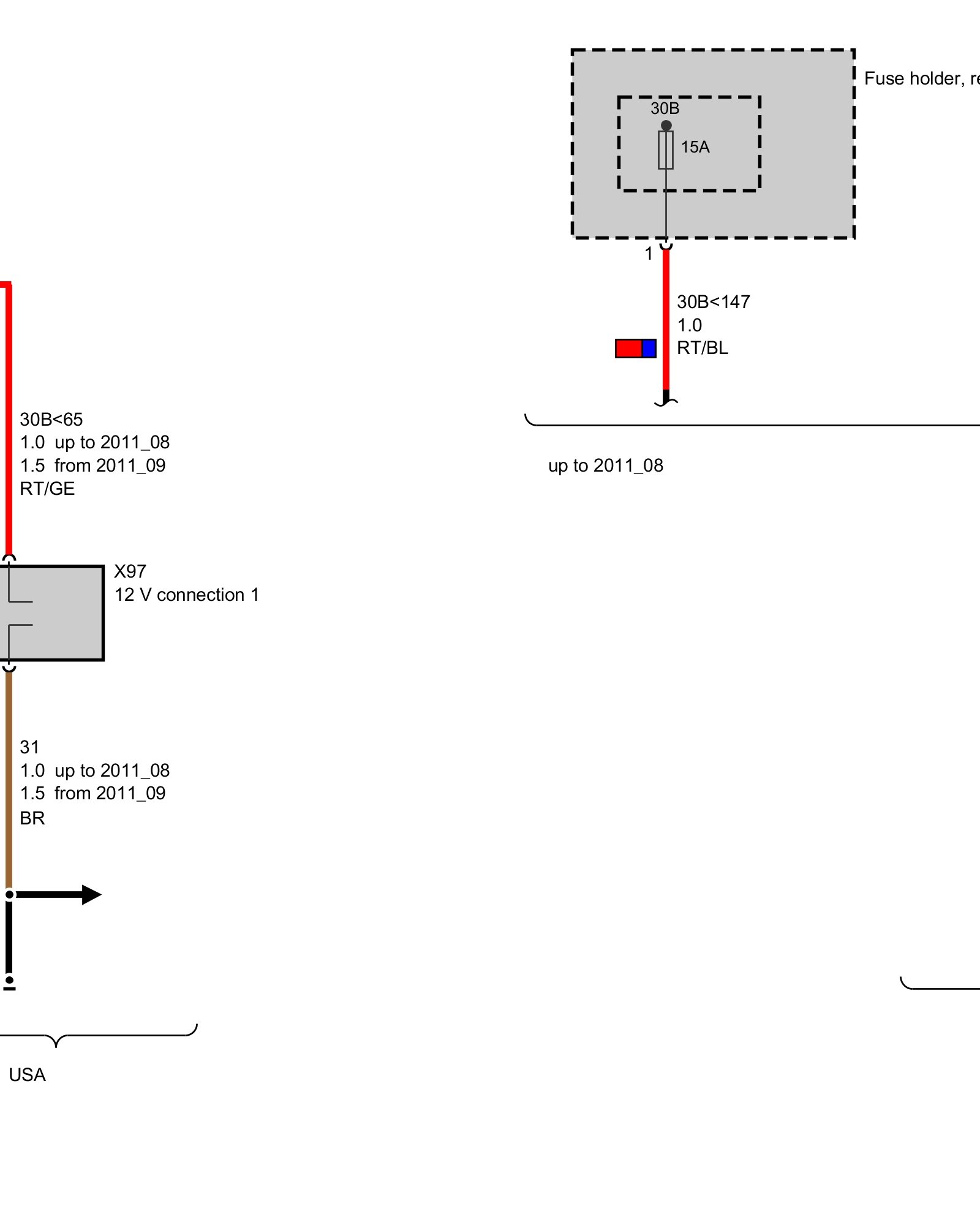

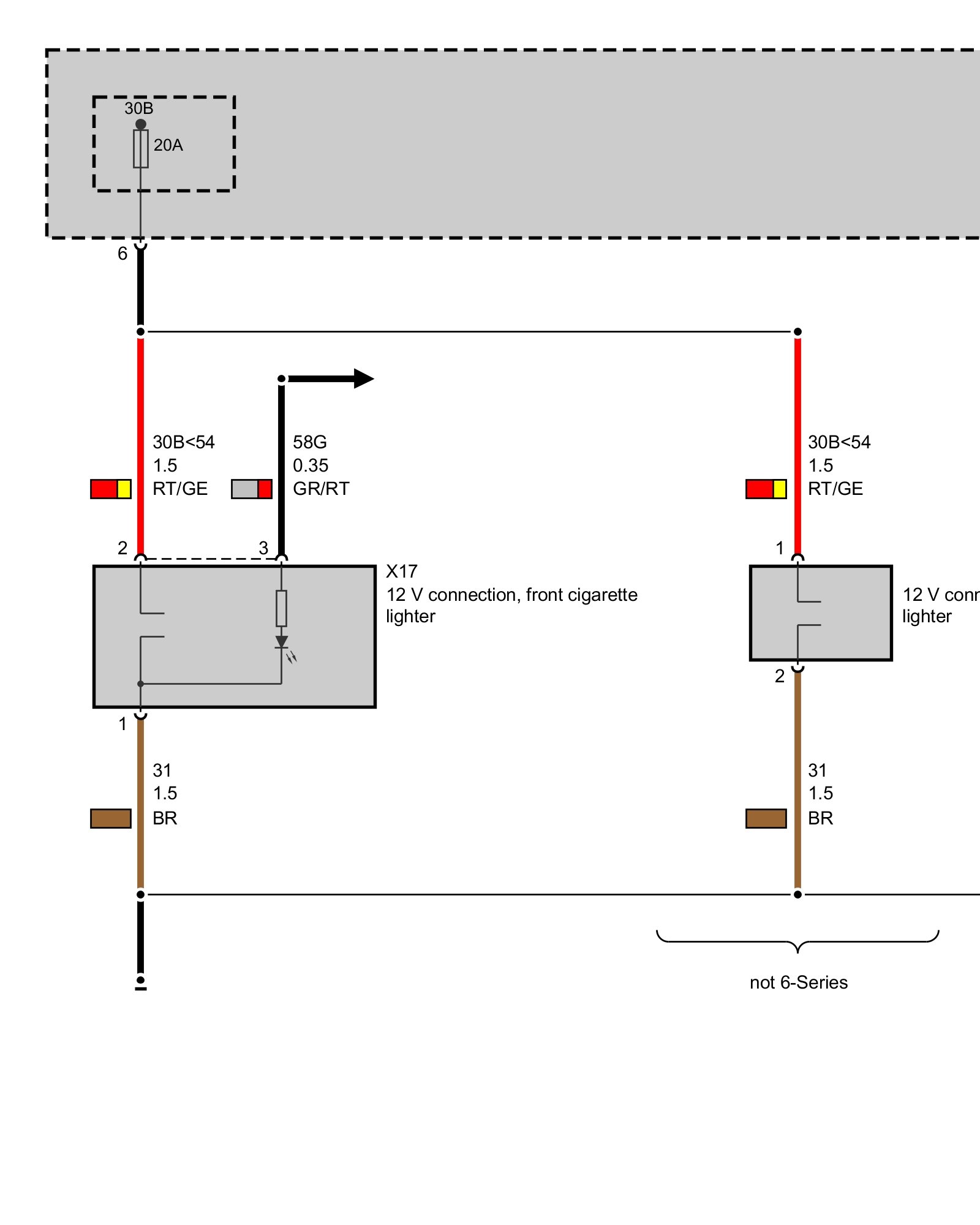

Cigarette Light and Sockets
