Home
>>
BMW
>>
2011
>>
535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Heads Up Display Unit
>>
Wiring Diagrams
Wiring Diagrams

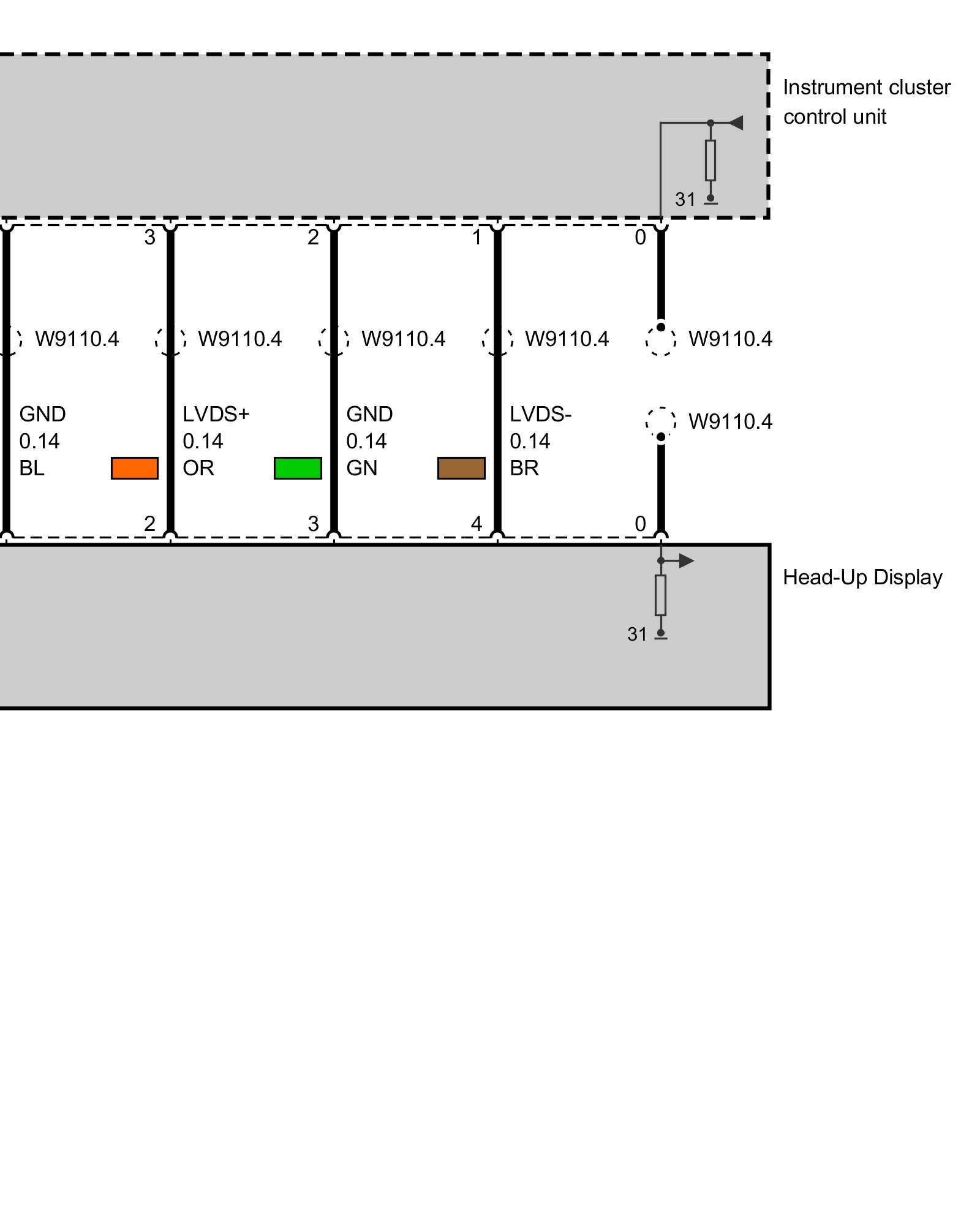

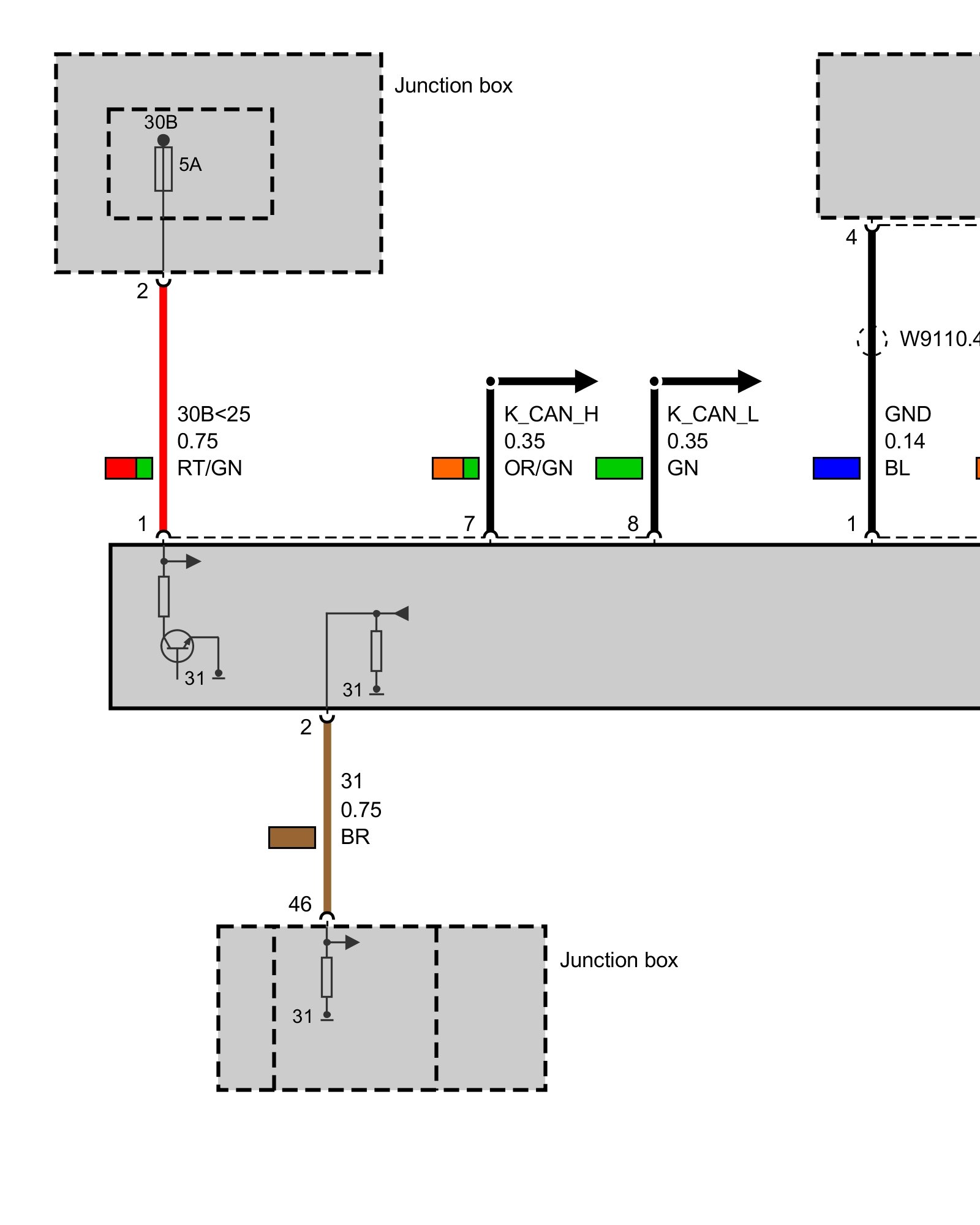

Head-Up Display
