Home
>>
BMW
>>
2011
>>
535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
System Diagram
System Diagram

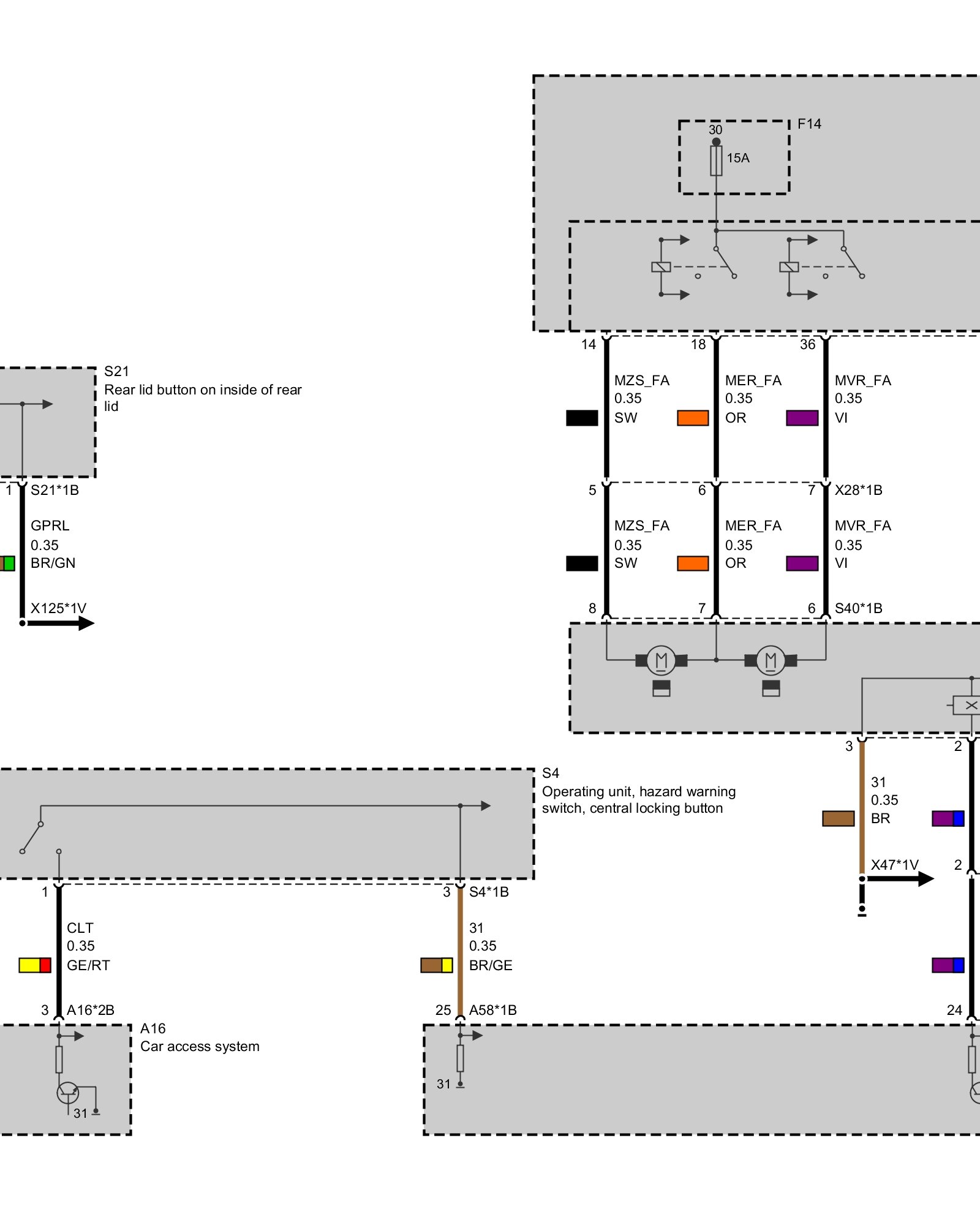

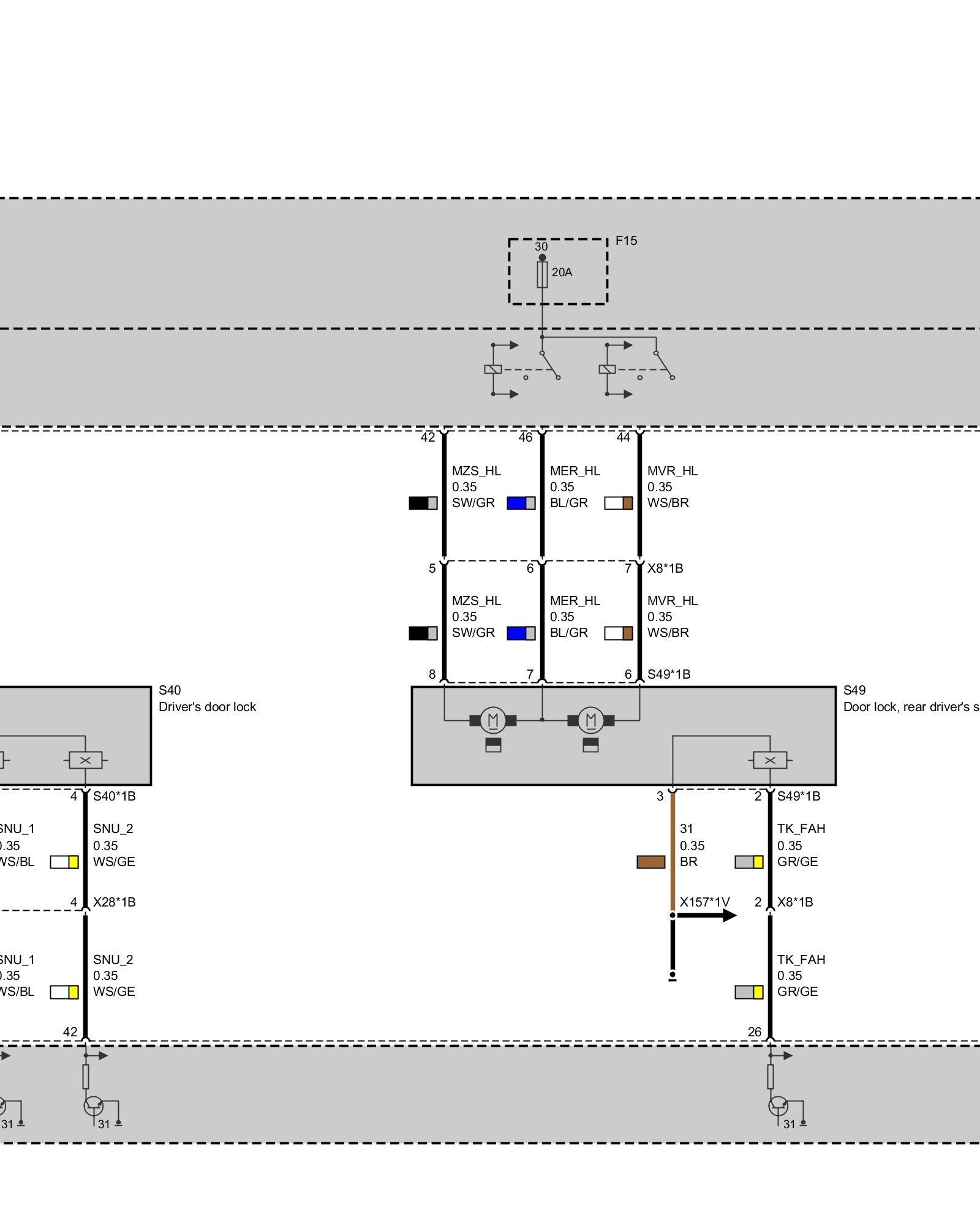

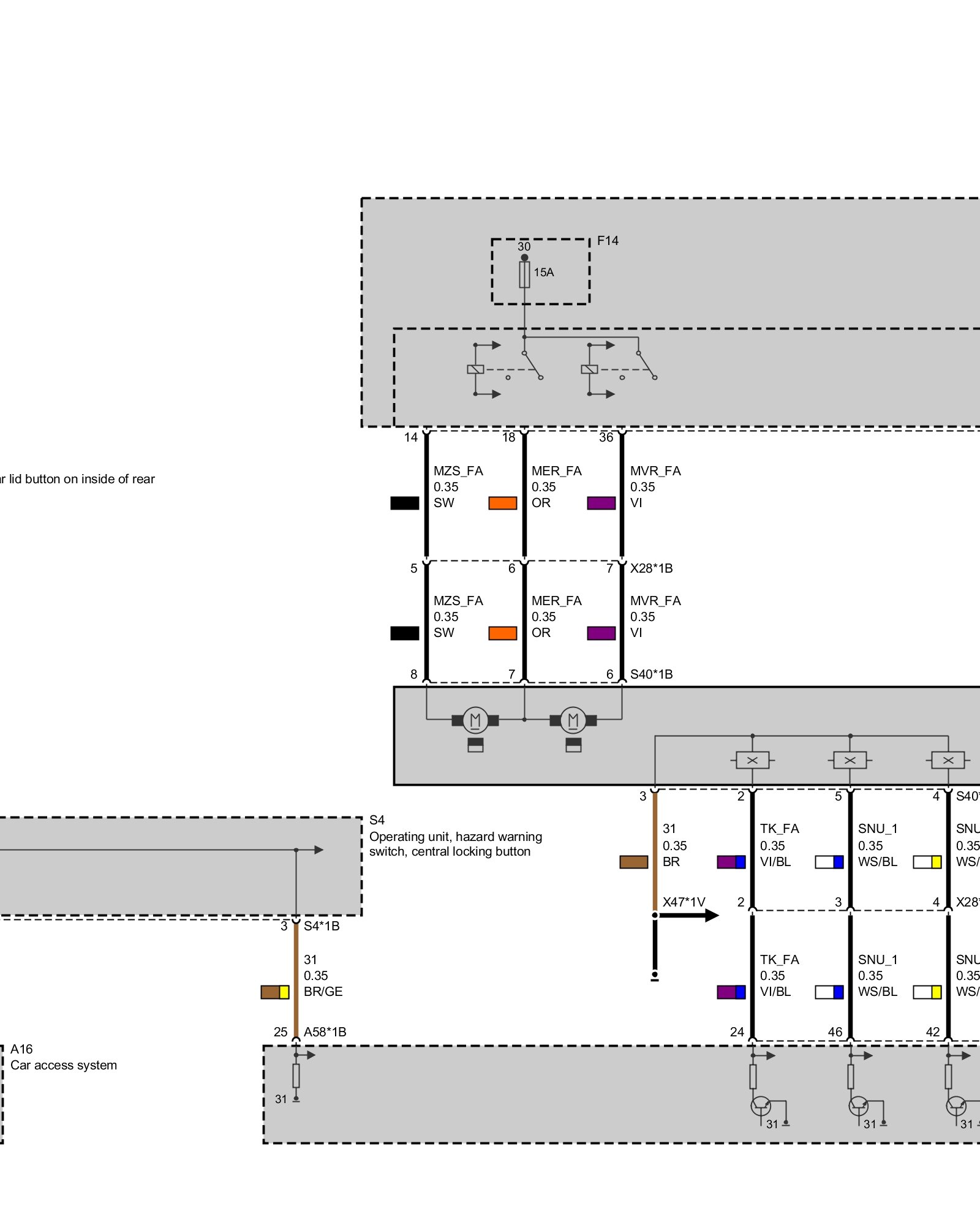

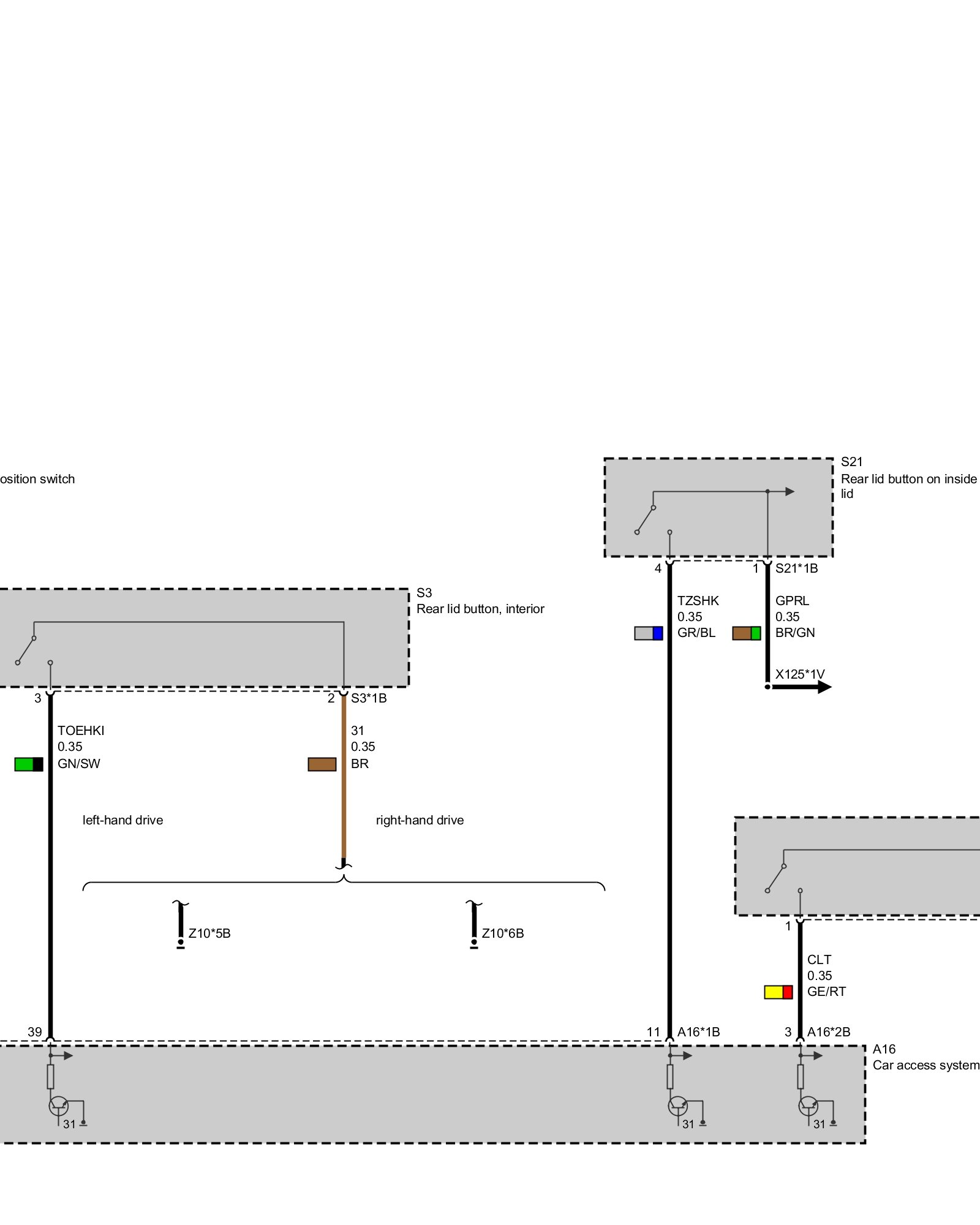

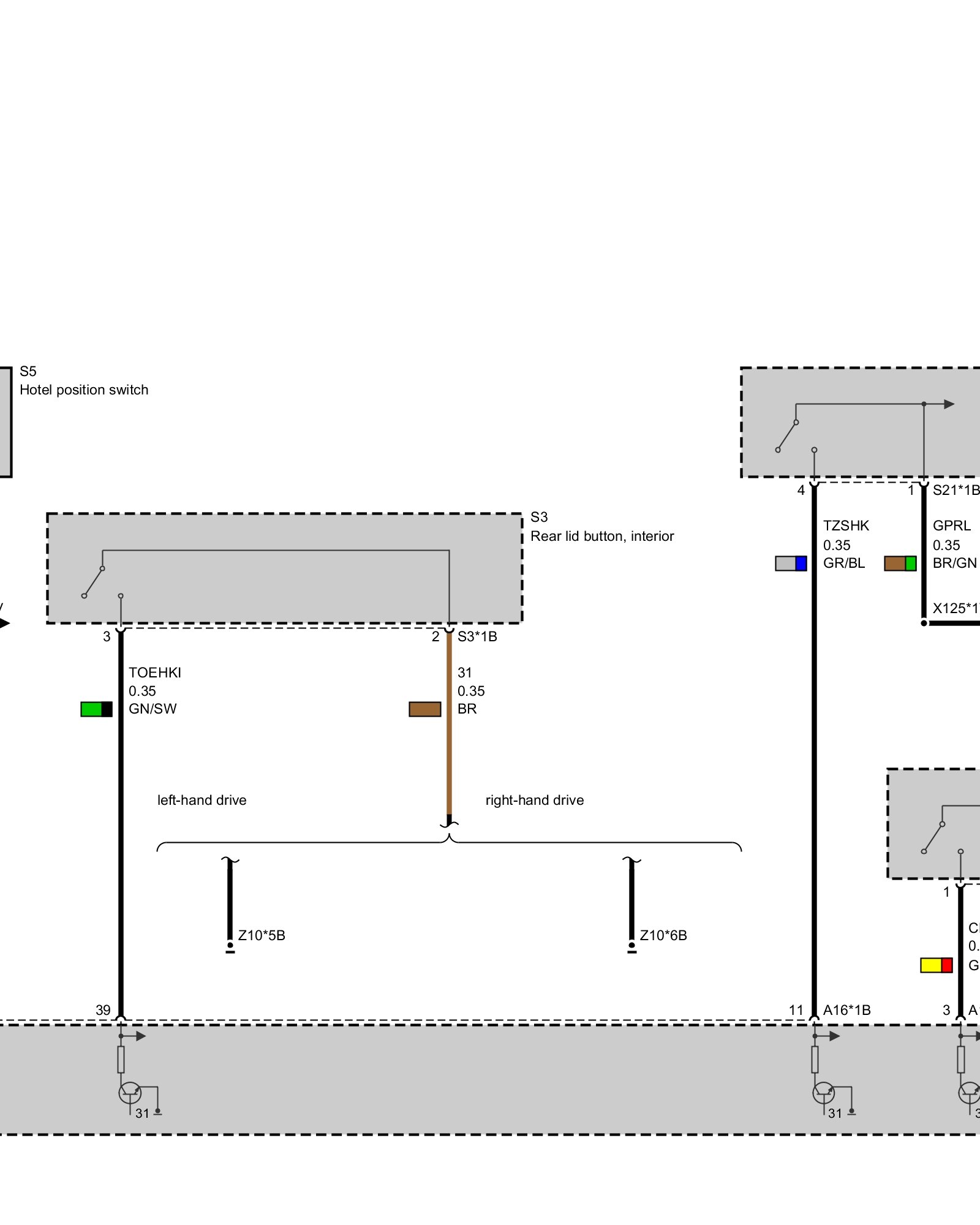

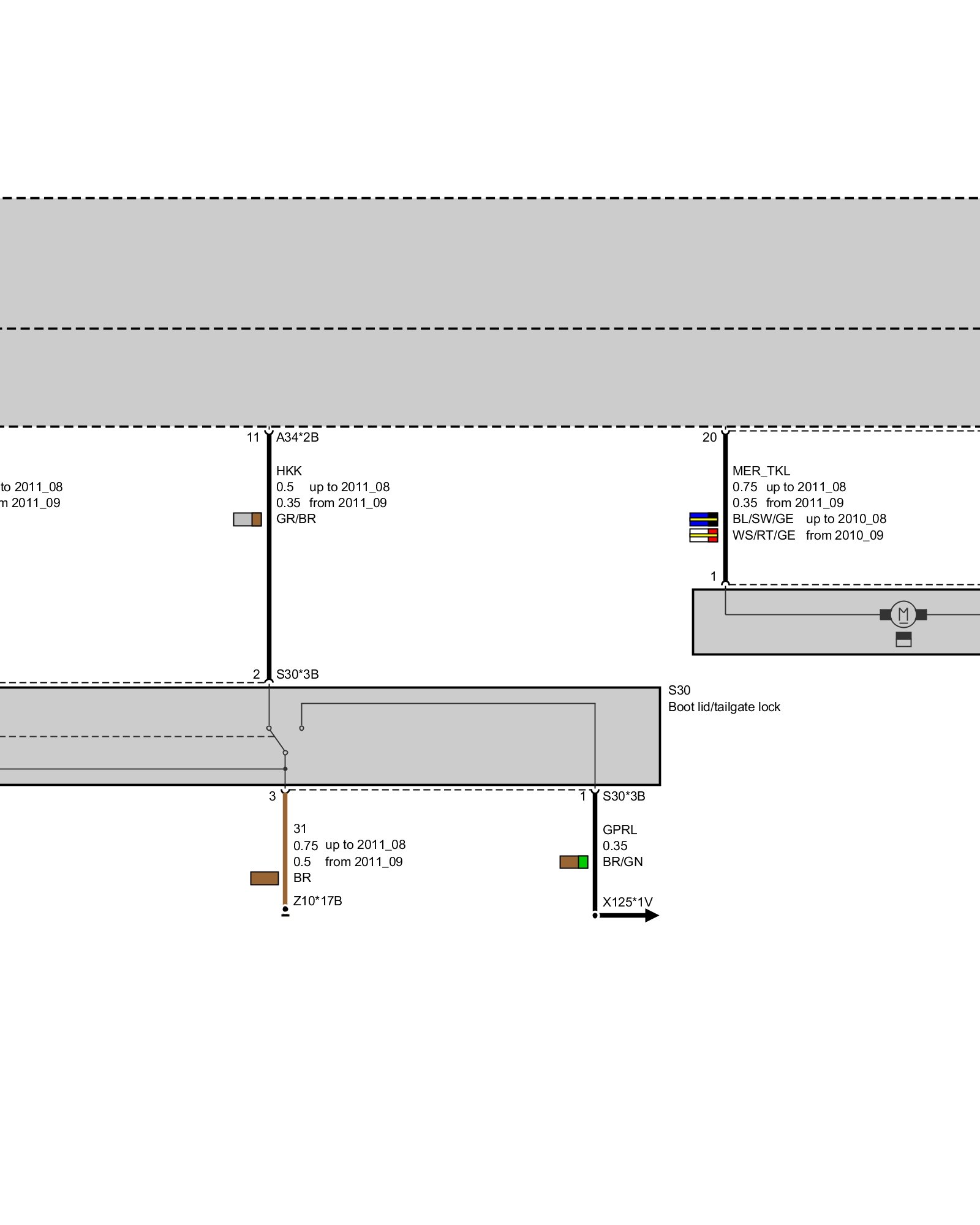

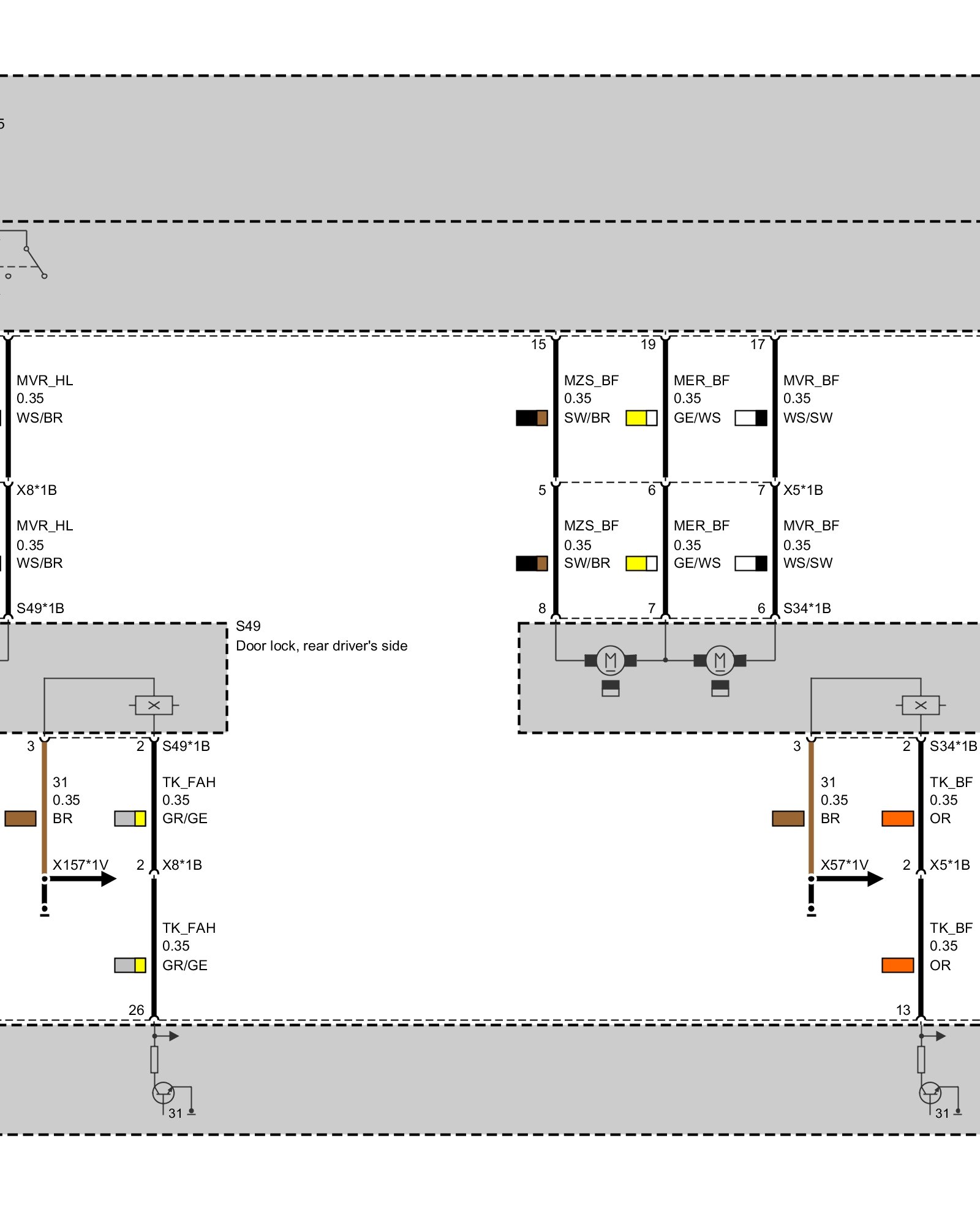

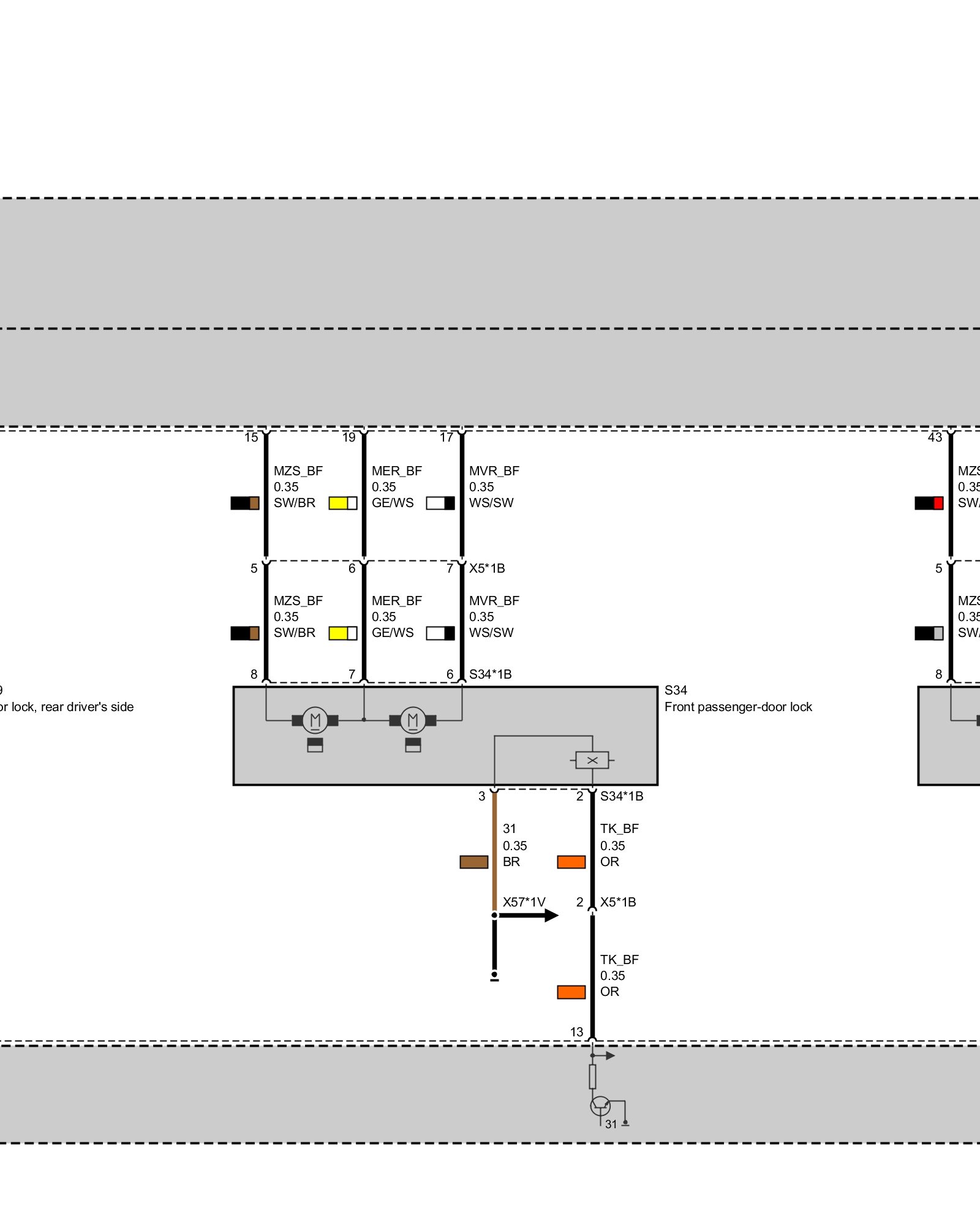

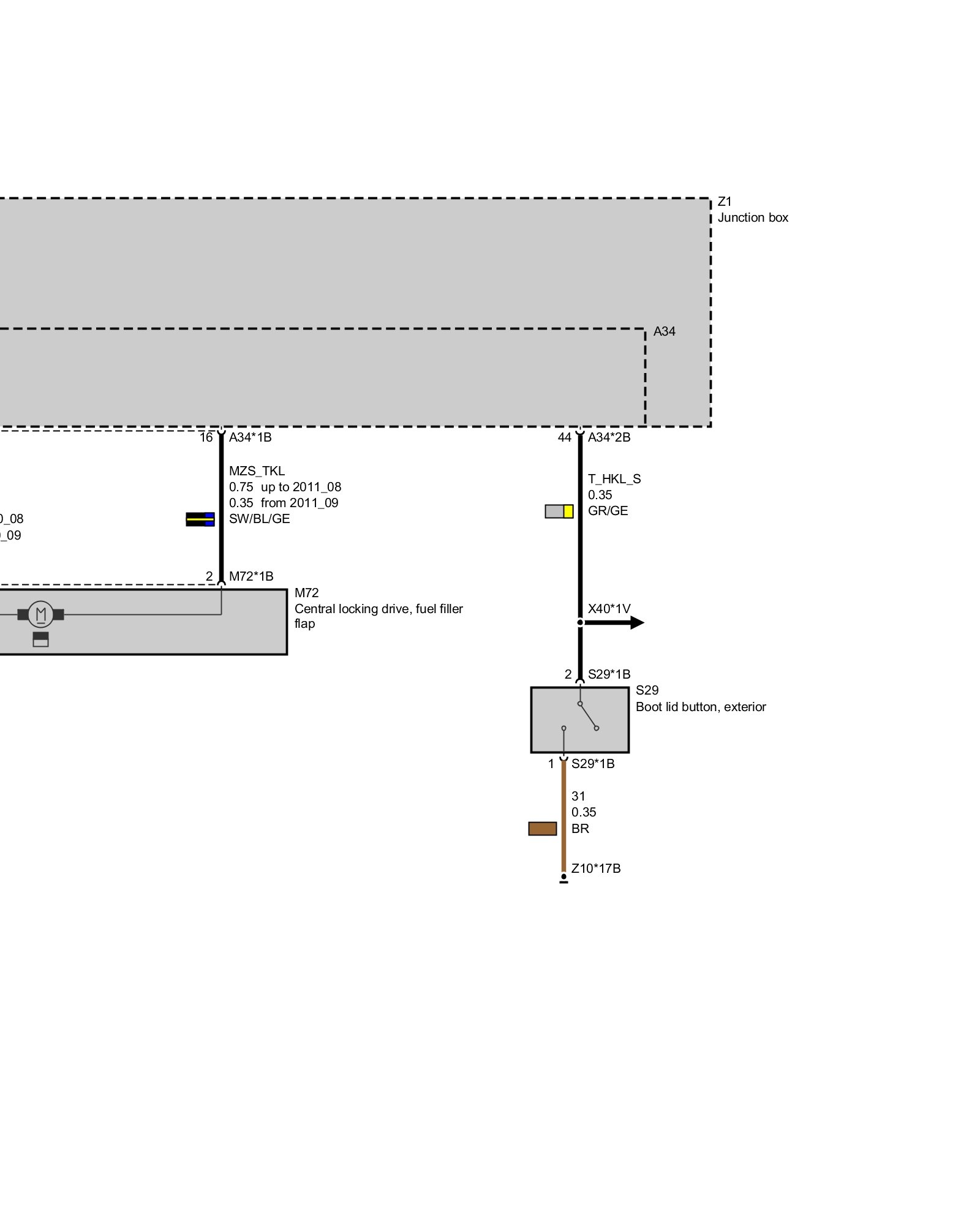

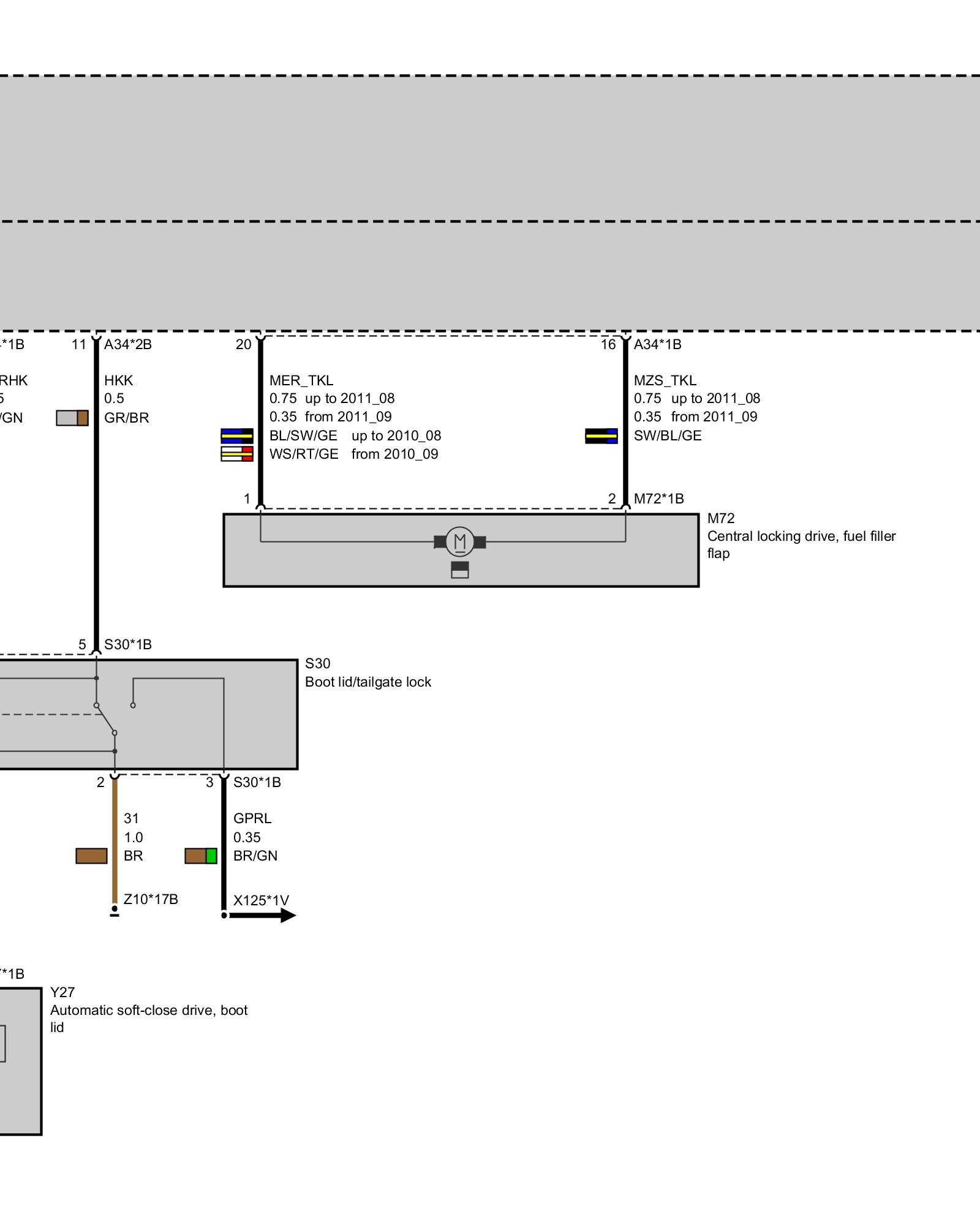

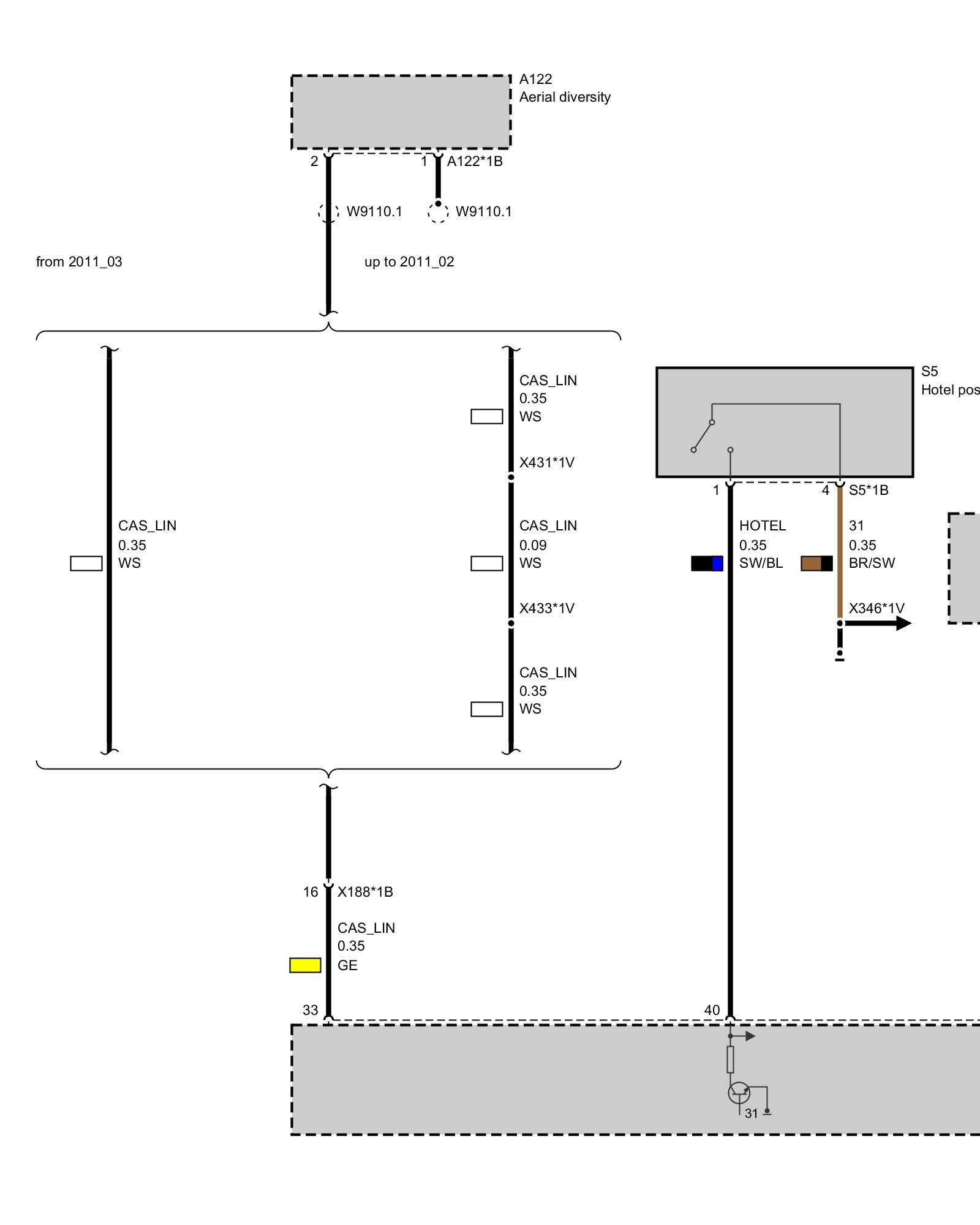

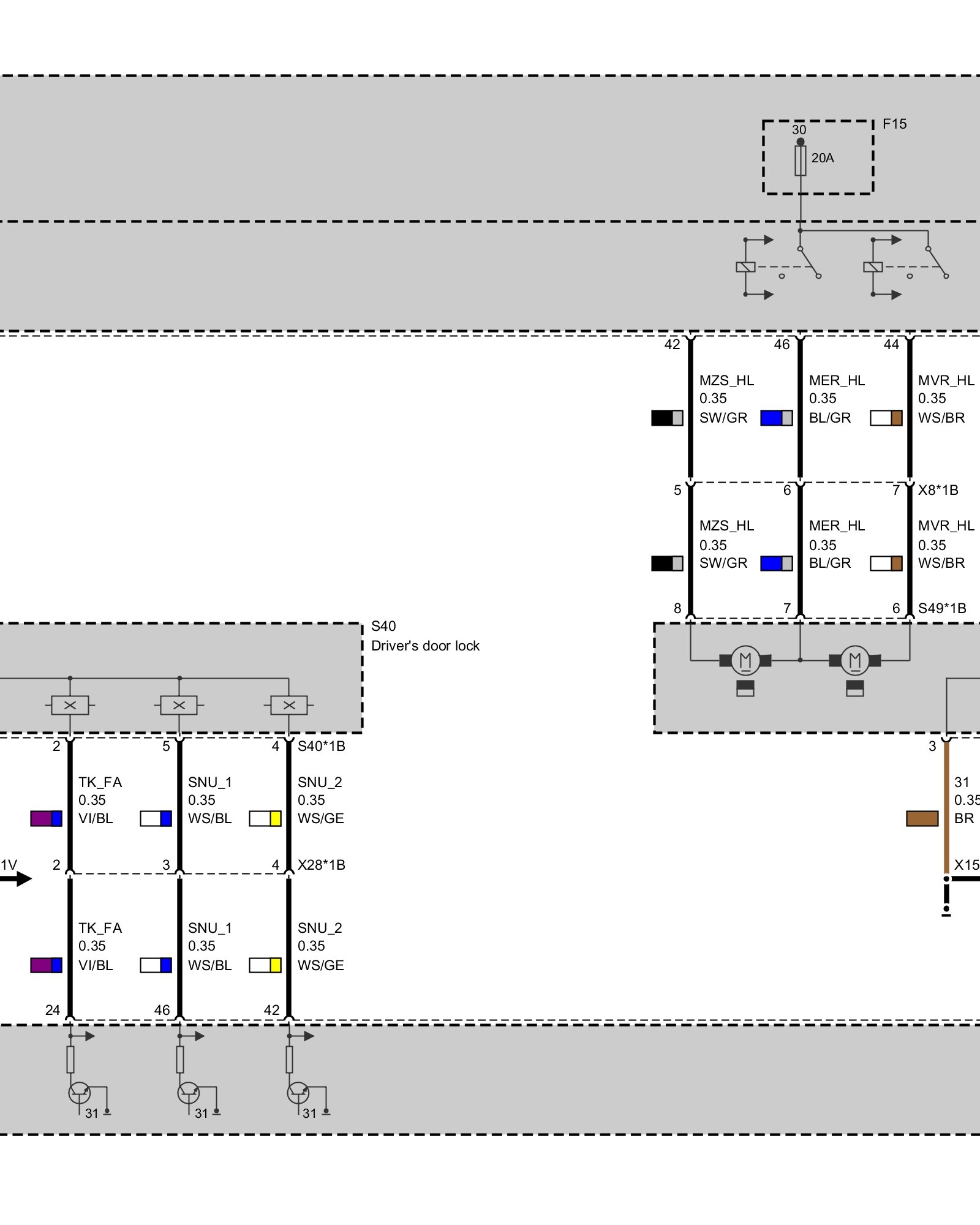

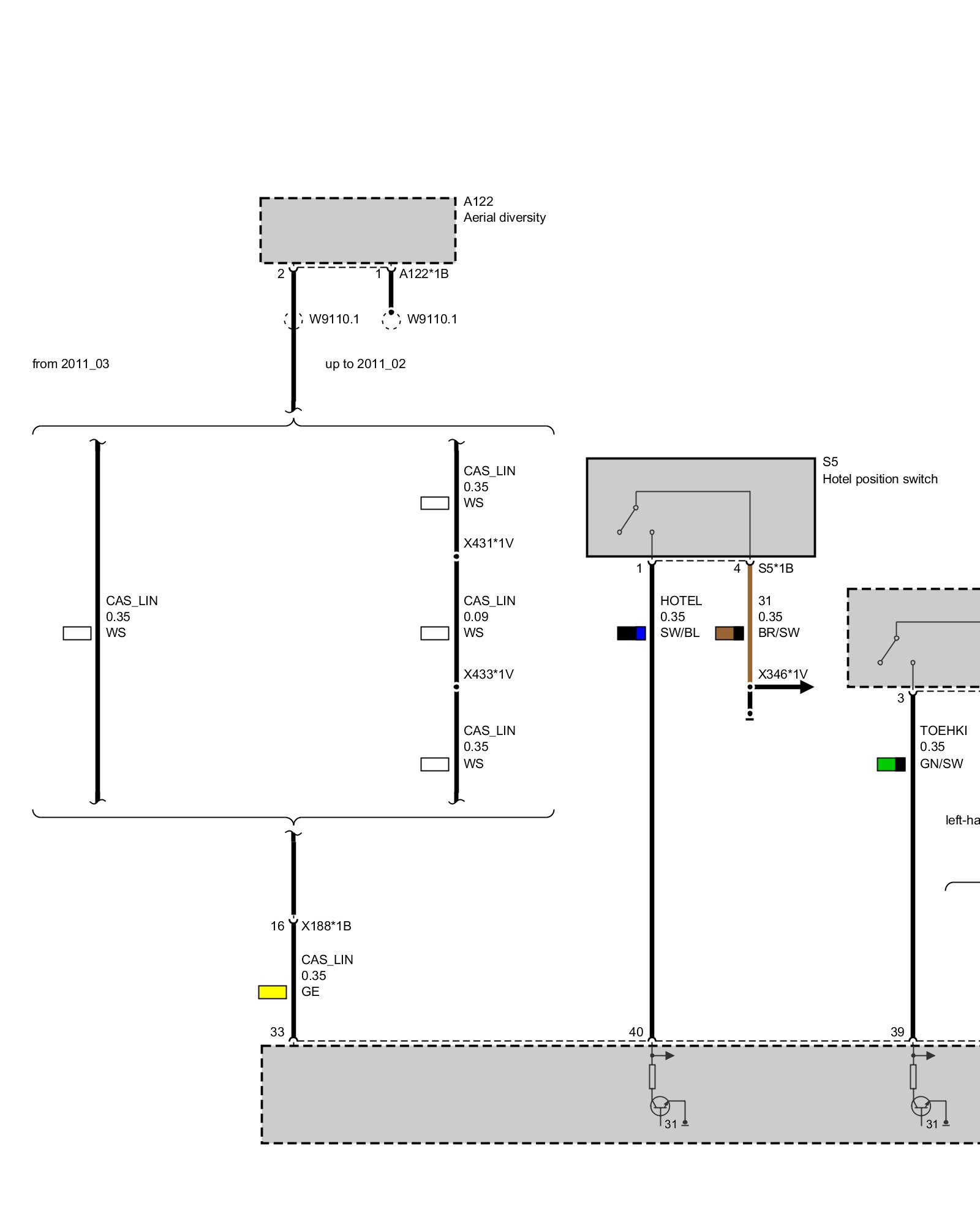

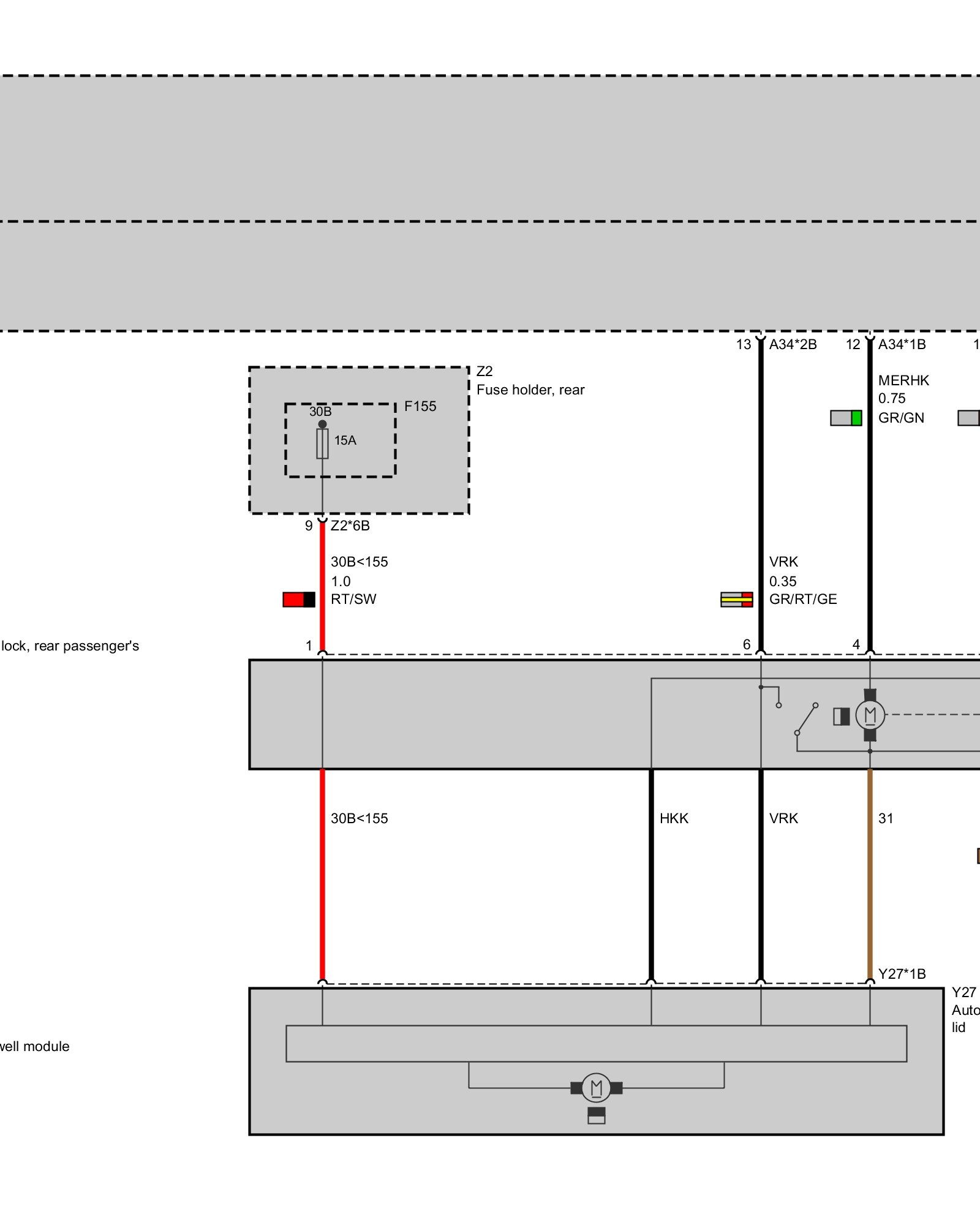

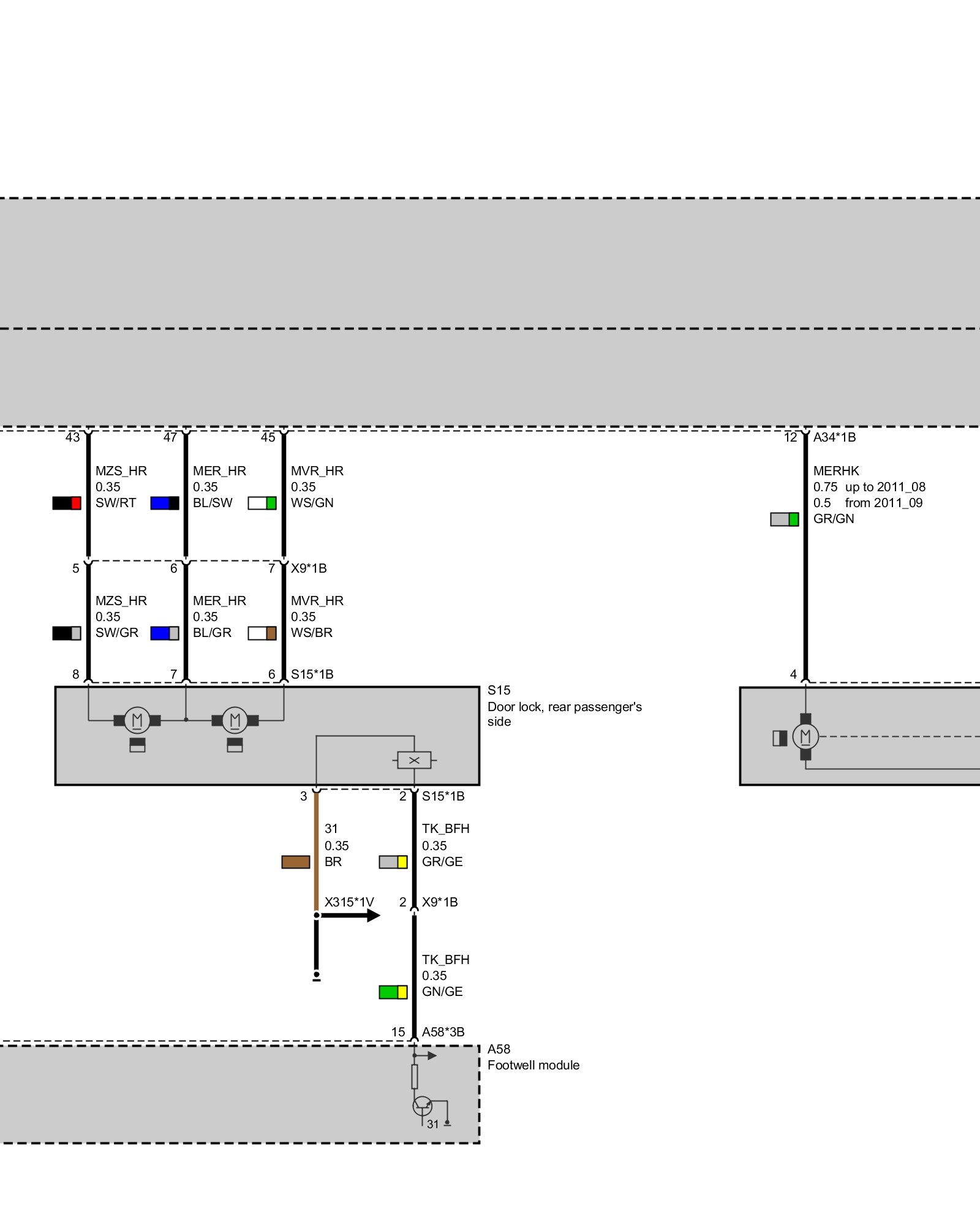

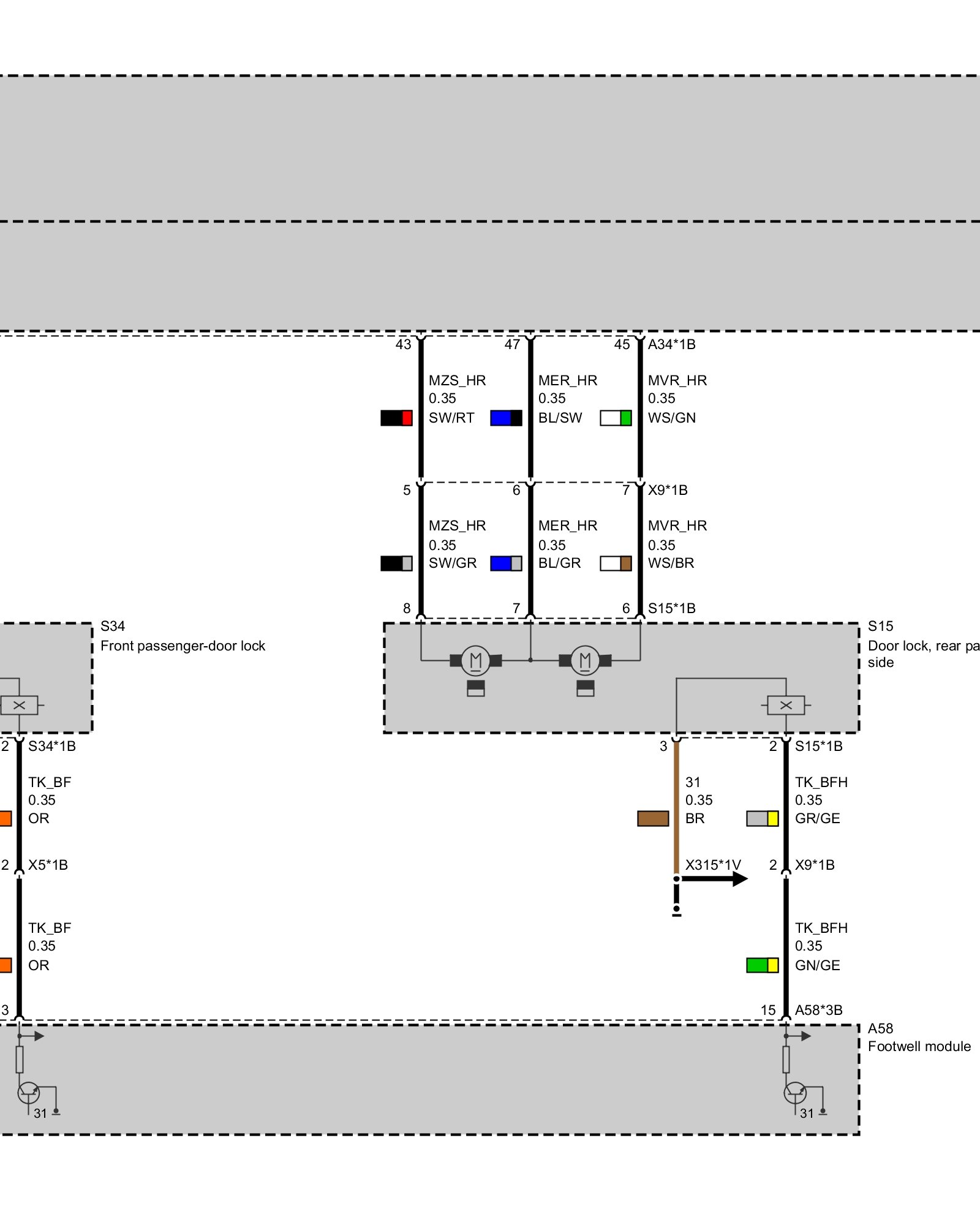

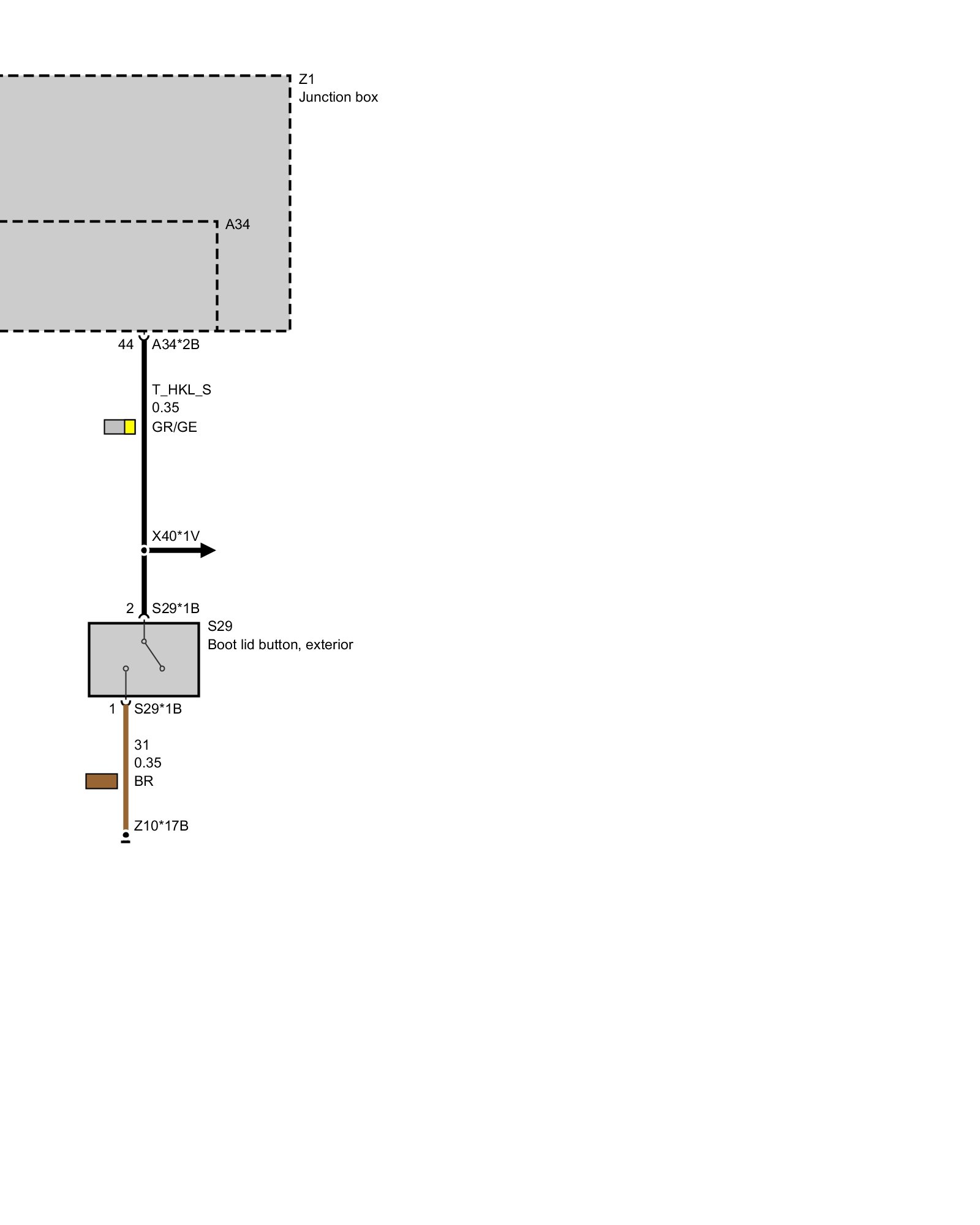

Central Locking System
