Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
535i xDrive Sedan AWD (F10) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
>>
Servotronic
>>

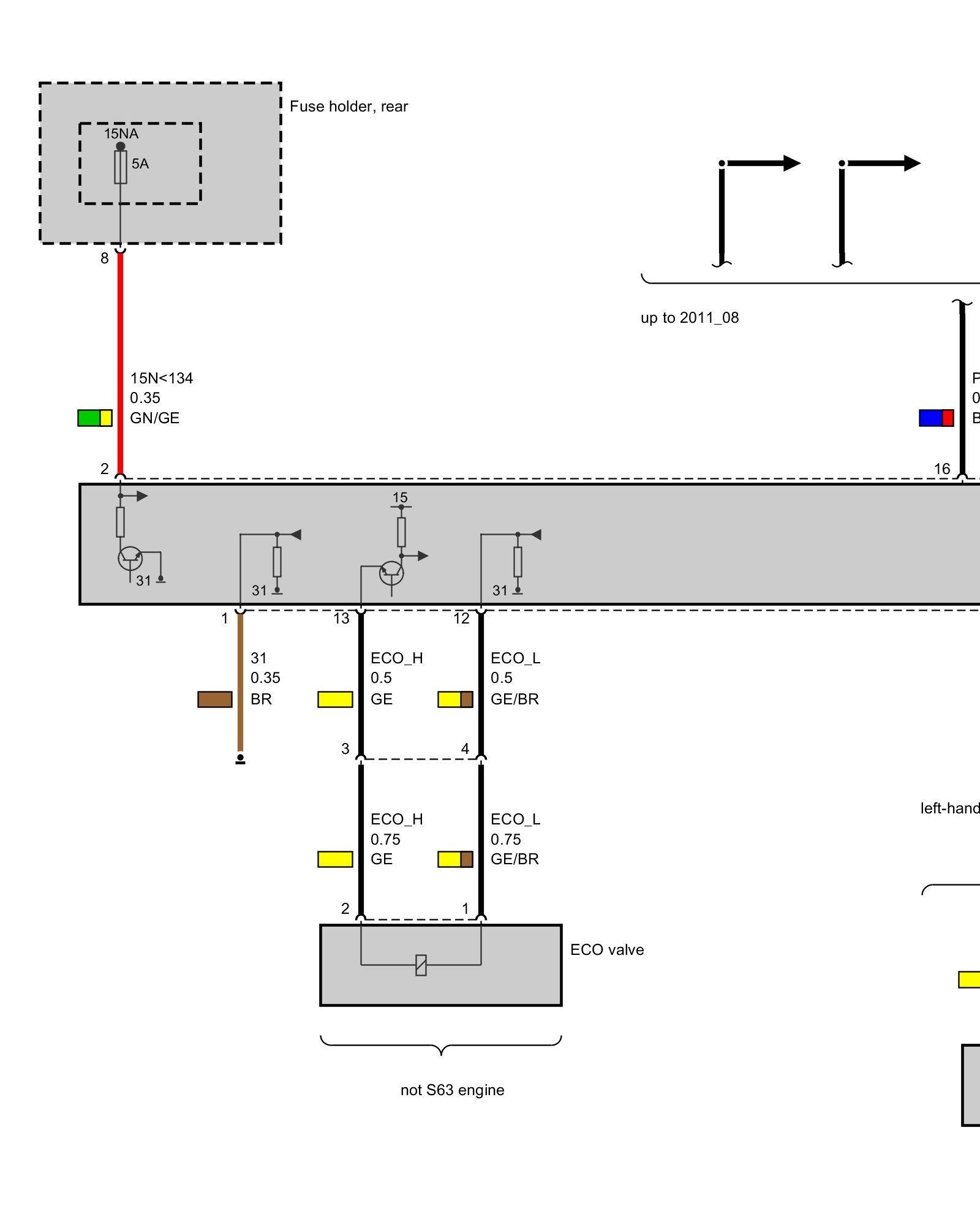

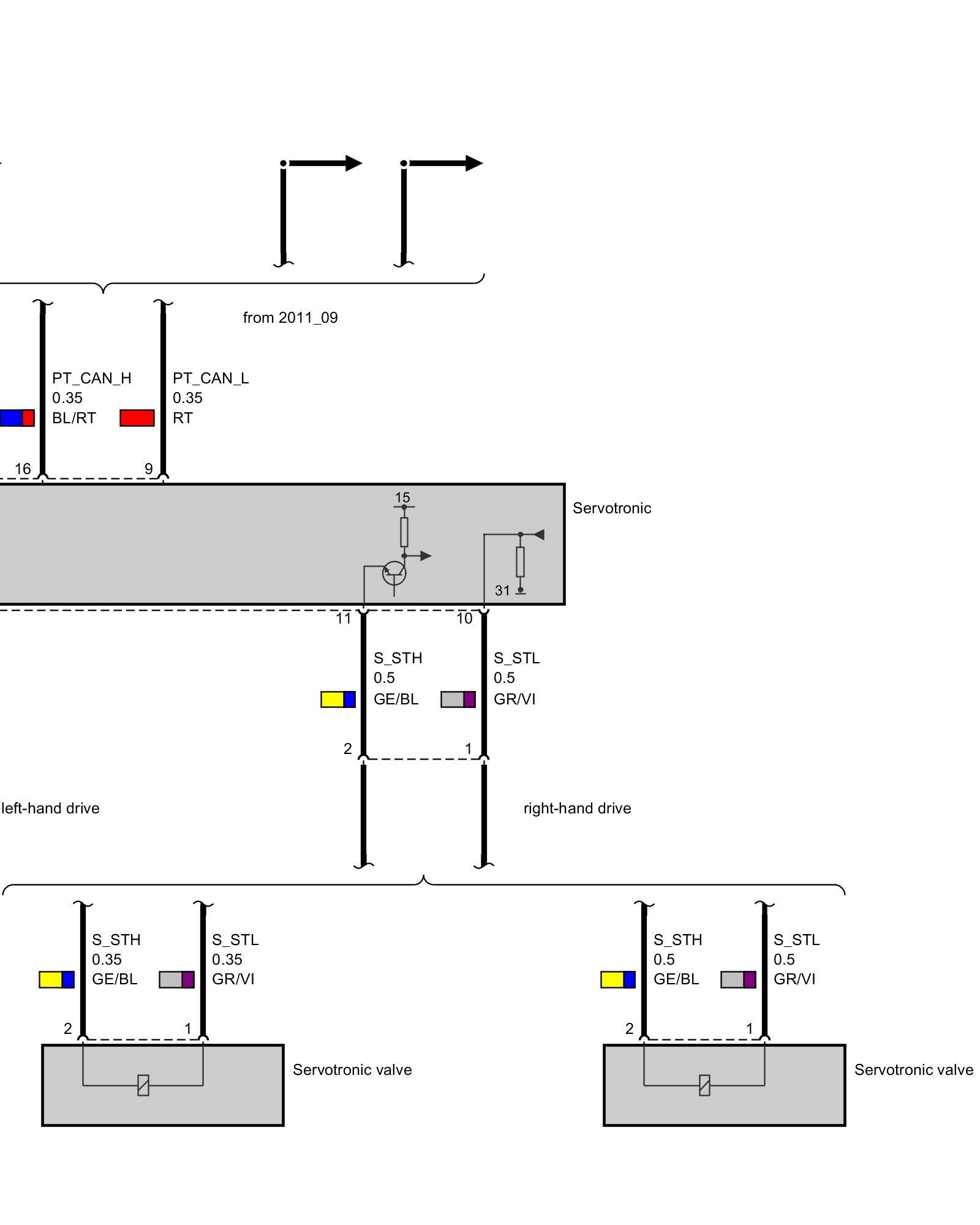

SVT Servotronic Supply
SVT Servotronic Supply
Servotronic
