64 22 137 Removing and Installing/Replacing Left Fresh-Air Grill

64 22 137 Removing And Installing Or Replacing Left Fresh-Air Grille







Necessary preliminary tasks:
- Remove decorative strip on instrument panel on left







NOTE: Example graphic on the F01.

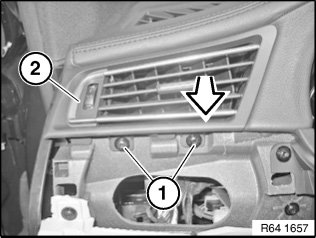

Release screws (1).

Pull out left fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove left fresh-air grille (2).







Installation:

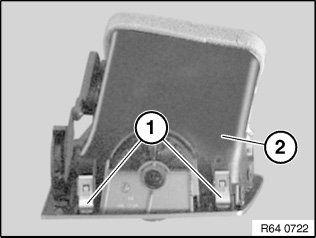

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh-air duct behind.
