64 22 138 Removing and Installing/Replacing Right Fresh-Air Grill

64 22 138 Removing And Installing/Replacing Right Fresh-air Grille







- Remove decorative strip on instrument panel on right

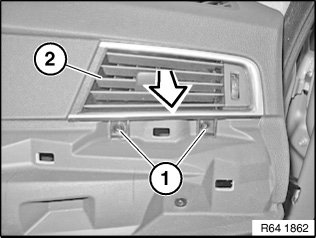

Release screws (1).

Pull out right fresh-air grille (2) towards front and unlock and disconnect plug connection behind.

Remove right fresh-air grille (2).







NOTE: Picture for example purposes only.

Installation:

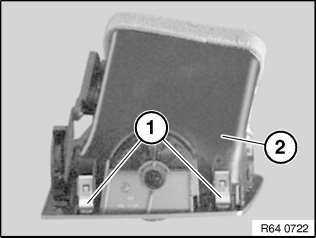

Catches (1) of fresh-air grille (2) must not be damaged.

Make sure fresh-air grille (2) is correctly seated on fresh air duct behind.
