Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
750i (F01) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From A
>>

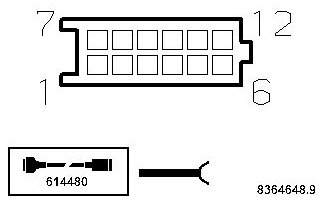

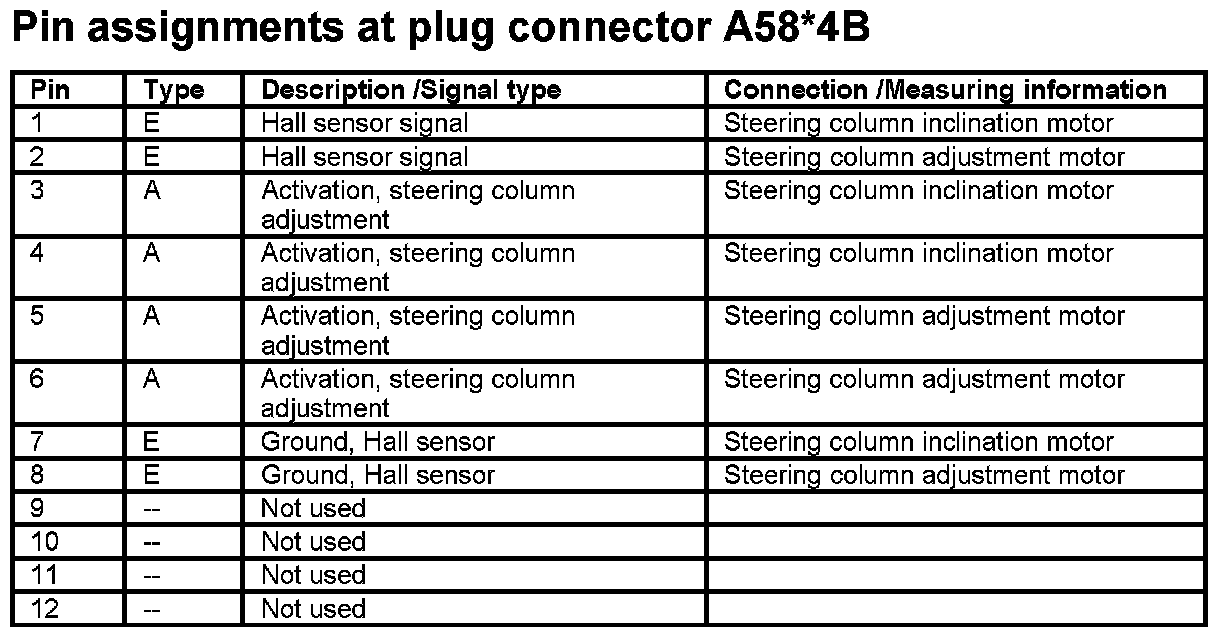

A58*4B
A58*4B
A58*4B
A58 Footwell Module
