64 22 ... Removing and Installing/Replacing Fresh-Air Grille on Left or Right B-Pillar

64 22 ... Removing And Installing/Replacing Fresh-Air Grille On Left Or Right B-Pillar







Necessary preliminary tasks:
- Remove panel for door pillar (bottom)

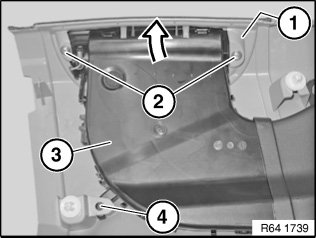

Release screws (2) and feed out fresh-air grille (3) on panel for door pillar (1) in direction of arrow.

Installation:
Retaining lug (4) must be correctly engaged in associated guide.
