64 22 190 Removing and Installing/Renewing Rear Compartment Fresh-Air Grille (Basic A/C System)

64 22 190 Removing And Installing/Renewing Rear Compartment Fresh-Air Grille (Basic A/C System)







Installation:
- Remove rear centre console trim

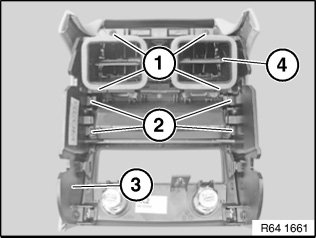

NOTE: Example graphic on the F01.







Release screws (1).
Snap out retainers (2) and press out fresh-air grille (4) towards front.
Remove fresh-air grille (4) from centre console trim (3).







Installation:
Retaining lugs and retainers must be correctly seated in associated guides and must not be damaged.
