64 12 580 Removing and Installing/Replacing Exhaust Pipe

64 12 580 Removing And Installing/Replacing Exhaust Pipe







Necessary preliminary work:
- Remove front underbody protection







NOTE: Graphic similar.

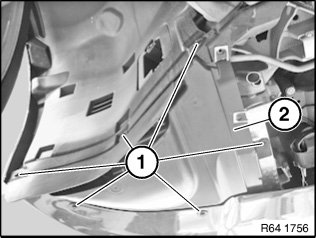

Release screws (1).
Remove lower left cover (2).

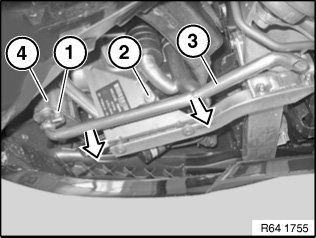

Slacken nut (1).
Release screw (2).
Withdraw exhaust pipe (3) in direction of arrow from silencer (4).

Installation note:
Make sure exhaust pipe (3) is correctly seated.
