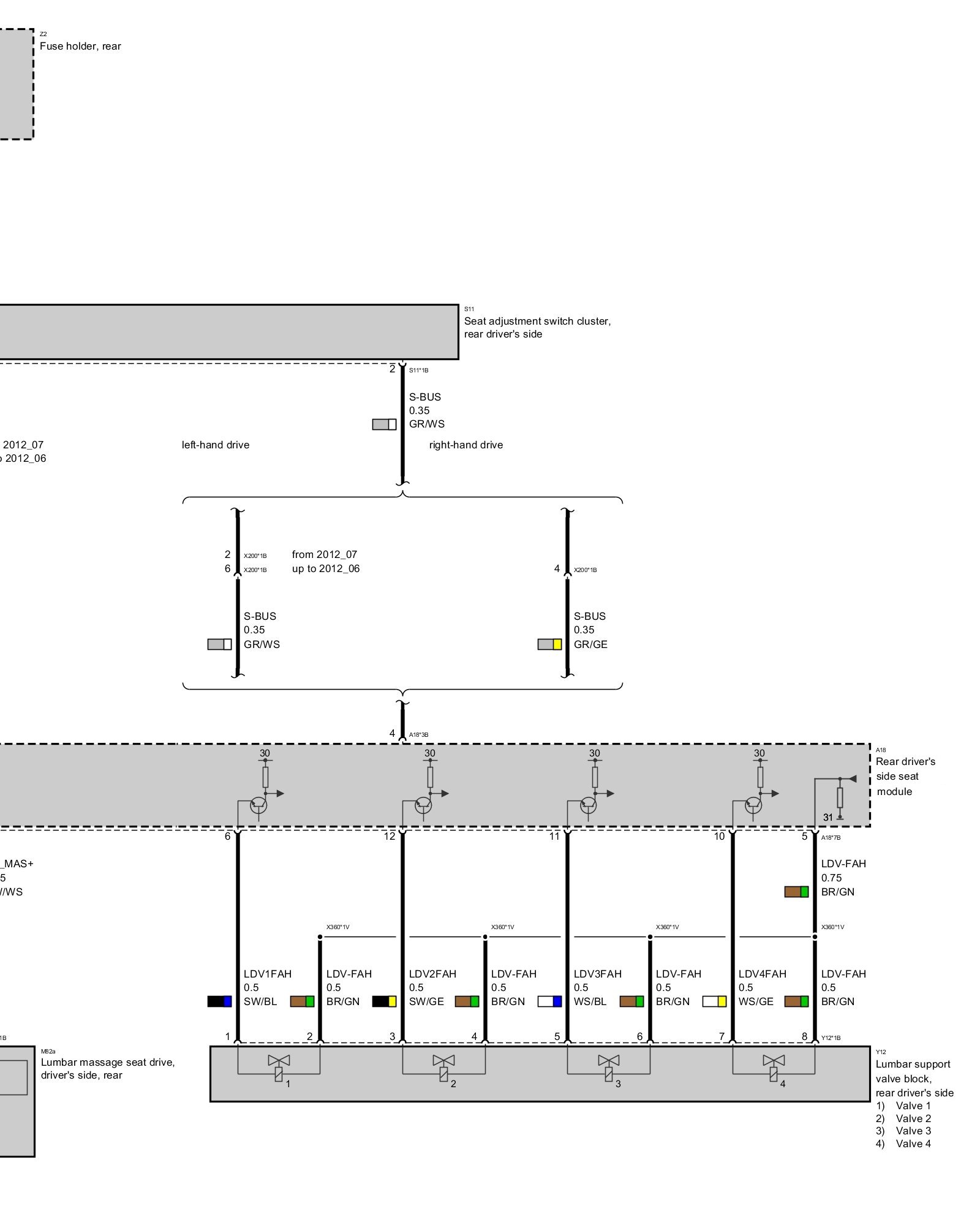

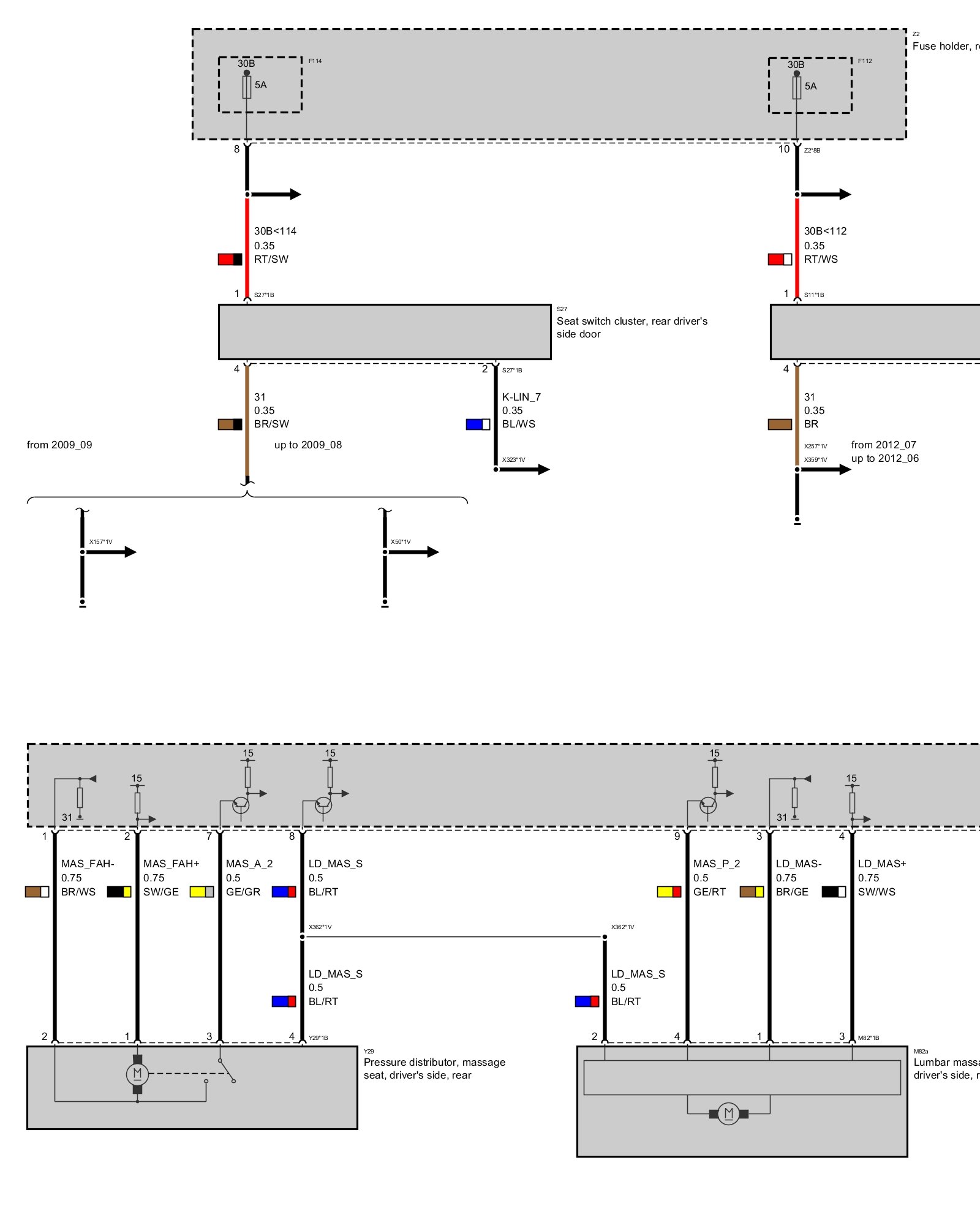

Lumbar Support/Massage Seat, Rear Driver's Side
Lumbar Support/Massage Seat, Rear Driver's Side
Lumbar Support/Massage Seat, Rear Driver's Side
