Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
M3 Sedan (E90) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X2
>>

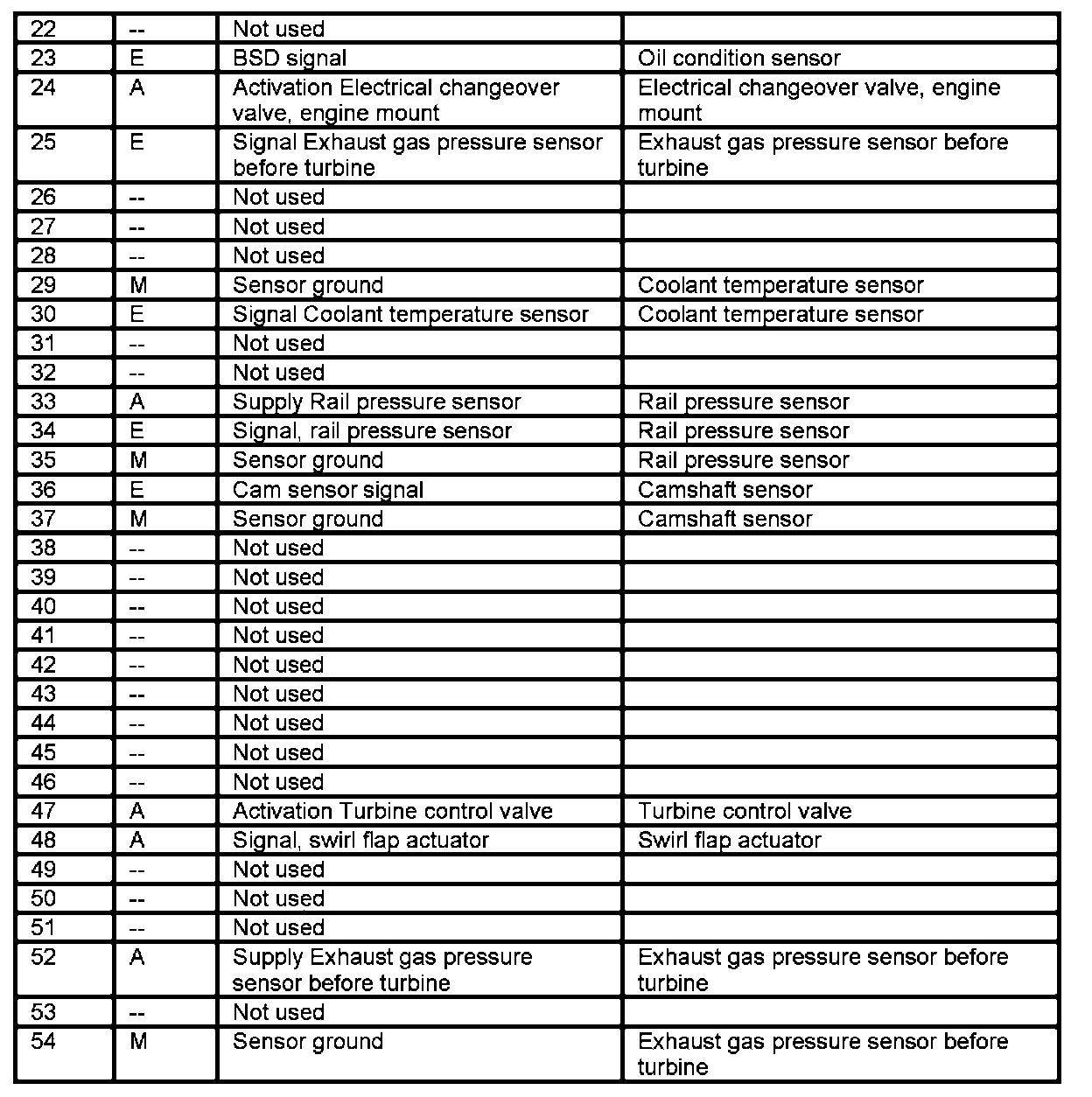

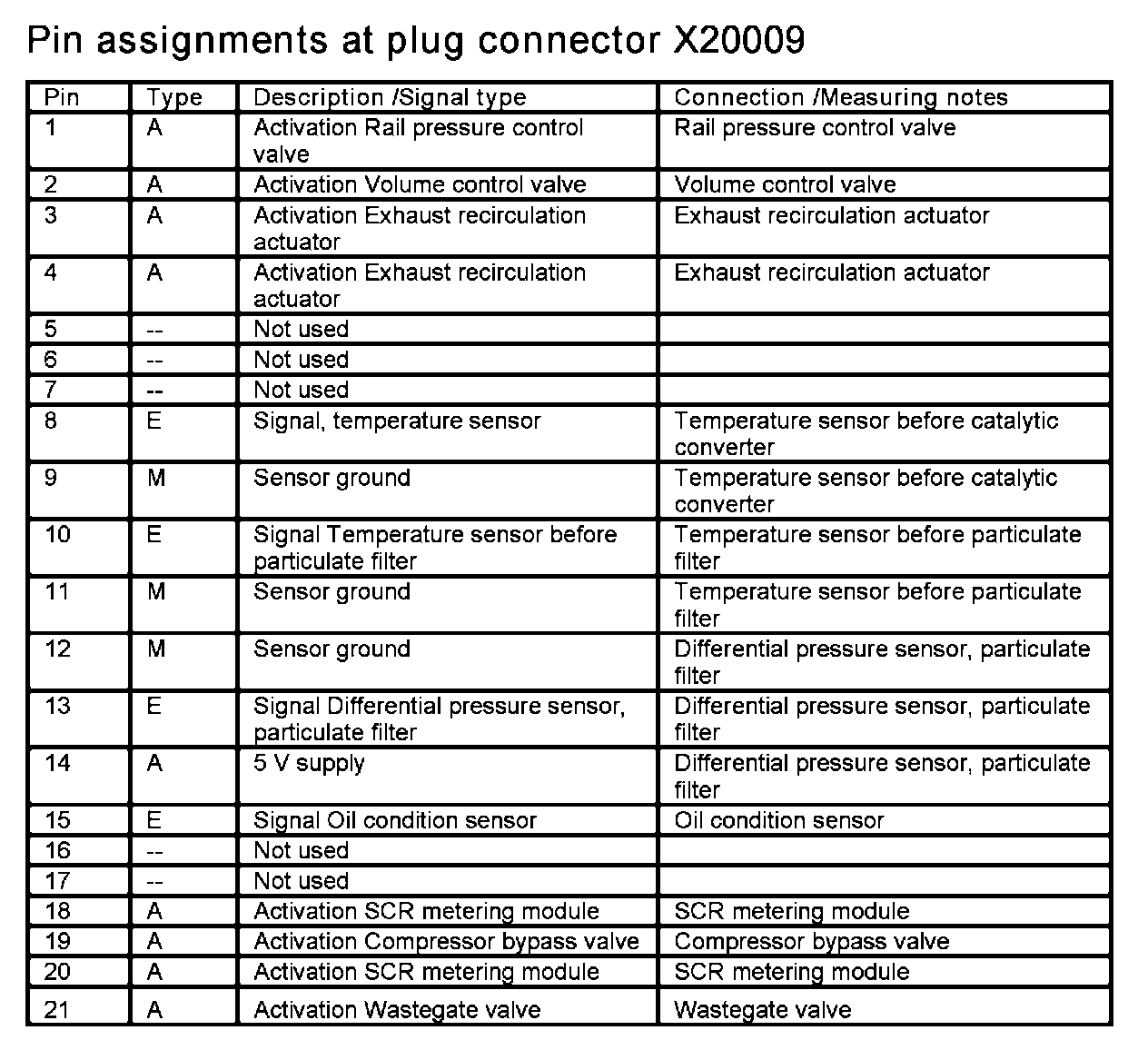

X20009
X20009
X20009
A2249 Digital Diesel Electronics Control Unit
