Home
>>
BMW
>>
2011
>>
M3 Sedan (E90) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals

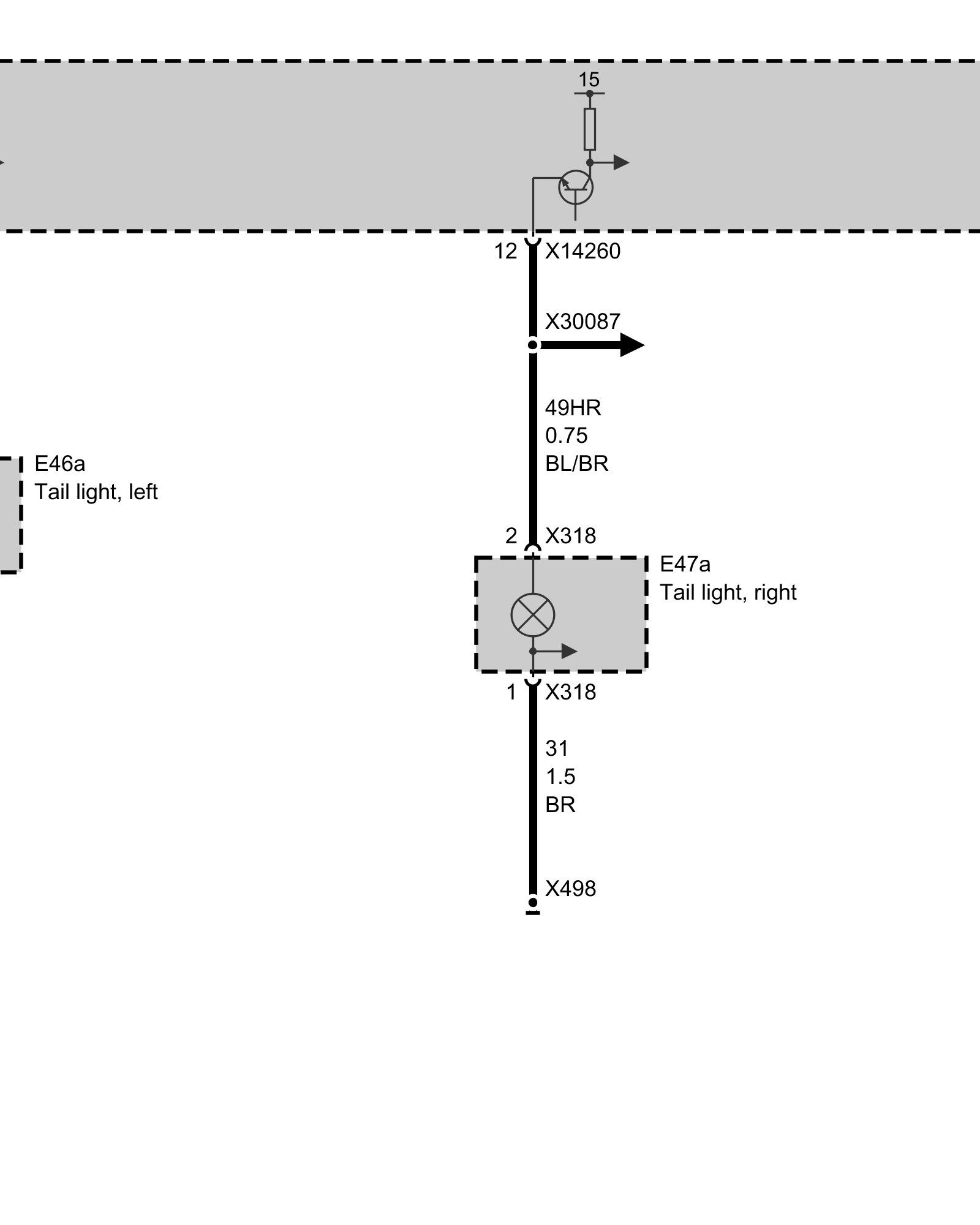

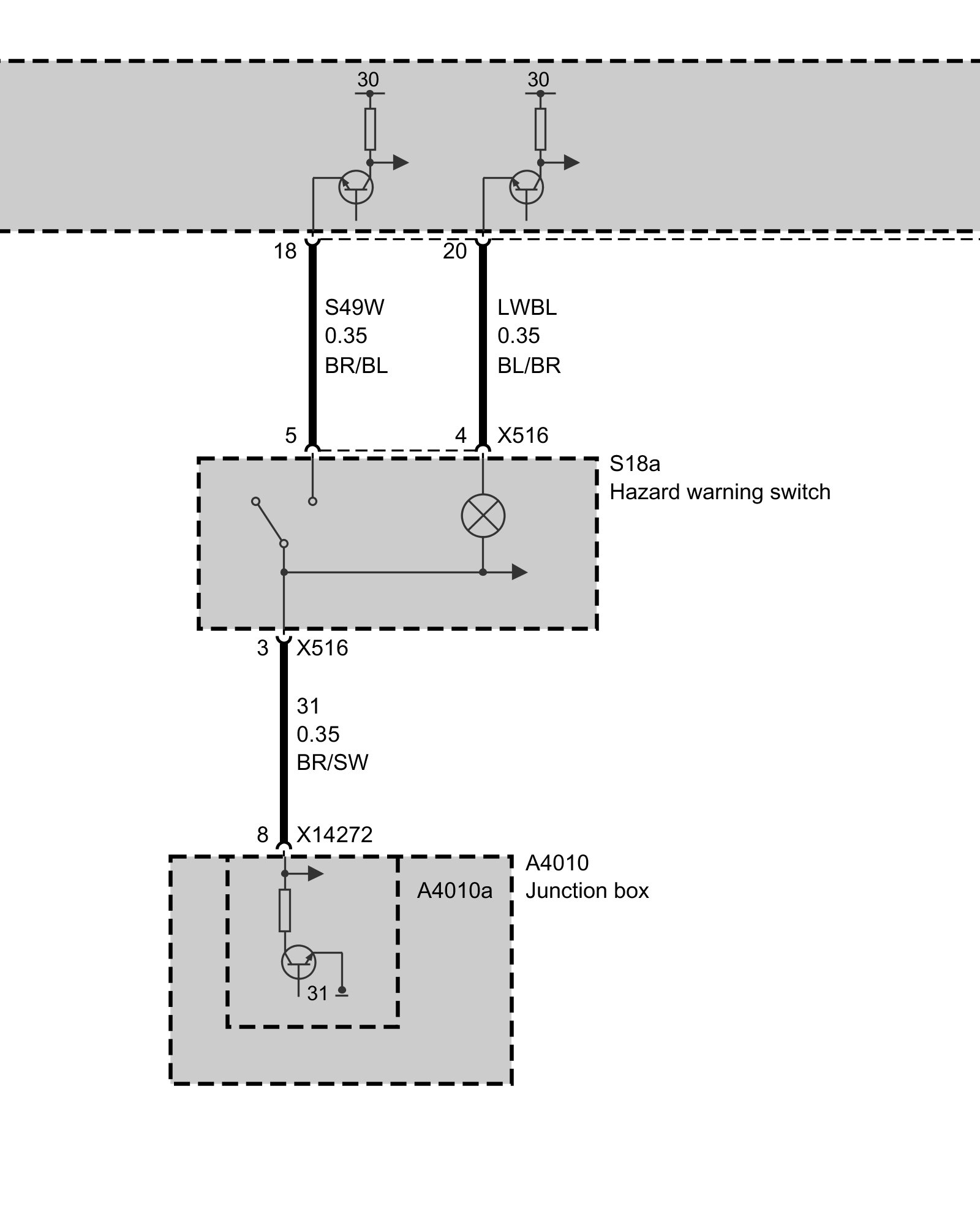

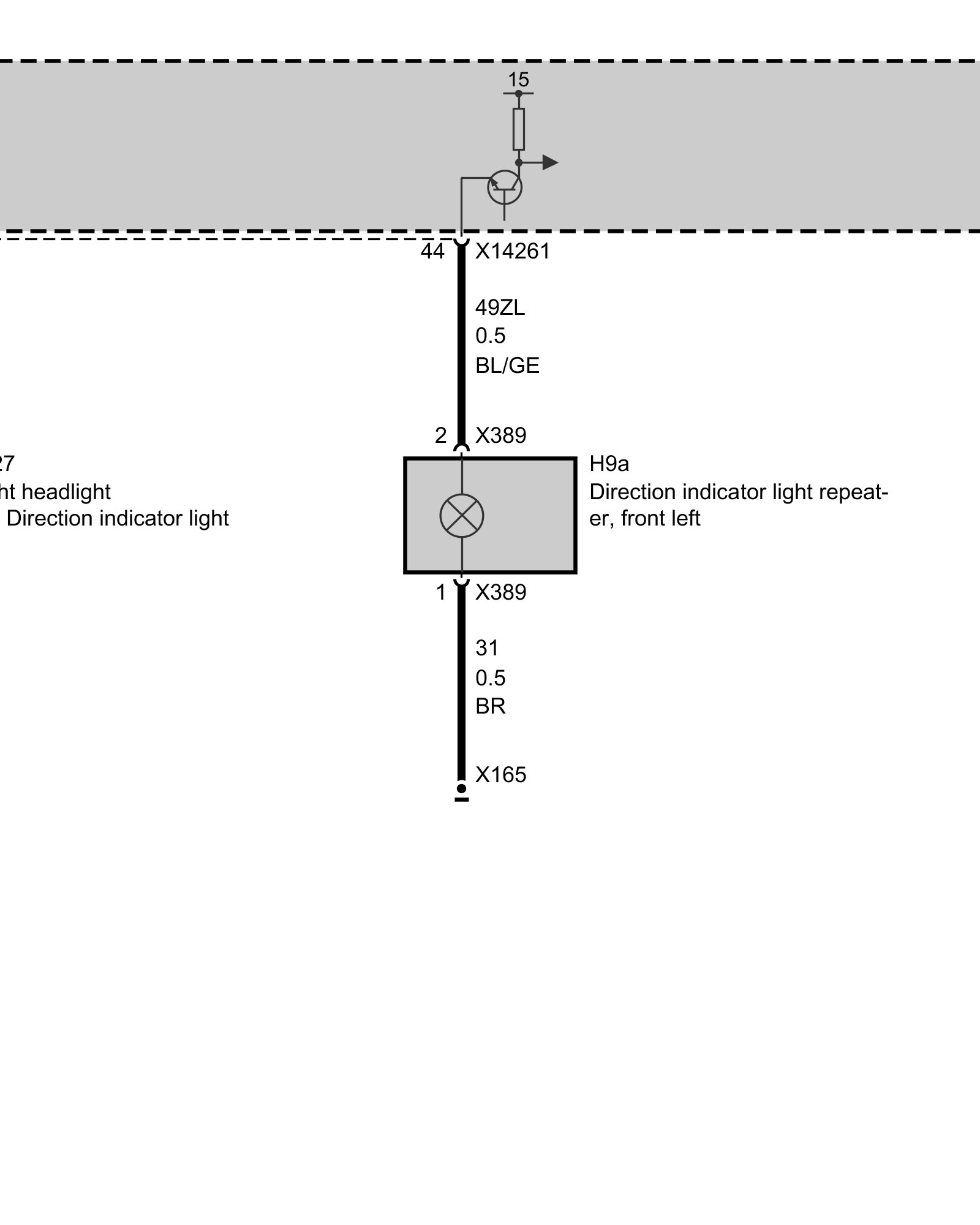

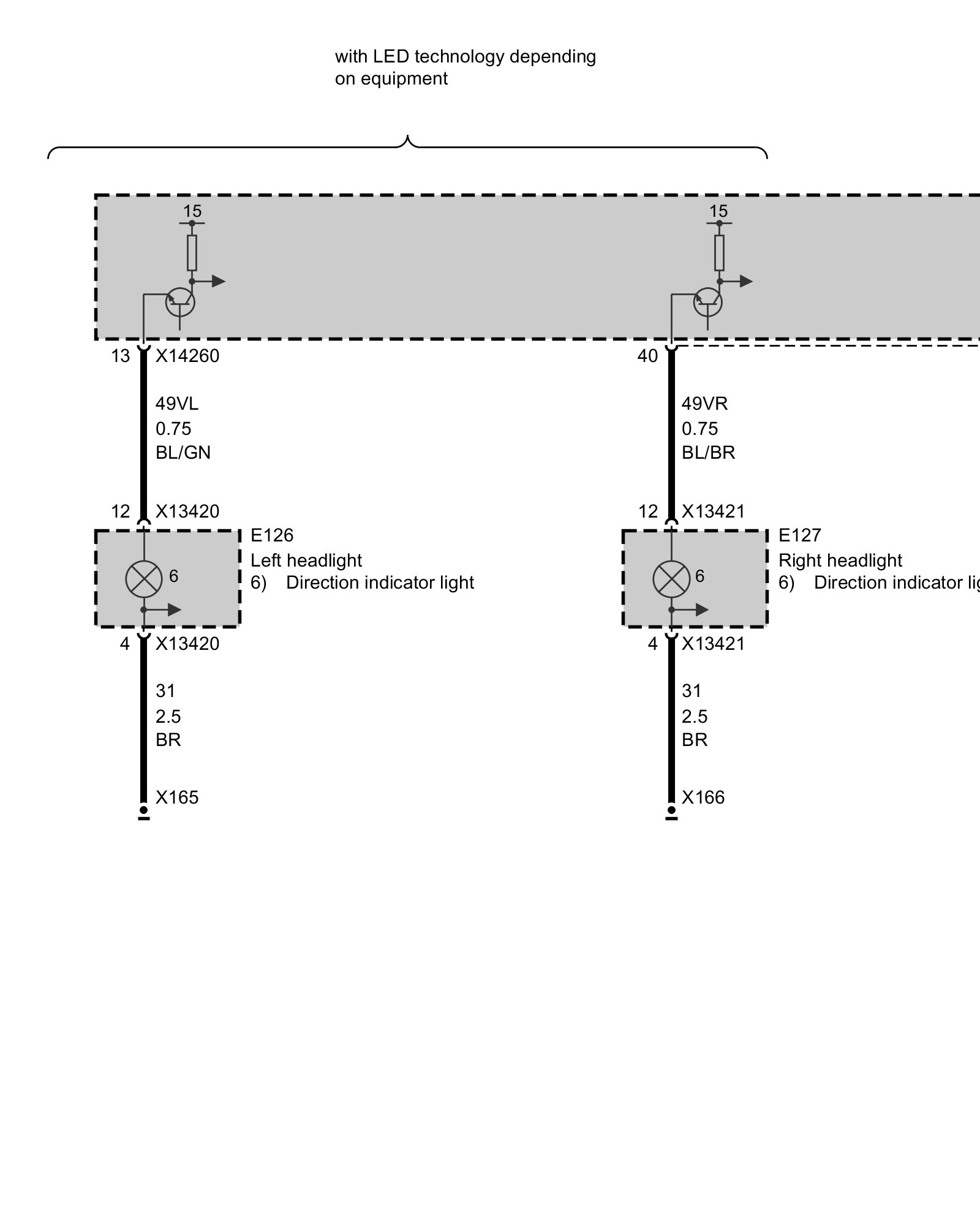

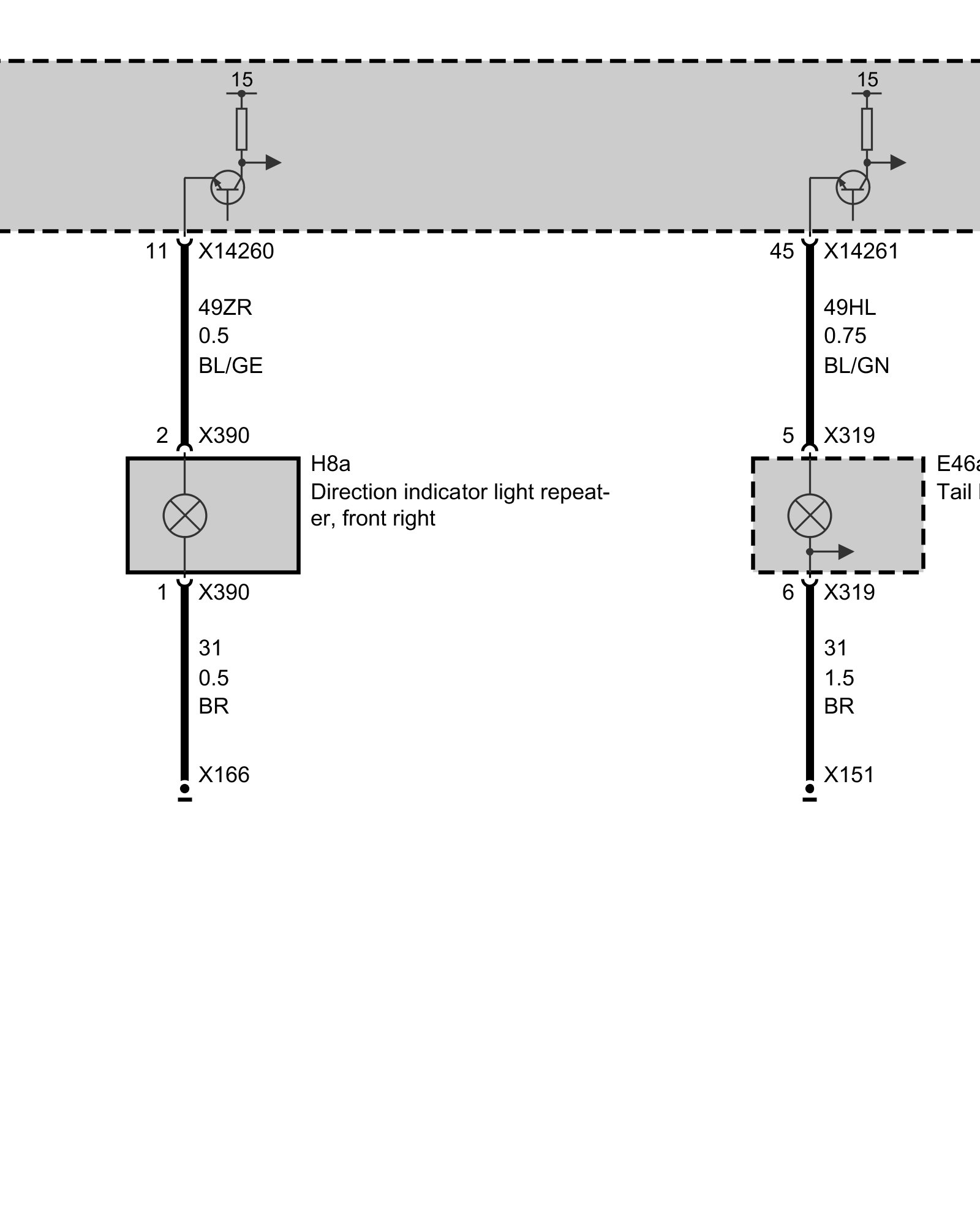

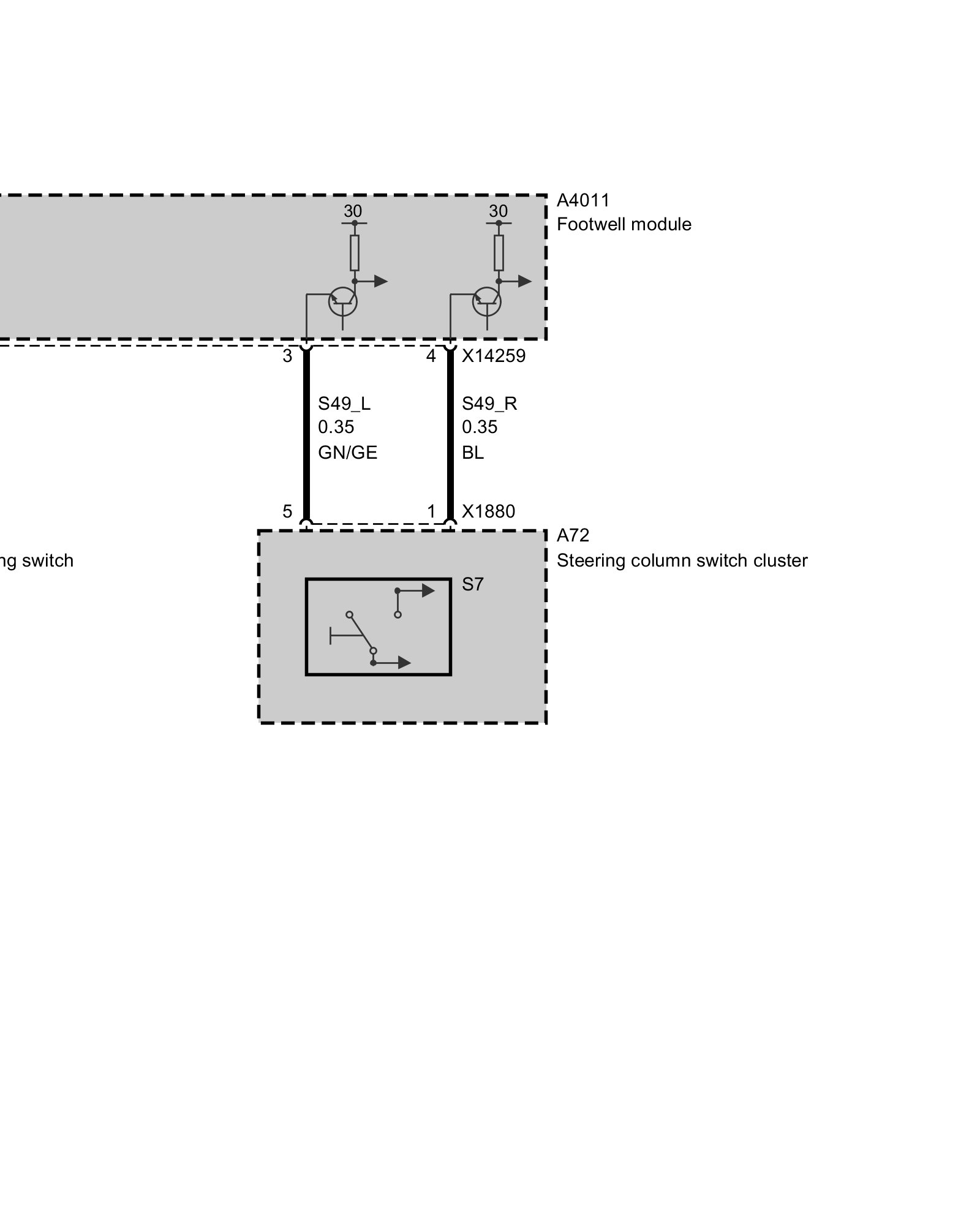

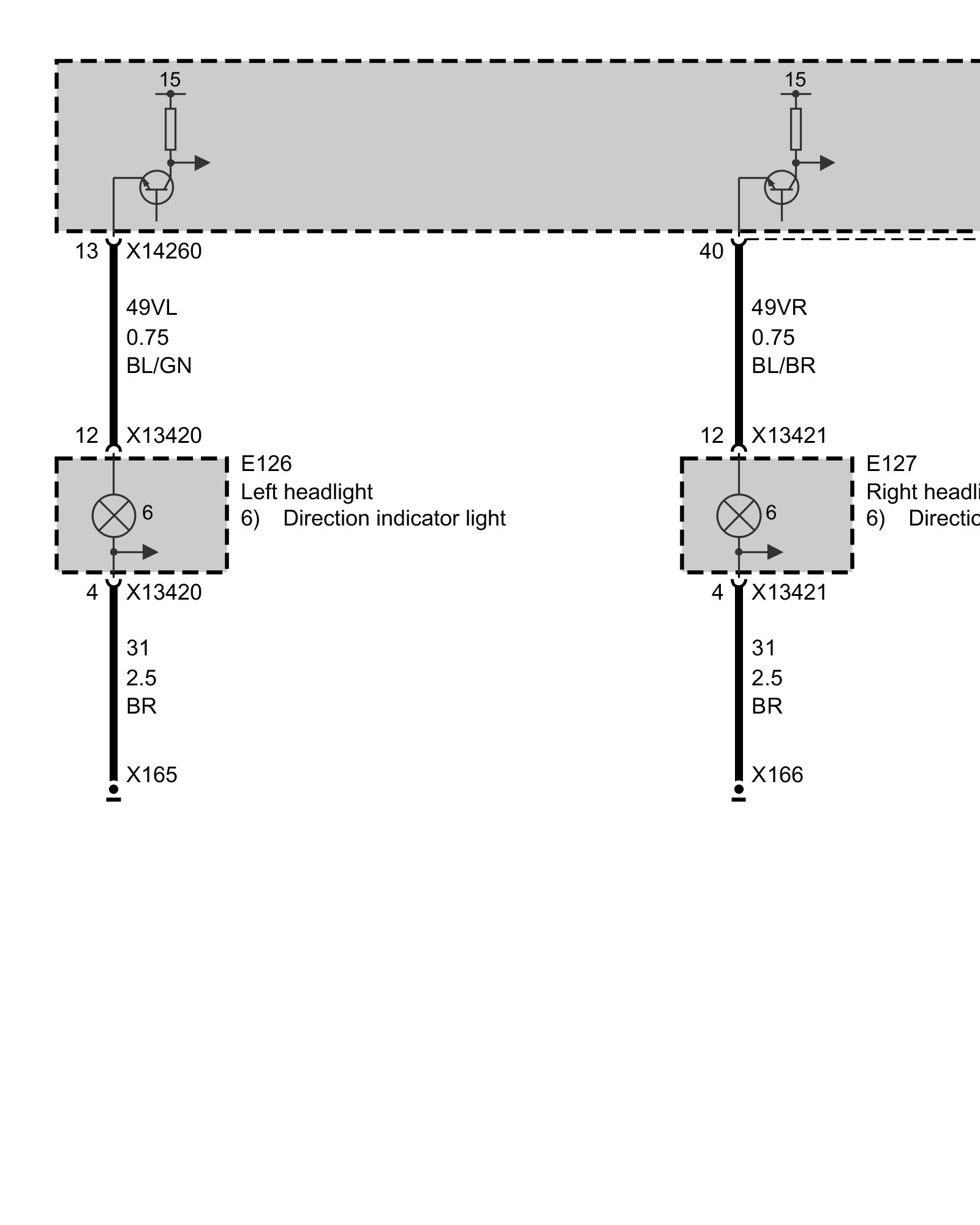

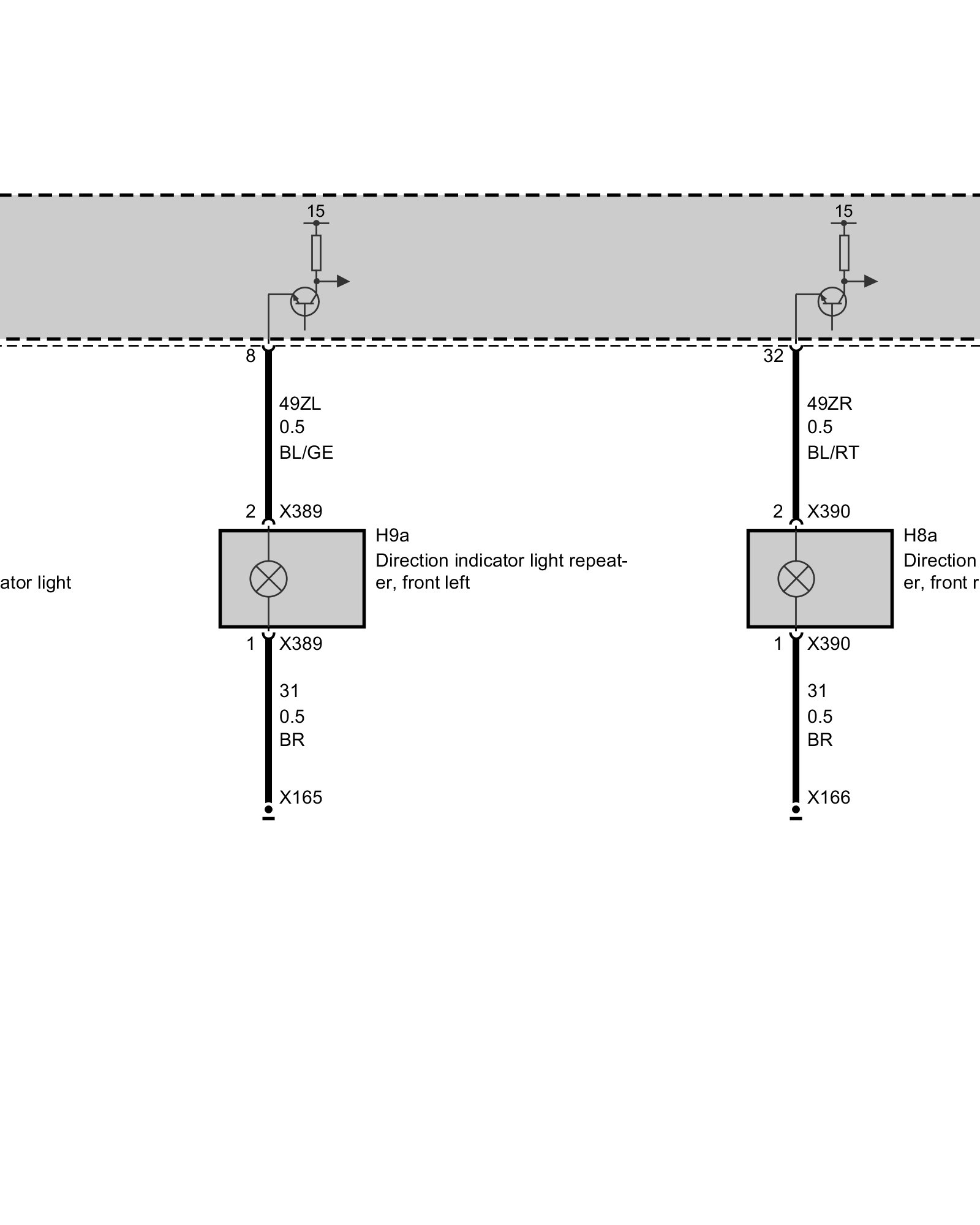

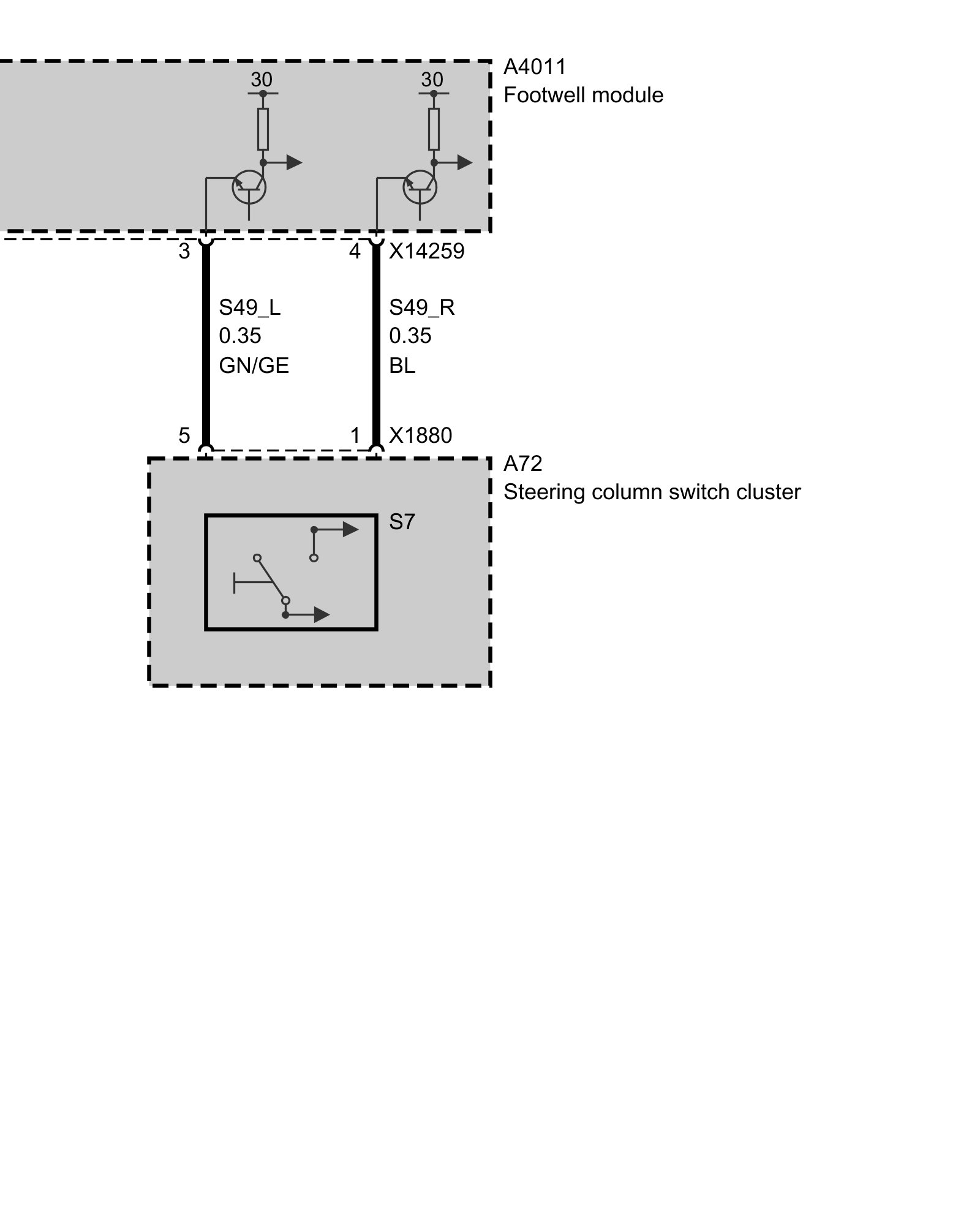

Turn Signals
Turn Signal Indicator

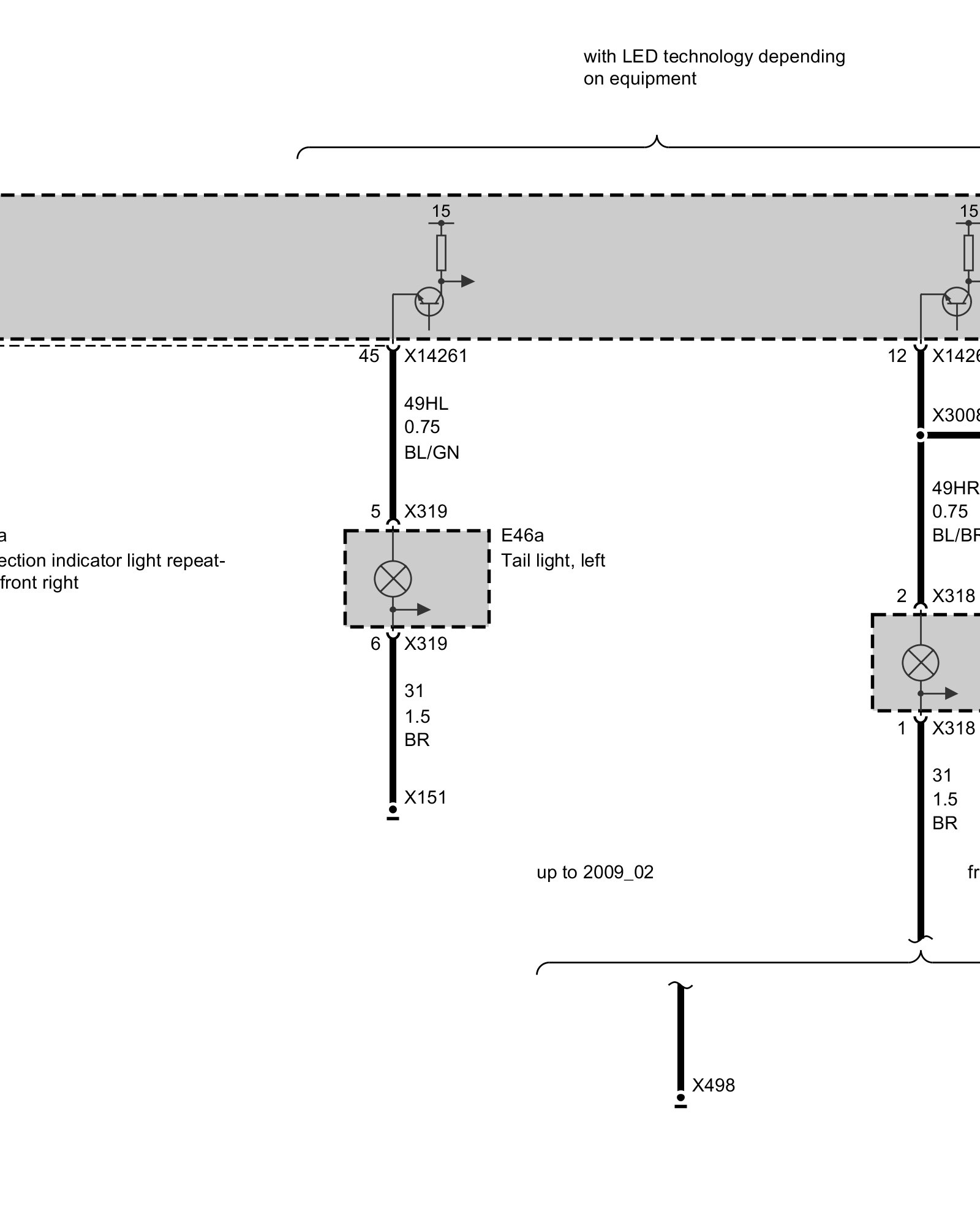

Up to 09/08

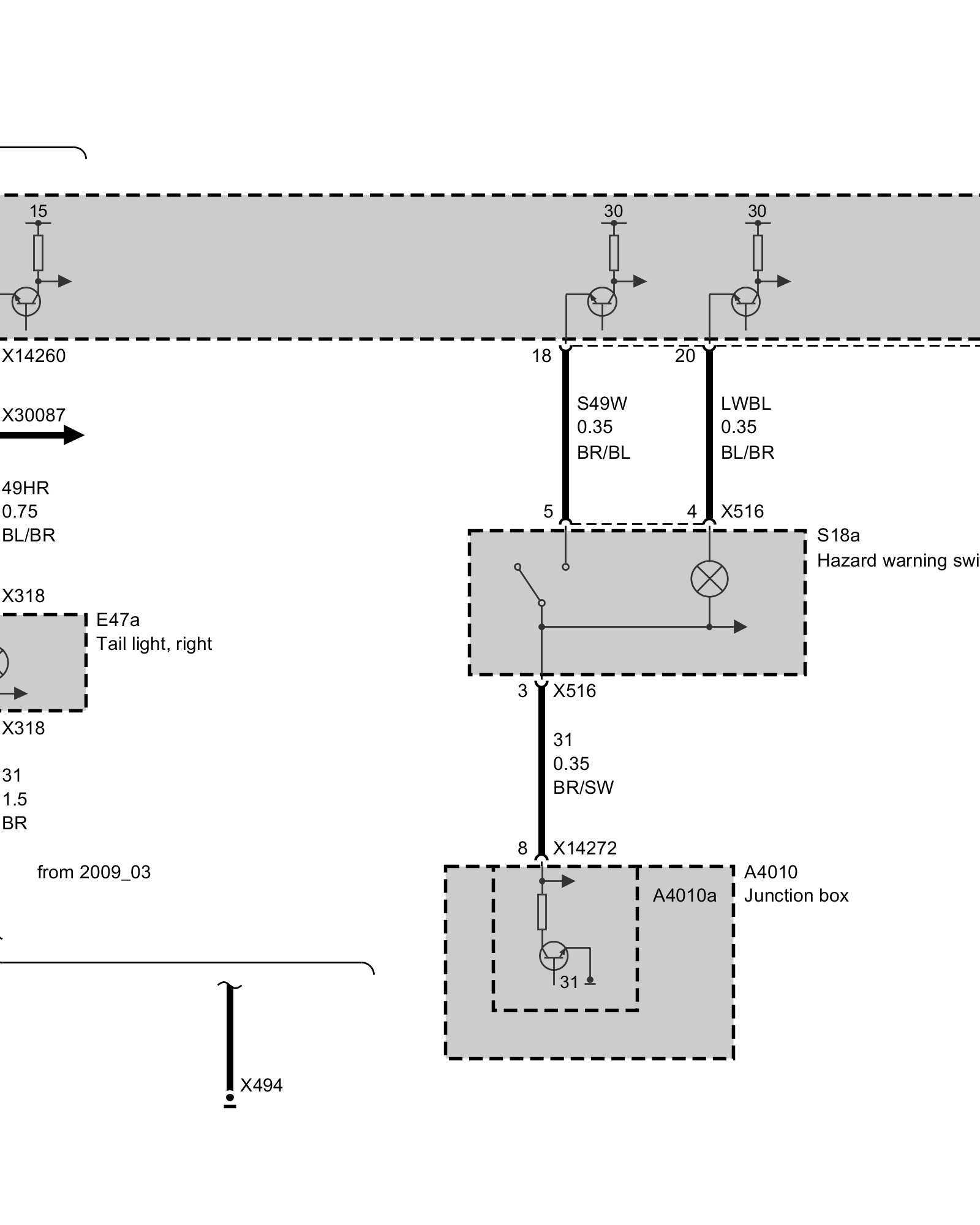

As of 09/08
