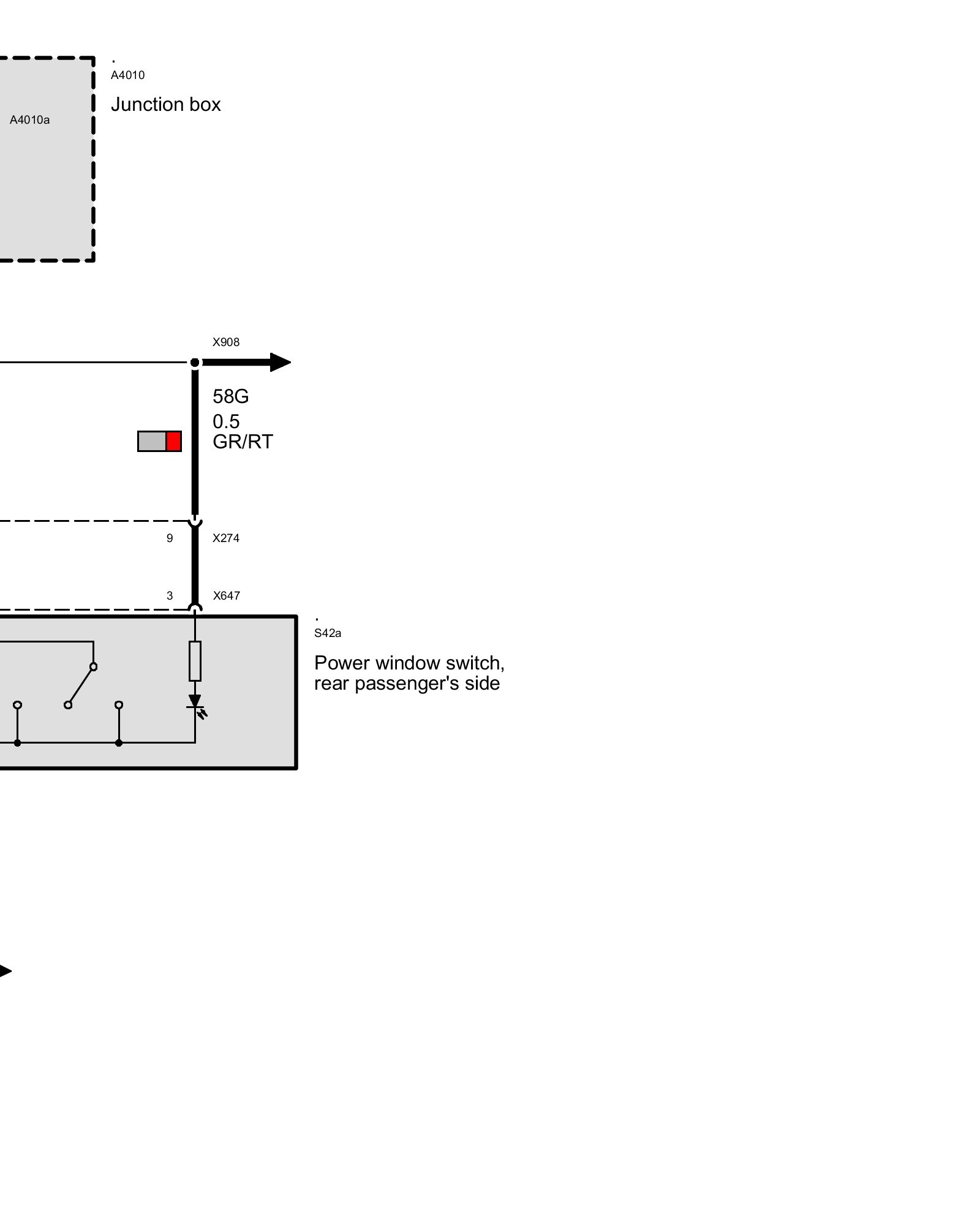

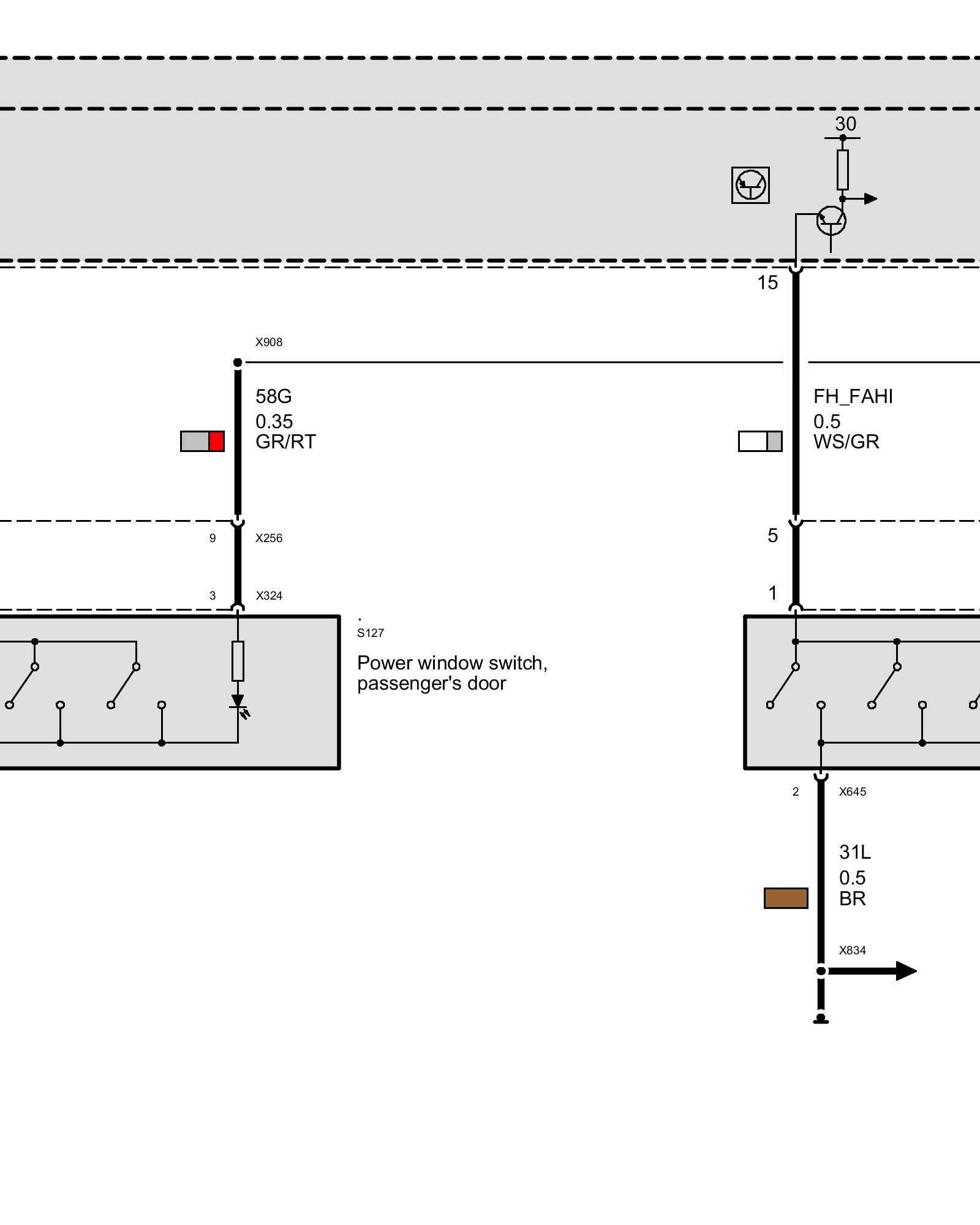

Power Window Inputs

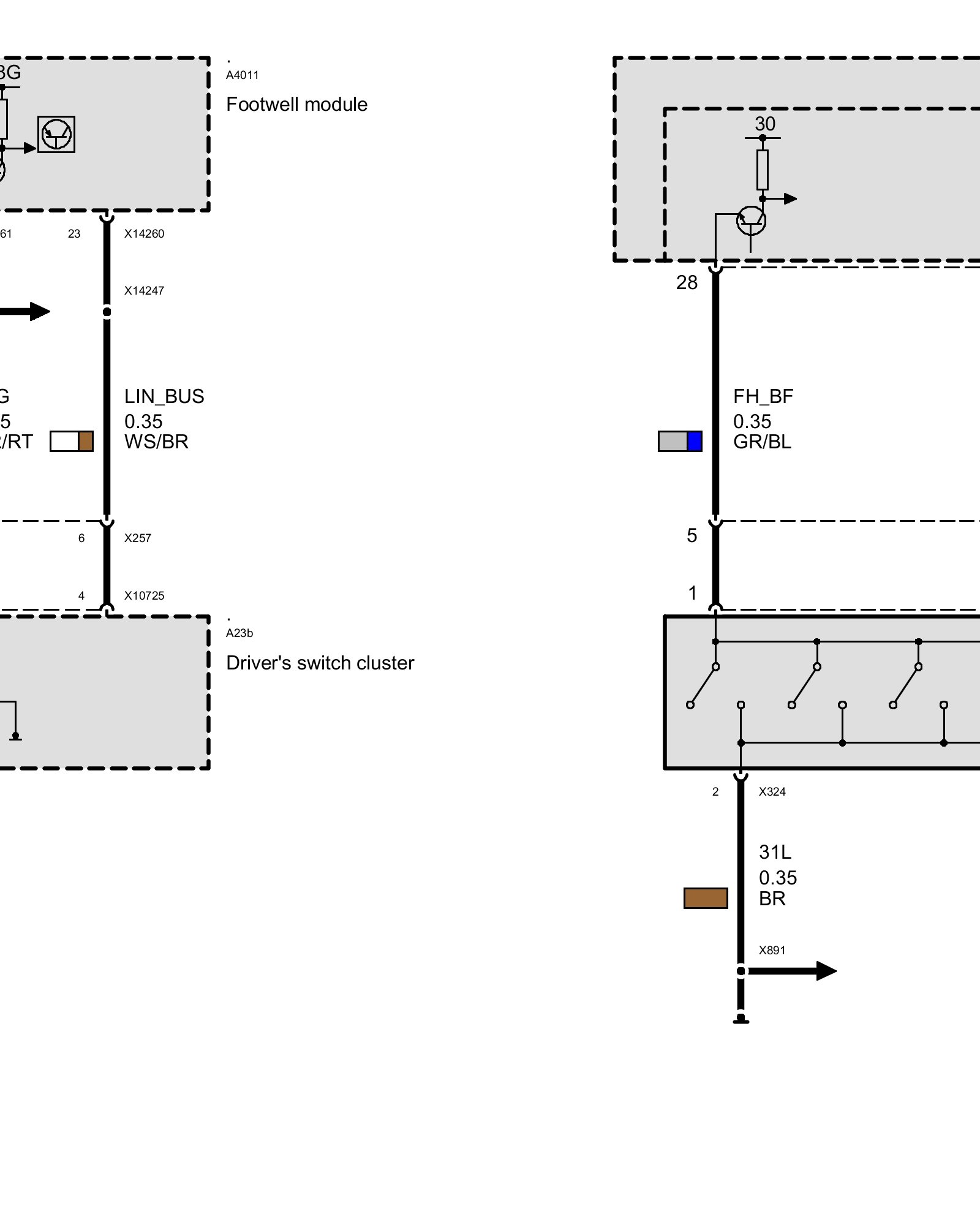

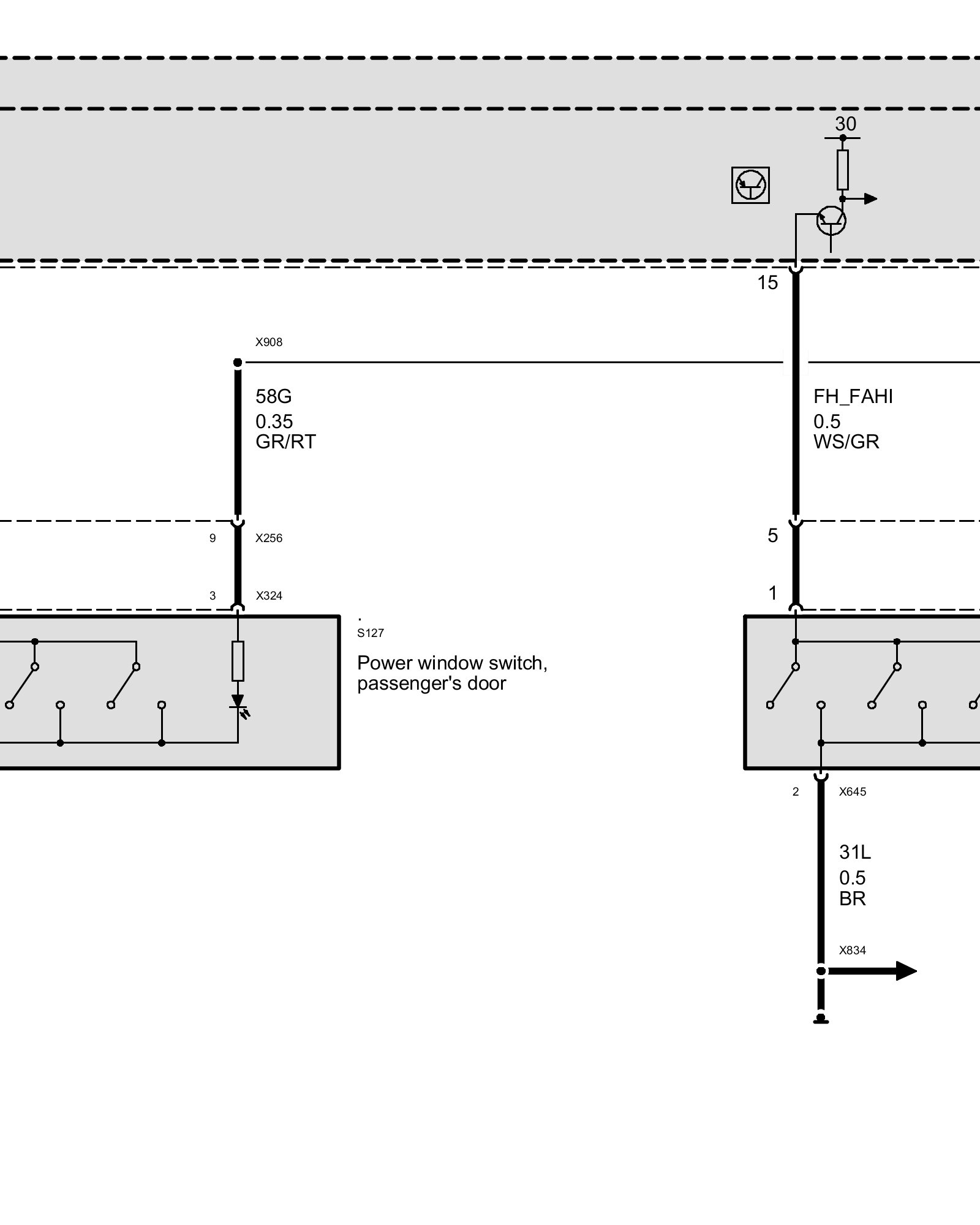

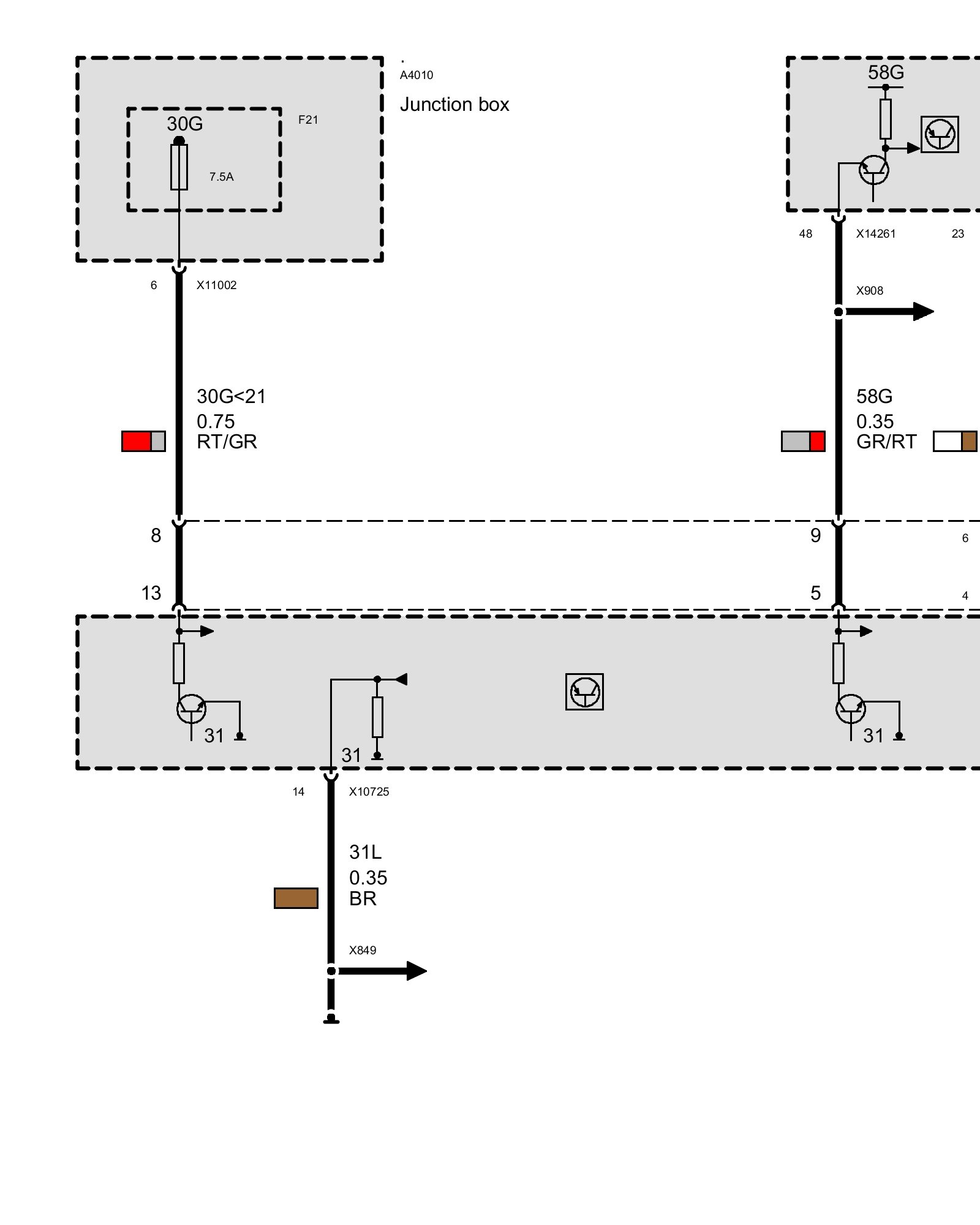

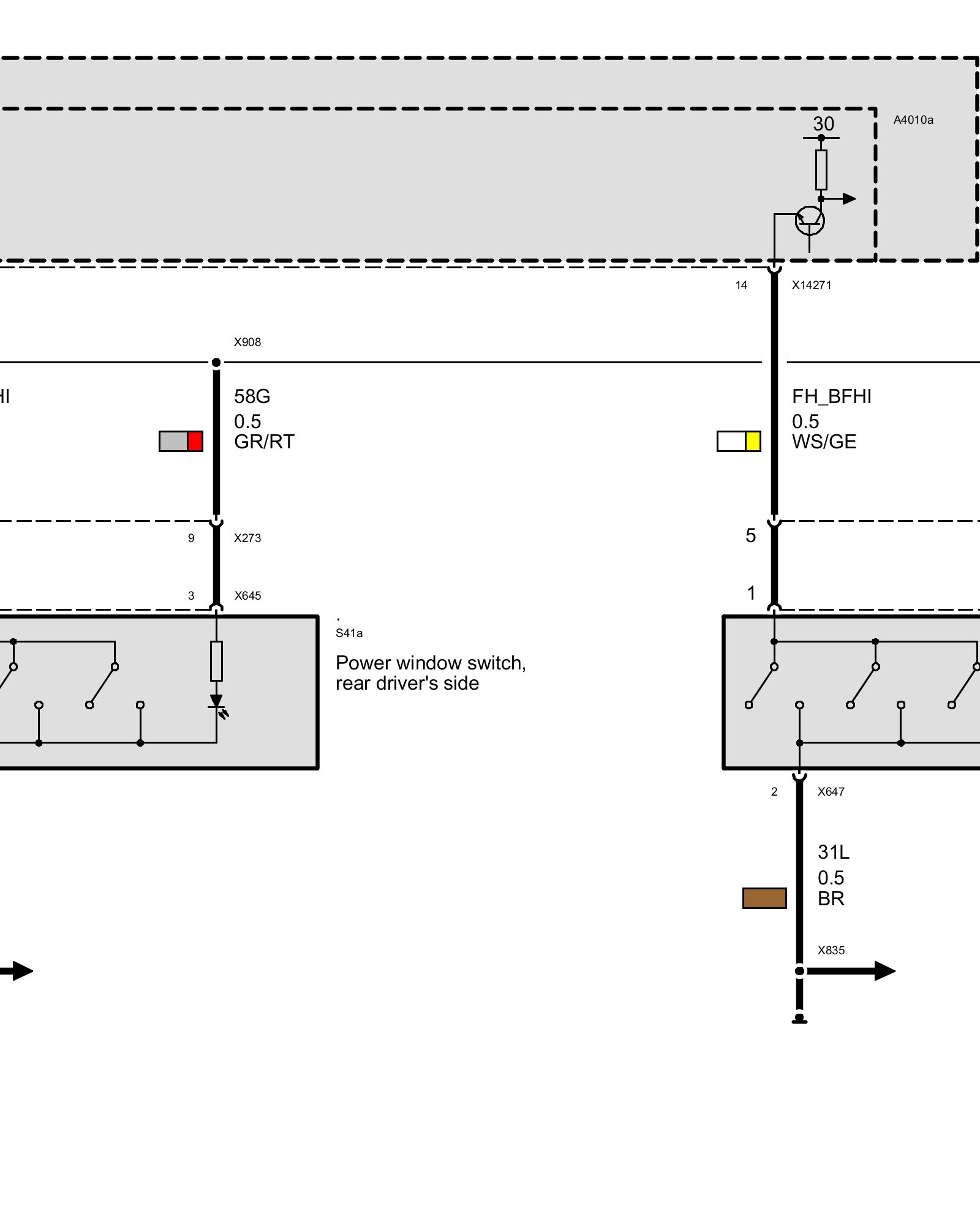

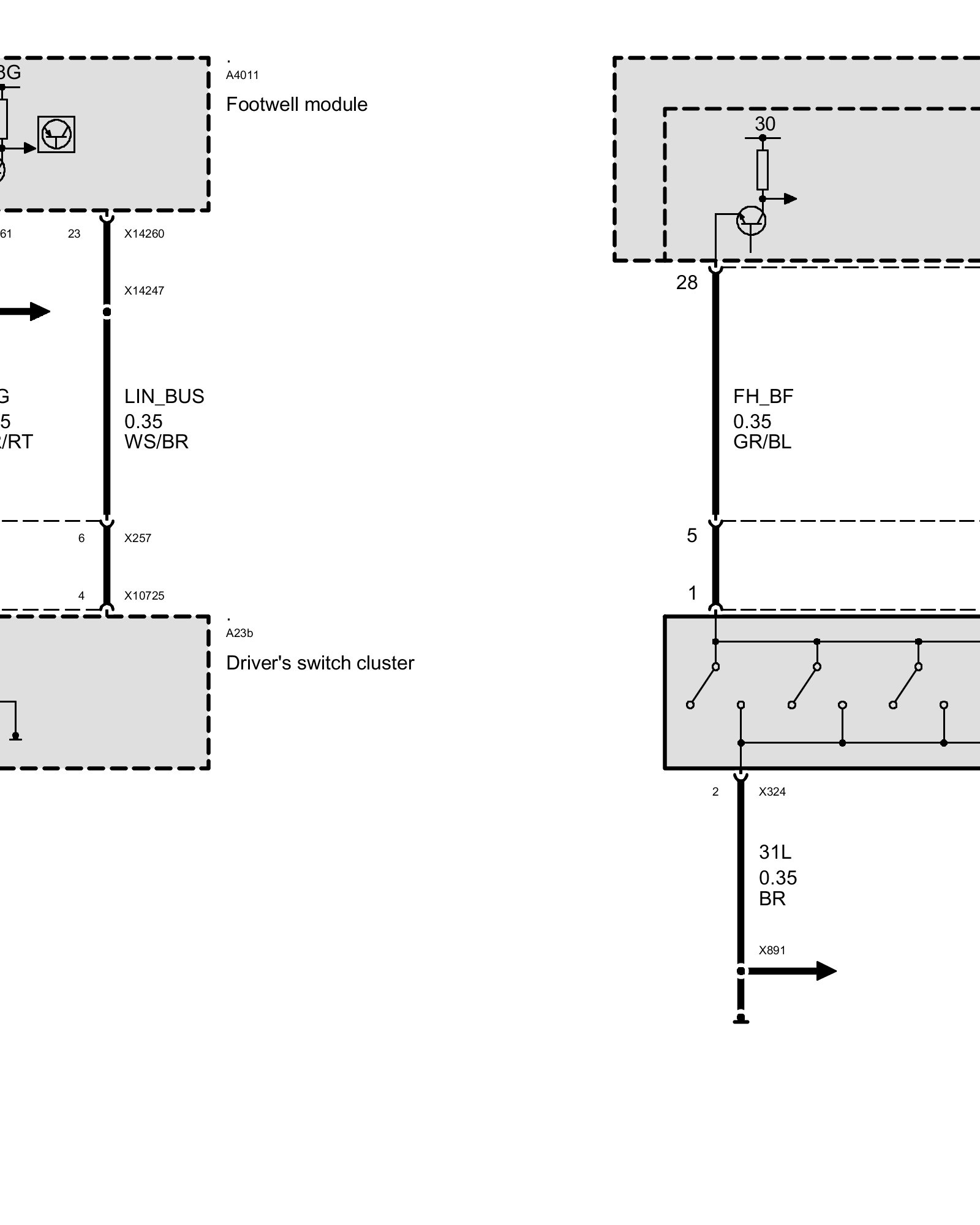

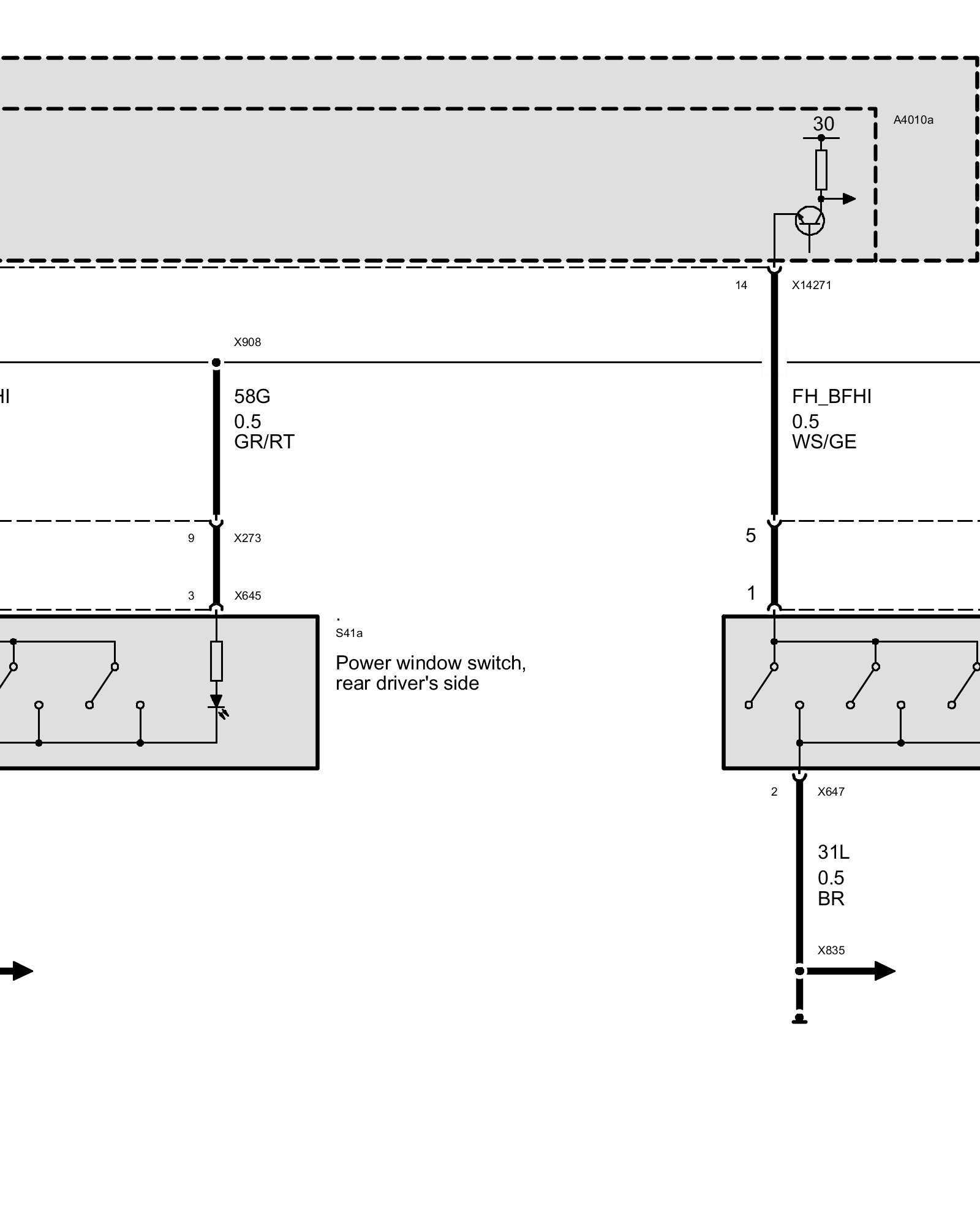

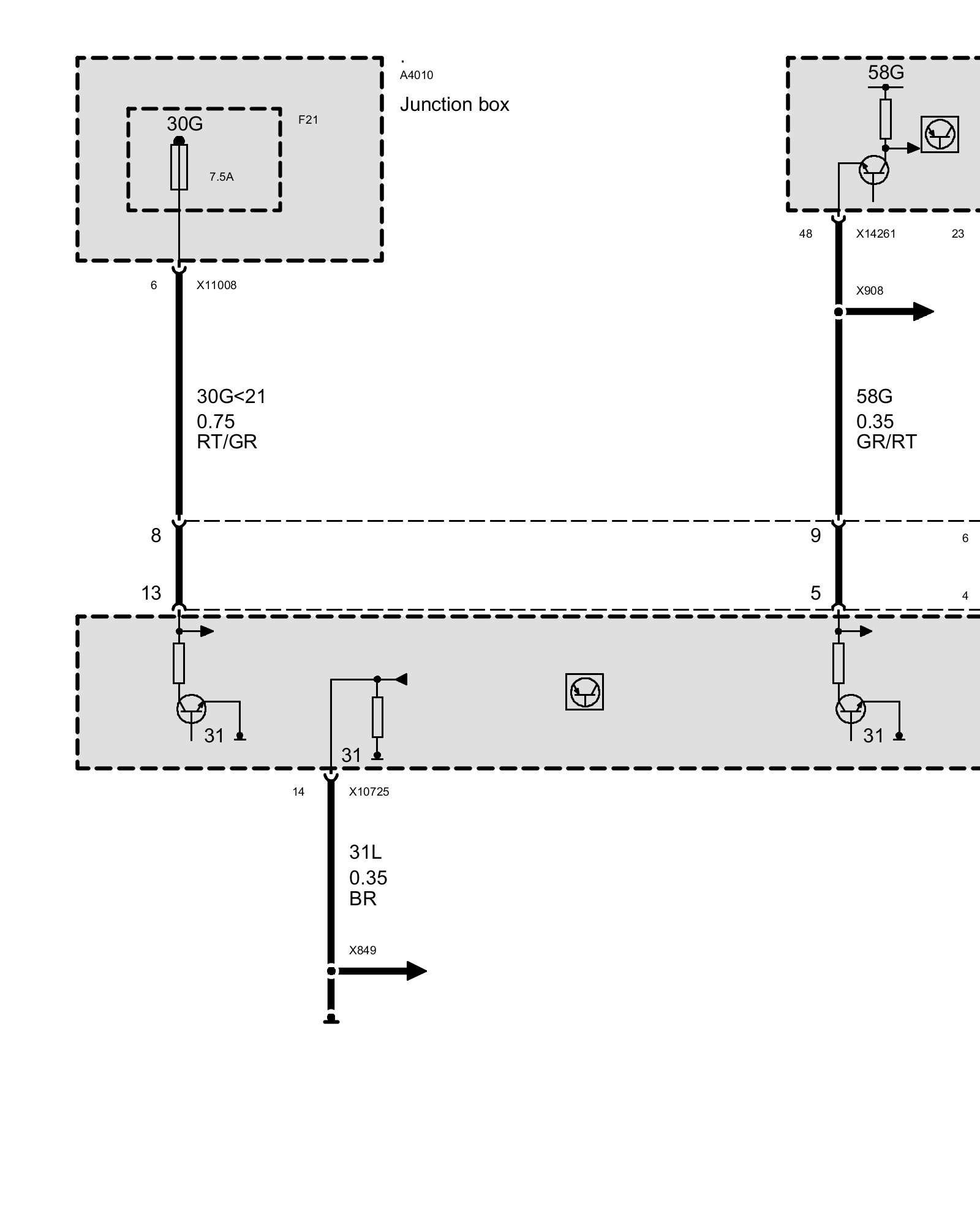

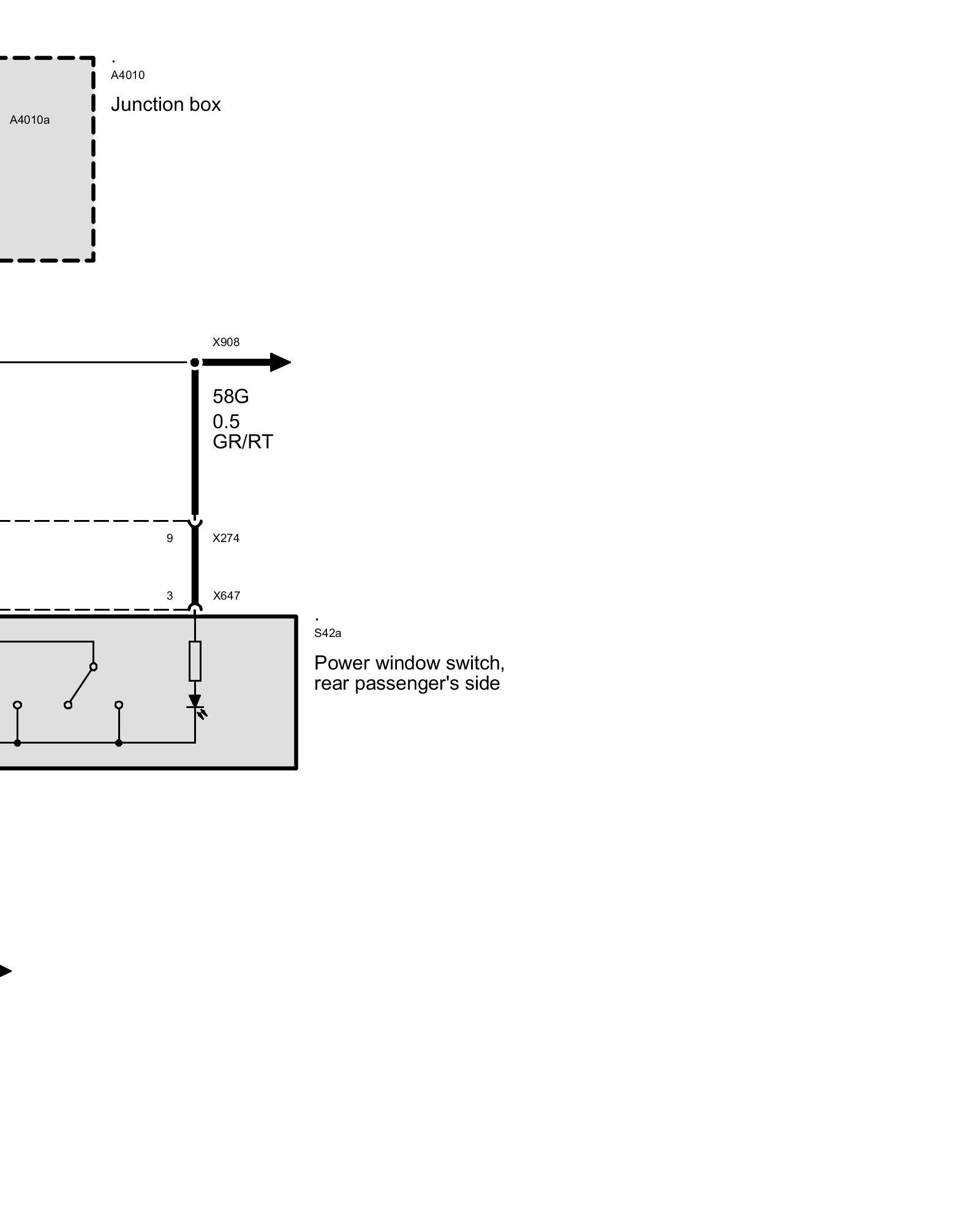

Power Window Inputs
Power Window Inputs
Up to 03/07
As of 03/07 Up to 03/08
As of 03/08
