41 63 000 Removing and Installing Flap For Fuel Filler Neck

41 63 000 Removing And Installing Flap For Fuel Filler Neck







Open fuel filler flap.

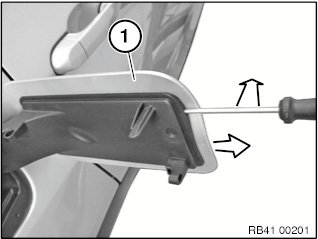

Use a suitable tool to lift the latch mechanism out toward the front in direction of arrow.
Detach fuel filler flap (1) in direction of arrow.

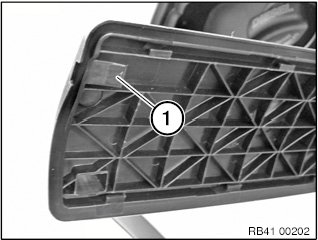

Installation note:
The latch mechanism (1) must not be damaged.

If the latch mechanism is damaged, replace the cover pot.
