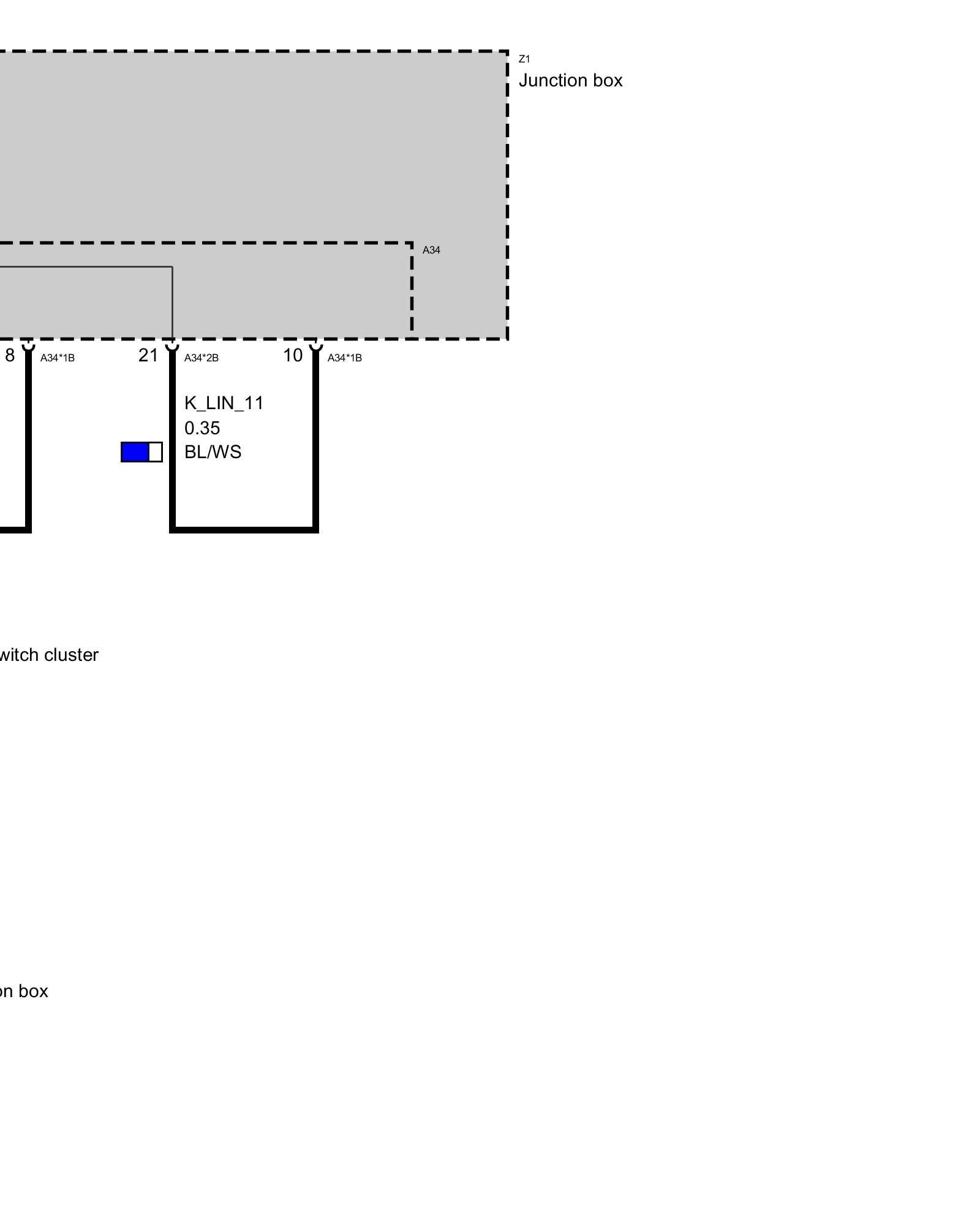

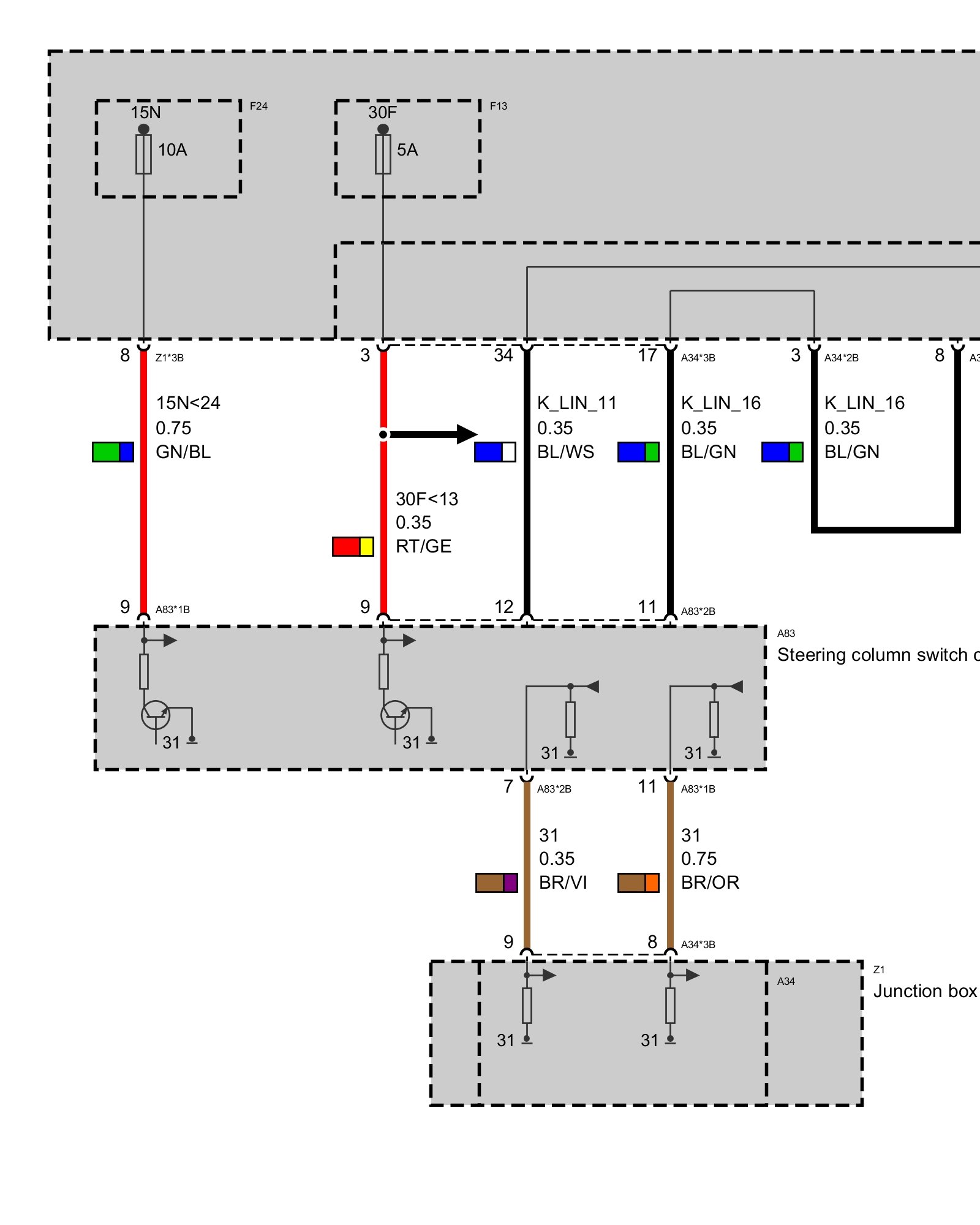

Power Supply, Steering Column Switch Cluster
Power Supply, Steering Column Switch Cluster
Power Supply, Steering Column Switch Cluster
