Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
X3 xDrive 28i (F25) L6-3.0L (N52T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Entertainment Systems
>>

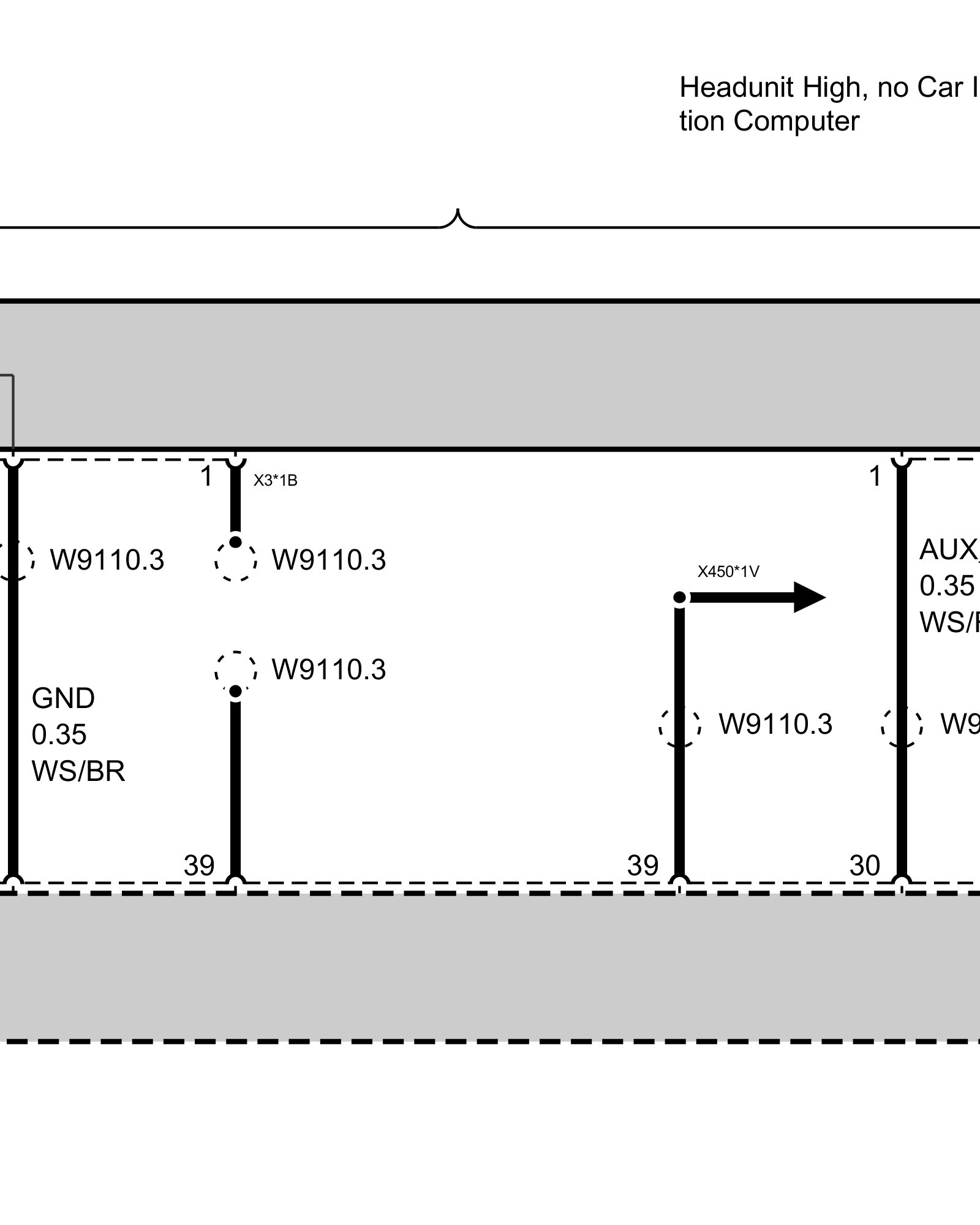

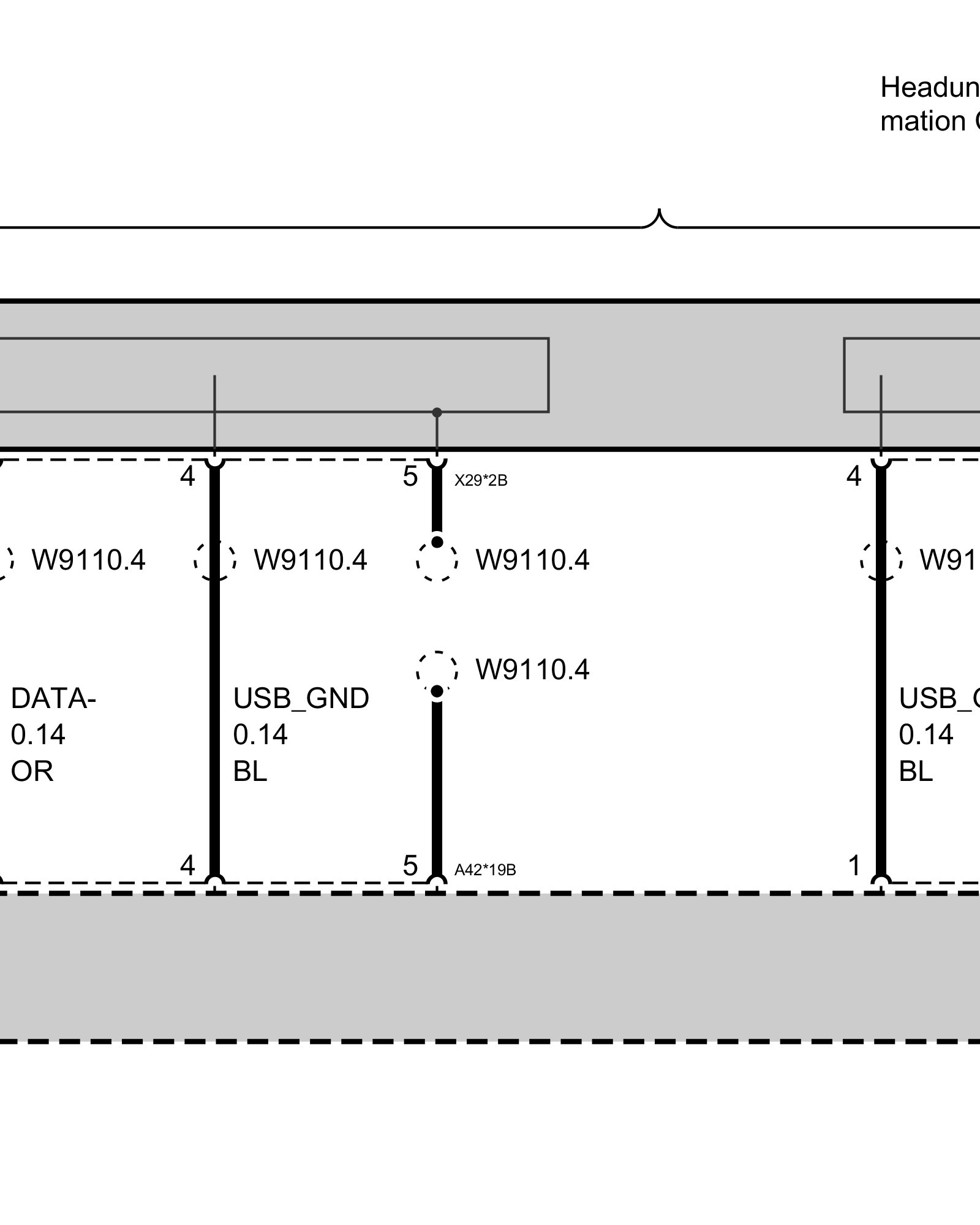

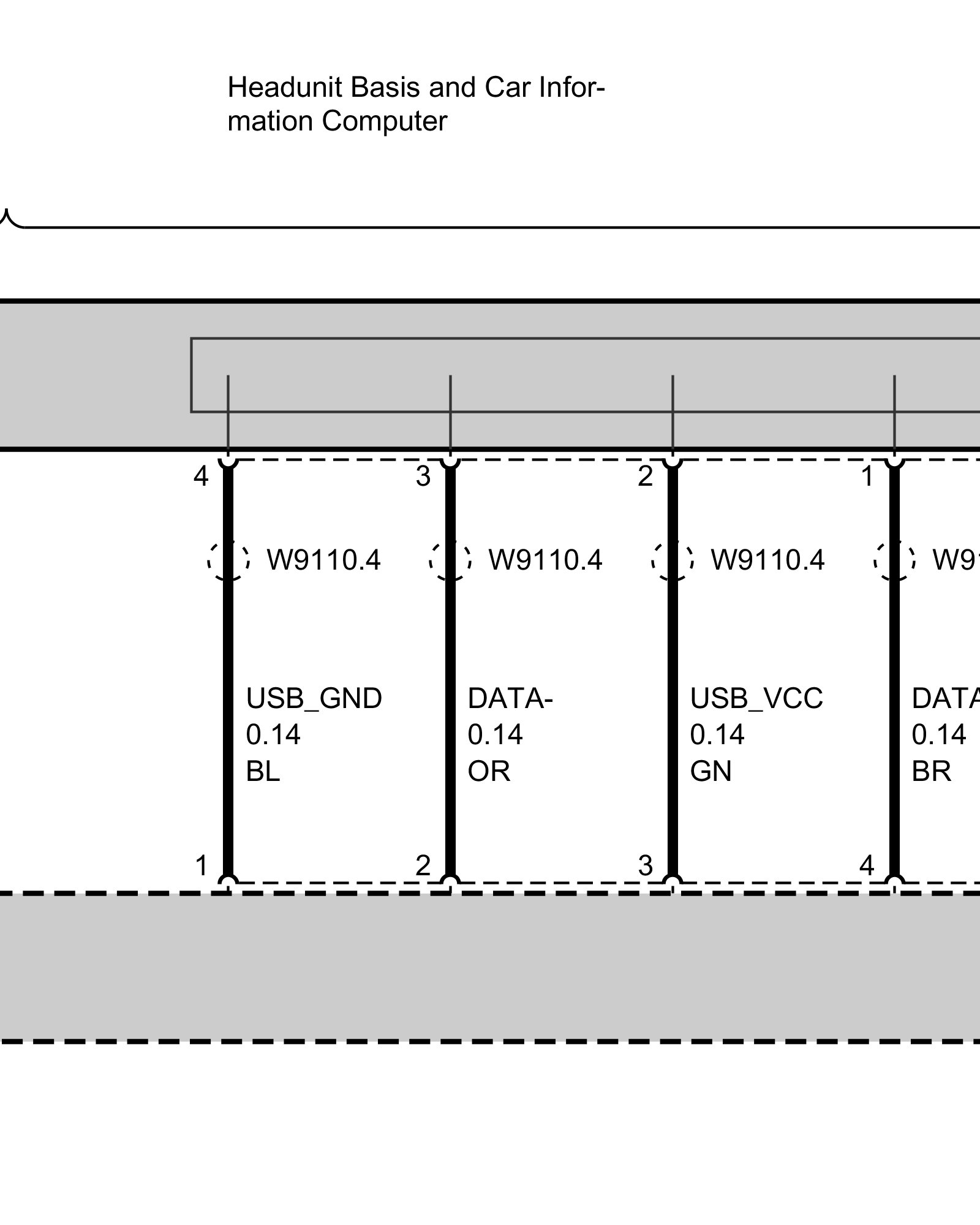

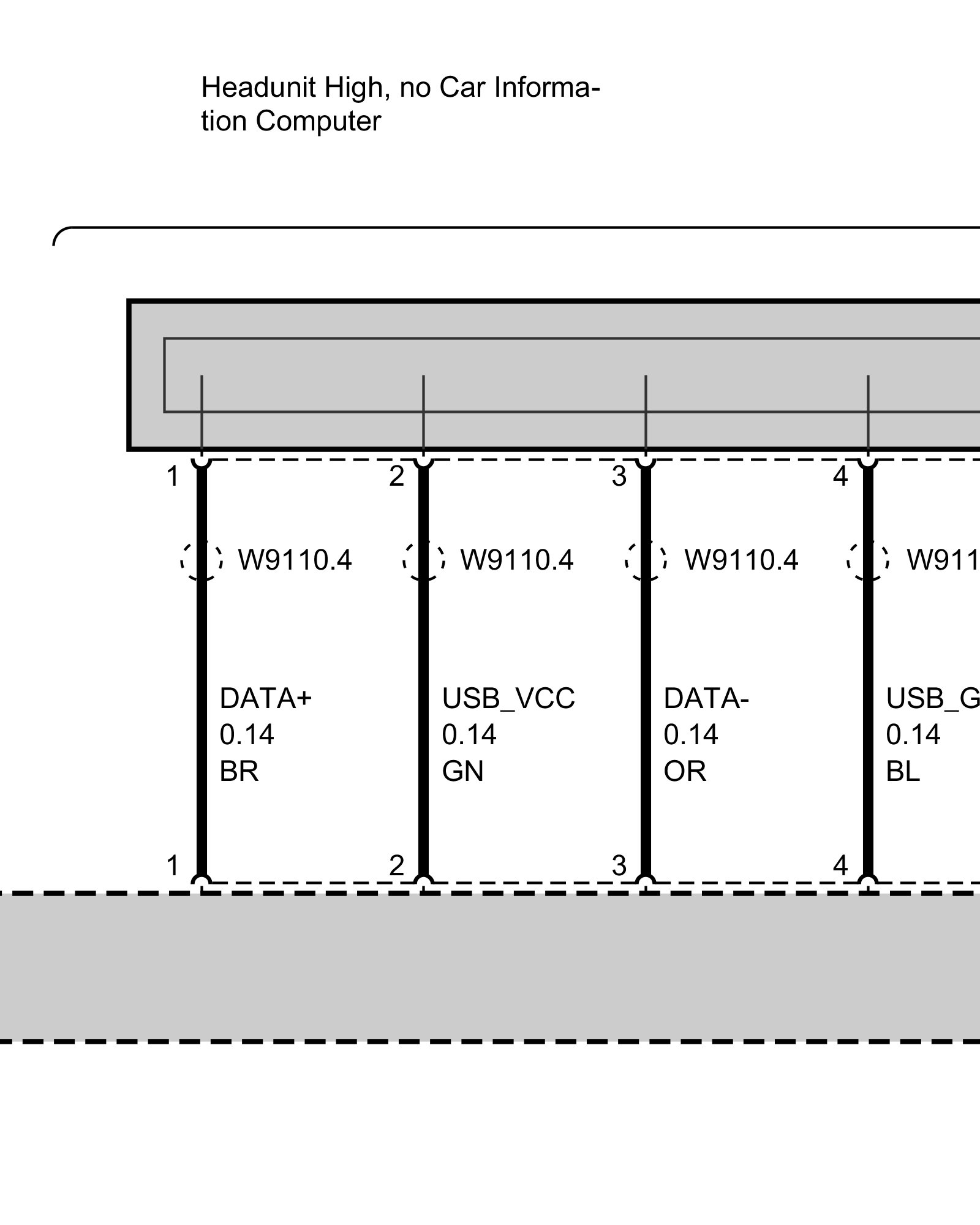

USB Connection, AUX-In Connection
USB Connection, AUX-In Connection
USB Connection, AUX-In Connection
