X3 xDrive 28i (F25) L6-3.0L (N52T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>

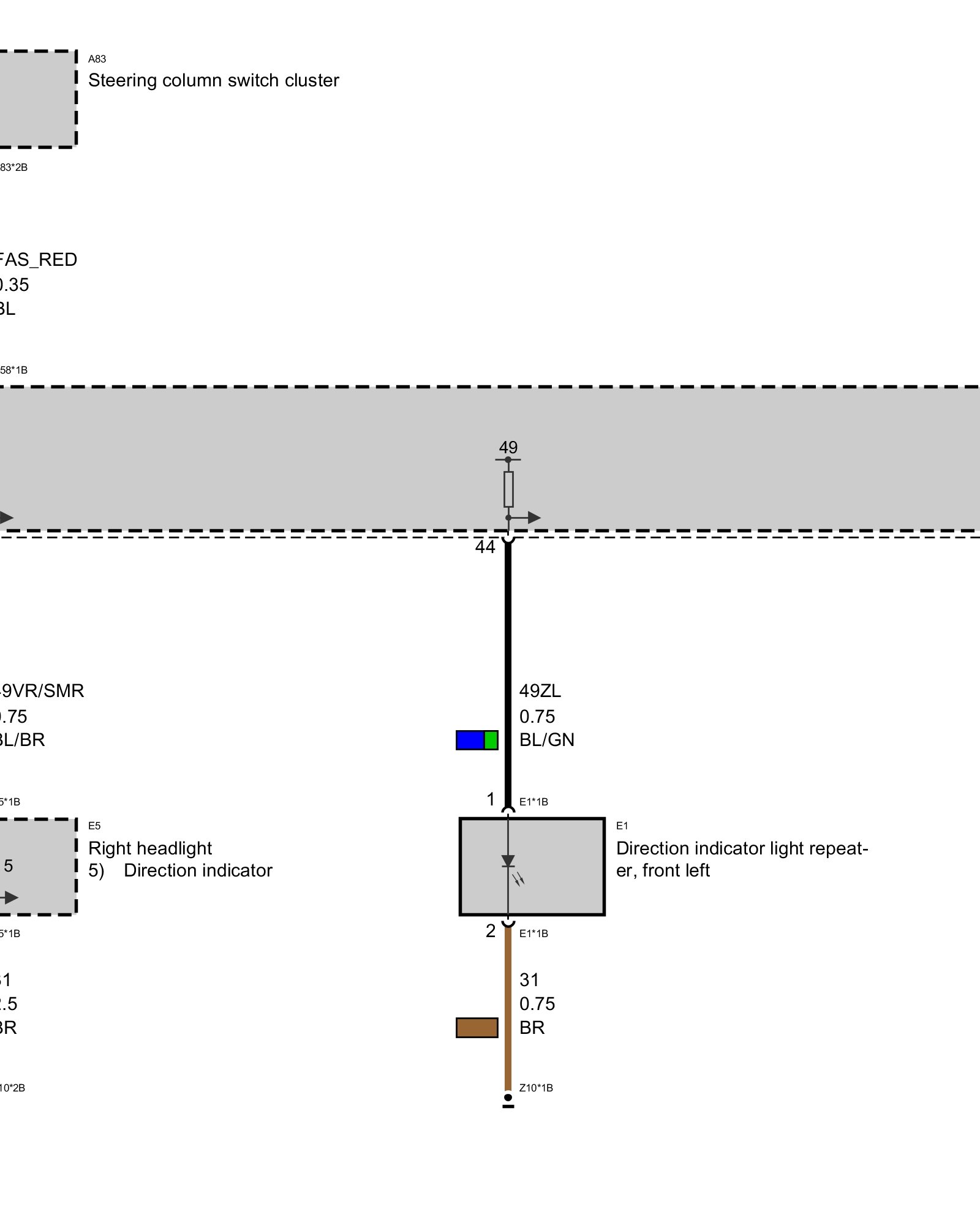

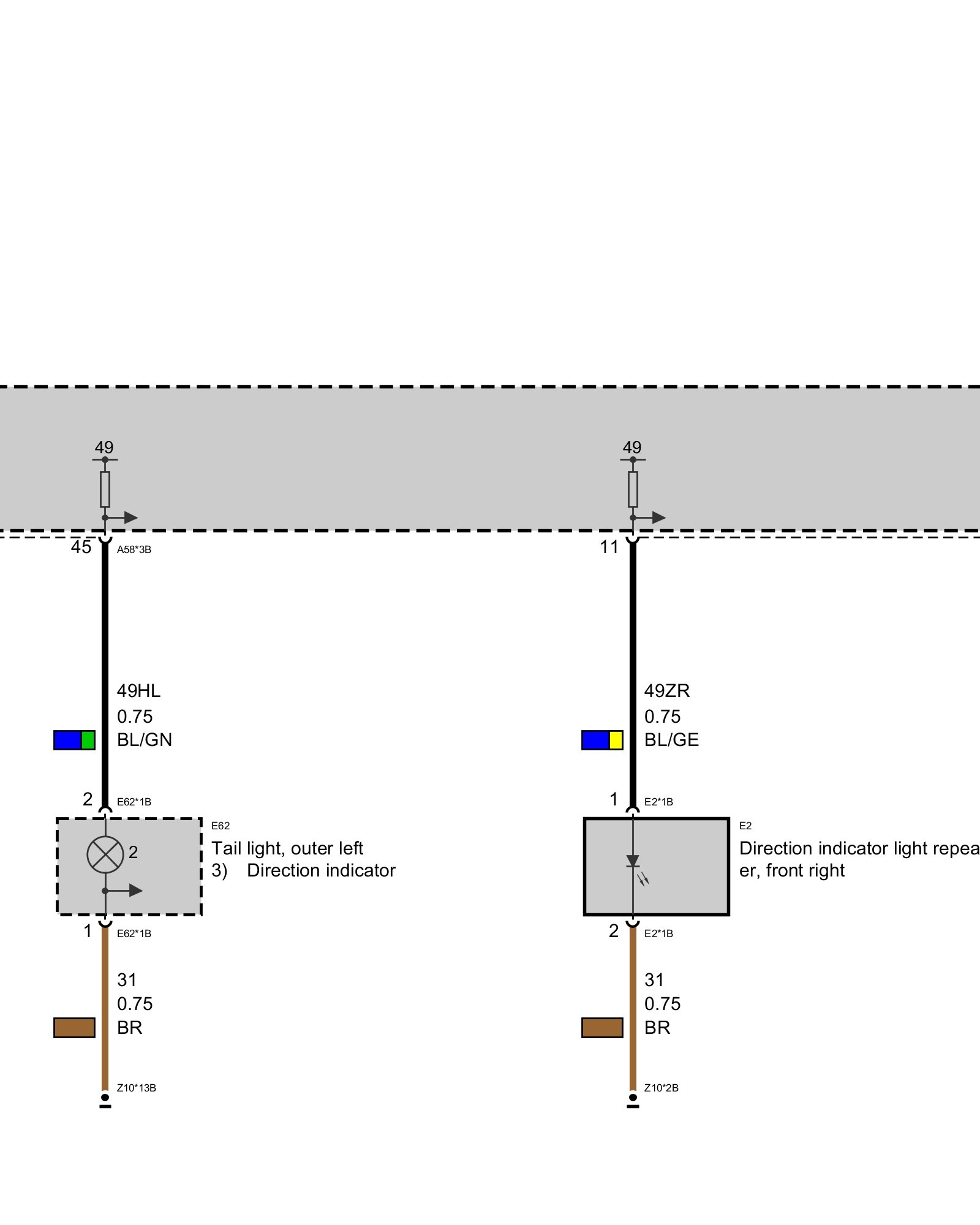

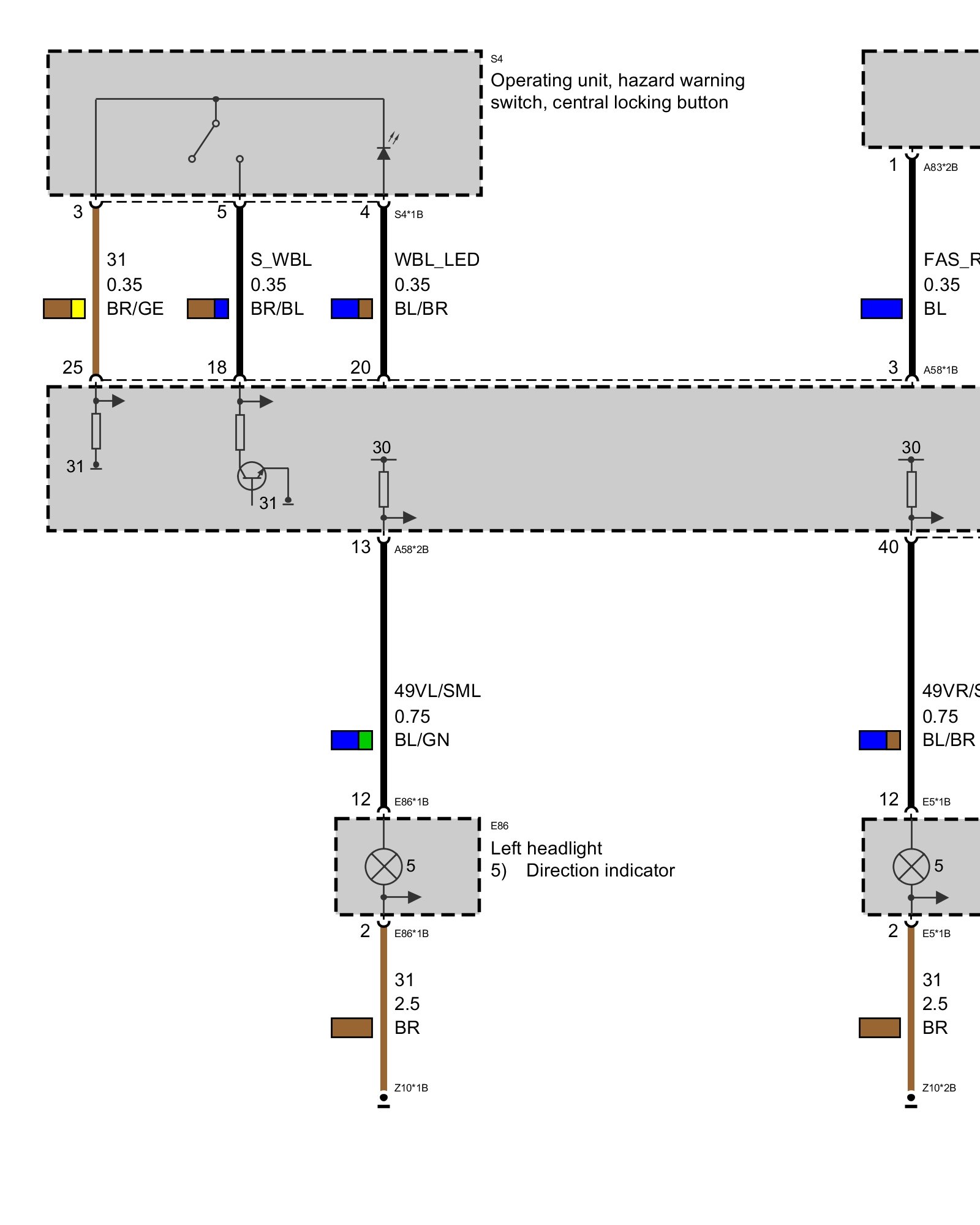

Flashing Indicator Lamp
Flashing Indicator Lamp
Flashing Indicator Lamp
