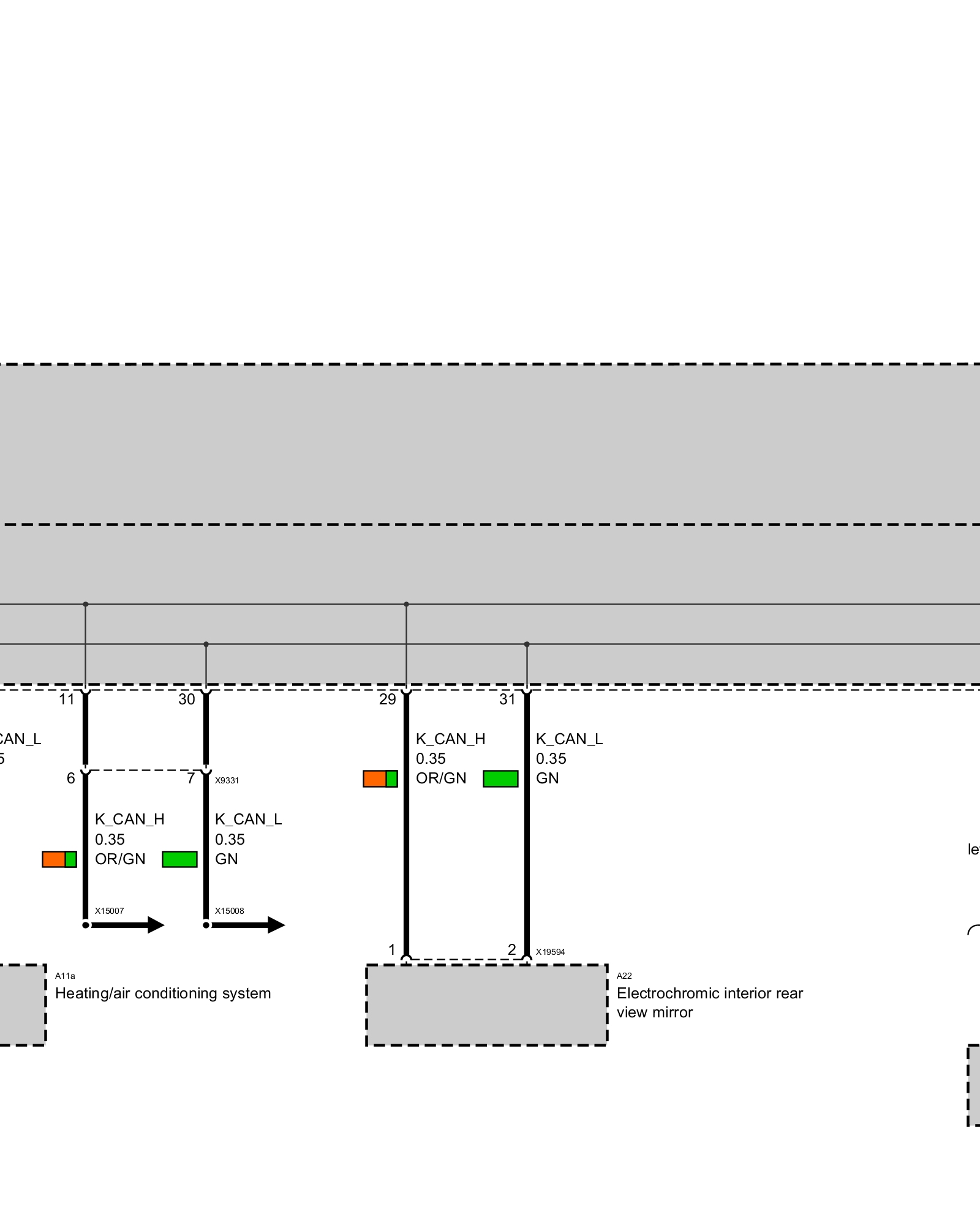

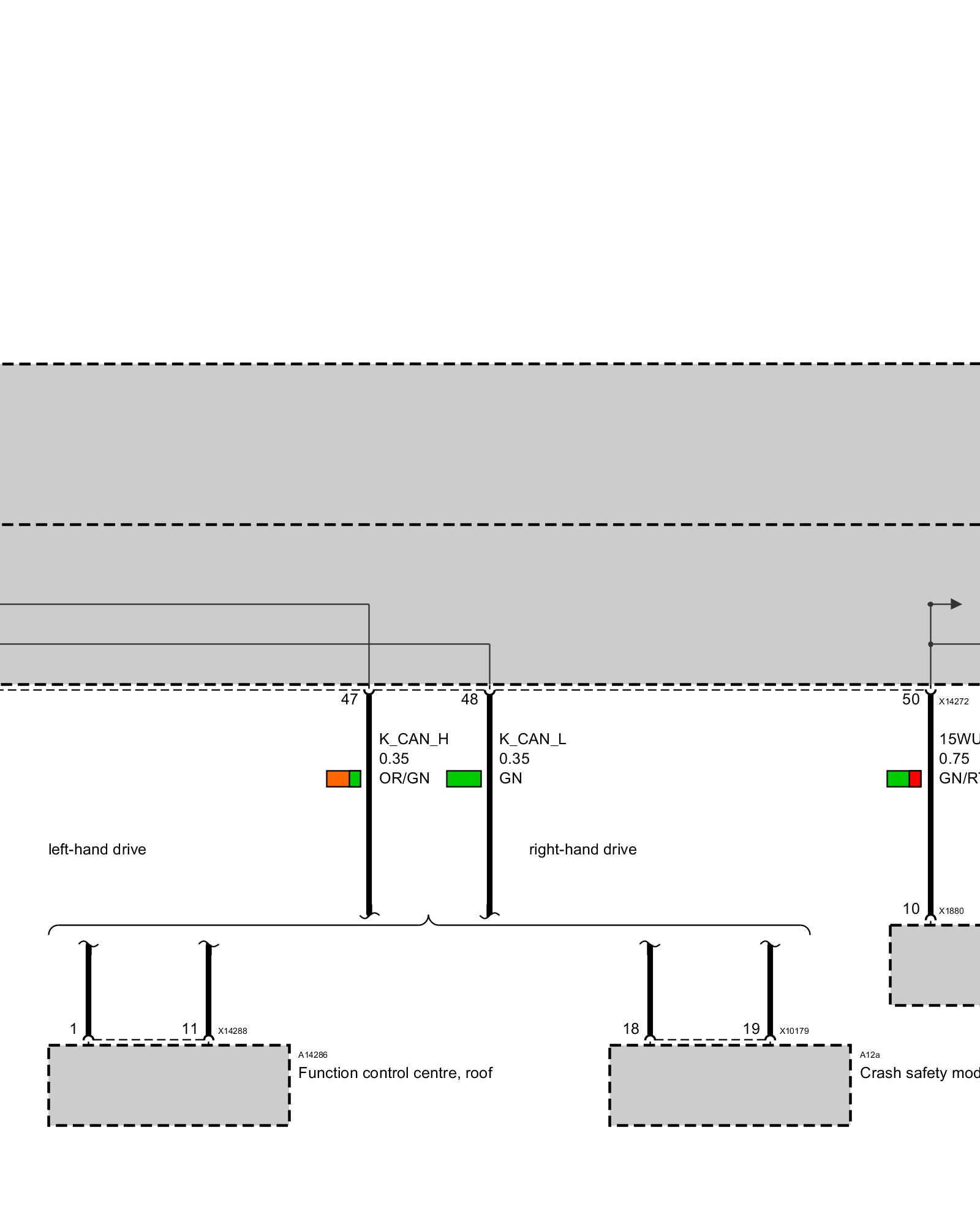

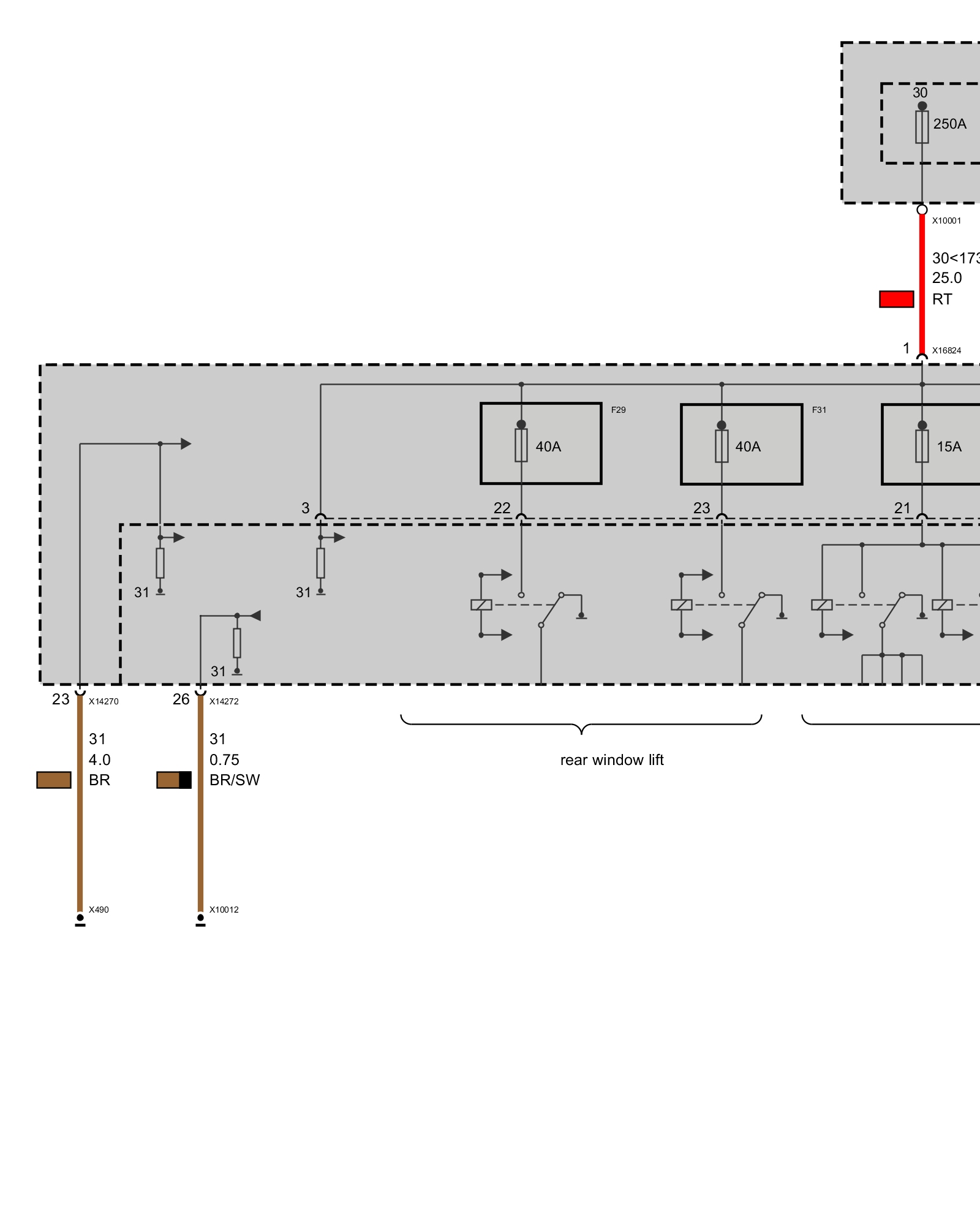

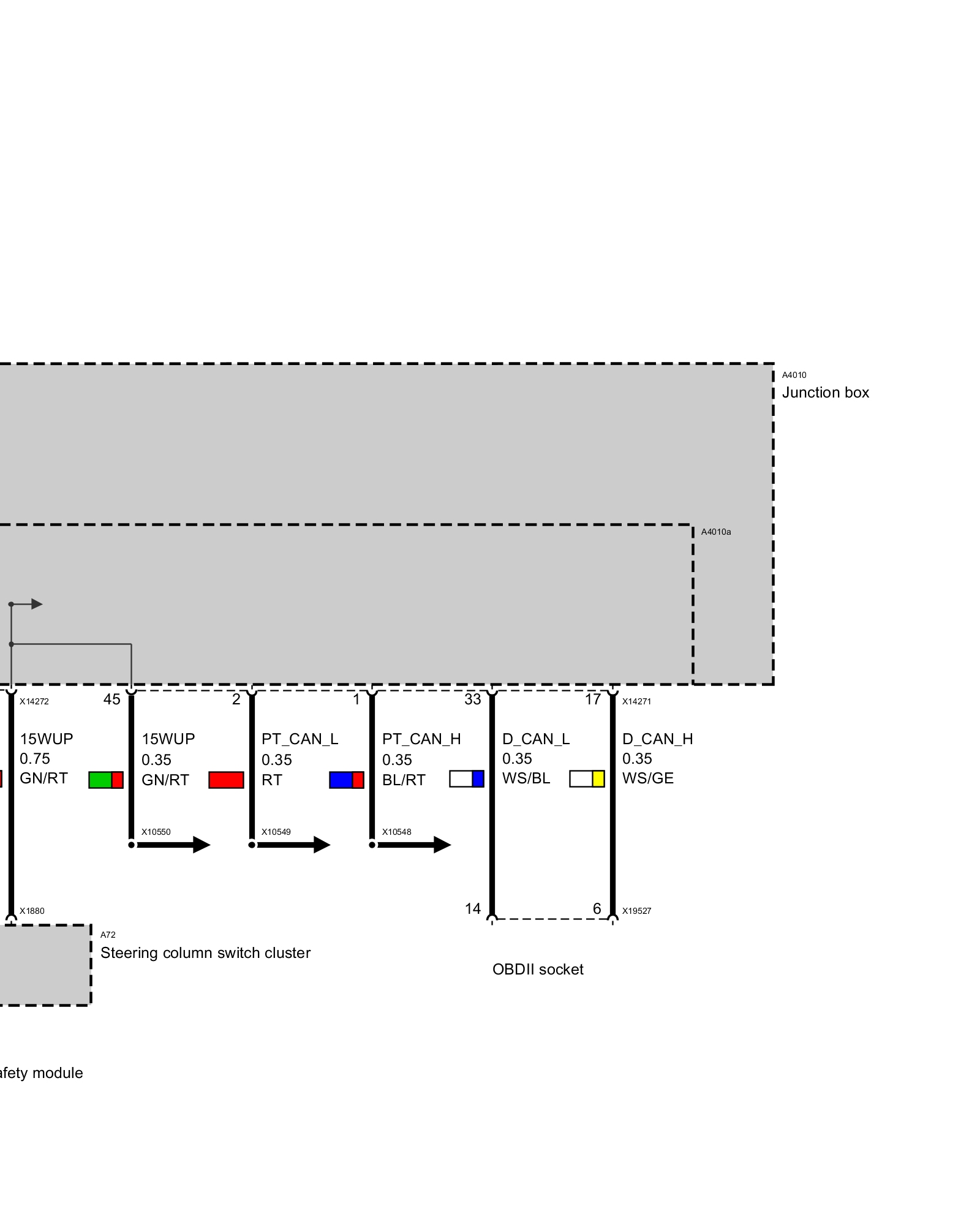

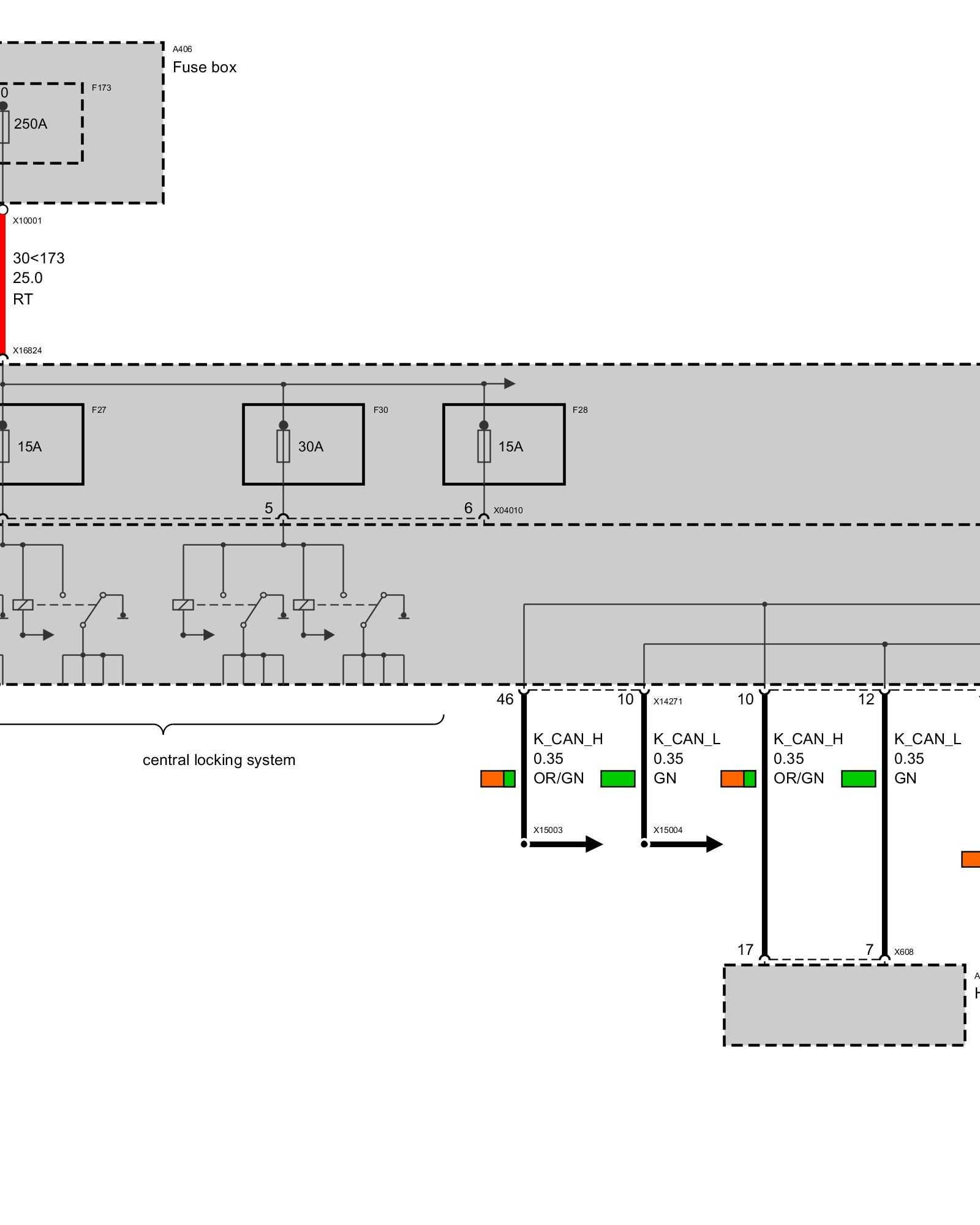

Power Supply, Junction Box Electronics (JBE)
Power Supply, Junction Box Electronics (JBE)
Power Supply JBE Junction Box, Electronics
