BMW
>>
2011
>>
X5 xDrive 35i (E70) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1...
>>

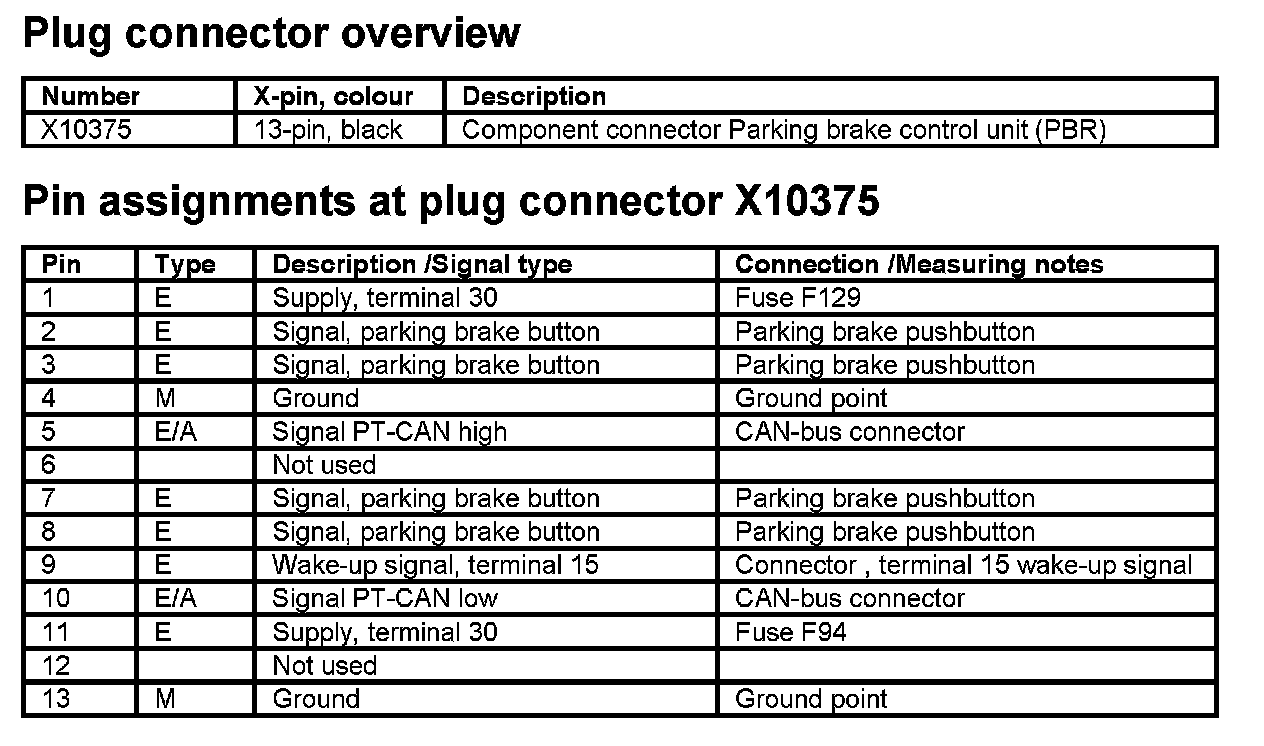

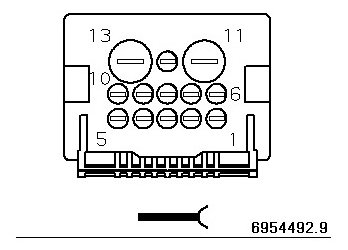

X10375
X10375
X10375
A164a Parking Brake Control Unit
