Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
X5 xDrive 35i (E70) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X2...
>>

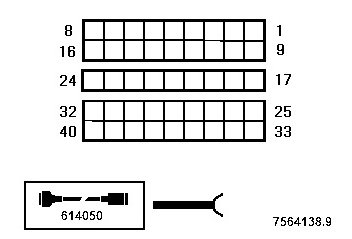

X20001
X20001
X20001
A2249 Digital Diesel Electronics
Control Unit
