Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
X5 xDrive 35i (E70) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Transmission Management 6HPTU
>>

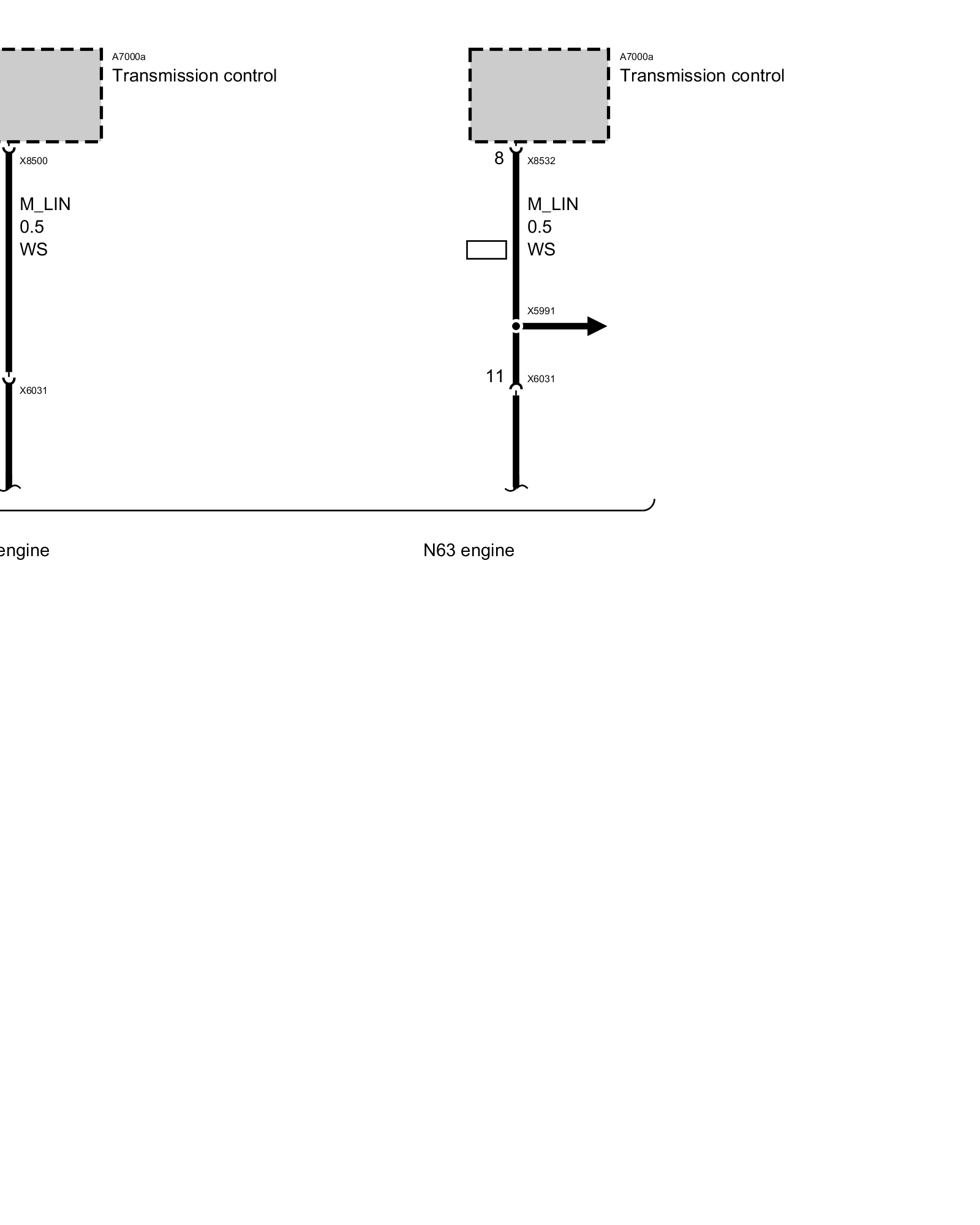

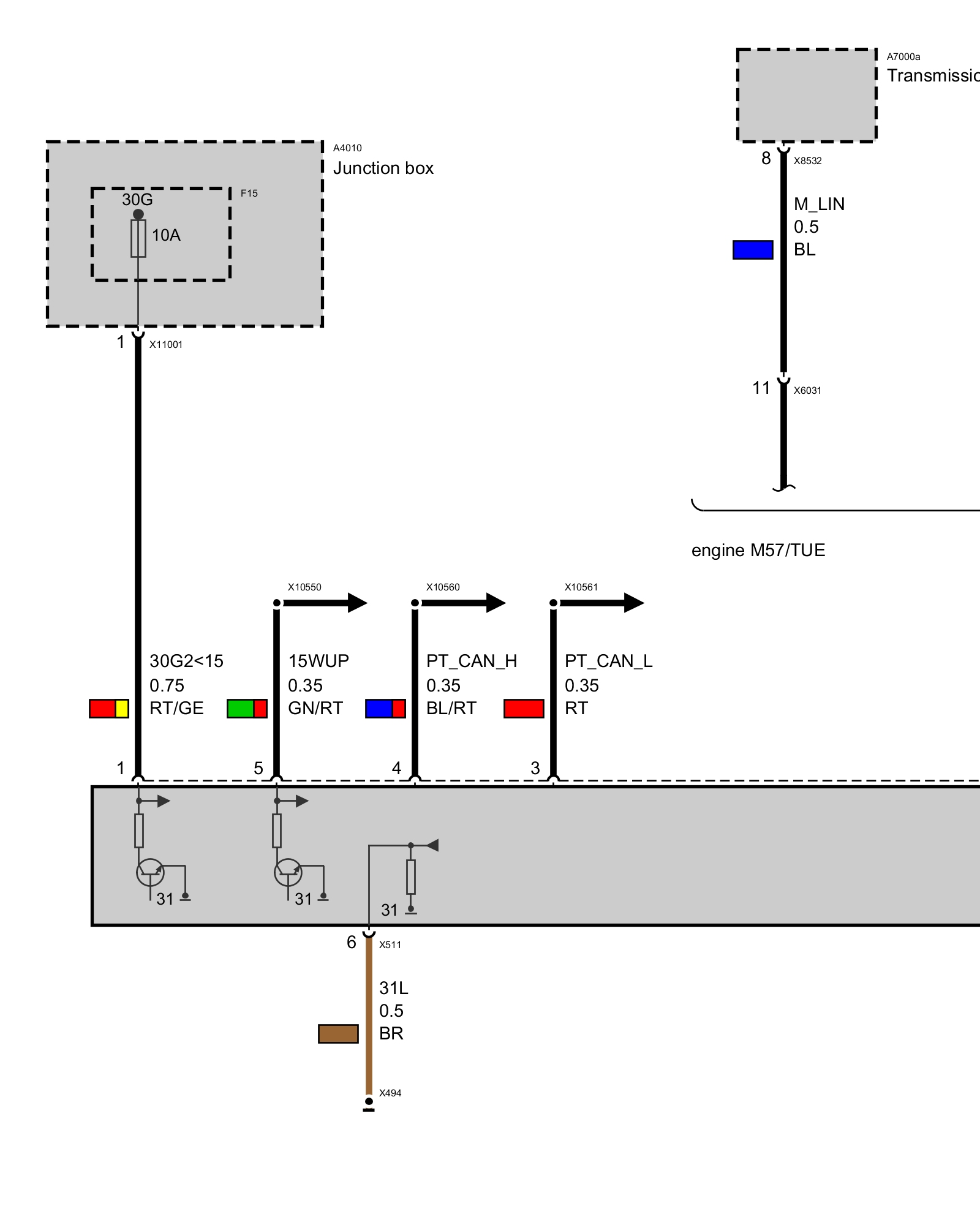

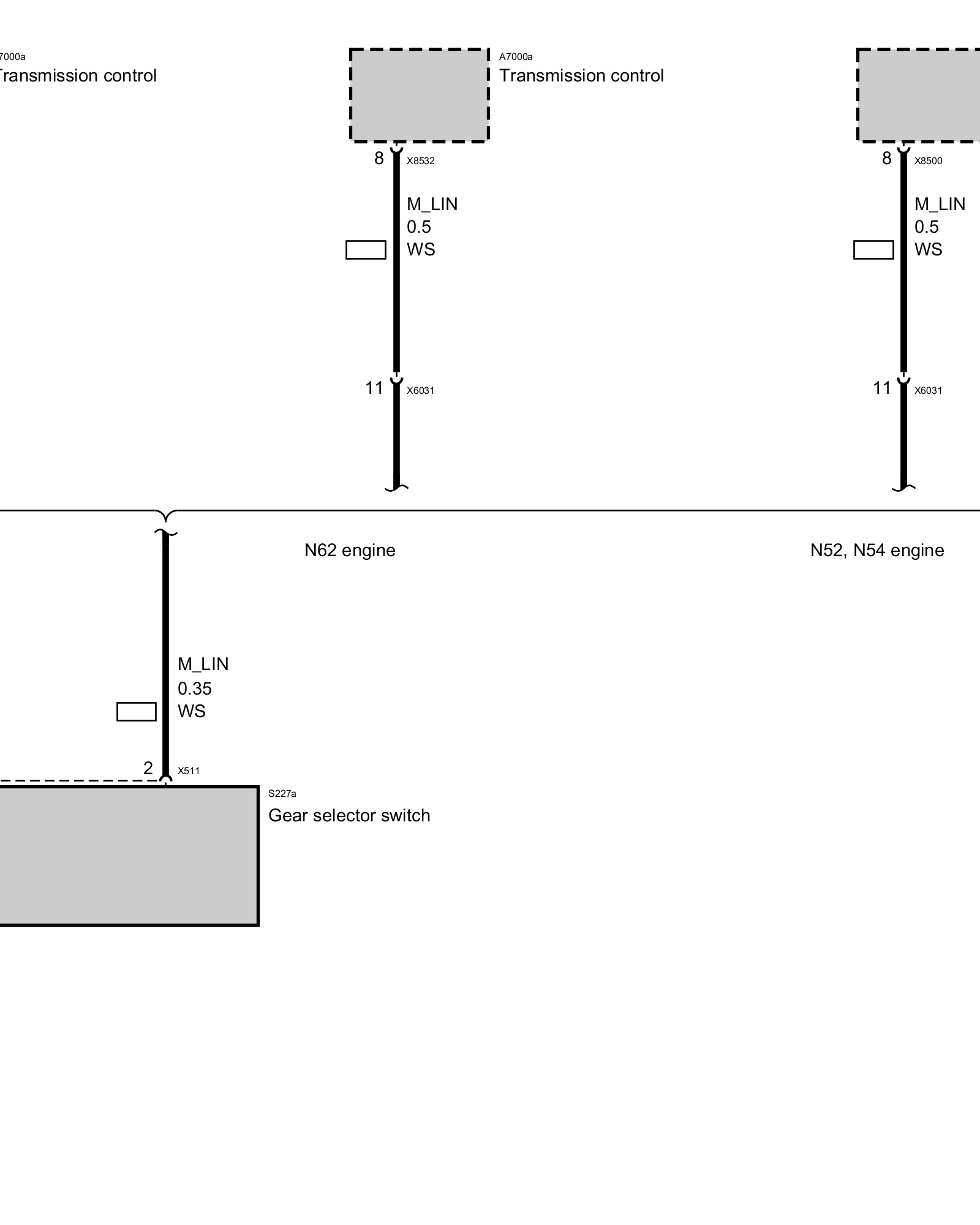

Gear Selector Switch
Gear Selector Switch
Gear Selector Switch
