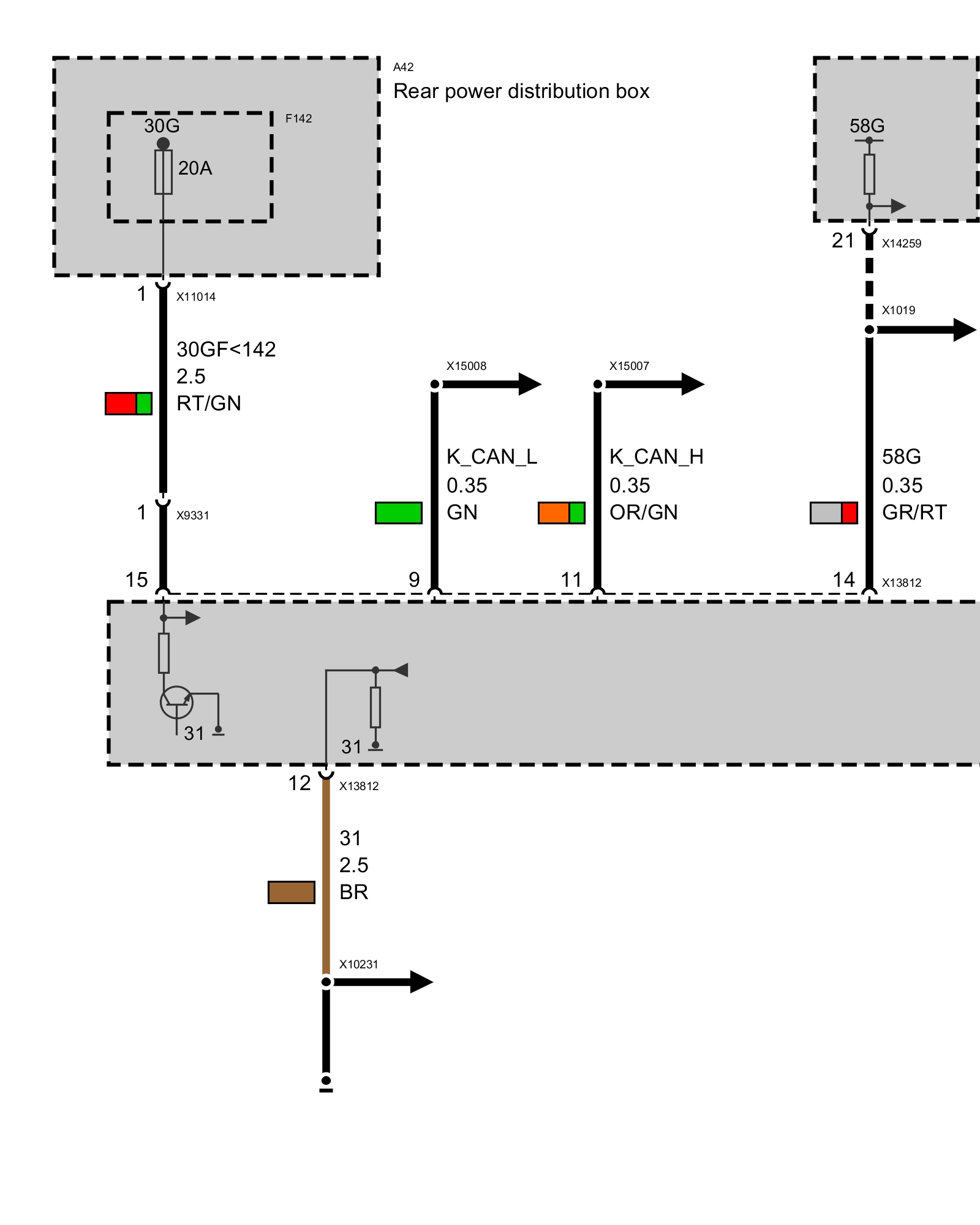

Power Supply, Car Information Computer (CIC)

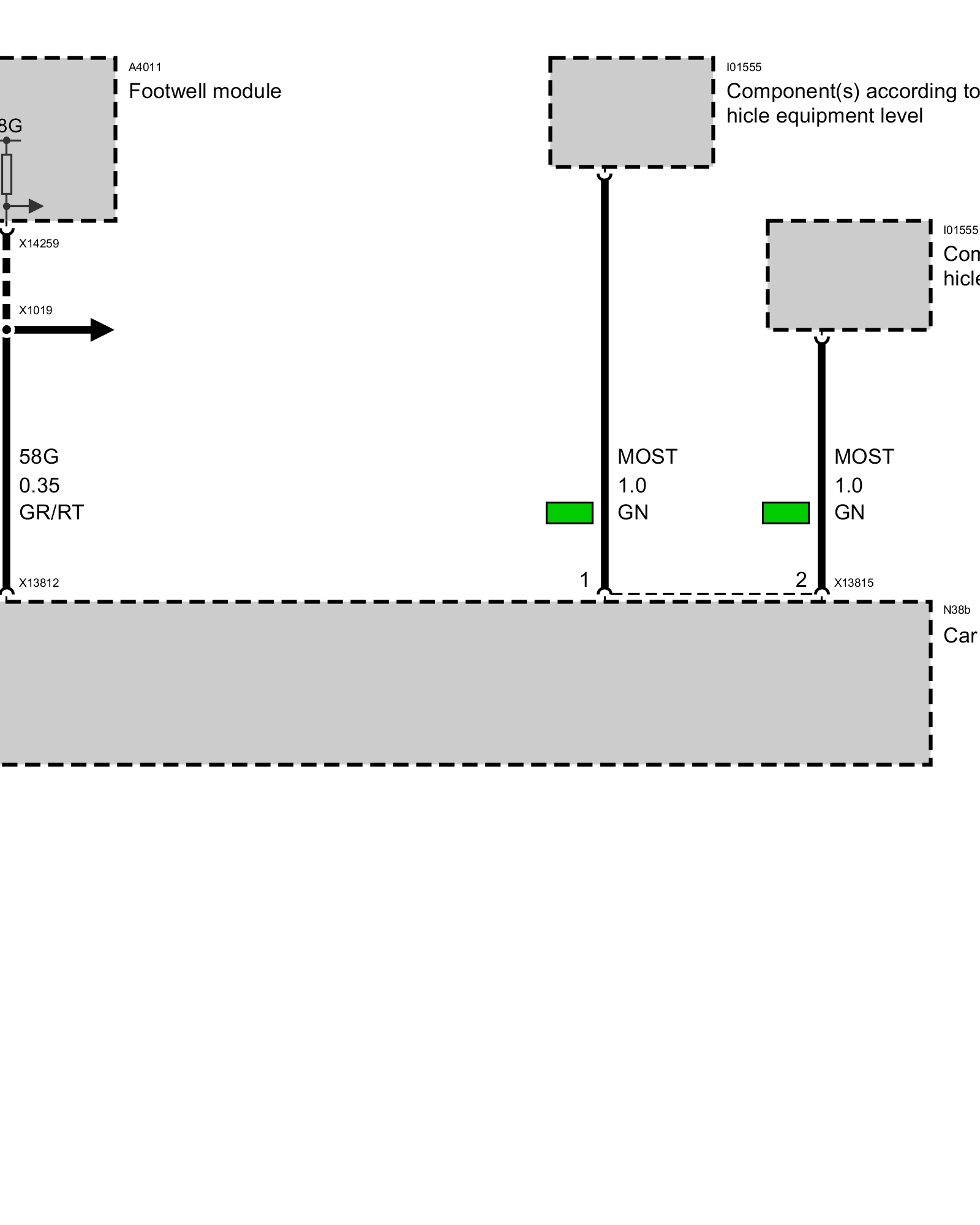

Power Supply, Car Information Computer (CIC)

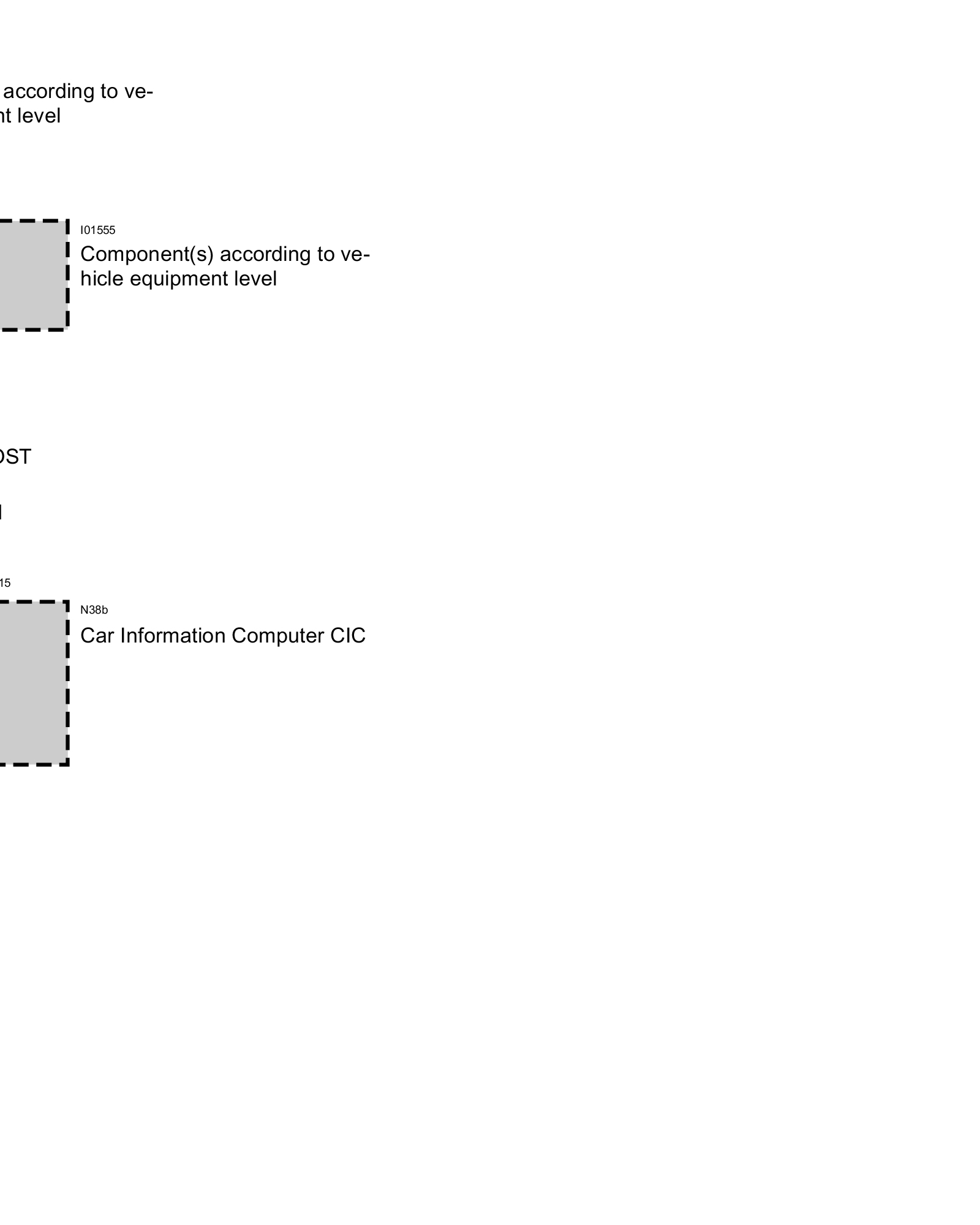

Power Supply, Car Information Computer (CIC)
