Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
X5 xDrive 35i (E70) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Differential Lock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

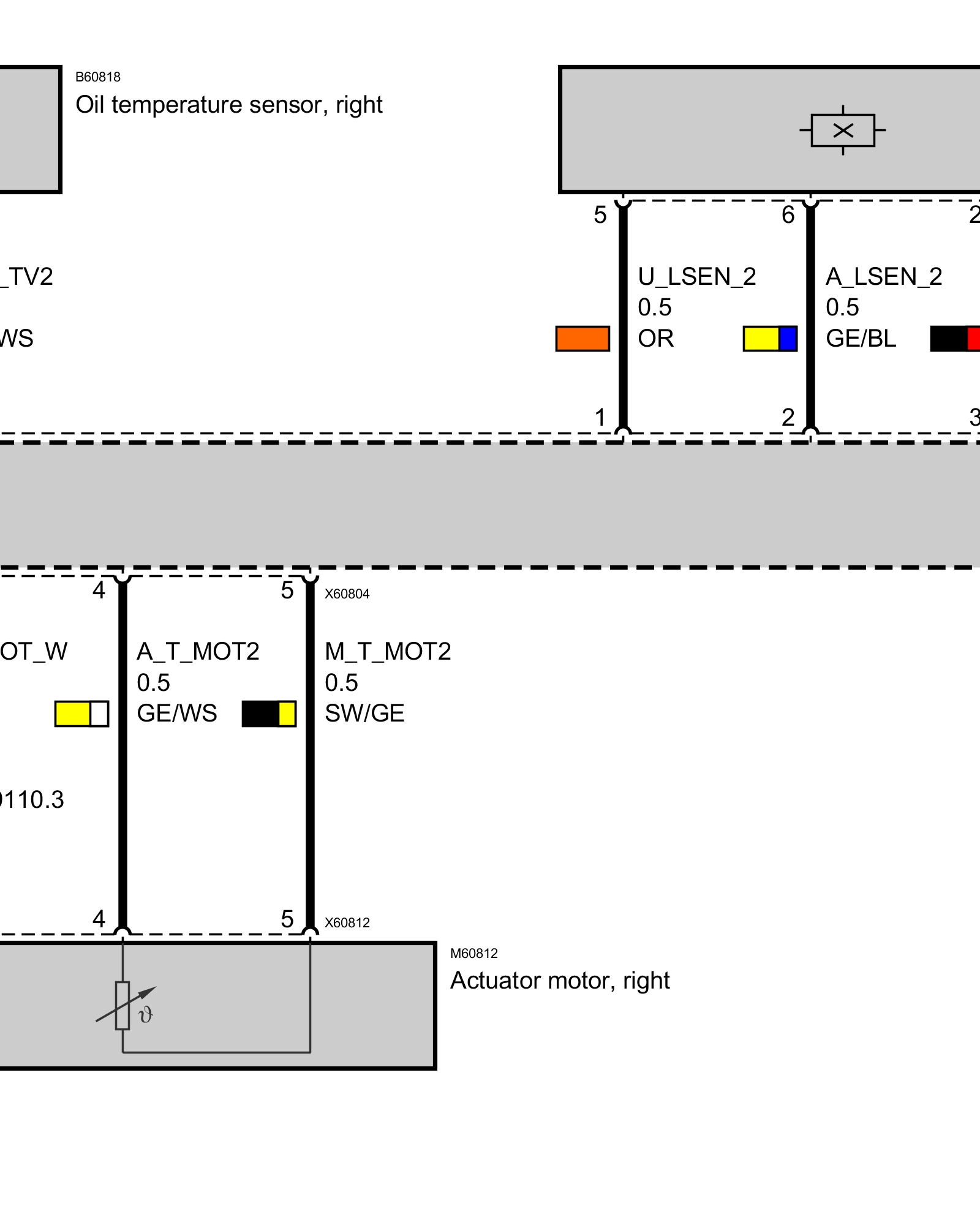

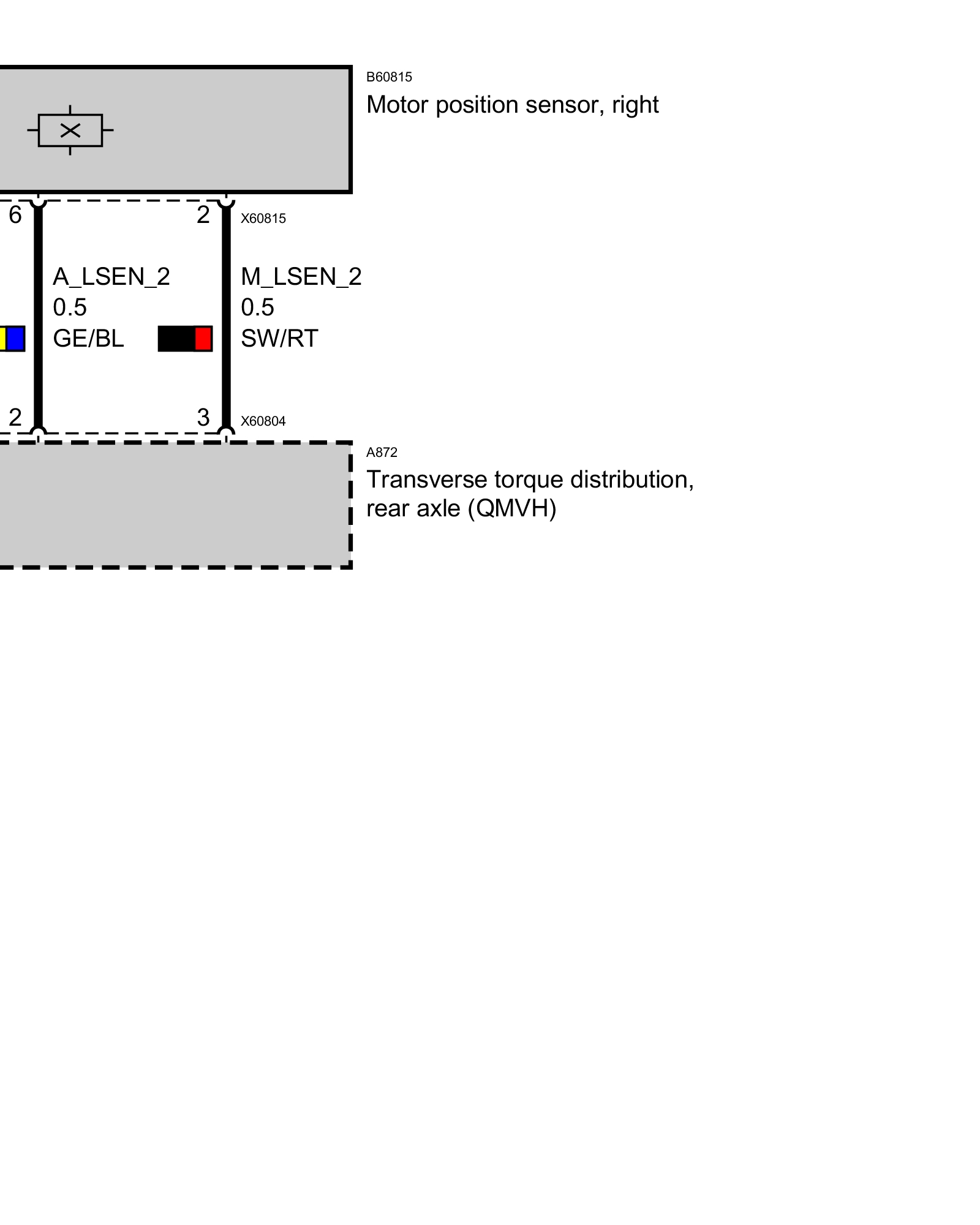

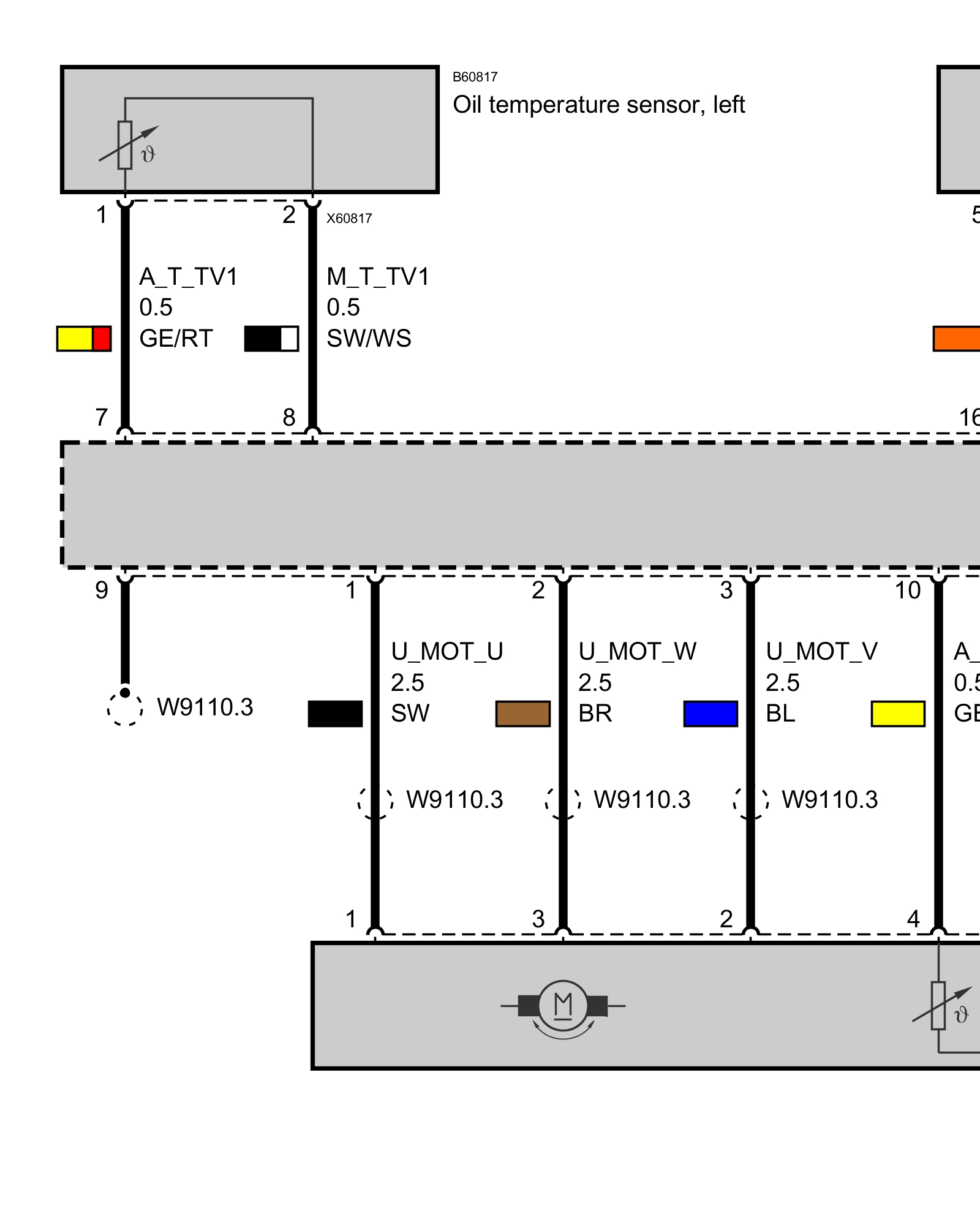

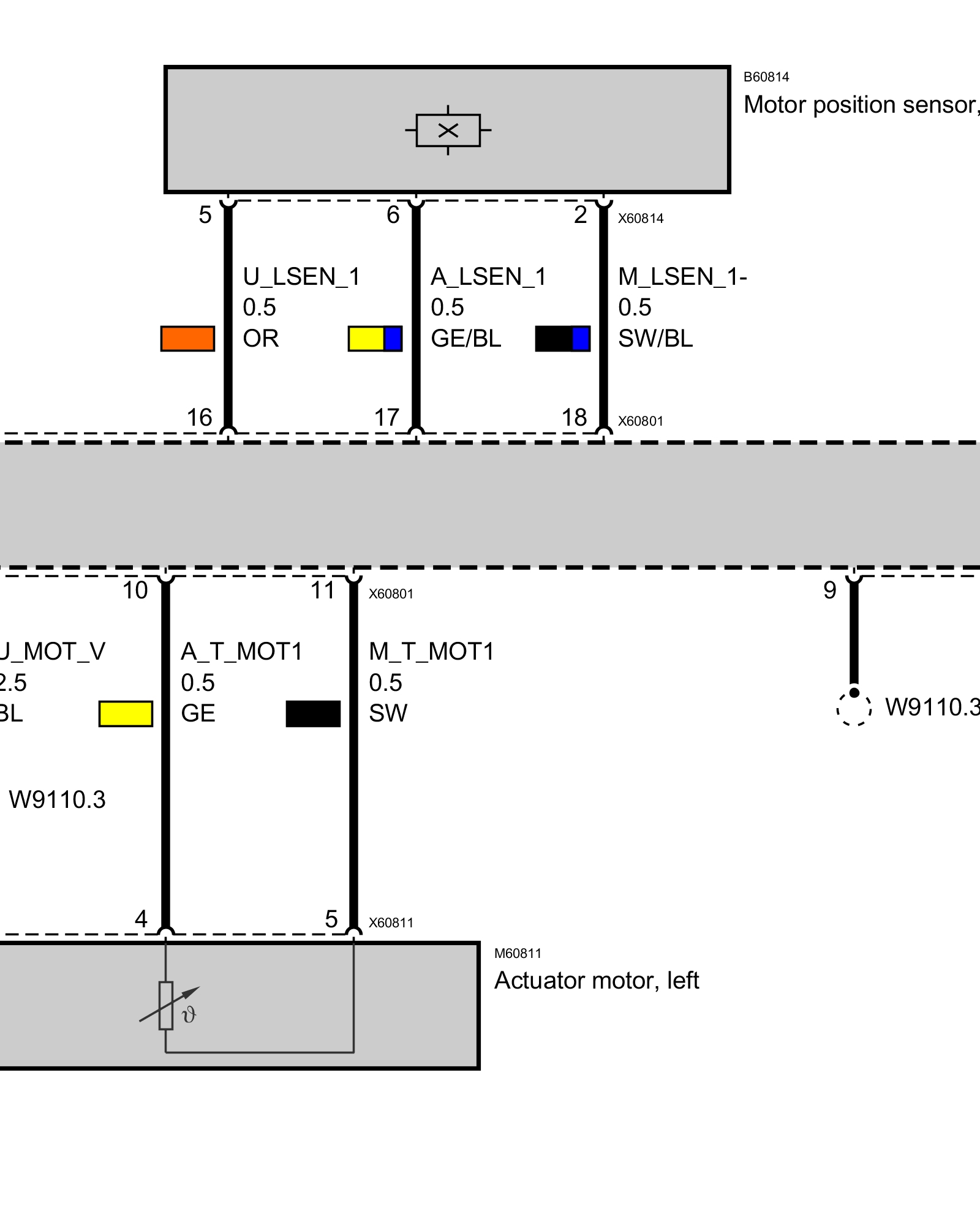

Transverse Moment Distribution, Rear Axle
