Diesel Data
: Automotive Repair
Home
>>
BMW
>>
2011
>>
X6 xDrive 35i (E71) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Diagrams
>>
Electrical Diagrams
>>

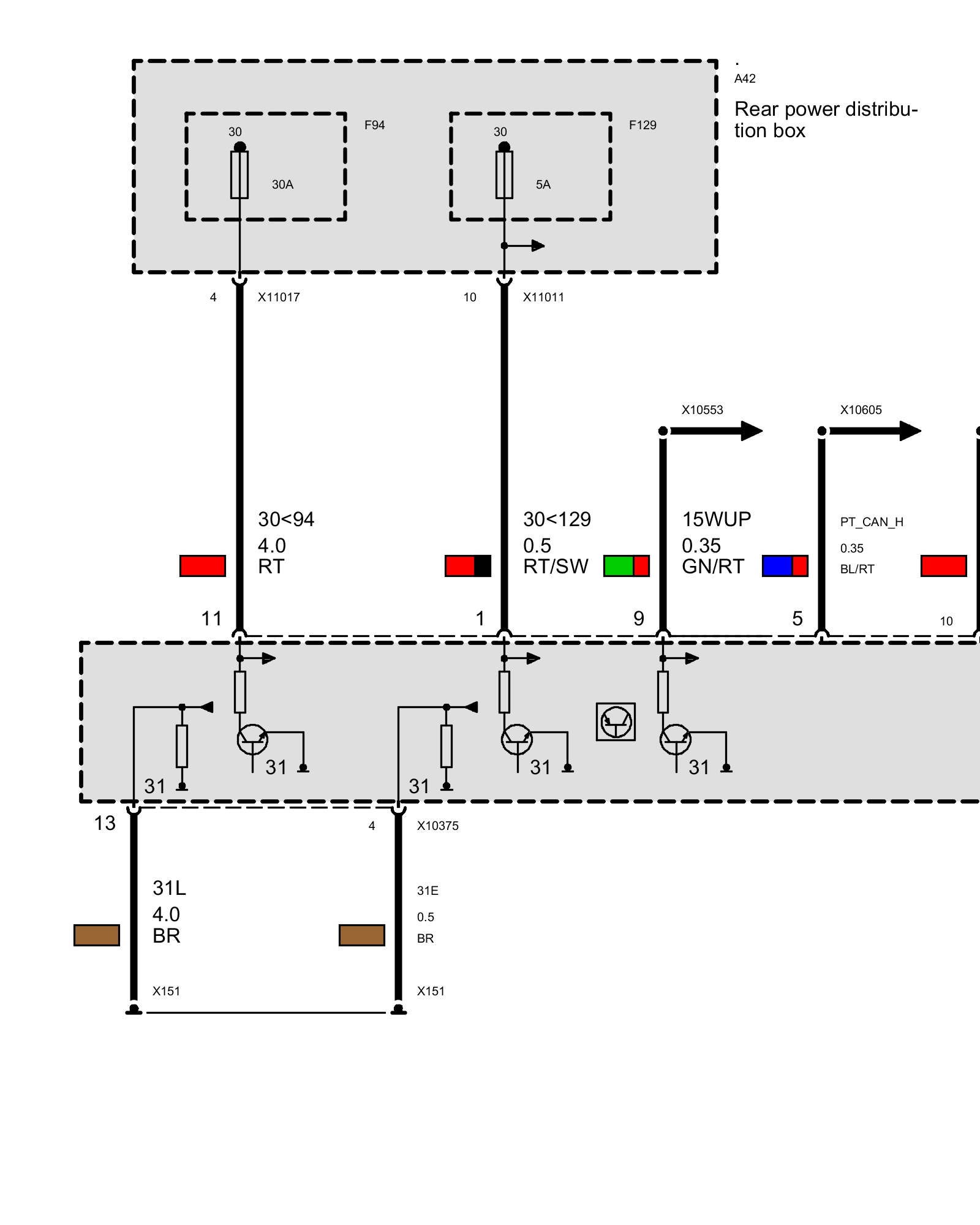

Supply, Parking Brake Control Unit
Supply, Parking Brake Control Unit
Supply, Parking Brake Control Unit
